1080p USB Conference Camera with Microphone

Configure the Perfect Solution
Get Started

Overview

If you’re a student or remote worker looking for a high-quality camera for incredible value, the BG-UC-MHD is a great choice. This camera offers full HD recording equipped with a low-distortion wide-angle FOV. With an omnidirectional microphone, you’ll be able to capture sound from every part of the room. The compact size of the device and its mounting system means that it can go anywhere, anytime, whether it be mounted to your desktop, monitor, tripod, or wall mount, or even in your backpack for travel.

Camera & Output

The BG-UC-MHD conference camera can capture images at a crystal clear 1080p@30Hz resolution powered by a high-quality HD CMOS sensor. A 3.24 mm lens enables an 80° low-distortion wide viewing angle, enabling you to show more to your colleagues. An omnidirectional microphone enables you to make sure you’re heard without any extra equipment.

This device also offers a great degree of control over the image. The BG-UC-MHD supports auto-exposure adjustment, but the user can also manually adjust this. The brightness, color, saturation, and contrast can all be configured as well. Anti-flicker adjustment is also available.

Connectivity & Versatility

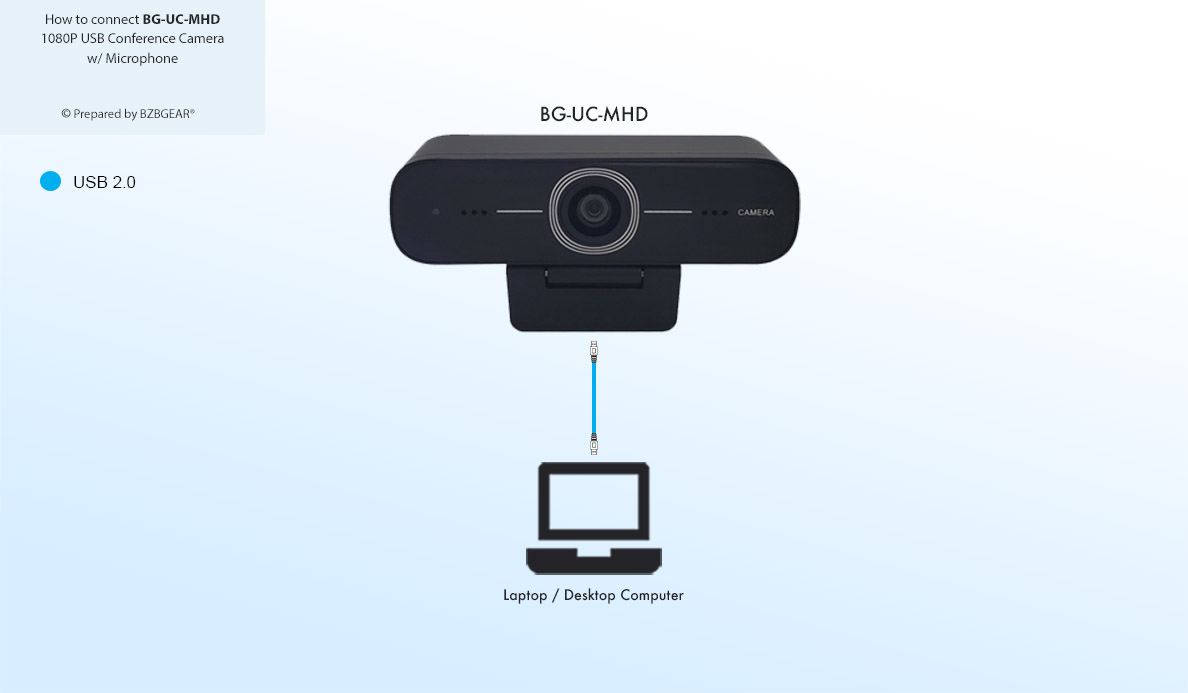

One of the best features about the BG-UC-MHD is its simplicity in connectivity. The webcam is ready for plug and play with a single USB 2.0 cable that provides power and data transfer in one connection.

Thanks to its versatile mounting system, the webcam can be mounted just about anywhere, whether it’s a TV, monitor, desktop, laptop, wall bracket, or even directly onto your desk. The camera is also small enough to be portable, enabling you to take it wherever you go. This makes this webcam a great option for remote workers who change locations periodically, or for students who work across campus.

Features

  • Wide-Angle 1
    Wide Angle
    80° low-distortion lens
  • Plug-and-Play Setup
    USB 2.0
    Plug and Play functionality
  • material-symbols_auto-detect-voice
    Built-in Microphone
    No extra equipment needed
  • badge-Full-hd | 1080P HD
    Crystal Clear Image
    1080p@30Hz resolution
  • mounts-icon
    Integrated Mount
    Easily mounts to desktops, monitors, or laptops
  • check-square 3
    Portable
    Easily fits in backpack or briefcase
  • Superb high-definition image
  • Small form factor
  • High quality HD CMOS sensor
  • Multiple video compression options
  • Anti-flicker adjustment available
  • Adjust brightness, color, saturation, and contrast
  • Simple to connect and operate
  • Signal to noise ratio >50dB
  • Fixed focus and aperture

Compatible with:

Tech Specifications

Camera Parameters
Sensor High quality HD CMOS sensor
Effective Pixels 16:9  2.07MP
Video Format 1920x1080@30Hz/25Hz; 1600×896 @ 30Hz/25Hz; 1280×720 @ 30Hz/25Hz; 1024×576 @ 30Hz/25Hz; 960×540 @ 30Hz/25Hz; 800×600 @ 30Hz/25Hz; 800×448 @ 30Hz/25Hz; 720×576 @ 30Hz/25Hz; 720×480 @ 30Hz/25Hz; 640×480 @ 30Hz/25Hz; 640×360 @ 30Hz/25Hz; 480×270 @ 30Hz/25Hz; 320×240 @ 30Hz/25Hz; 352×288 @ 30Hz/25Hz; 320×180 @ 30Hz/25Hz
View angle (default) 88° (D) / 80° (H) / 50°(V)
Focal length (default) 3.24mm
Focus Fixed
Aperture Fixed
Backlight contrast On/OFF
Minimum illumination 0.5 Lux (F1.8, AGC ON)
Exposure Exposure parameter could be adjusted; support auto exposure
Video Adjustment Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation etc.
SNR >50dB
Input/Output Interface
Video Interfaces USB 2.0 (power supply, upgrading available)
Video Compression Format MJPEG, YUV, H.264, H.265
Audio Input Interface Built in omnidirectional high sensitive digital pickup
Other Parameter
Input Voltage 5V
Input Current 500mA (Max.)
Power consumption 2.5W
Store Temperature,Humidity 14° ~ 140°F / -10°C ~ +60°C, 20%~95%
Working Temperature,Humidity 14° ~ 122°F / -10°C ~ +50°C, 20%~80%
Dimension(WXHXD) 4.0in x 1.8in x 1.2in [102mm x 46mm x 30mm]
Weight (appx.) 0.33lbs [0.15kg]
Working Environment Indoor Only
