1x4 4K UHD HDMI Splitter/Distribution Amplifier up to 230ft over Category Cable w/ IR/RS232 and Audio De-embedding

Configure the Perfect Solution
Get Started

Overview

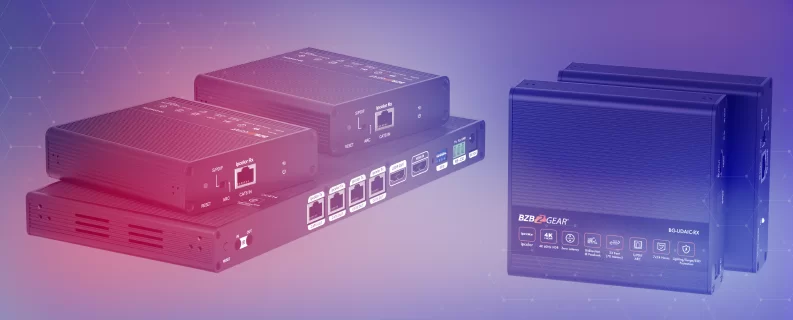

The BG-UDAIC-E14 by BZBGEAR is a high-performance extender/splitter kit that enables users to distribute one HDMI input to up to four extender outputs and extend signals up to 70 meters (230 feet) with CAT 6/6A/7 network cables. This solution is ideal for transmitting audio and video signals from a source located at a remote distance, providing reliable and zero-latency connectivity without compromising on quality.

The BG-UDAIC-E14 supports resolutions up to 4K@60Hz, delivering stunning visuals with uncompromising clarity and precision. The extender/splitter kit offers zero-latency transmission, ensuring that audio and video sync perfectly without any noticeable delay. Using a wired connection for this purpose guarantees higher and more consistent image quality, making it ideal for professional applications where quality is paramount.

Moreover, the receivers can output digital audio from the display (ARC) or from the source device via the S/PDIF port. HDMI loop out is also available, allowing users to connect local displays or scale the system effortlessly and conveniently.

The extender/splitter kit offers bi-directional IR passthrough via IR blaster and IR receivers, enabling users to control equipment regardless of distances or obstacles. EDID passthrough and manual EDID setup with a dip-switches is available ensuring correct image resolutions. RS-232 passthrough is also supported, providing easy integration with automation and control systems.

Overall, the BG-UDAIC-E14 is a robust and reliable extender/splitter kit that delivers outstanding performance and flexibility for distributing high-quality HDMI signals over long distances. It is an ideal solution for a wide range of applications, including home entertainment, digital signage, hospitality, and education.

Features

  • bi_badge-4k
    Crystal Clear Images
    Supports resolutions up to 4K@60Hz
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    ARC
    Audio Return Channel support
  • solar_remote-controller-2-linear
    Control
    Bi-Directional IR Passthrough
  • Wide-Angle 2
    Long Range
    Transmit 4K HDMI signals up to 70m via CAT 6/6A/7
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • bi_soundwave
    Audio De-Embedding
    Digital audio provided via TOSLINK connector on receiver
  • Zero latency transmission
  • Split and extend 1 HDMI input signal to 4 HDMI outputs
  • 1 HDMI loop out for local displays
  • EDID passthrough or manual configuration of EDID
  • RS-232 command control
  • Surge, lightning, and ESD protection

Videos

Split up to 8 BZBGEAR Super Long-range 4K HDMI Splitters Comparison
Split up to 8 BZBGEAR Super Long-range 4K HDMI Splitters Comparison
Send a 4K UHD Source to Eight Outputs 230ft Away!  | BG-UDAIC-E18
Send a 4K UHD Source to Eight Outputs 230ft Away! | BG-UDAIC-E18

Tech Specifications

Transmission protocol ipcolor
Distribution mode 1 IN 4 OUT
Transmission distance CAT6/6A/7 ≤ 70m
HDMI signal HDMI 2.0, HDCP 2.2
HDMI Resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
1280x960, 1280x800, 1280x768, 1680x1050,
1360x768, 1366x768, 1600x900, 1024x768, 800x600,
3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
IR Bi-directional IR passback (20-60 kHz)
RS-232 3 pin: TxD-RxD-GND, follows RS-232 levels
Working temperature -4~140°F / -20~60°C
Storage temperature -22~158°F / -30~70°C
Humidity (no condensation) 0~90% RH
Protection ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection
Power supply TX: DC 12V/2A
RX: DC 5V/2A
Power consumption TX<13W
RX<4W
Material Aluminum alloy material + crystal panel
Color Black
Weight TX: 1.4lbs [640g]
RX: 0.46lbs [210g]
Dimension TX: 9.7”(L) x 4.5”(W) x 0.9”(H) [264.00(L) x 104.00(W) x 23.50(H)mm]
RX: 4.2"(L) x 3.9"(W) x 1.0”(H) [106.0(L) x 99.0(W) x 26.2(H)mm]

PACKAGE CONTENTS

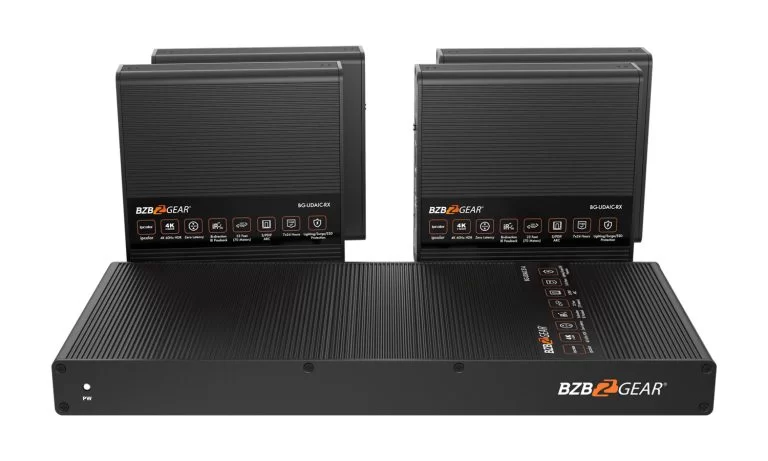

  • 1x HDMI Splitter Extender TX
  • 4x HDMI Splitter Extender RX
  • 1x User Manual
  • 1x DC12V/2A
  • 4x DC5V/2A
  • 1x Terminal Block (RS-232)
  • 1x IR Blaster Extension Cable
  • 4x IR Receiver Extension Cable
  • 20x Mounting Brackets
  • 40x Screw

Interfaces

Interfaces image
  1. Power indicator: The blue light will illuminate when powered on.
  2. Reset button: Restarts the device.
  3. IR in: Connects using an IR receiver extension cable.
  4. IR out: Connects using an IR blaster extension cable.
  5. RJ45 output port: Connect using Cat6/6A/7 network cables.
  6. HDMI Loop Out port: Connects to a local HDMI display device using an HDMI cable.
  7. HDMI input port: Connects to an HDMI source device using an HDMI cable.
  8. EDID DIP switch: Configure output resolution using the EDID DIP switch.
  9. RS-232 Port: Connects to an external device to control the transmitter.
  10. Power: Connects to the DC 12V/2A power adapter.
Interfaces image
  1. Reset button: Restarts the device.
  2. Audio switch: Choose the audio source (output from the S/PDIF port).
    S/PDIF: from the source device.
    ARC: from the TV (receiver end).
  3. RJ45 signal input: Connect Cat6/6A/7 network cables.
  4. Power/Signal indicator: When the device is powered on, the blue indicator light will be solid if the HDMI signal is detected. If the HDMI signal is not detected, the light will flash.
  5. Power: Connects to the DC5V/2A power adapter.
  6. S/PDIF output: Connects to an HDMI display device.
  7. HDMI output: Connects to an HDMI display device.
  8. IR in: Connect an IR receiver extension cable.
  9. IR out: Connect an IR blaster extension cable.
