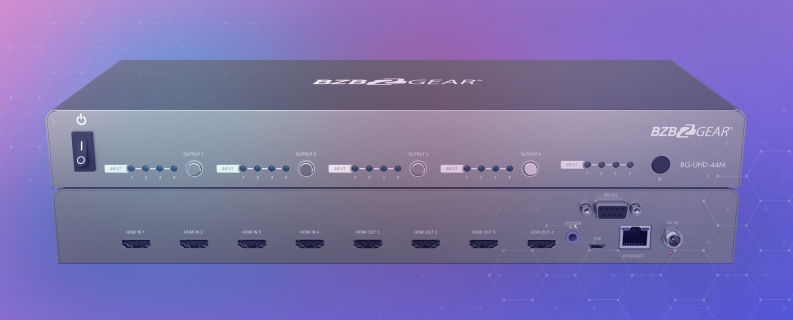

Overview
With four HDMI 2.0a inputs and four HDMI 2.0a outputs, the BG-UHD-44M 4K HDMI matrix switch allows users to share up to four HDMI sources with up to four displays. Perfect for when you need to change multiple sources to show on multiple displays or even select just one source to show on all displays with the press of a button. Professional-grade picture and audio quality are achieved with support for 4K resolutions and a variety of high quality audio formats.
Connectivity and Quality
The BG-UHD-44M supports a maximum resolution of 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.2, HDCP 1.x, and DVI compliant. This device is also equipped with auto Downscaling on all outputs, ensuring compatibility with legacy displays.
The BG-UHD-44M supports up to 7.1 channels of high-quality audio including Dolby Digital®, DTS-HD®, and Dolby TrueHD® audio formats.
Features
-
Stunning Image QualitySupports resolutions up to 4K@60Hz 4:4:4 -
Multiple Ways to ControlTake control using the front panel buttons, IR, RS-232, or Web Gui -
4x4 MatrixRoute any of the 4 inputs to any of the 4 outputs -
Auto-ScalingSupports downscaling from 4K to 1080P -
HDCP 2.2High-Bandwidth Digital Content Protection Supported -
EDIDAdvanced EDID management for rapid integration of sources and displays
- HDMI 2.0a
- HDR Support
- 18Gbps video bandwidth
- Simultaneously display any source on multiple displays
- Firmware updateable
- Supports Dolby Digital, DTS-HD, and Dolby TrueHD
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Tech Specs: | ||
| HDMI compliance | HDMI 2.0a | |
| HDCP compliance | HDCP 2.2 / 1.4 | |
| Video bandwidth | Single-link 600MHz [18Gbps] | |
| Video support | HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) | |
| Audio support | DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM | |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| PCB stack-up | 6-layer board [impedance control — differential 100Ω; single 50Ω] | |
| Firmware update | Feasible via Micro-USB and RS-232 port | |
| Input | 4x HDMI / 1x RS-232 / 1x Ethernet / 1x IR socket for IR receiver | |
| Output | 4x HDMI | |
| HDMI Input selection | Push-in button/ IR remote control/ RS-232 control/ IP control/ Cloud control | |
| IR remote control | Electro-optical characteristics: = 25° / Carrier frequency: 38kHz | |
| HDMI connector | Type A [19-pin female] | |
| RJ-45 connector | WE/SS 8P8C(Reverse Mode) | |
| RS-232 connector | DE-9 [9-pin D-sub female] | |
| USB connector | Micro USB | |
| 3.5mm connector | IR receiver / IR blaster | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Dimensions (L x W x H) | Model | 1'1" x 4.8" x 1.7" [340 x 123 x 44mm] |
| Package | 1'6" x 8.9" x 2.8" [494 x 225 x 70mm] | |
| Weight | Model | 2.6 lbs [1181g] |
| Package | 4 lbs [1837g] | |
| Fixedness | Wall-mounting case | |
| Power supply | 5V 4A DC | |
| Power Consumption | 12 Watt [max] | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20~90% RH [no condensation] | |
PACKAGE CONTENTS
- 1x BG-UHD-44M
- 1x Rack-mounting ear set
- 1x IR receiver
- 1x Installation software CD
- 1x DC 5V 4A
- 1x User Manual
- 1x IR Remote control

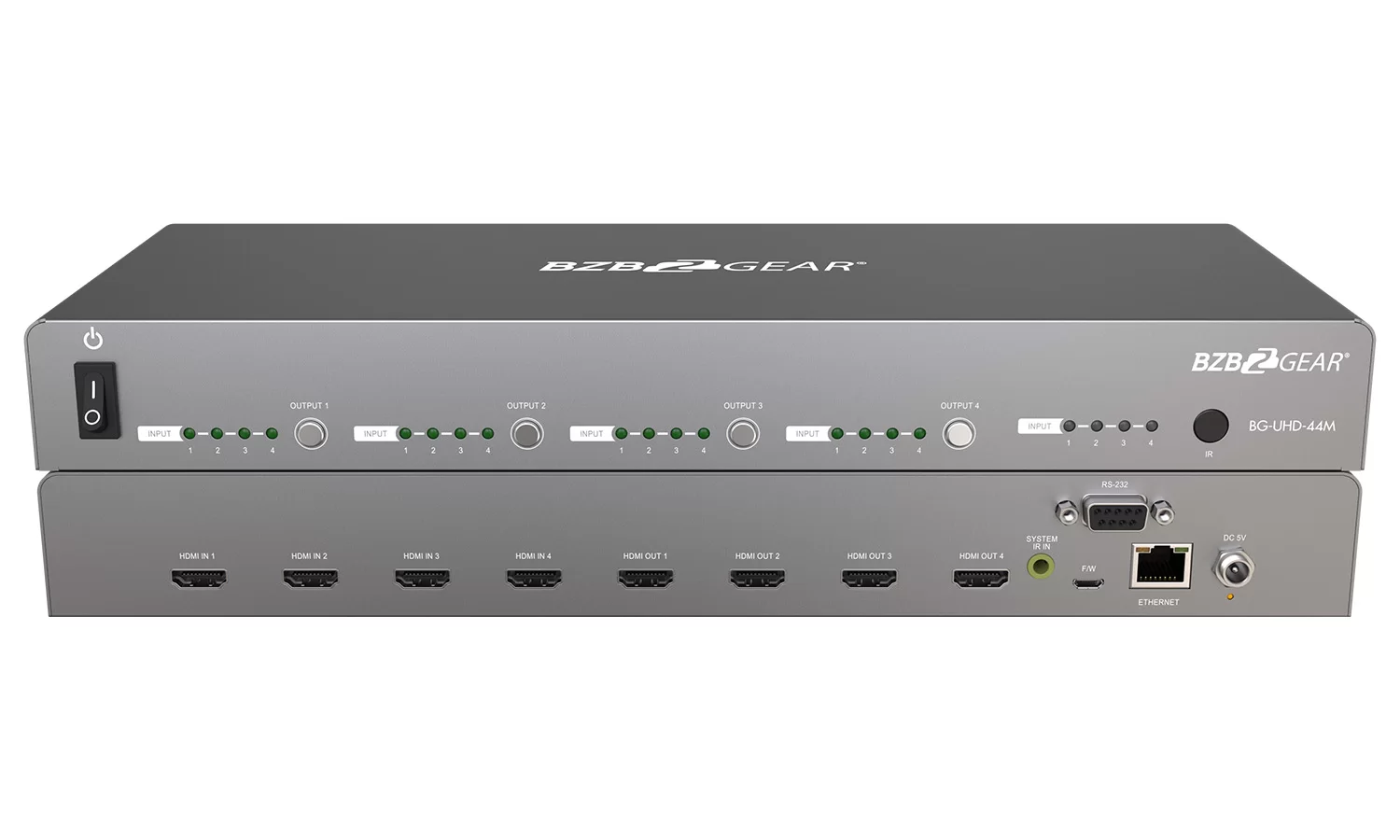

Interfaces
- Power Switch.
- Selected Source Status LEDs: When users press the output button, the indicator LED will illuminate the selected input.
- Port 1-4 Channel Push Button: Select input channel.
- Source Status: Input source detection LED.
- IR Sensor: IR sensor for receiving commands from an IR remote.
- HDMI Input 1-4: Connect to HDMI sources.
- HDMI Output 1-4: Connect to HDMI display devices.
- System IR Receiver: 3.5mm jack for IR receiver extension.
- Micro USB: Micro-USB port for F/W update.
- Ethernet: Ethernet control port.
- +5V DC: 5V DC power jack.
- RS-232: RS-232 control port (for software control and firmware update).
