4X4 4K 60Hz 18Gbps HDMI and Audio Matrix Switcher with Downscaling/AOC Support
Discontinued
Configure the Perfect Solution
Get Started
Overview

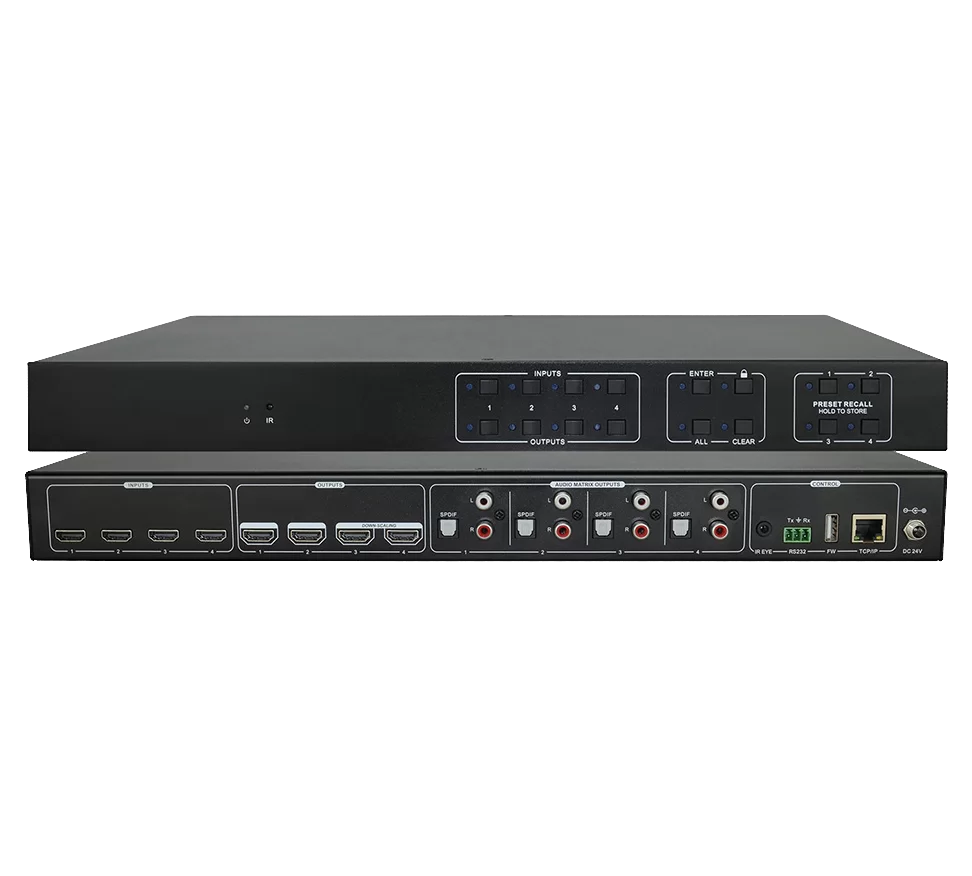

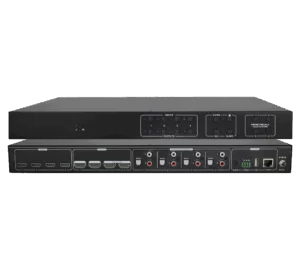

The BG-UHD-44M18G is a 4x4 HDMI matrix switcher with audio breakouts. It supports HDMI 2.0 and HDCP 2.2 with resolution support up to 4K@60Hz 4:4:4 plus all 3D formats and HDR output support for each channel. It routes four UHD sources to any four UHD displays, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Each source can be routed to any display using the Push Buttons, IR, RS232 and GUI.
Features
- 4K - Supports resolutions up to 4K@60Hz 4:4:4
- Audio De-Embedding - Features 4 analog and 4 digital outputs
- Audio Matrix - audio signal can be de-embedded from any input or output
- HDMI output provides 2.5W, 5V to power active optical cables.
- HDR - Supports HDR and full 3D
- Multiple Control Options - Front Panel, IR, RS-232, and GUI
- Individual volume adjustment for each audio output
- HDMI - HDMI 2.0 and HDCP2.3 compliant
- IR Routing - Four IR inputs and outputs
- Supports 4K to 1080p downscaling
