Multi-format 4K UHD Scaler Converter HDMI/DP/VGA/CVBS/YPbPr to HDMI

Configure the Perfect Solution
Get Started

Overview

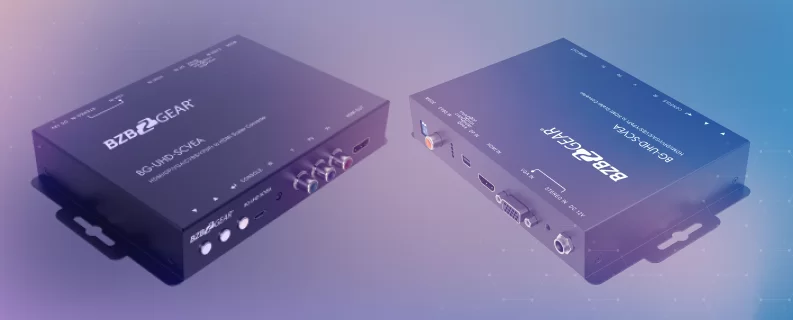

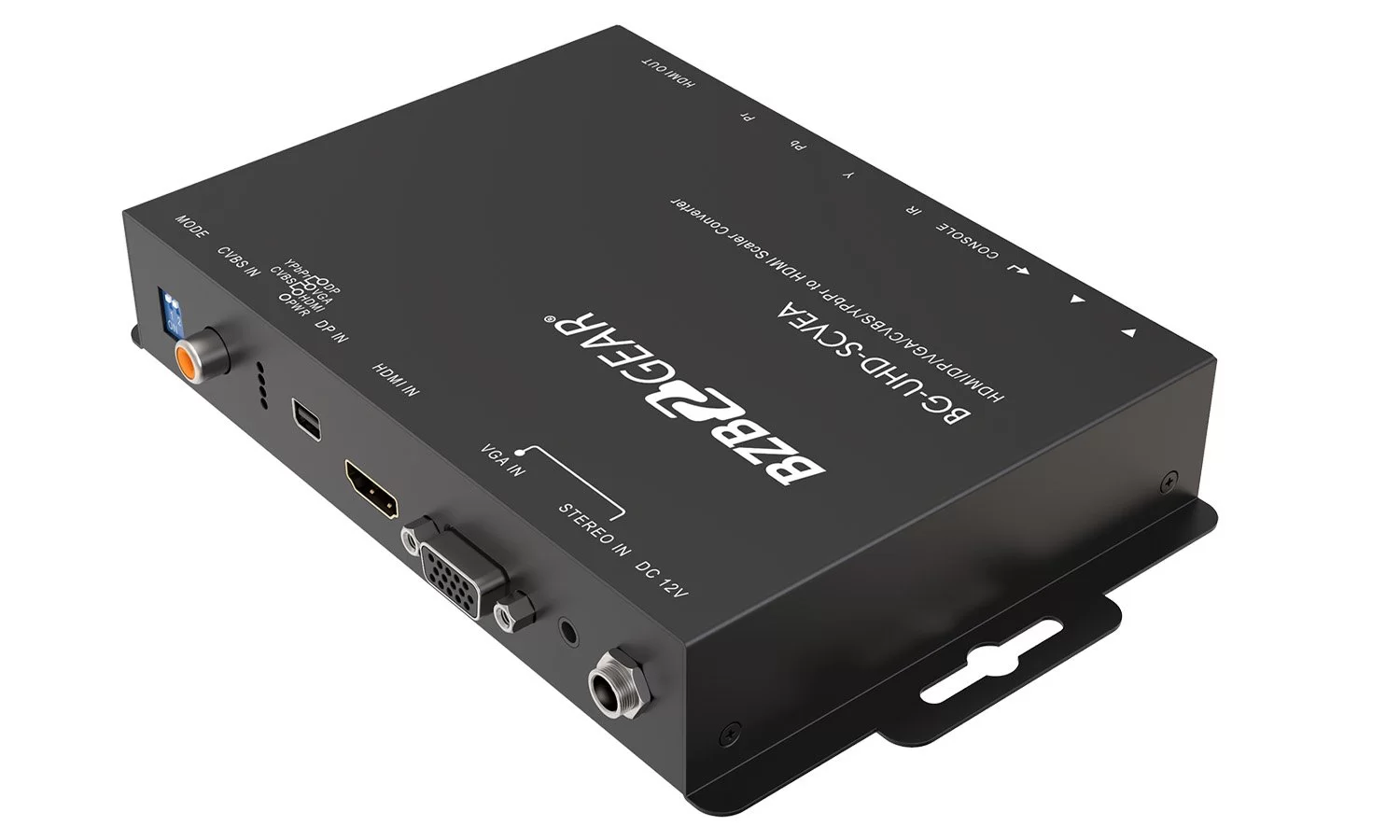

The BG-UHD-SCVEA is a multi-format 4K UHD scaler converter. This unit is designed to scale and convert multiple analog and digital formats (HDMI/DP/VGA/CVBS/YPbPr) to support HDMI devices. This HDMI 1.4/DP1.1 compliant device supports output resolutions up 4K2K@30 4:4:4 with video bandwidth speeds up 10.2Gbps.

Embed analog audio to the HDMI output via the 3.5mm stereo input. Operate and adjust advanced settings including resolution outputs via the front panel push buttons, IR remote, or the provided control software.

With its versatile array of inputs, the BG-UHD-SCVEA is the perfect solution for users looking to convert legacy media formats for use in a modern A/V system.

 TAA COMPLIANT PRODUCT.
 This product meets the standards of the Trade Agreement Act (TAA).
 You can find all BZBGEAR TAA Compliant Products on this page.

Features

  • bi_badge-4k
    4K Support
    Crystal clear images with resolutions up to 4K2K@30Hz 4:4:4
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Use the front panel push buttons, IR remote, or control software
  • iconoir_pc-check
    Easy to Use
    Simple for anyone to learn
  • COMPACT DESIGN
    Portable
    Ideal for any on-the-go kit
  • material-symbols_safety-check
    Rigid Design
    Durable metal structure built to withstand years of operation
  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    Audio Embedding
    Embed audio using the 3.5mm stereo input
  • Supports Input HDMI1.4 /DP1.1/ VGA/CVBS/YPbPr
  • Input maximum pixel rate: 165MHz
  • Supports multiple VESA resolutions
  • De-interlacing supported
  • Supports video enhancement features
  • Over / under scanning adjustable
  • Video H/V mirror supported
  • USB firmware upgradable for expanding compatibility
  • Wall-mount housing design for easy installation

Videos

Modernize and Scale Any A/V Setup Regardless of Legacy Inputs | BG-UHD-SCVEA
Modernize and Scale Any A/V Setup Regardless of Legacy Inputs | BG-UHD-SCVEA
Analog to Digital Video Converter and Upscaler - BZBGEAR BG-UHD-SCVEA
Analog to Digital Video Converter and Upscaler - BZBGEAR BG-UHD-SCVEA

Tech Specifications

Technical
Role of usage HDMI/DP/VGA/CVBS/YPbPr to HDMI Converter
HDMI standards HDMI1.4
Input Video Maximum Pixel Rate 165MHz
Output Video bandwidth 10.2Gbps
Output Video support up to 4K2K@30 4:4:4
Audio support PCM 2 (32KHz - 192KHz Fs sample rate)
ESD protection [1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge) [2] Core chipset ±2kV
PCB stack-up 4-layer board [impedance control -differential 100Ω; single 50Ω)
Firmware update Feasible via USB Port
CEC Channel N/A
Input 1x HDMI + 1x VGA + 1x DP+1x RCA + 1x YPbPr + 1x stereo (for VGA)
Output 1x HDMI
HDMI connector Type A [19-pin female)
USB connector Micro USB
Housing Metal enclosure
Dimensions (L x D x H) Model 5.6" x 4.4" x 1" [144 x 113 x 30mm]
Package 10.3" x 6.7" x 3" [264 x 170 x 77mm]
Weight Model 9.3 oz [264g]
Package 1.6 lbs [724g]
Fixedness Wall-mounting case with screws
Power supply 12V 2A DC
Power consumption 6 Watts (max)
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20-90% RH (no condensation)

PACKAGE CONTENTS

  • 1x BG-UHD-SCVEA
  • 1x 12V/2A power supply unit
  • 1x IR Remote control
  • 1x User Manual
  • 1x Installation software CD

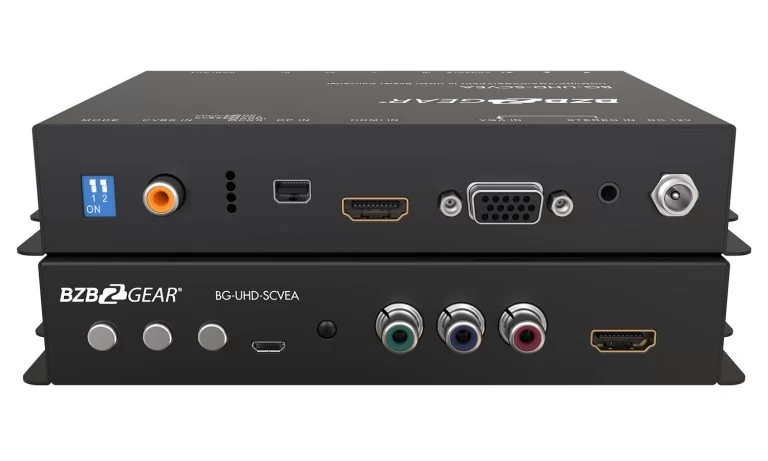

Interfaces

Interfaces image
  1. PUSH BUTTON: [LEFT]: Down Button.
    [MID]: Up Bottom.
    [RIGHT]: Menu/Enter Button.
  2. Micro USB: Micro-USB port for control port.
  3. IR SENSOR: IR sensor for receiving the IR commands from IR remote.
  4. COMPONENT: Y INPUT.
  5. COMPONENT: Pb INPUT.
  6. COMPONENT: Pr INPUT.
  7. HDMI OUTPUT: Connect to a HDMI display.
  8. DIP SWITCH: For firmware updates.
  9. CVBS INPUT: Connect to a RCA source.
  10. LED INDICATOR: Indicates power and selected input (see manual).
  11. DP INPUT: Connect to a DP source.
  12. HDMI INPUT: Connect to a HDMI source.
  13. VGA INPUT: Connect to a VGA source.
  14. STEREO AUDIO INPUT (VGA): Connect to analog stereo audio source.
  15. +12V DC: Interlocking power jack for 12V DC power supply unit.
