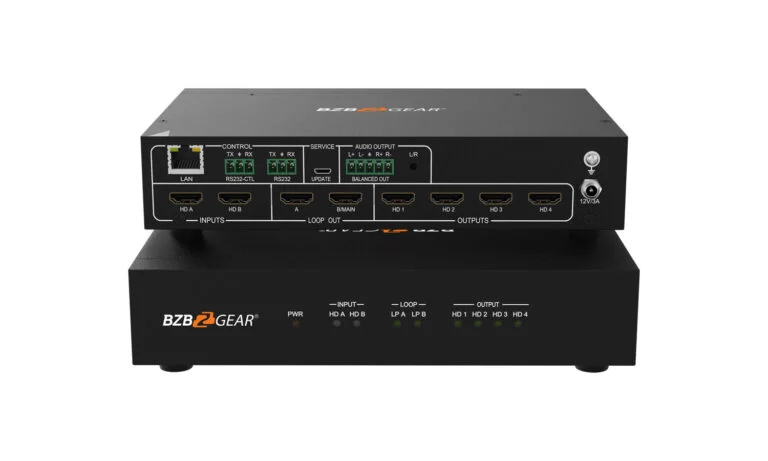

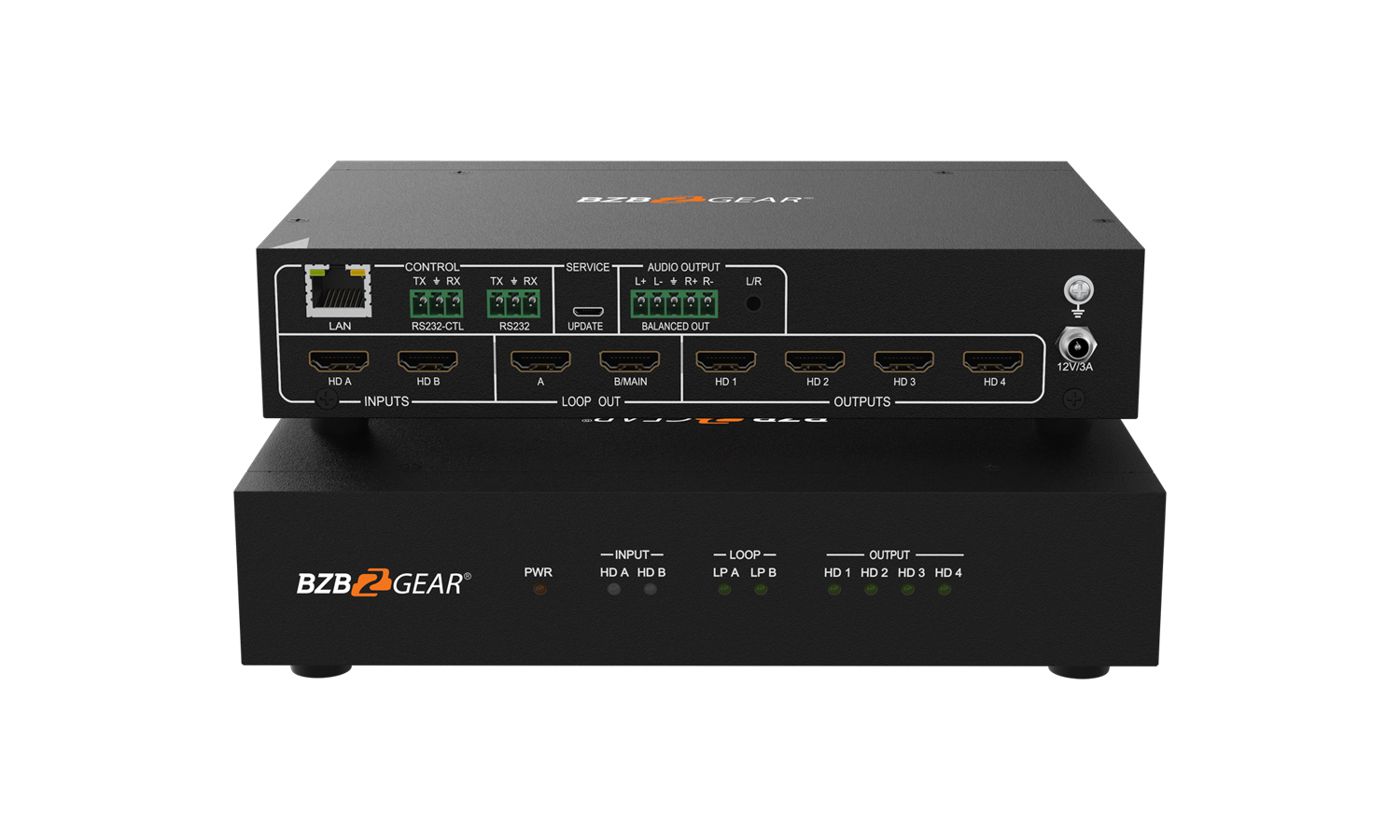

2x2 4K UHD HDMI Video Wall Processor with IP/RS232 Control (Supports 1x3/1x4/2x2/4x1 Layout)

Configure the Perfect Solution
Get Started

OVERVIEW

Introducing the BG-UHD-VW24 HDMI 2.0 video wall controller from BZBGEAR, an innovative solution for all your video wall processing needs. This powerful controller features 2 HDMI inputs and 2 HDMI loop outs, as well as 4 HDMI scaling outputs, providing seamless and efficient video processing.

With support for resolutions up to 3840x2160@60Hz, this HDMI 2.0 device ensures stunning video quality and optimal viewing experience. The BG-UHD-VW24 also supports HDCP 2.2, ensuring that it is fully compatible with the latest content protection standards.

One of the unique features of the BG-UHD-VW24 is its ability to compensate for bezels in two modes, allowing for optimal display of content across multiple displays. Ability to control resolutions of the output displays and configure the brightness, contrast, saturation, and sharpness of each output further enhancing the viewing experience. Additionally, the controller provides the flexibility of 180° display rotation.

The BG-UHD-VW24 is controllable via PC software, webGUI, and RS232, giving users the freedom to choose the most convenient control option. The device also includes a de-embedding audio feature, which allows audio to be sent to an Analog L/R audio output via 3.5mm Stereo Jack or a balanced audio output port using a 5-pin phoenix connector.

Overall, the BG-UHD-VW24 video wall controller from BZBGEAR is an excellent choice for anyone looking for a reliable, efficient, and versatile video processing solution. Whether you're in the digital signage business or require video processing to improve your entertainment systems, the BG-UHD-VW24 is the perfect choice.

Features

  • bi_badge-4k
    High Resolution Inputs
    Inputs Support Up To 4K@60Hz
  • fluent_zoom-fit-24-filled
    Control
    Options Include TCP/IP, RS-232, HDMI CEC, and PC Software
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • material-symbols_settings-input-component
    Multiple Inputs
    Supports up to two HDMI inputs
  • bi_soundwave
    Audio Extraction
    3.5mm and Balanced Analog Audio Outputs
  • fluent_dual-screen-span-20-regular
    Versatile
    180° Rotation and Dual-Mode Bezel Compensation
  • Dual HDMI loop outs
  • Sturdy, metal case construction)
  • Supports CEC control through PC Tool or line commands
  • Easily upgradable firmware
  • 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio
  • Video wall resolutions up to 3840x2160@60Hz
  • Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
  • Loop out the HDMI A/B signal for devices connected to each output
Software background image

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

HDCP 2.2 Compliant 4K UHD Video Wall Processor w/IP Control | BG-UHD-VW24
HDCP 2.2 Compliant 4K UHD Video Wall Processor w/IP Control | BG-UHD-VW24
The Best Video Wall Processors for Any TV 2022
The Best Video Wall Processors for Any TV 2022
How to Set Up a Professional 2x2 Video Wall for 4K TVs | BZBGEAR BG-UHD-VW24
How to Set Up a Professional 2x2 Video Wall for 4K TVs | BZBGEAR BG-UHD-VW24

Tech Specifications

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.4
RS-232 Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
Input Video Formats 4096x2160p  24/25/30/50/60Hz
3840x2160p  24/25/30/50/60Hz
1080p 24/25/30/50/60Hz
1080i  50/60Hz
1920x1200  60Hz
1680x1050  60Hz
1600x1200  60Hz
1440x900  60Hz
1400x1050  60Hz
1366x768  60Hz
1360x768  60Hz
1280x1024 60Hz
1280x960 60Hz
1280x800  60Hz
1024x768 60Hz
1280x720p 50/60Hz
Audio Format 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
ESD Protection Human-body Model:
±8kV (Air-gap discharge), ±4kV (Contact discharge)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 8.6”(W) x 5.7”mm(D) x 1.7"mm(H) [218mm(W) x 146mm(D) x 43mm(H)]
Weight 4.4 lbs [2kg]
Supply Voltage +12V/3A
Power Consumption 25W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 158°F / -20°C ~ 70°C
Relative Humidity 10% ~ 50% RH (non-condensing)

PACKAGE CONTENTS

  • 1x Ultra HD Video Wall Processor
  • 1x 12V/3A Power Adapter
  • 1x 5-pin Phoenix Connector
  • 2x 3-pin Phoenix Connector

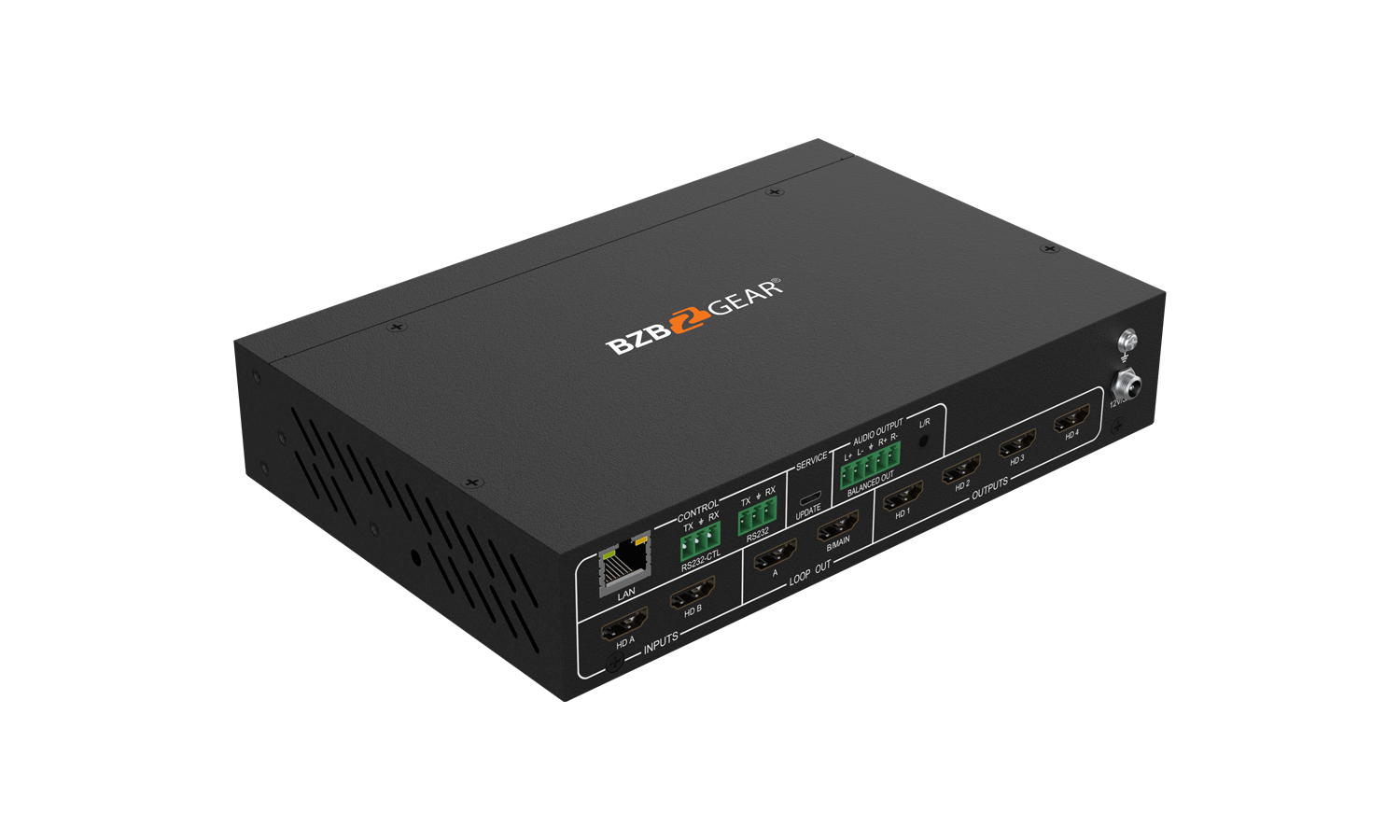

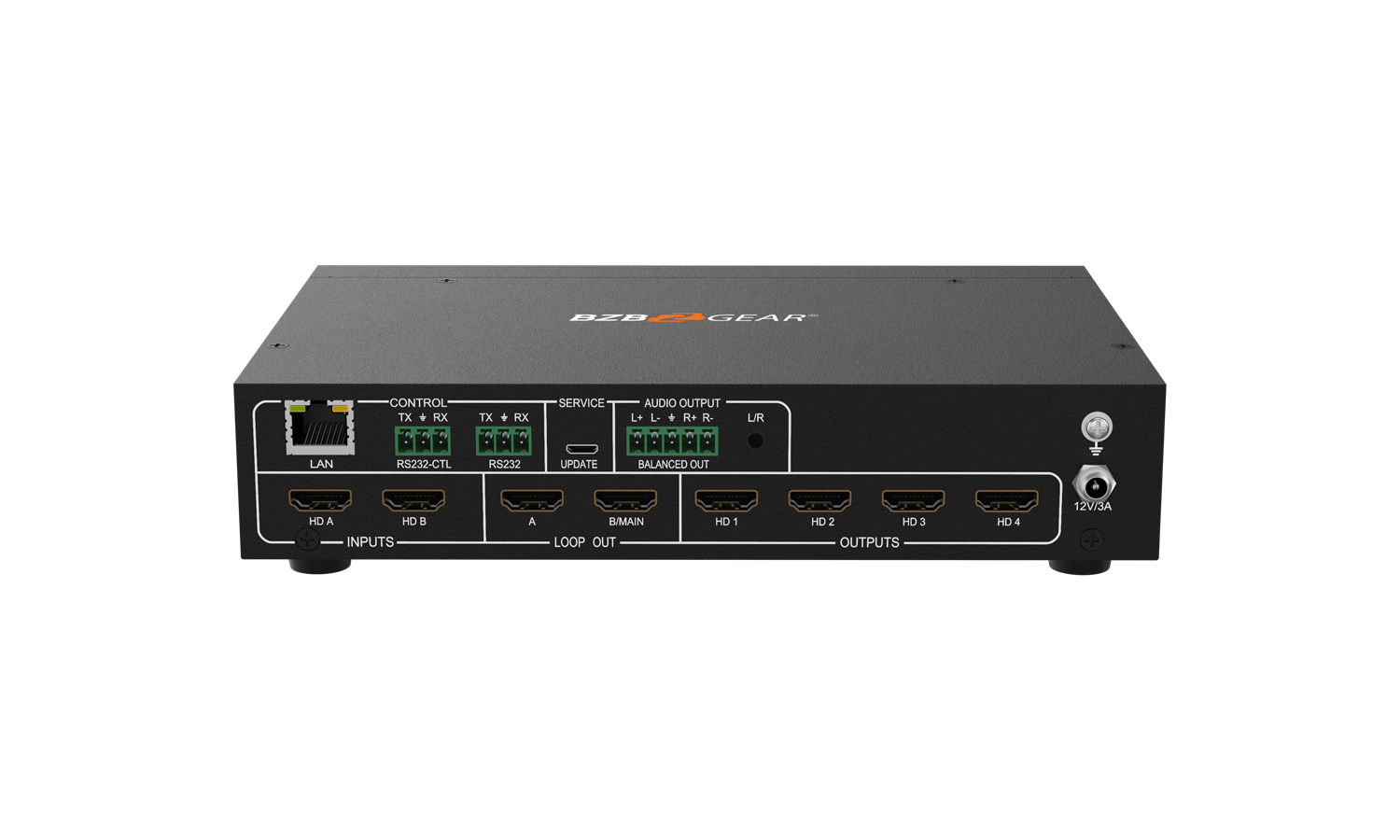

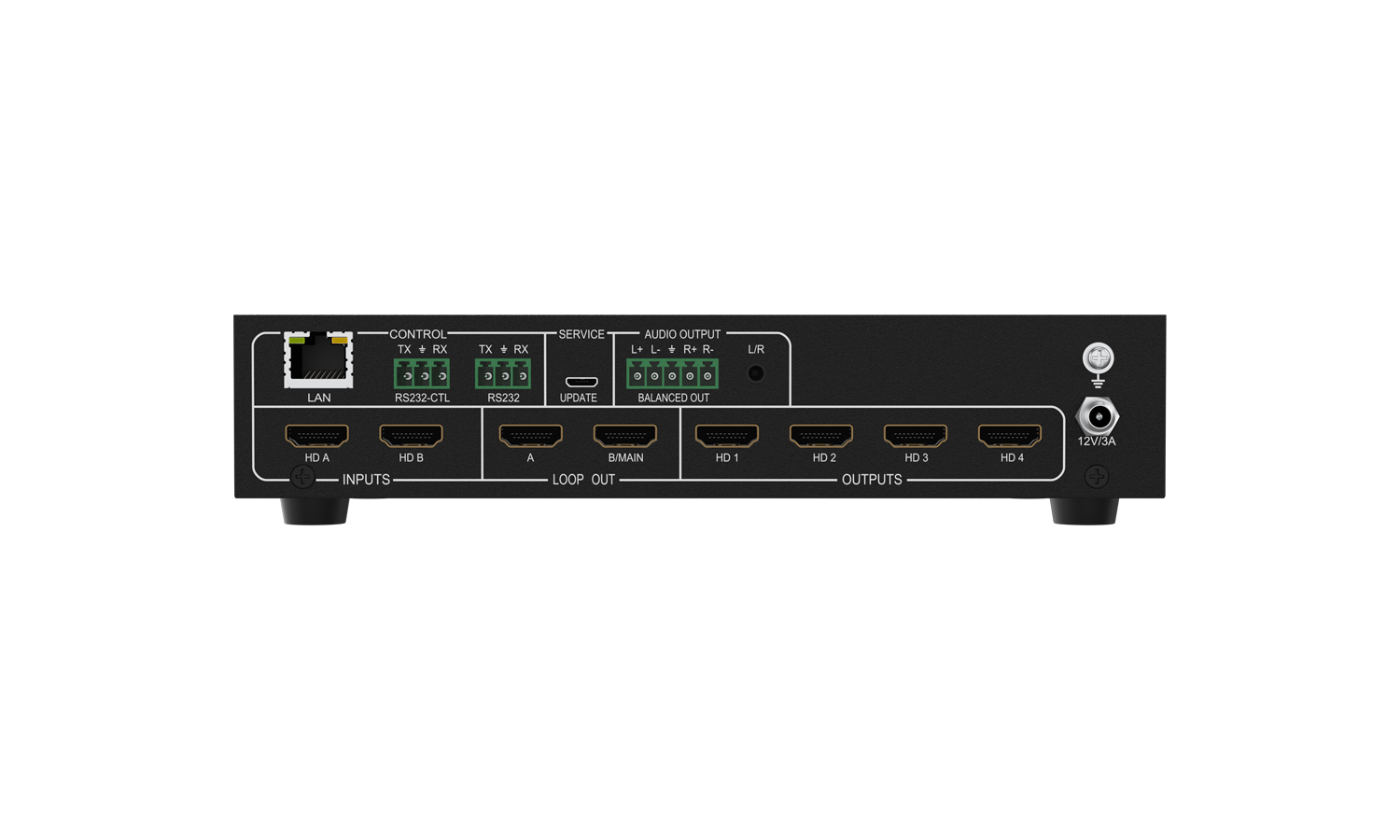

Interfaces

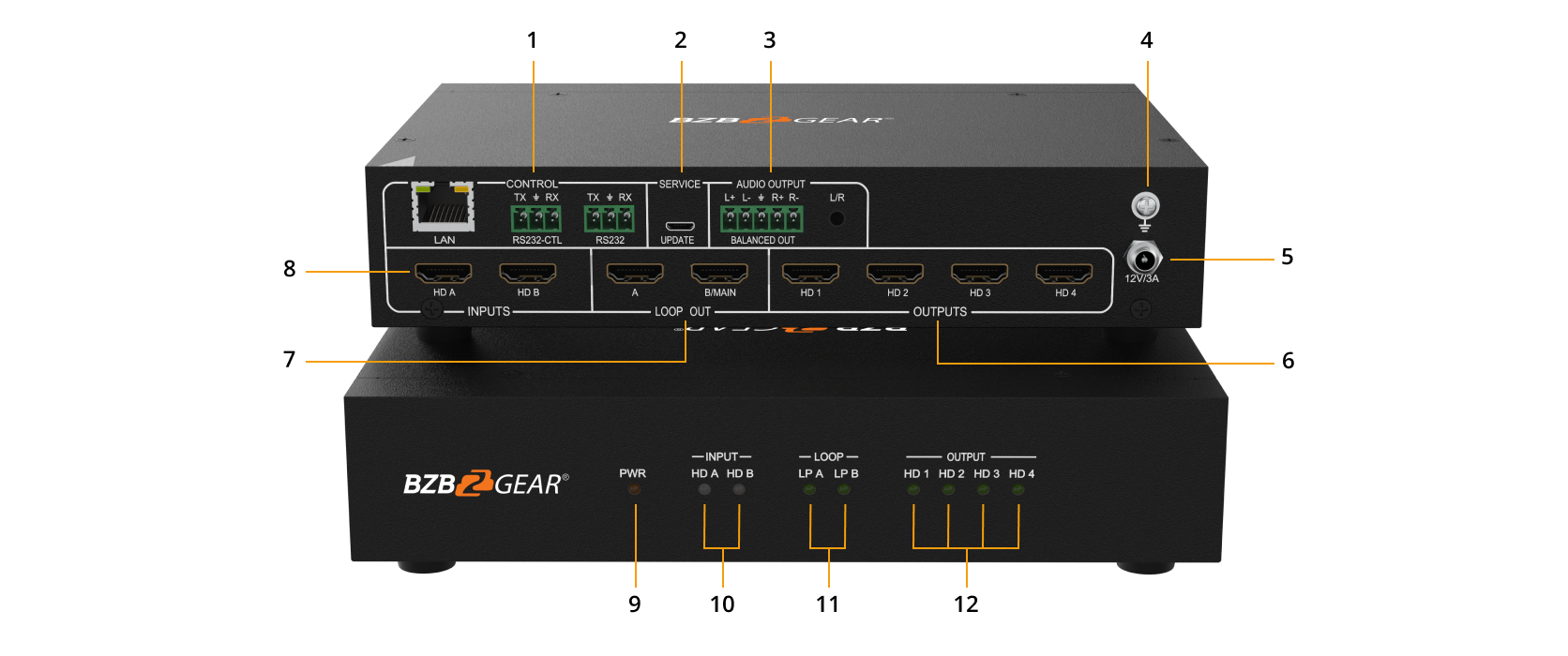

Interfaces image
  1. CONTROL:
    RS232: Loop out RS232-CTL control command.
    RS232-CTL: External RS232 control, Baud Rate: 57600, Data Bits: 8, Parity: None Stop Bits: 1.
    LAN: Network port for TCP/IP control. Connect to an active Ethernet link with an RJ45 cable.
  2. SERVICE: Firmware update port.
  3. AUDIO OUTPUTS:
    Analog L/R audio output: 3.5mm Stereo Jack. 20Hz ~ 20kHz, 1.5Vrms max.
    BALANCED OUT: Balanced audio output port. 5-pin phoenix connector, 20Hz ~ 20kHz, 1.5Vrms max.
  4. GND: Ground the product housing.
  5. 12V/3A: DC 12V/3A power supply port.
  6. OUTPUTS: HDMI output for the video wall.
  7. LOOP OUT: Loop out the HDMI A/B signal to a local display connected to each output.
  8. INPUTS: Connect HDMI source devices such as a DVD player or gaming console with an HDMI cable.

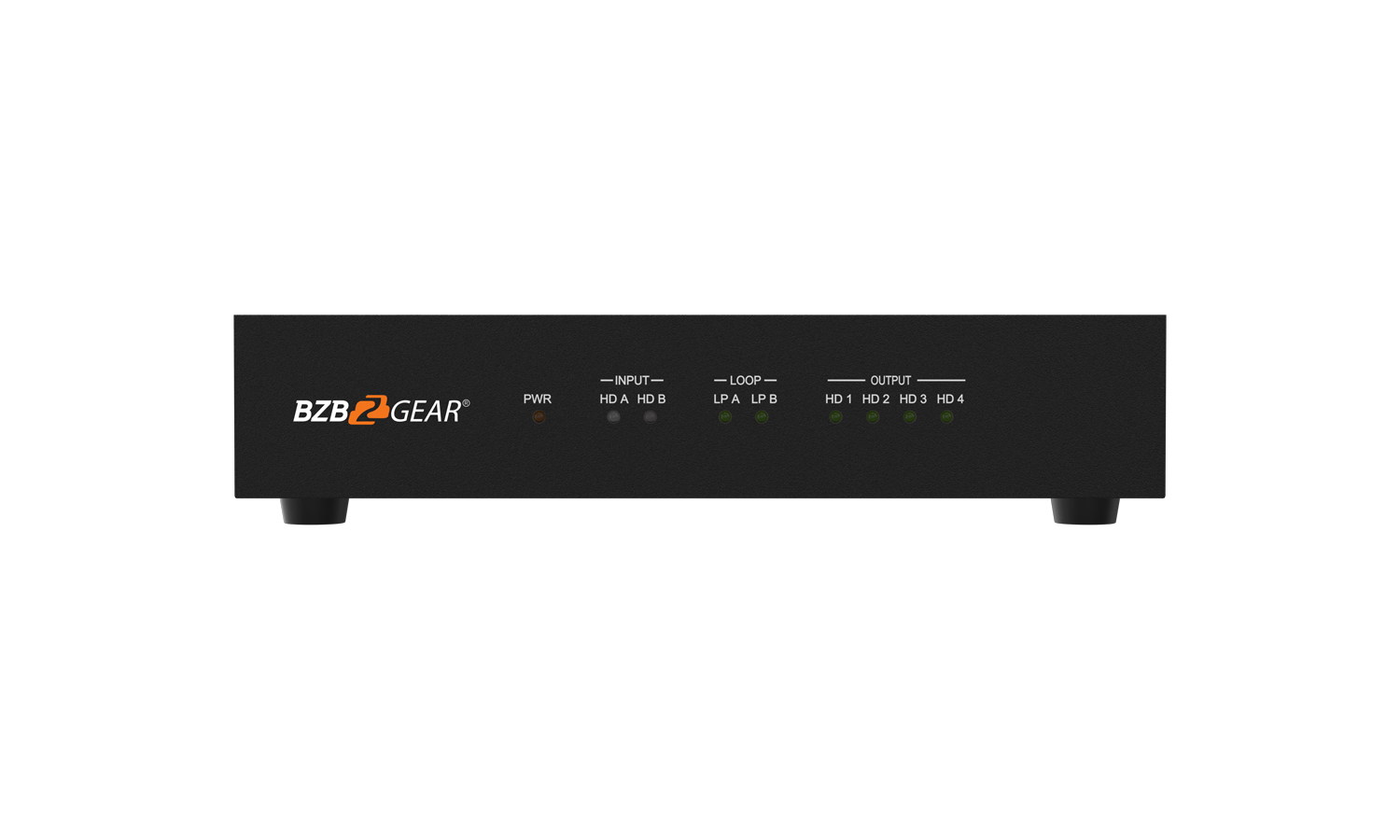

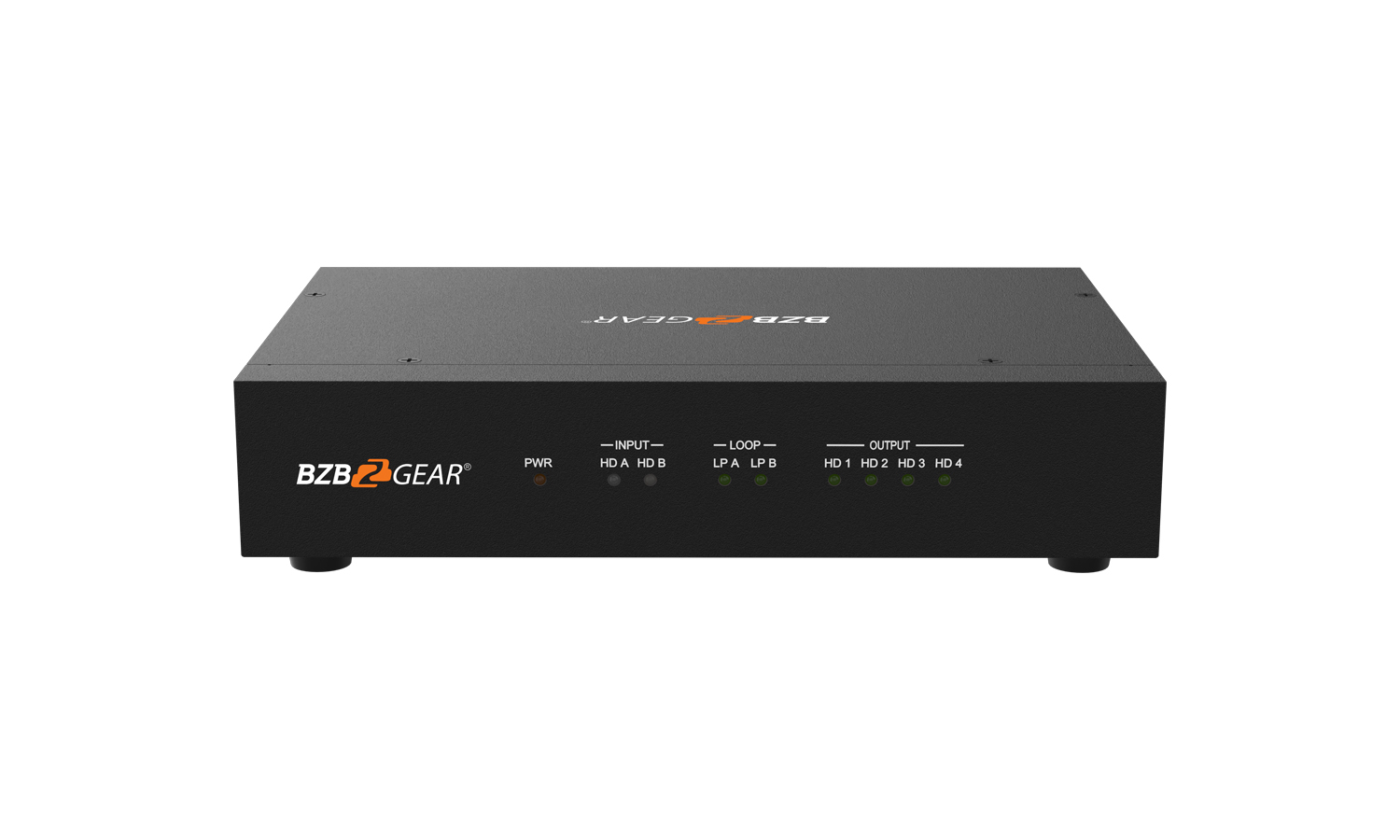

  9. Power LED indicator: The power LED will illuminate when the unit is powered on.
  10. INPUT LED indicators: The LED will illuminate when the corresponding HDMI input port is connected to an active HDMI source device.
  11. LOOP LED indicators: The LED will illuminate when the corresponding LOOPOUT port is connected to an HDMI display device.
  12. OUTPUT LED Indicators: The LED will illuminate when the corresponding HDMI output port is connected to an HDMI display device.
