OVERVIEW
The BG-UHD-VWP-1X4 4K 1x4 Video Wall Processor is a high-quality video processor that is perfect for multiple flat panel displays or projectors. It is is designed to support HDMI/DisplayPort signals up to 4K2K@60Hz 4:4:4, providing you with crisp, clear images that are ideal for digital signage, broadcasting, education, and surveillance systems. The embedded scaler technology ensures that video signals are converted to match the native resolution of monitors, flat panel displays, and projectors, while user-selectable output settings up to WUXGA (1920x1200) allow for customized display options.
BG-UHD-VWP-1X4 unit is extremely versatile and can be controlled via USB, push buttons, Ethernet, webGUI, and IR remote control. With the image parameters saved in flash memory, you can easily recall your preferred settings without the hassle of reconfiguring the unit every time. It is HDCP 2.2 compliant, ensuring that it is compatible with the latest content protection standards.
With the ability to modify layouts to fit various applications, the BG-UHD-VWP-1X4 is an excellent choice for anyone looking for a powerful, cost-effective, and flexible video processor. Whether you're in the digital signage business or looking to upgrade your entertainment setup, this video wall processor is sure to exceed your expectations.
Features
-
Accepts High Resolution InputsHDMI And Display Port Inputs Up To 4K2K@60Hz 4:4:4 -

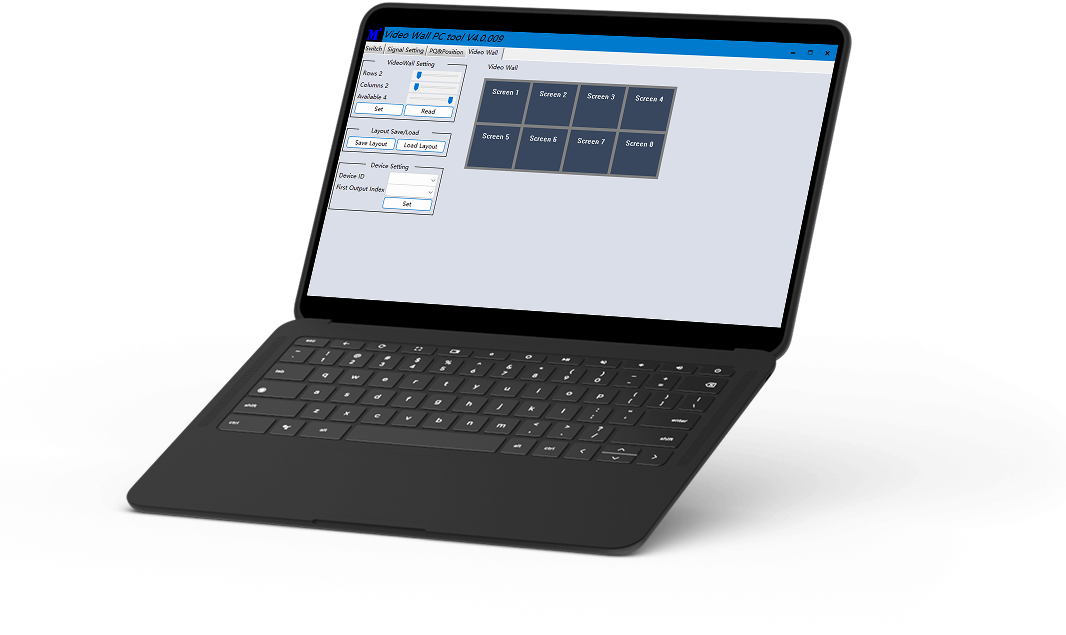

Easy To ControlOptions Include Front Panel, LAN, IR, And USB Virtual Com -
HDCPHigh-Bandwidth Digital Content Protection Supported -
Remote AccessControl using IntriCloud Service (www.intri.cloud) -
Compliant PortsHDMI 2.0a And DisplayPort 1.2a Inputs -
SCALABILITYResize, Position, and Zoom Each Individual HDMI Output
- Sturdy metal construction
- Great solution for digital signage
- Five embedded default EDIDs
- Upgradable firmware for new features and technology enhancements
- Save image parameters and layouts in the flash memory for easy recall
- Supports independent input rotation at resolutions up to 1080p@60Hz
- Ablility to adjust propagation delay on each display
- 4K2K@60Hz inputs can be divided onto four 1080p@60Hz displays (2x2 only)
Videos
Tech Specifications
| Technical | ||
| Role of usage | Video Wall Processor | |
| HDCP compliance | Yes | |
| Video bandwidth | Input – Single link 600MHz [18Gbps] Output –Single-link 225MHz [6.75Gbps] | |
| Video support | Input – 4K2K@60 (4:2:2 8bits) / 4K2K@60 (4:4:4 8bits) Output – 1920x1080@60 / 1920x1200@60 | |
| Video Format Support | HDMI / DisplayPort | |
| Audio support | Yes | |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| Input | 1x HDMI + 1x DisplayPort + 1x USB + 1x RJ45 | |
| Output | 4x HDMI + 1x Stereo | |
| Control | IR remote control / Ethernet / USB (virtual) / Front Panel / Cloud Control | |
| Input TMDS signal | 1.2 Volts [peak-to-peak] | |
| HDMI connector | Type A [19-pin female] | |
| Mini-USB connector | Type A | |
| RJ-45 connector | WE/SS 8P8C | |
| Enclosure | Metal case | |
| Dimensions (L x W x H) | Model | 11.4” x 7" x l.7” [290 x 180 x 44mm] |
| Package | l'2” x 9.4” x 4.4"[376 x 240 x 112mm] | |
| Weight | Model | 3.2 lbs [1427g] |
| Package | 4.6 lbs [2077g] | |
| Fixedness | 1U rack-mount with ears and Wall hanging holes | |
| Power supply | 12V DC | |
| Power Consumption | 12W | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20-90% RH [no condensation] | |
Resources
PACKAGE CONTENTS
- 1x BG-UHD-VWP-1X4
- 1x User Manual
- 1x 1U rack-mounting ear set
- 1x 12V power supply
- 1x Installation software CD

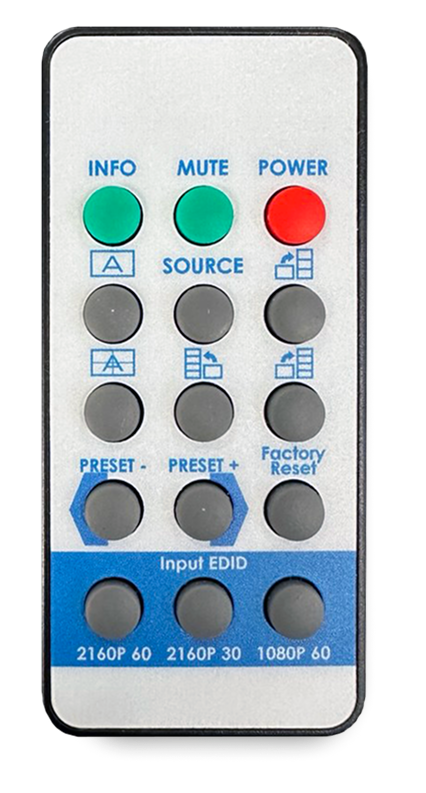

- 1x IR Remote control (15 keys)

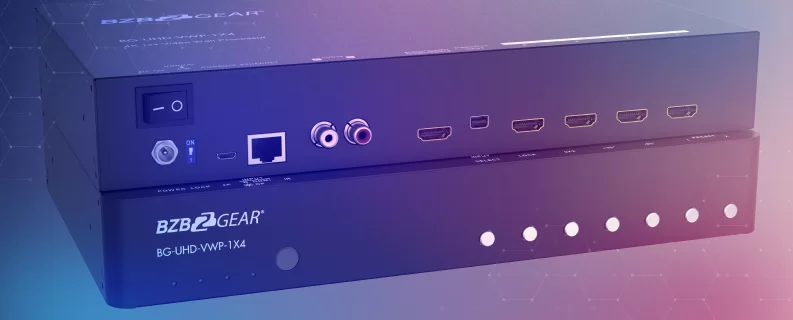

Interfaces
- Power Switch: Power ON/OFF.
- Dip Switch: For firmware update (Default mode: on).
- USB: Virtual COM.
- Ethernet: Ethernet control port.
- Audio L: Stereo audio output – L.
- Audio R: Stereo audio output – R.
- HDMI Input: Connects to an HDMI source with an HDMI cable. Supports resolutions up to 4K2K@60Hz.
- DisplayPort Input: Connects to an DisplayPort source with an DisplayPort cable. Supports resolutions up to 4K2K@60Hz.
- HDMI Output 1-4: HDMI outputs.
- PWR LED Indicator: Power On/Off indicator.
- LOCK LED Indicator: When device status is locked, the indicator is solid.
- 4K LED Indicator: If the source resolution is 4K, the LED indicator is solid.
- Source LED Indicator: If the source is from HDMI, the LED indicator is solid. If the source is from DisplayPort, the LED indicator will blink.
- IR Sensor: IR sensor for receiving the IR commands from IR remote.

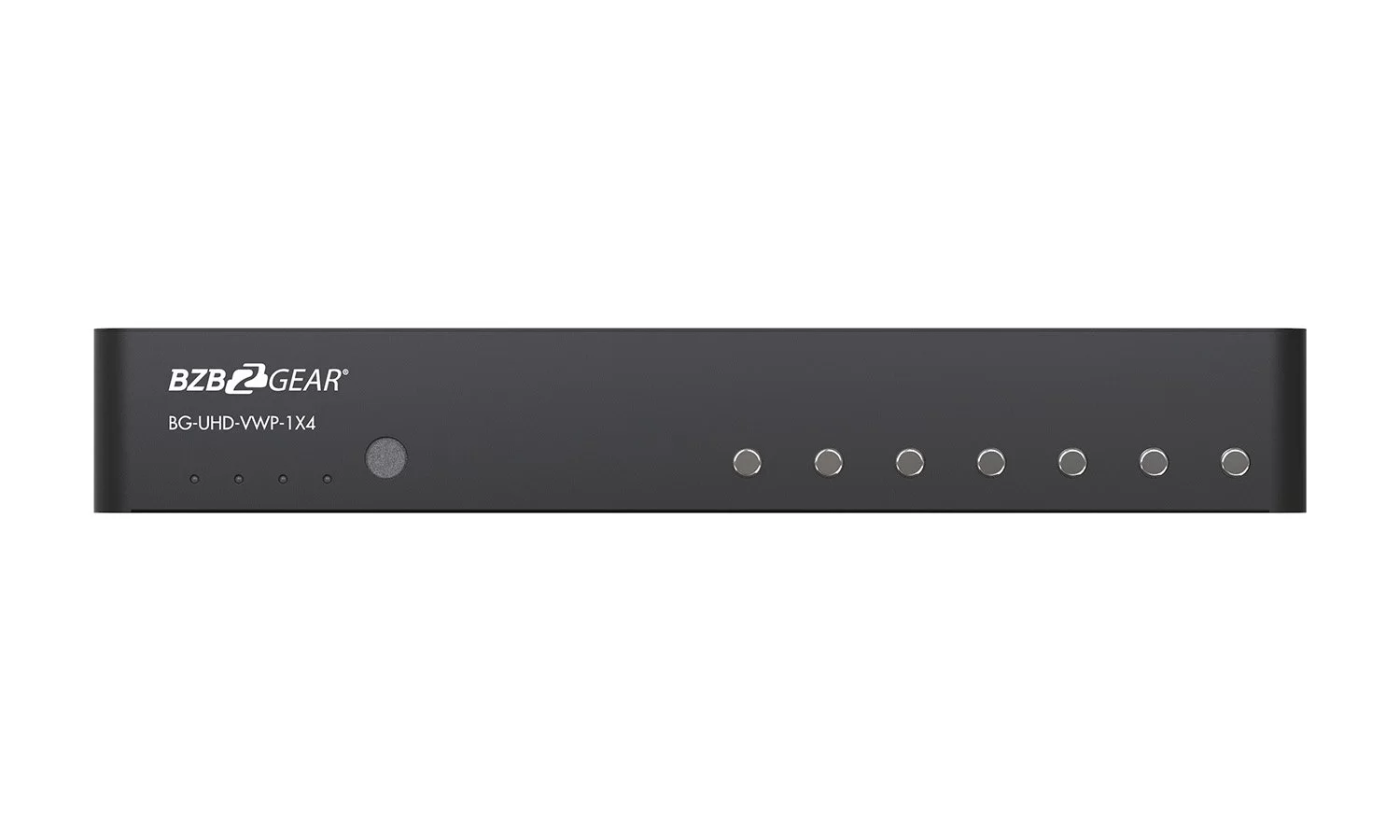

- Button 1 (Source): Source setting (HDMI or DisplayPort).
- Button 2 (LOCK): Press button for 3 seconds will enable/disable device lock.
- Button 3 (2x2): Fast switch to 1x1 and 2x2.
- Button 4 (+90°): Fast switch to 3x1 90° and 4x1 90°.
- Button 5 (-90°): Fast switch to 3x1 -90° and 4x1 -90°.
- Button 6: Preset 1.
- Button 7: Preset 2.
