4x1 4K UHD HDMI Seamless Switcher Scaler and MultiViewer with IP/RS232 Control and Audio De-embedding

Configure the Perfect Solution
Get Started

Overview

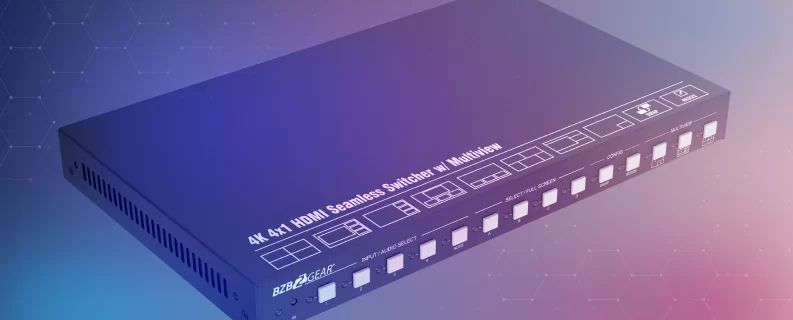

Introducing the BG-UMV-HA41: the ultimate 4K multi-view switcher for seamless presentation and video switching. This innovative device lets you view up to four video sources on a single HDMI output simultaneously, with the option to switch between full-screen mode or multi-view windows with just a push of a button. The result is a dynamic viewing experience that's perfect for conferences, presentations, and more.

Thanks to its 4K resolution, the BG-UMV-HA41 captures every detail from each video source, delivering stunning picture quality that's sure to impress. And with two audio outputs that support audio de-embedding, you can easily extract audio from your sources and customize your sound options to fit your needs.

The BG-UMV-HA41 is designed with connectivity and control in mind, featuring auto video scaling for each of the four HDMI inputs to ensure compatibility with 4K displays. The device also supports audio embedding via its dual audio input, allowing you to use external audio source as microphone or audio player for background music.

With its user-friendly control options, the BG-UMV-HA41 gives you complete command over your viewing experience. Control it with buttons on the front panel, the included IR remote, RS232, or through the web interface. You can even customize the layout and size of each display window to fit your needs, and choose from 16 preset layouts via the web interface.

And with the ability to easily rack mount the BG-UMV-HA41, this versatile device is perfect for use in any environment. So if you're looking for a 4K multi-view switcher that delivers exceptional performance and flexibility, look no further than the BG-UMV-HA41.

Features

  • bi_badge-4k
    High Resolution Inputs
    Input Up To 4K@30Hz 4:4:4 Chroma
  • fluent_zoom-fit-24-filled
    Control Options
    IR remote, RS-232, Web GUI, or Front Panel Buttons
  • bi_images
    Seamless Switching
    Quick And Easy Source Switching
  • bi_soundwave
    Audio Embedding
    3-Pin Line-In And Mix Inputs
  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    Audio De-embedding
    3.5mm Analog And TOSLINK Digital Outputs
  • ph_picture-in-picture-light
    Multi-View
    Simultaneously Display Multiple Inputs On A Single Monitor
  • Based on FPGA technology
  • SNR > 90dB, 20Hz-20 kHz bandwidth
  • Resize the windows with 3 different options
  • Upgradeable firmware
  • Auto-scaling for each source input
  • Single window auto-switching
  • Rack mountable, all metal construction
  • Cascadable for up to 16 screens on 1 display
  • 16 pre-defined layouts

Videos

What Is a Multiviewer in 2 Minutes! | BZBGEAR
What Is a Multiviewer in 2 Minutes! | BZBGEAR
Upgrade Any Classroom Conference Space with a Switcher & Multi-viewer
Upgrade Any Classroom Conference Space with a Switcher & Multi-viewer
GaETC 2022 | Upgrade Your Classroom with the  BG-UMV-HA41 Switcher and Multiviewer
GaETC 2022 | Upgrade Your Classroom with the BG-UMV-HA41 Switcher and Multiviewer
INFOCOMM 2022 | BZBGEAR BG-UMV-HA41 4K Video Switcher
INFOCOMM 2022 | BZBGEAR BG-UMV-HA41 4K Video Switcher
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
Turn One Screen Into Four with BZBGEAR BG-UMV-HA41 4K Multiviewer
Turn One Screen Into Four with BZBGEAR BG-UMV-HA41 4K Multiviewer

Tech Specifications

Video
Video Input 4x HDMI IN (1~4)
Video Input Connector 4x Type-A female HDMI
HDMI Input Resolution Up to 4K@30Hz 4:4:4
Video Output 1x HDMI
Video Output Connector 1x Type-A female HDMI
HDMI Output Resolution Up to 4K@30Hz RGB
HDMI Standard HDMI 1.4
HDCP Version Up to HDCP 2.2
Audio IN
Audio In 1x LINE IN, 1x MIX IN
Audio In Connector 2x 3-pin terminal connectors
Frequency Response 20Hz to 20kHz, ±3dB
Max Input Level 2.0Vrms ± 0.5 dB. 2V=16 B headroom above -10dBV (316 mV) nominal consumer line level signal
L-R level deviation < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Input Impedance > 10kohm
Audio Format PCM 2CH
SPDIF OUT
SPDIF Out 1x SPDIF
Audio Out Connector 1x Toslink
Max Output level ±0.05dBFS
Frequency Response 20Hz ~ 20kHz, ±1dB
THD+N < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0 dBFS level (or max level)
Signal-to-Noise Ratio > 90dB, 20Hz-20 kHz bandwidth
Crosstalk isolation < -70dB, 10kHz sine at 0dBFS level (or max level before clipping)
Noise -90dB
Audio Format PCM 2CH
Audio OUT
Audio Out 1x AUDIO
Audio Out Connector 1x 3.5mm mini jack
Frequency Response 20Hz ~ 20kHz, ±1dB
Max Output Level 2.0Vrms ± 0.5dB. 2V=16dB headroom above -10dBV (316 mV) nominal consumer line level signal
THD+N < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
Signal-to-Noise Ratio > 80dB, 20Hz ~ 20kHz bandwidth
Crosstalk Isolation < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output Load Capability 1kohm and higher (supports 10x paralleled 10kohm loads)
Noise -80dB
Control
Control port 1x RS232, 1x TCP/IP
Control Connector 1x 3-pin terminal connector, 1x RJ45
General
Operation Temperature 5°F to 131°F / -5°C to +55°C
Storage Temperature -13°F to 158°F / -25°C to +70°C
Relative Humidity 10% ~ 90%
External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
Power Consumption 13W (Max)
Dimension (W*H*D) 11.2" x 1” x 6.8” [285mm x 27mm x 172.5mm]
Net Weight 2.731bs [1.24Kg]

PACKAGE CONTENTS

  • 1x BG-UMV-HA41 4K 4X1 Seamless Switcher
  • 1x IR Remote
  • 4x Plastic Cushions
  • 2x Surface Mounting Ears
  • 4x Mounting Screws
  • 2x 3-pin Terminal Block
  • 1x RS232 Cable (3-pin to DB9)
  • 1x Power Adapter (24V DC 1.25A)
  • 1x User Manual

Interfaces

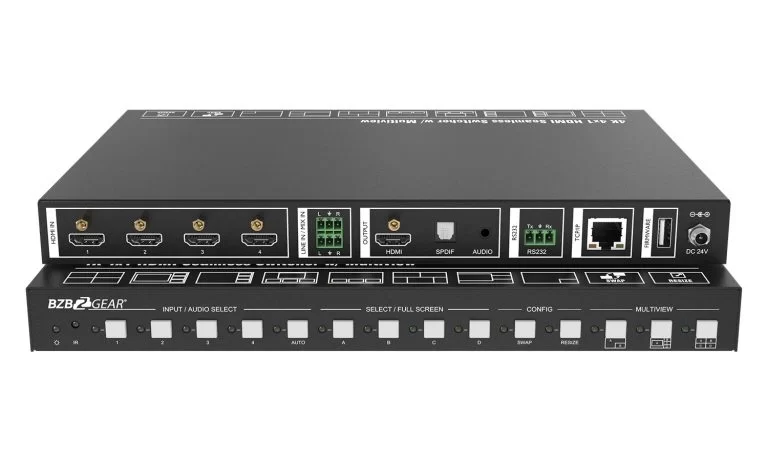

Interfaces image
  1. POWER LED: The LED illuminates green when it is working, and the LED illuminates red when it is in standby.
  2. IR LED: Built-in IR sensor, receives IR signal sent from IR remote.
  3. Input/Audio Select Buttons: Press 1-4 button to select corresponding HDMI input.
  4. Select/Full Screen Buttons: Press the buttons to select the corresponding input source as Full Screen.
  5. Config Buttons: Press the SWAP button to select the window display screen counter-clockwise direction. Press the RESIZE button to readjust the window size.
  6. Multi-View Buttons: Press the buttons to choose different available Multi-view modes.
  7. HDMI IN 1-4: Four type-A female HDMI input ports to connect HDMI source devices.
  8. LINE IN, MIX IN: 3-pin terminal block to connect an audio source device to embed in HDMI audio sources.
  9. Outputs: HDMI OUTPUT - HDMI output port to connect a display device. SPDIF OUTPUT - Toslink for audio de-embedding from HDMI output. AUDIO OUTPUT: 3.5mm mini jack for audio de-embedding from HDMI output.
  10. RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a third-party device to be controlled by RS232 commands.
  11. TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher by GUI.
  12. FIREWARE: Type-A USB port for firmware upgrade.
  13. DC 24V: DC connector for power adapter connection.
