Overview
The BG-USB-LR100 device is designed to extend the reach of your PC's USB 2.0 port, enabling you to connect peripheral devices at distances up to 100 meters (328 feet). With a data transfer rate of up to 480 Mb/s, this device allows for fast and reliable connectivity via a single category cable. Whether you need to connect remote security keypads, web cameras, printers, or any other USB peripheral devices beyond the 15ft limitation of a standard USB cable, the BG-USB-LR100 is the solution for you. Enjoy seamless performance and increased flexibility in a wide range of applications with this innovative device.
Enhanced Reliability
Locking power supply: The BG-USB-LR100 comes with a locking power supply, ensuring the device stays securely connected and powered on. This is especially useful in environments where the device may be subject to movement or jostling, as it helps prevent accidental disconnection of the power supply.
Compact design: The BG-USB-LR100 has a compact design, making it easy to transport and use in various settings. Whether you're working in a small office or a large industrial space, the compact size of the BG-USB-LR100 means that it won't take up too much space on your desk or work area.
Metal enclosure: The BG-USB-LR100 is housed in a metal enclosure, which provides added protection and durability. The metal enclosure helps protect the device from damage caused by impact or other physical stresses and ensures that the device can withstand the rigors of daily use.
Features
-
Plug and PlayNo drivers needed -
USB 2.0480Mb/s transfer speed -
Long RangeExtends USB 2.0 signal up to 328 feet -
Integrated USB HubShare a single USB connection with two devices at a long distance -
Rugged DesignDurable metal enclosure designed to last for years of operation -
PoCPower over Cable eliminates the need for a second power supply
- Locking power supply ensures reliable connection
- Supports two USB 2.0 devices such as access controls, printers, mouse/keyboard, etc.
- Compact design for easy and flexible installation
Videos
Tech Specifications
| Technical | |
| USB protocol | USB 2.0 |
| Transmission rate | Up to 480Mbps |
| Transmission distance | 100M (328ft) |
| ESD Protection | Human-body Model：±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |
| Transmitter | Input port: 1xUSB [USB-B, female] Output port: 1xCAT [RJ45, female] |
| Receiver | Input port: 1xCAT [RJ45, female] Output port: 2xUSB [USB-A, female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 3.2” (W) x 1.9” (D) x 0.8” (H) [82mm (W) x 49mm (D) x 20mm (H)] |
| Weight | Transmitter / Receiver: 0.22lbs [l00g] |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption | Transmitter: 1.3W, Receiver: 2.3W |
| Operating Temperature |
32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources
PACKAGE CONTENTS
- 1x USB 2.0 Extender (Transmitter)
- 1x USB 2.0 Extender (Receiver)
- 1x USB cable (USB-B male head to USB-A male head, one meter)
- 1x 12V/1A Locking Power Adapter
- 1x User Manual

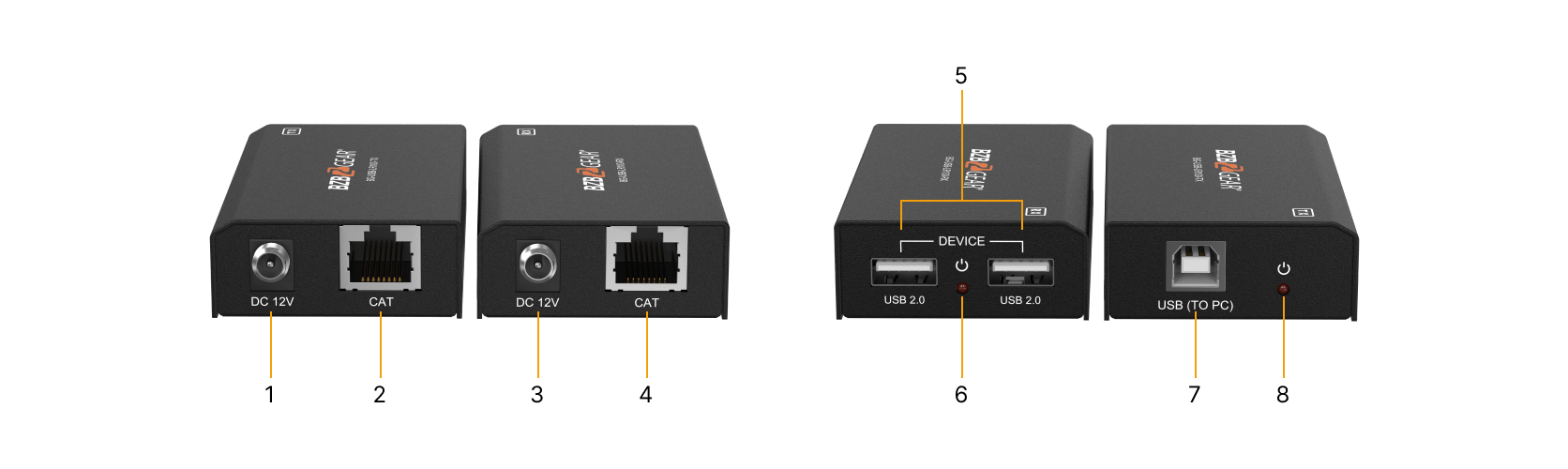

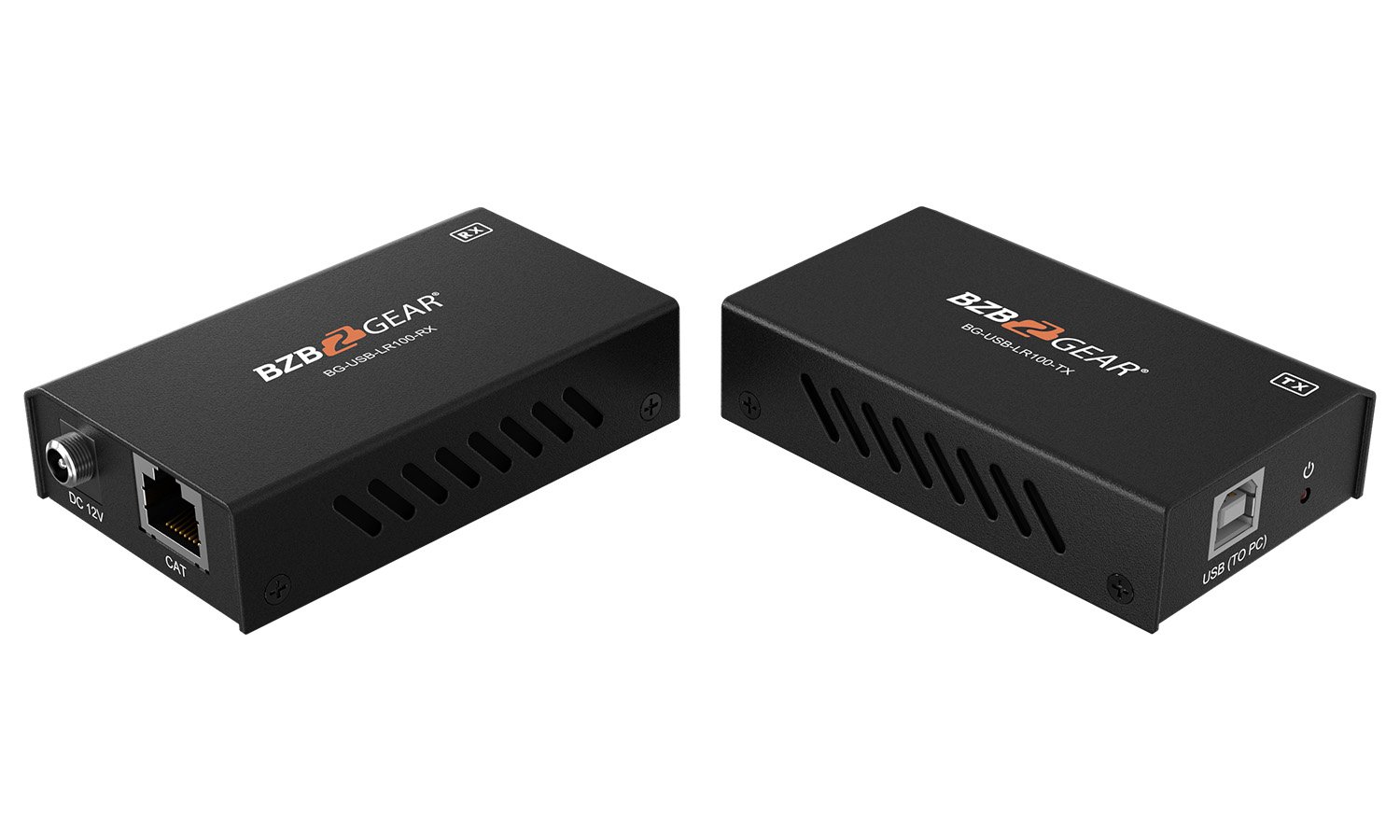

Interfaces
-

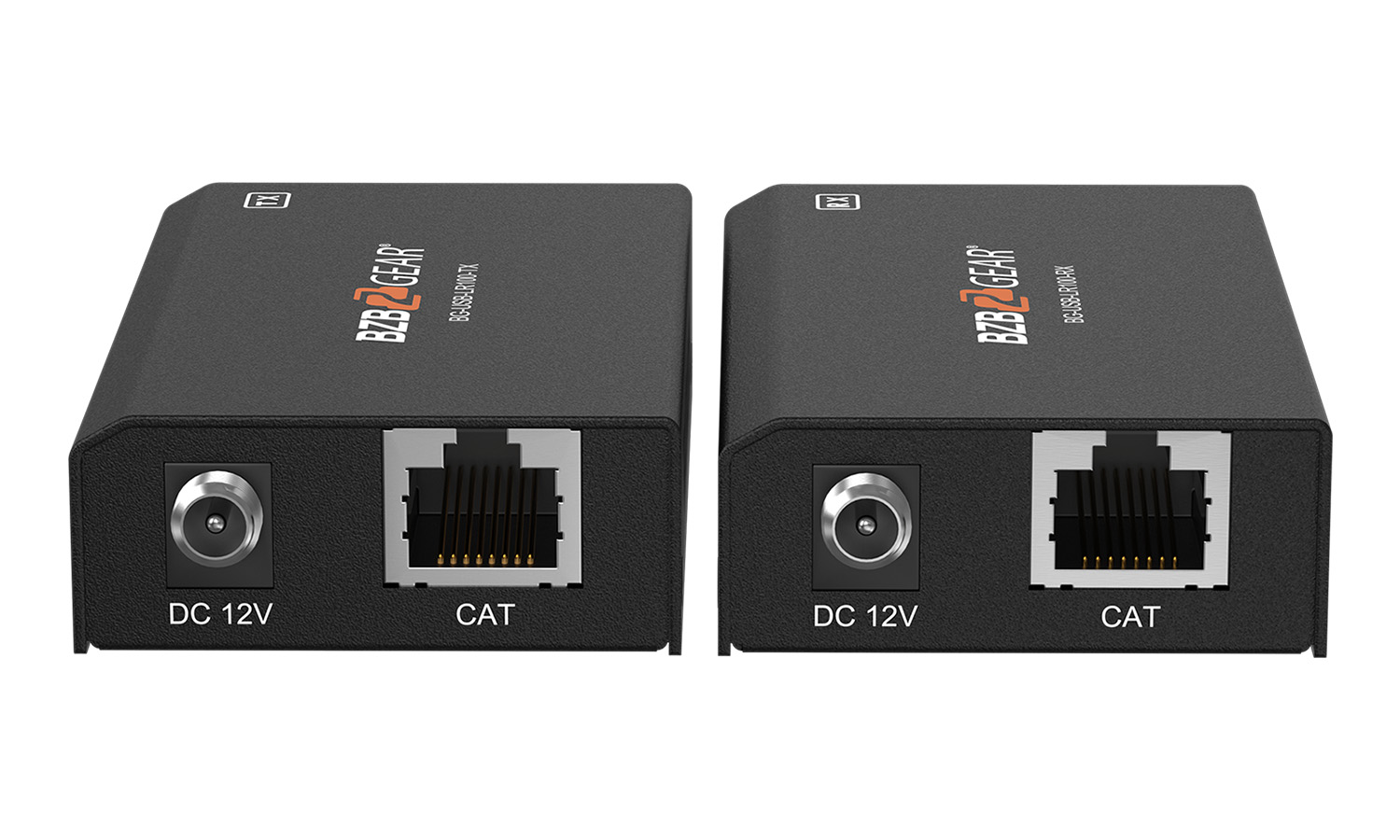

DC 12V: Connect the locking power supply to the unit.
-
CAT port: Connect to the receiver's CAT port.
-
DC 12V: Connect the locking power supply to the unit.
-
CAT port: Connect to the transmitter's CAT port.
-

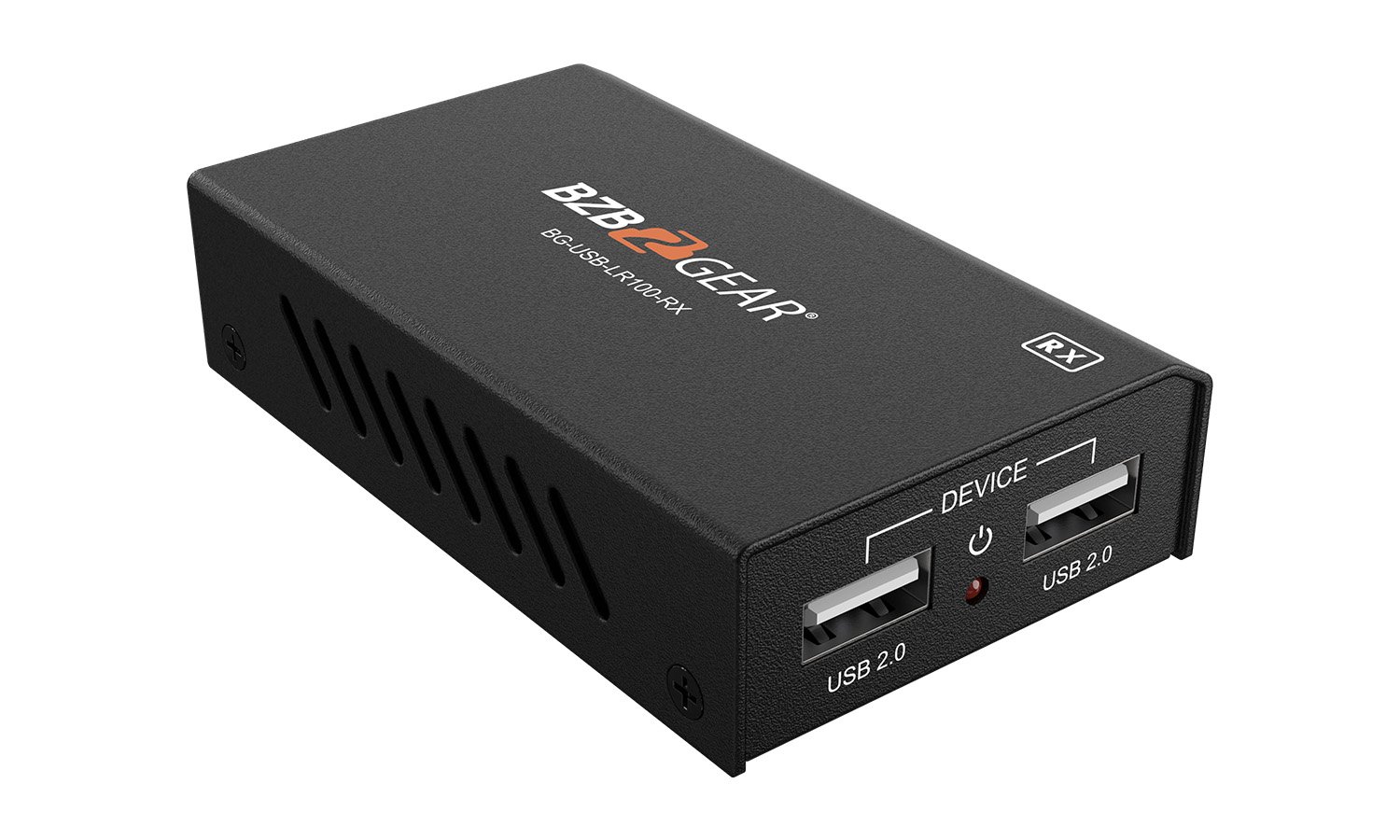

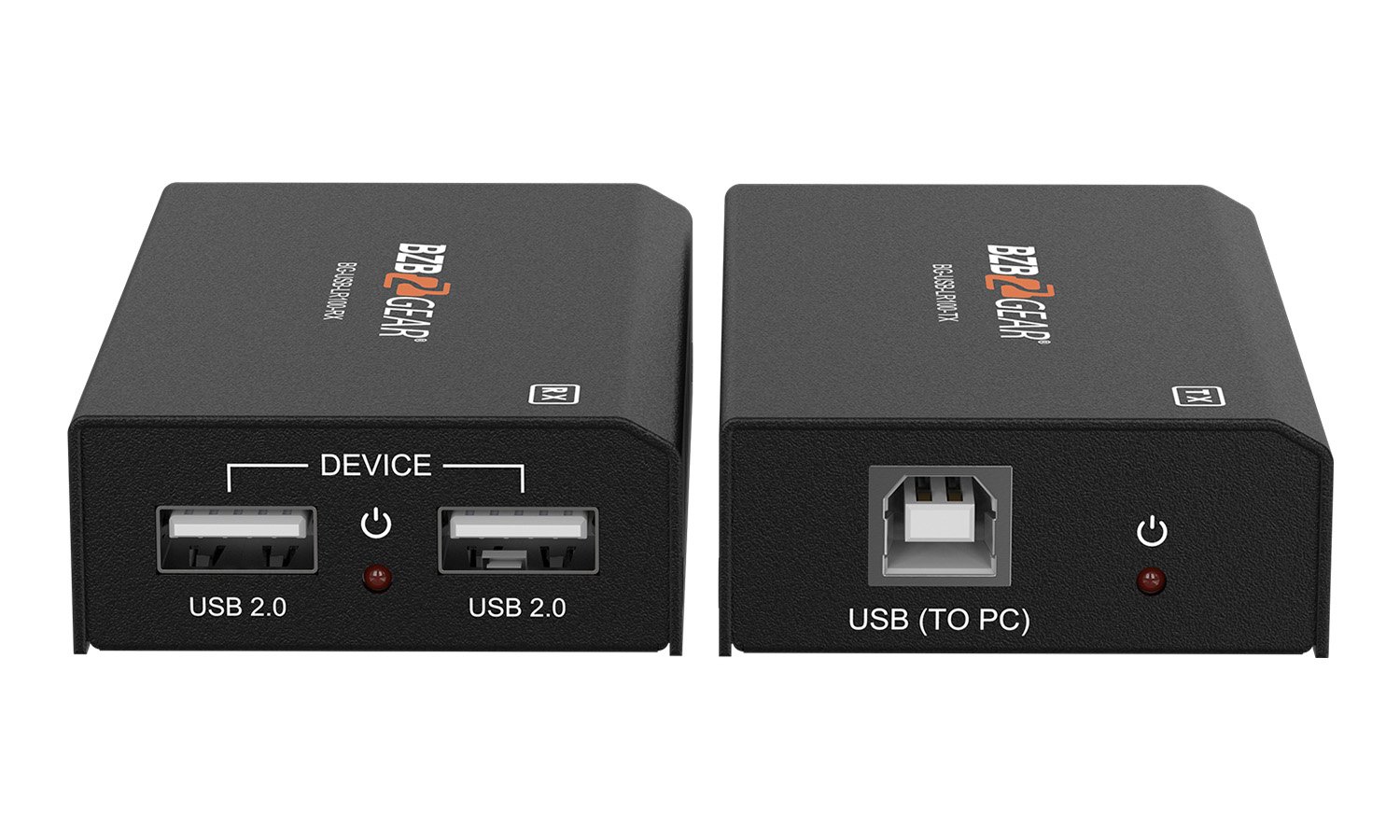

USB 2.0 ports: Connect to a device with USB 2.0 ports such as a printer, hard drive, etc.
-
POWER LED: The LED will illuminate green when connected to power.
-

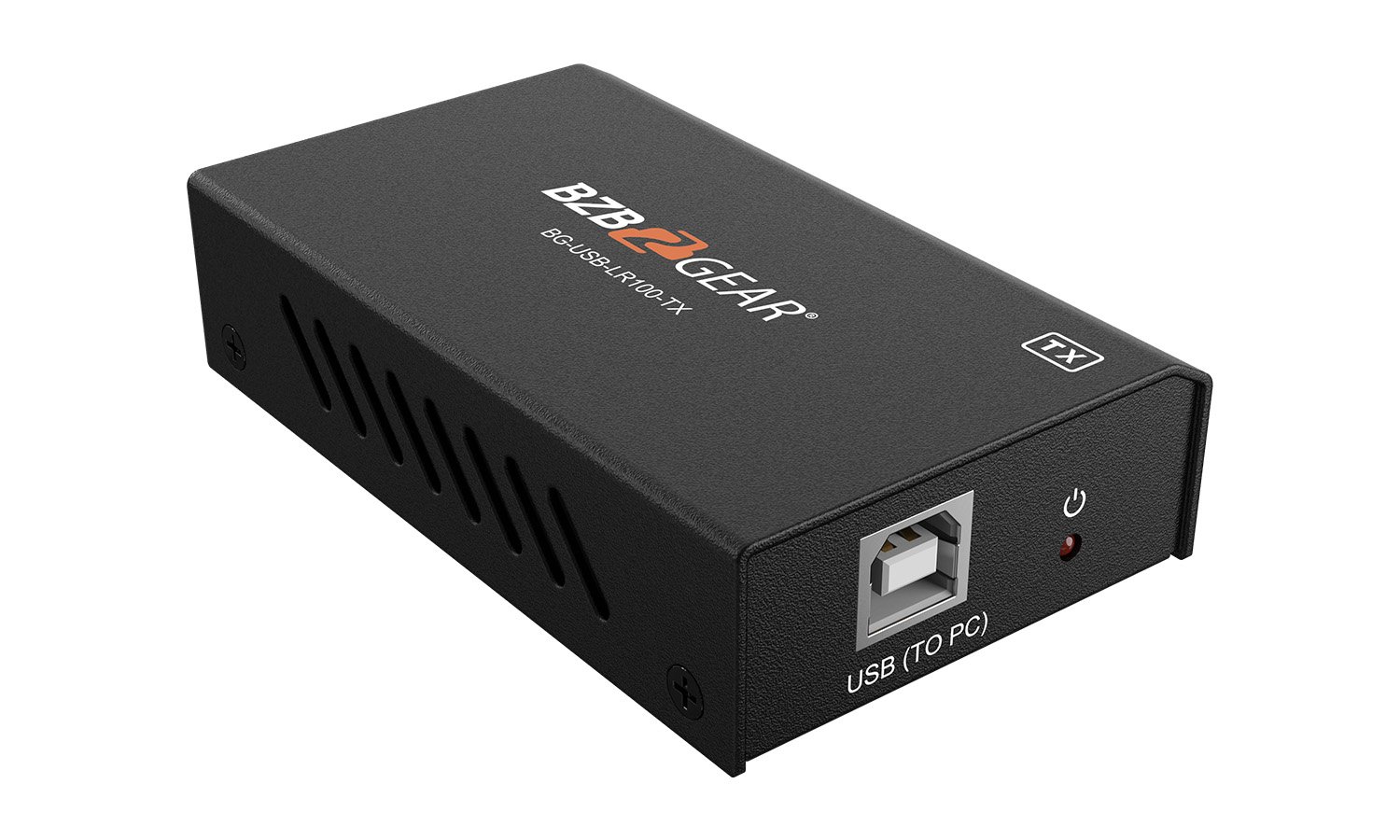

USB port: Connect USB Type-B to the USB port of a PC.
-
POWER LED: The LED will illuminate green when connected to power.
