4-Port USB 2.0 Extender Over Single CAT5E/6/7 up to 260ft (TAA Compliant)
Discontinued
TAA Compliant
See More Info
Configure the Perfect Solution
Get Started
Overview

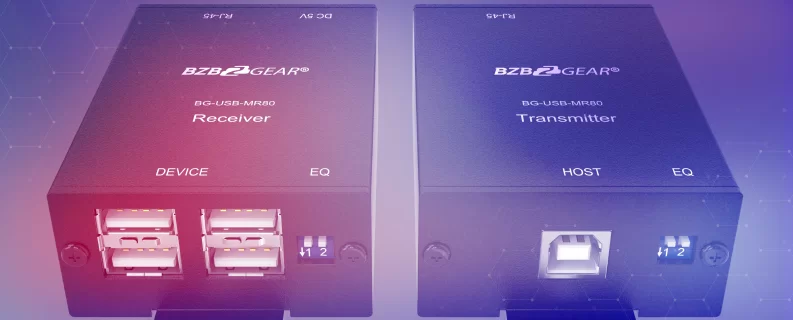

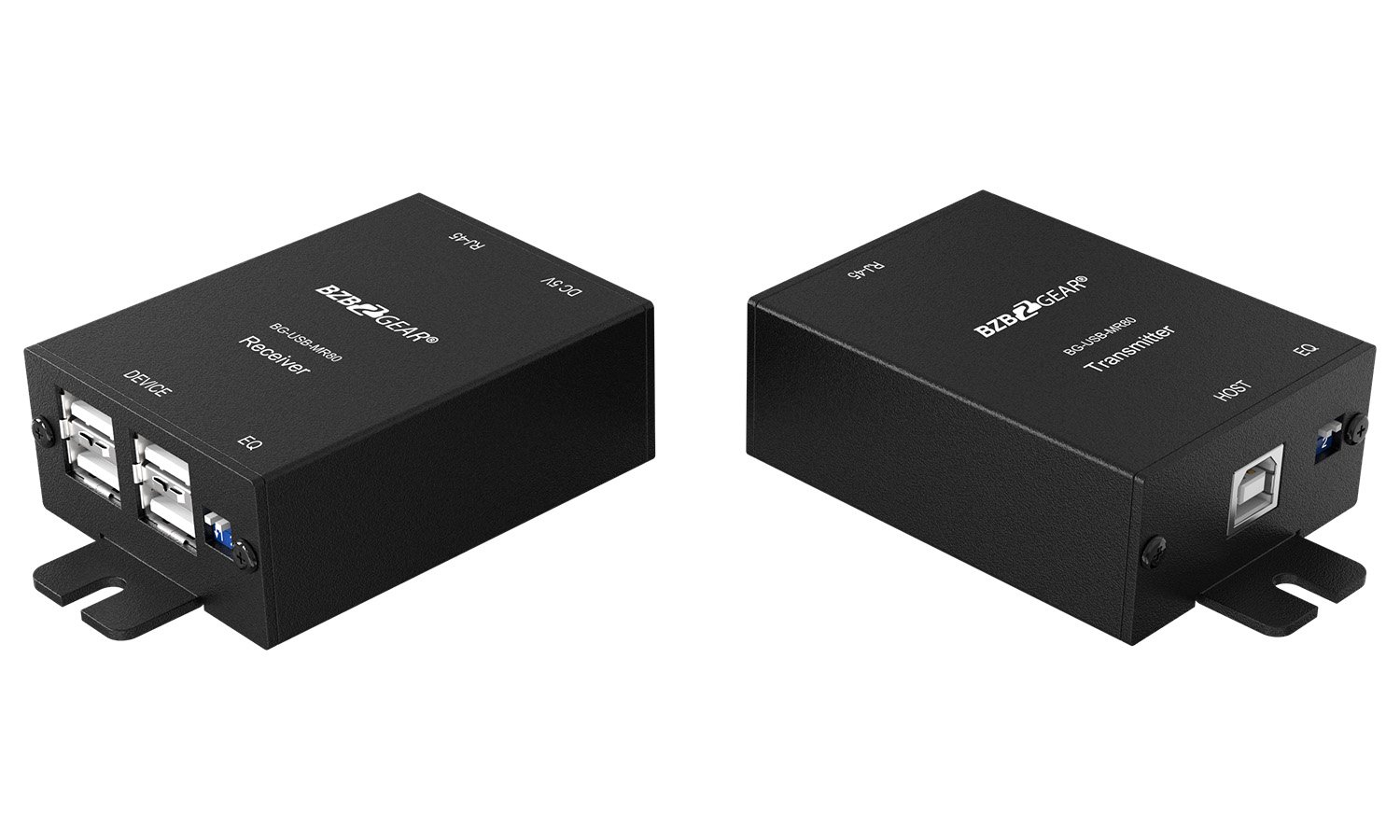

The BG-USB-MR80 is a USB 2.0 extender. This unit allows USB devices to be extended at distances up to 80 meters (264 feet) over a single category cable with transfer speeds up to 480Mb/s.

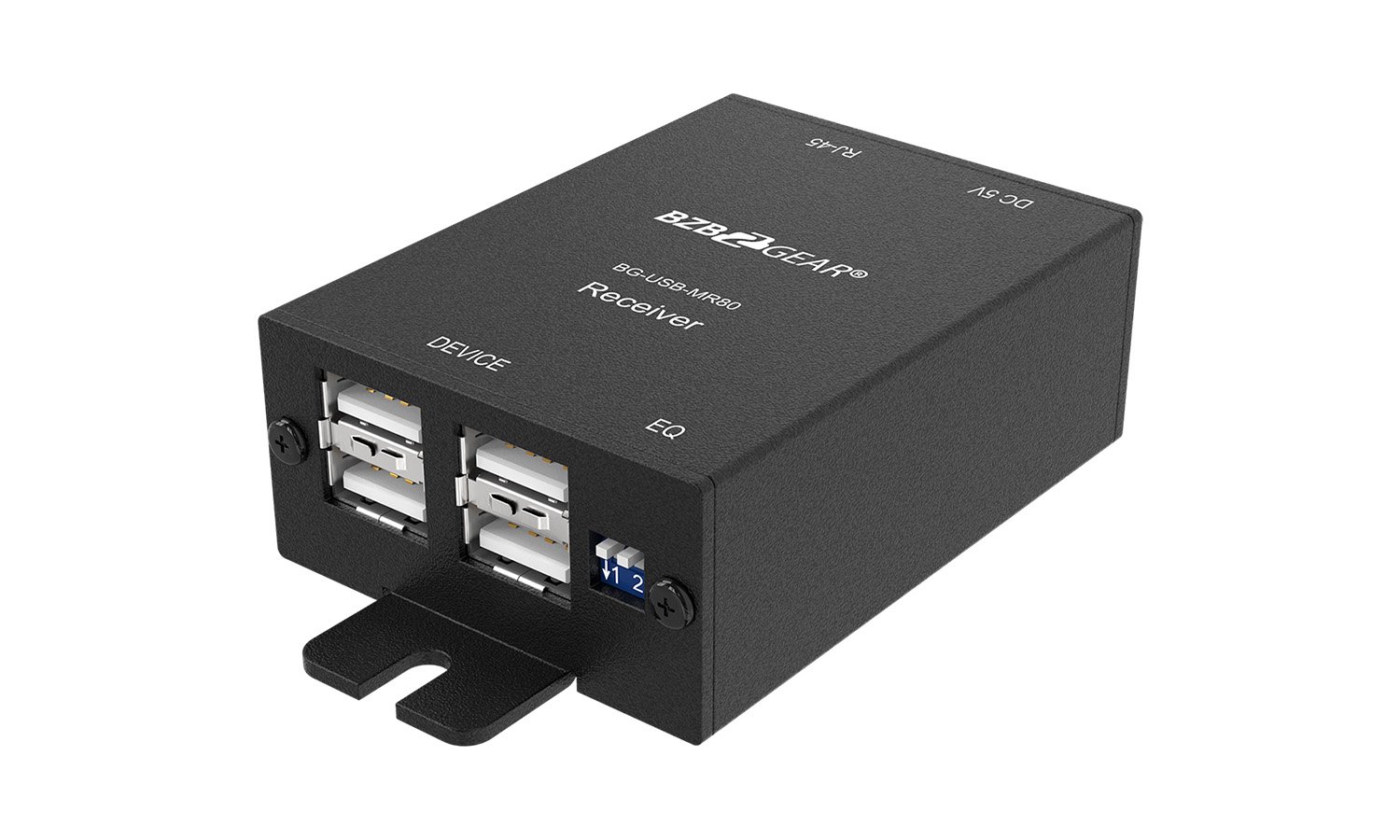

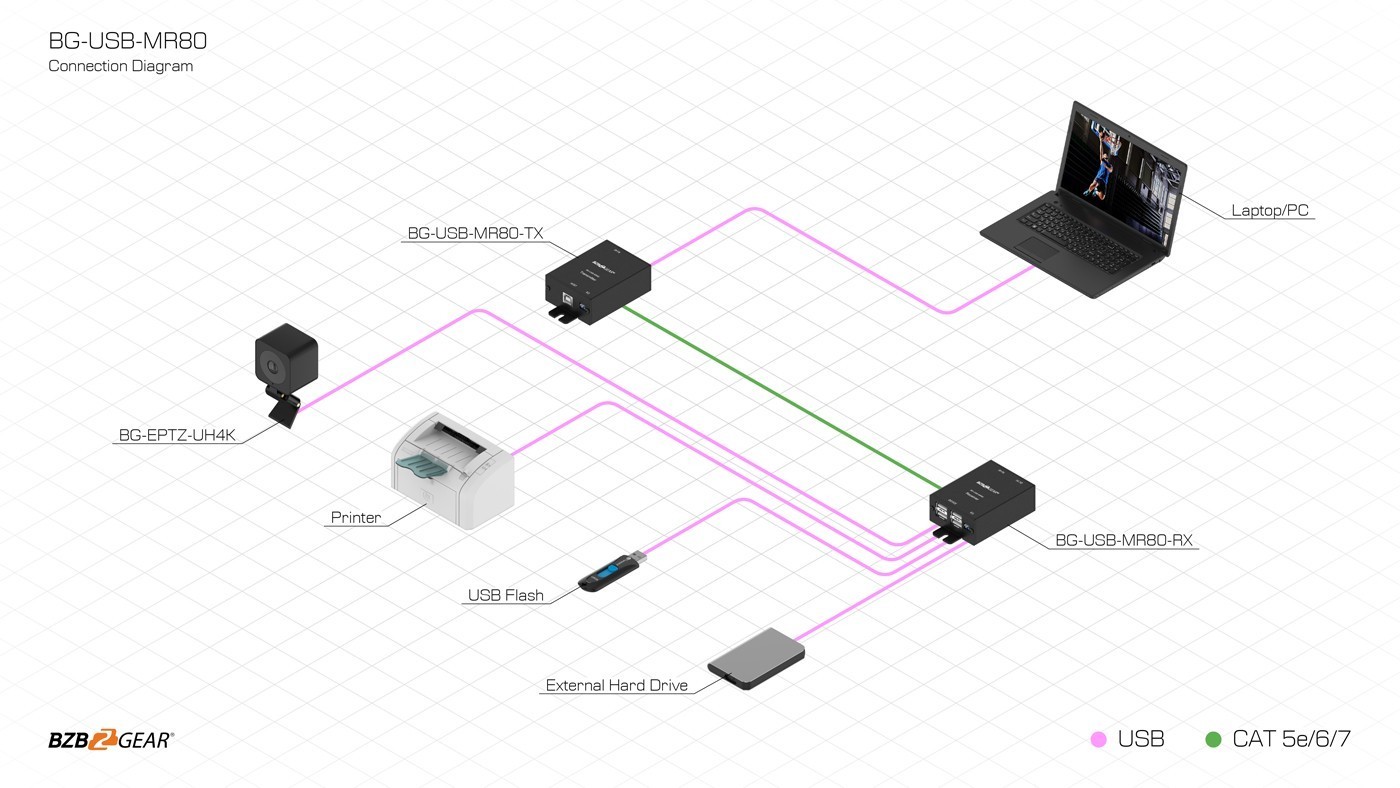

The transmitter connects to the computer while the receiver connects to USB peripheral devices such as printers, cameras, and storage devices. The receiver features a 4-port USB hub to allow connection for multiple devices.
The hot plug feature allows users to add or remove devices without rebooting while the plug and play connectivity keeps setup easy, eliminating the need to install any drivers.
TAA COMPLIANT PRODUCT.
This product meets the standards of the Trade Agreement Act (TAA).
You can find all BZBGEAR TAA Compliant Products on this page.
Features
-
Plug and PlayNo drivers needed -
USB 2.0480Mb/s transfer speed -
DistanceExtends USB 2.0 signal up to 264 feet -
Hot PlugAdd or remove devices without rebooting -
USB HubShare connection with up to four devices -
Rigid DesignMetal housing for extra durability
- Dipswitches to control signal strength
- Connect up to 4 devices to a computer up to 264ft away
- RJ45 - Uses a single standard category cable
Tech Specifications

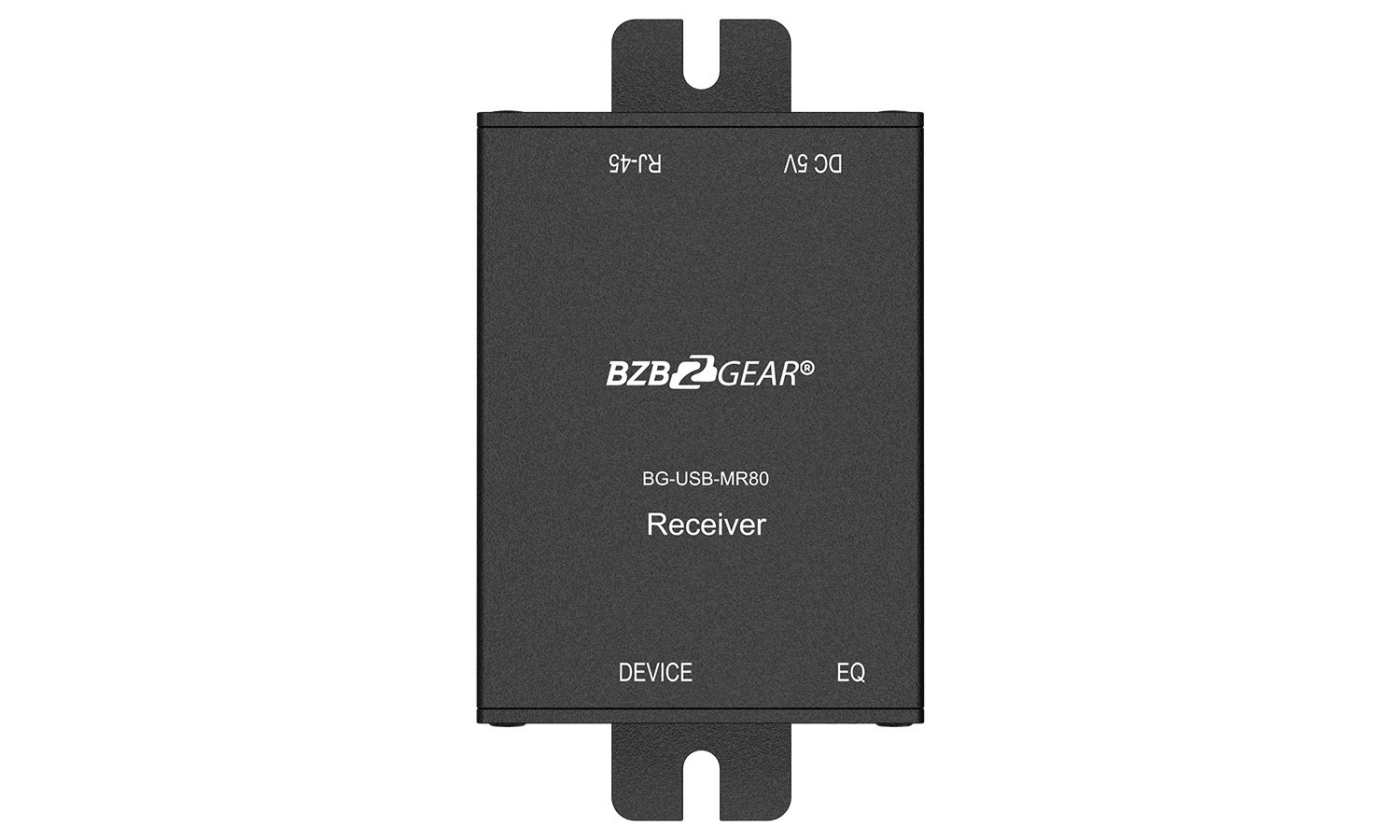

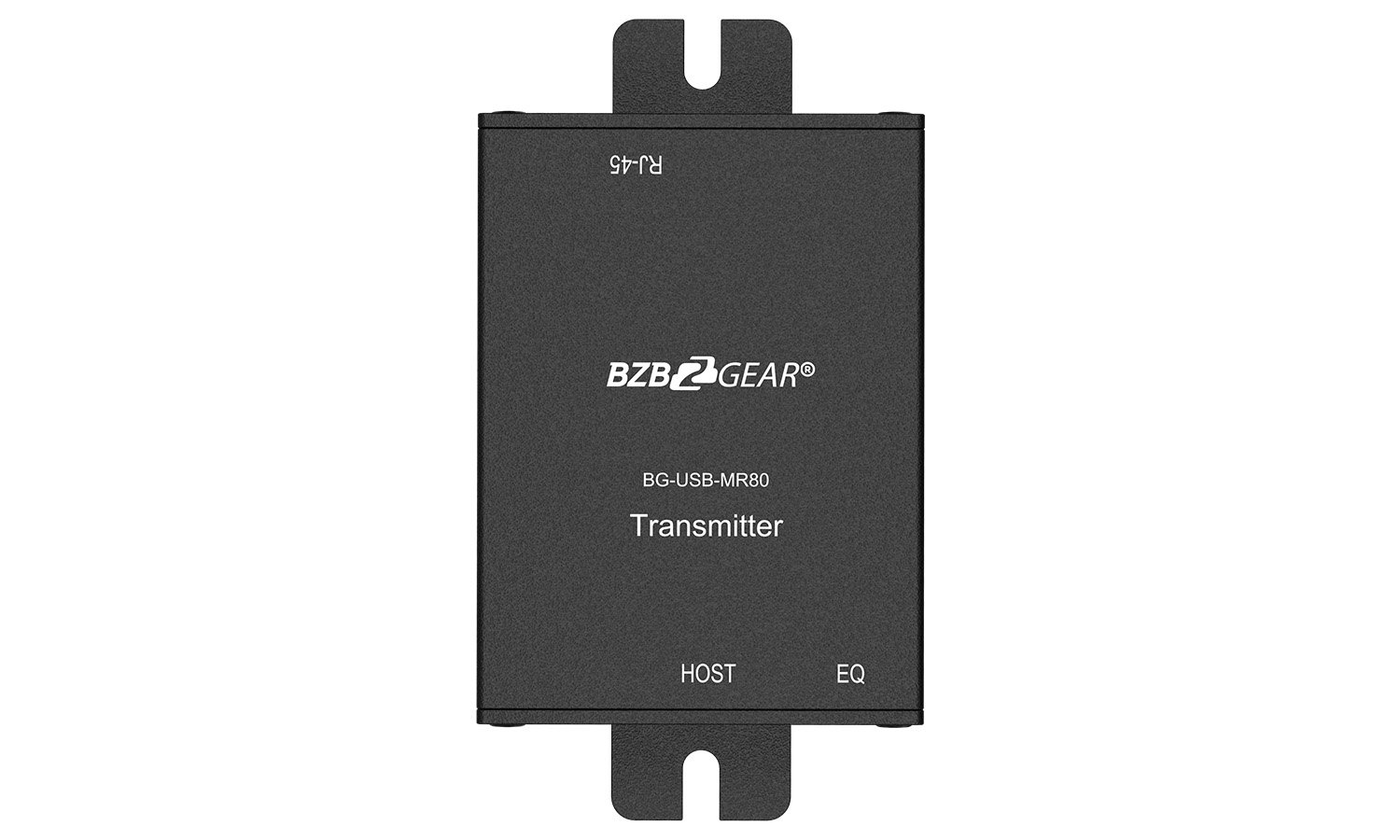

| Technical | |||
| Role of usage | Transmitter [TX] | Receiver [RX] | |
| Input | 1x USB (Type B) | 1x RJ-45 | |
| Output | 1x RJ-45 | 4x USB (Type A) | |
| Dip Switch | Signal level equalization | Signal level equalization | |
| USB compliance | USB 2.0 high speed compliant | ||
| Bandwidth | Up to 480 Mbit/s | ||
| USB over UTP transmission | Up to 264feet (80 meters) | ||
| Signal Equalization | 2-pin dip switch at TX & RX | ||
| ESD protection | [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset — ±8kV | ||
| PCB Stack-up | 4-layer board [impedance control — differential 100W; single 50W] | ||
| USB connector | USB 2.0 Type A & B (High-Speed USB) | ||
| RJ-45 connector | WE/SS 8P8C with 2 LED indicators | ||
| Mechanical | |||
| Housing | Metal case | ||
| Dimensions [L x W x H] | Model | 3.8" x 2.1" x 1" [97 x 54 x 27mm] | 3.8" x 2.1" x 1" [97 x 54 x 27mm] |
| Package | 10.3" x 6.7" x 3" [264 x 170 x 77mm] | ||
| Weight | Model | 3.8oz [108g] | 3.5oz [99g] |
| Package | 8oz [226g] | 7.6oz [217g] | |
| Power supply | Via USB | 5V 2A DC | |
| Power consumption | 2 Watts [max] | 4 Watts [max] | |
| Operation temperature | 32~104°F / 0~40°C | ||
| Storage temperature | -4~140°F / -20~60°C | ||
| Relative humidity | 20~90% RH [no condensation] | ||
Resources
Documents
PACKAGE CONTENTS
- 1x BG-USB-MR80
- 1x 5V power adapter
- 1x User Manual

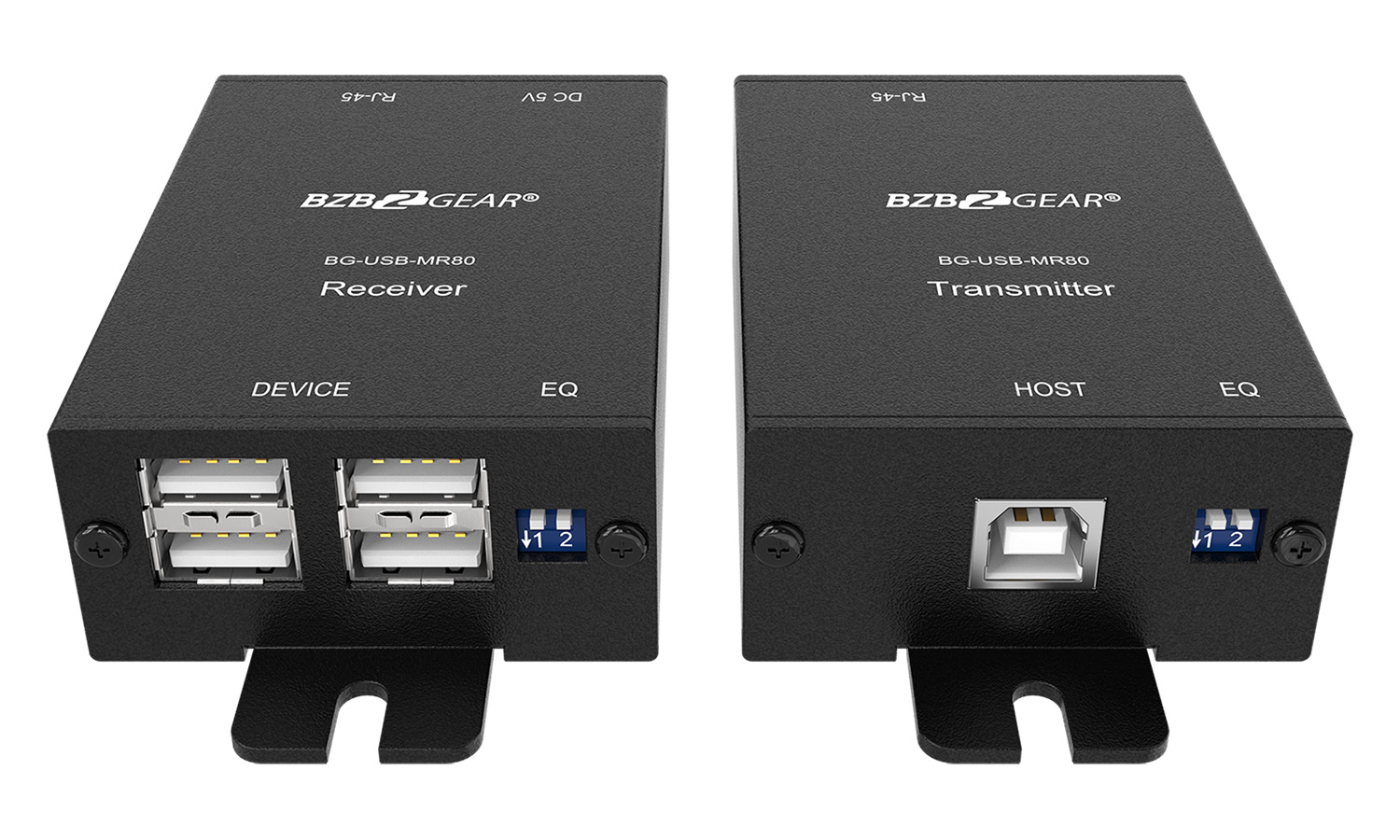

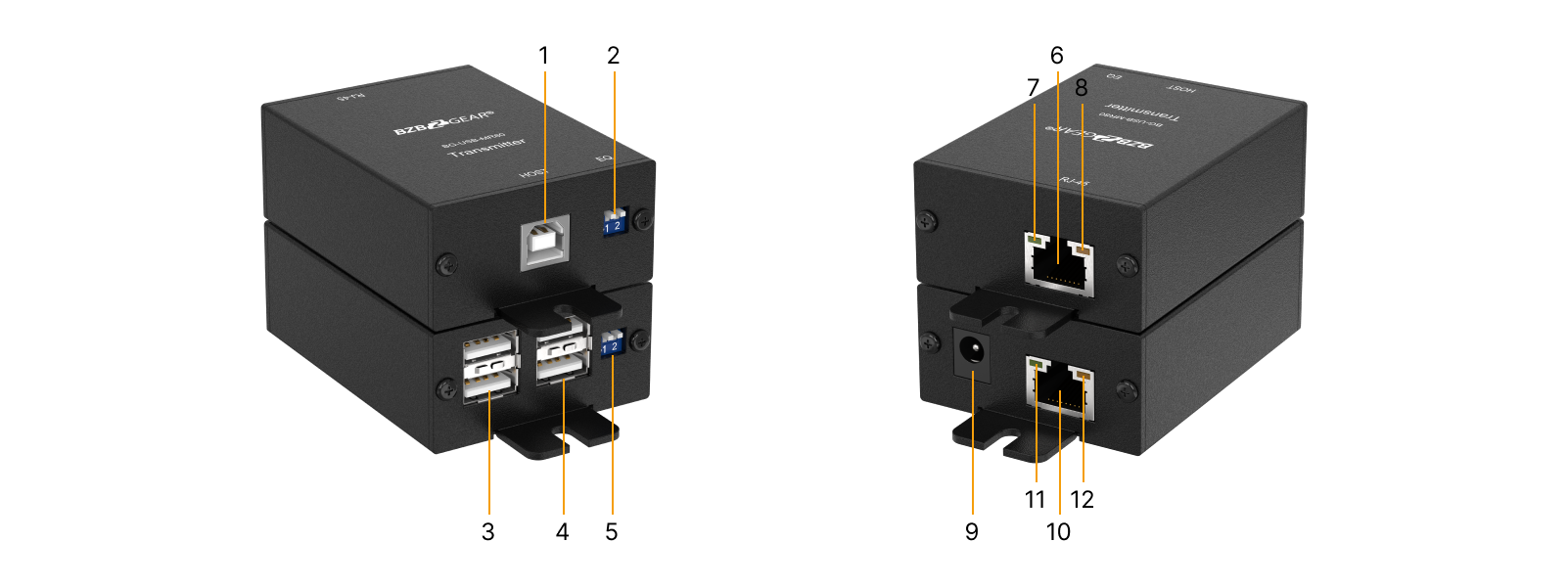

Interfaces

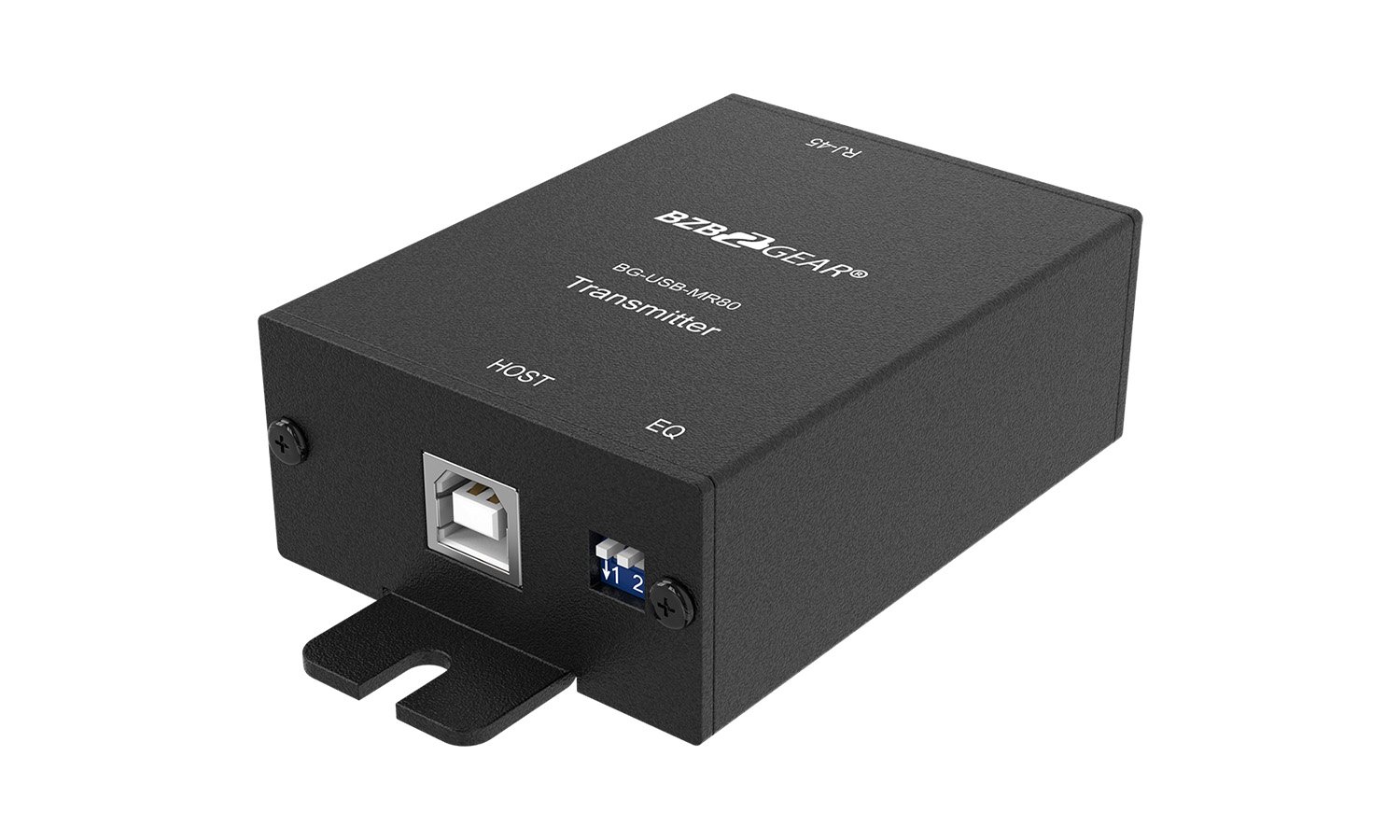

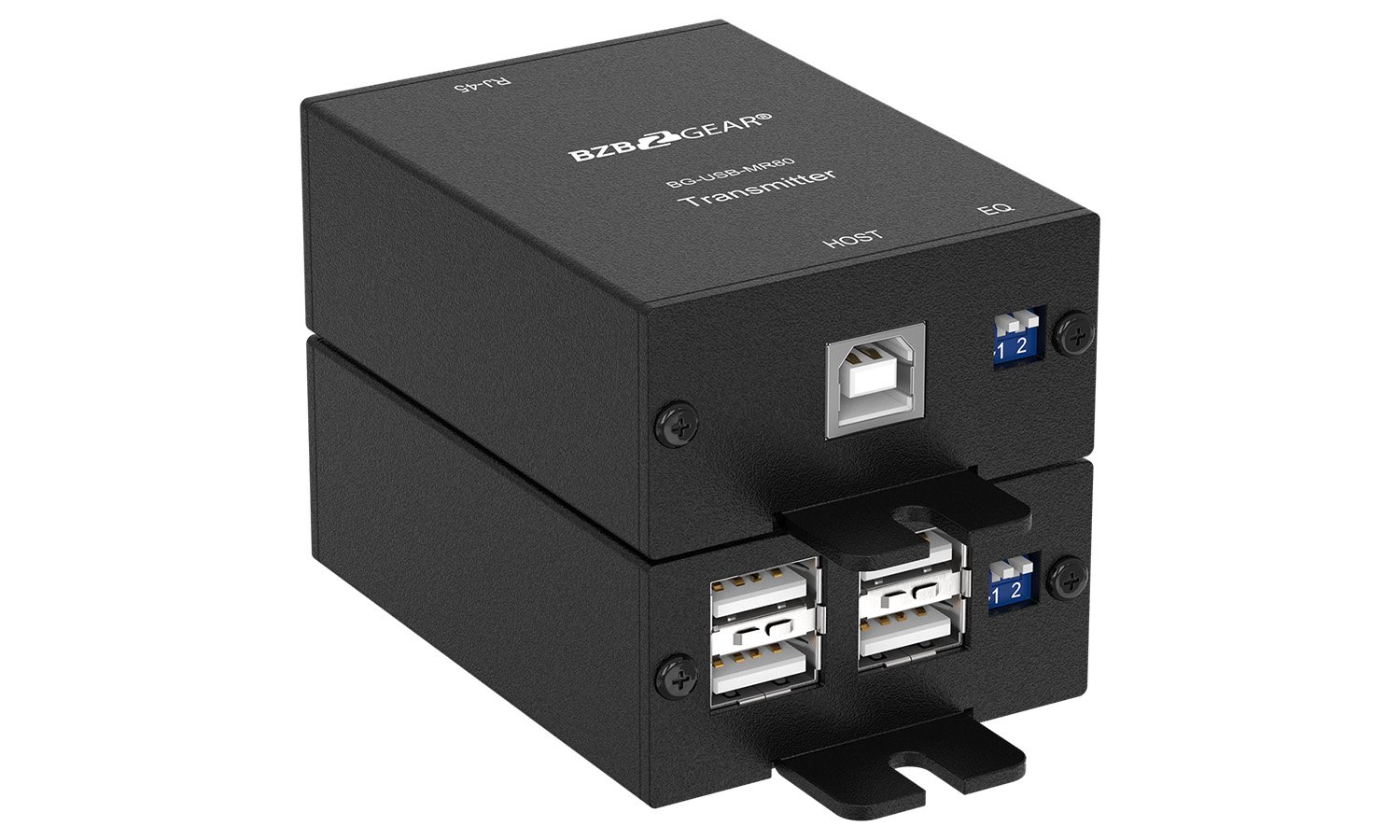

- USB Type-B: Connect to a USB host device.

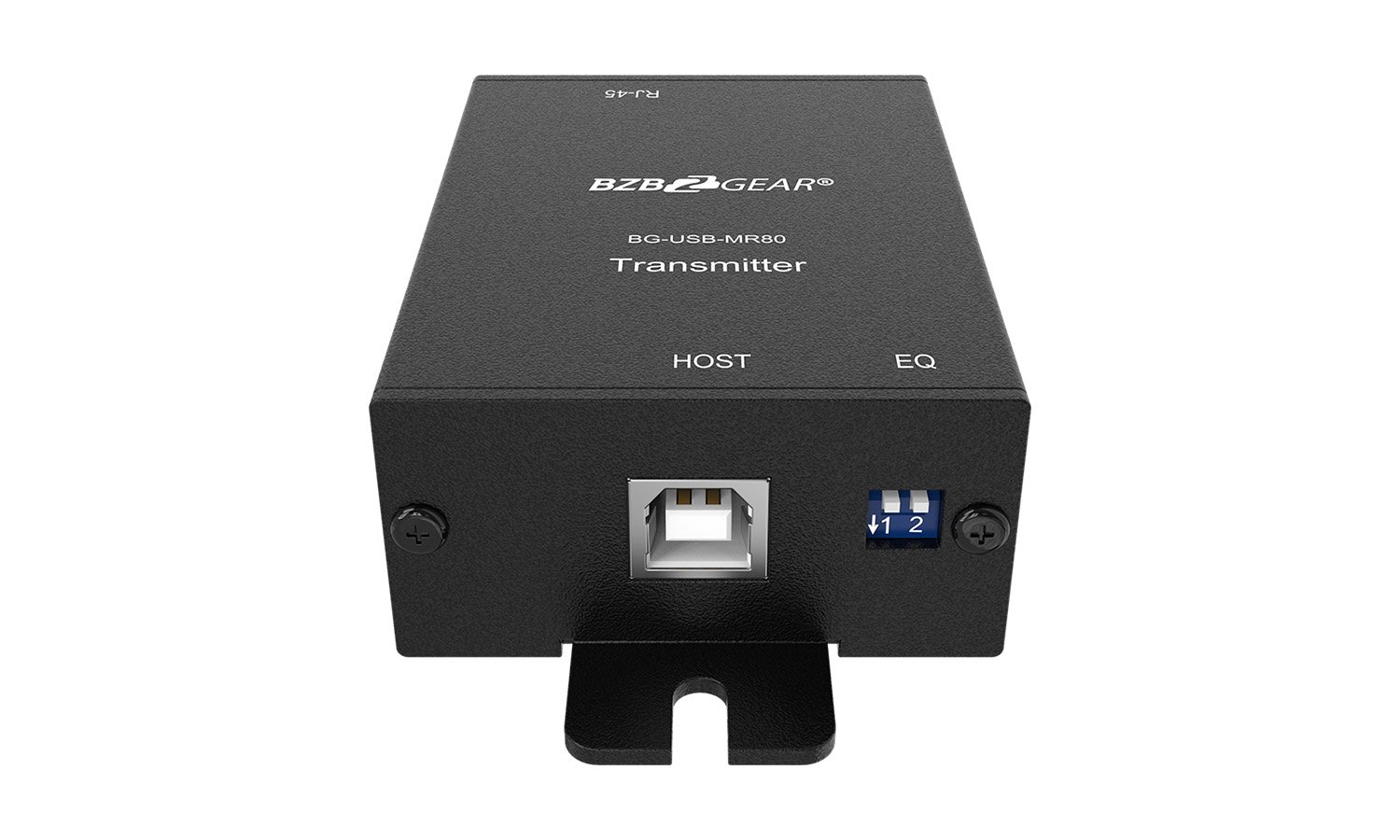

- 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission distances EQ1(strongest) - EQ3(weakest).

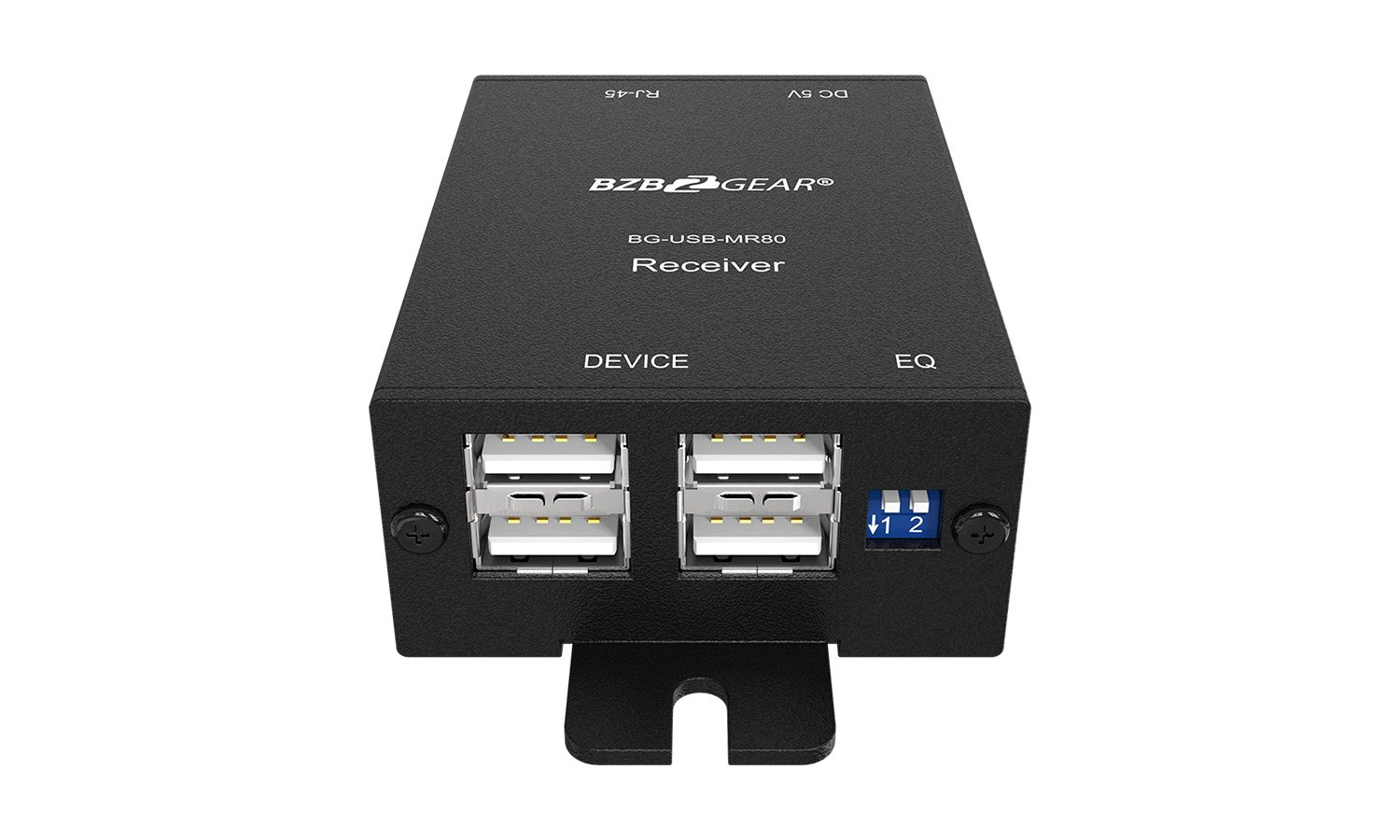

- USB 2.0 Type-A x2: Connect to USB 2.0 Devices.
- USB 2.0 Type-A x2: Connect to USB 2.0 Devices.
- 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission distances EQ1(strongest) - EQ3(weakest).

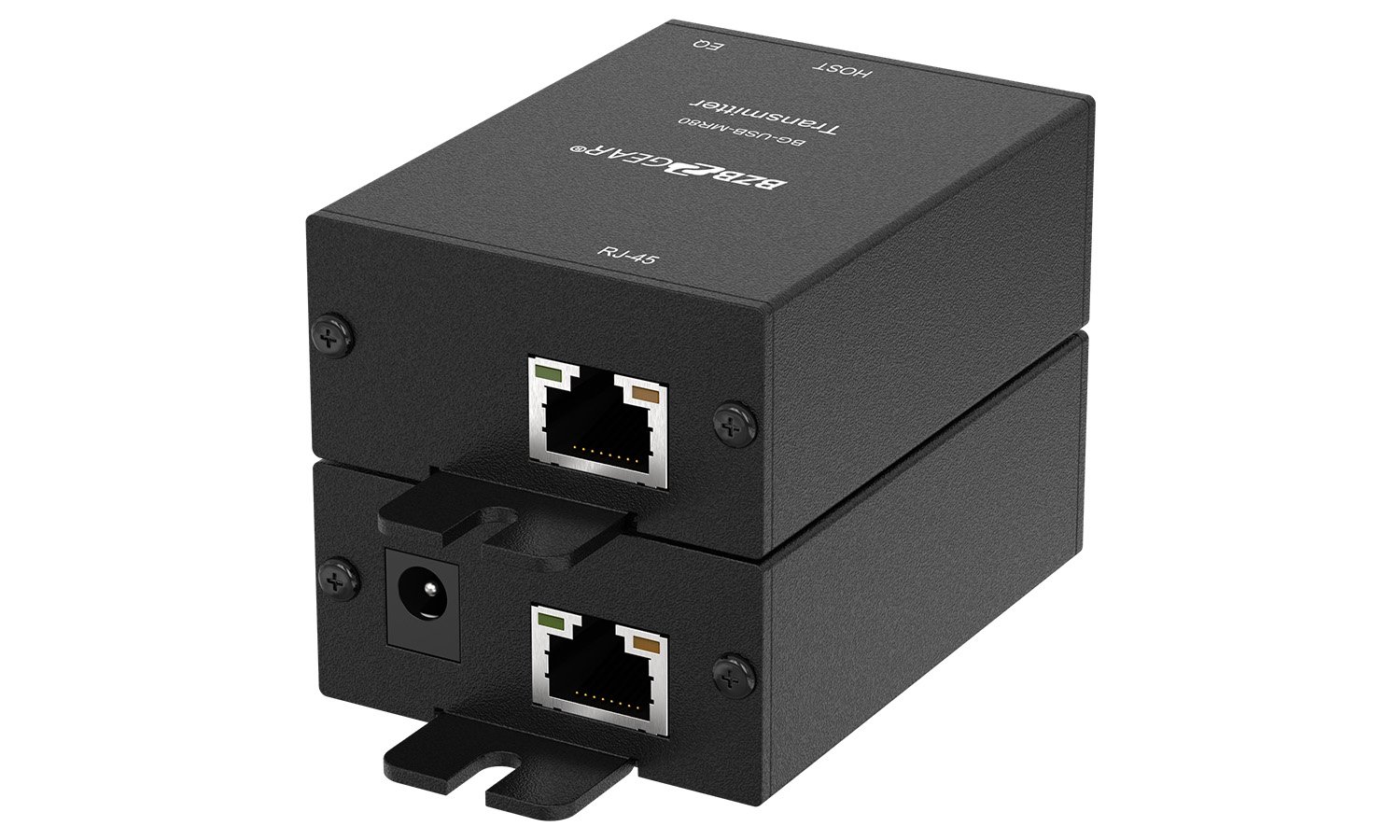

- RJ-45: Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiver.
- Power indicator: Illuminates green when the device is receiving power from the receiver unit.
- Signal indicator: Illuminates yellow when data is transmitted between devices.

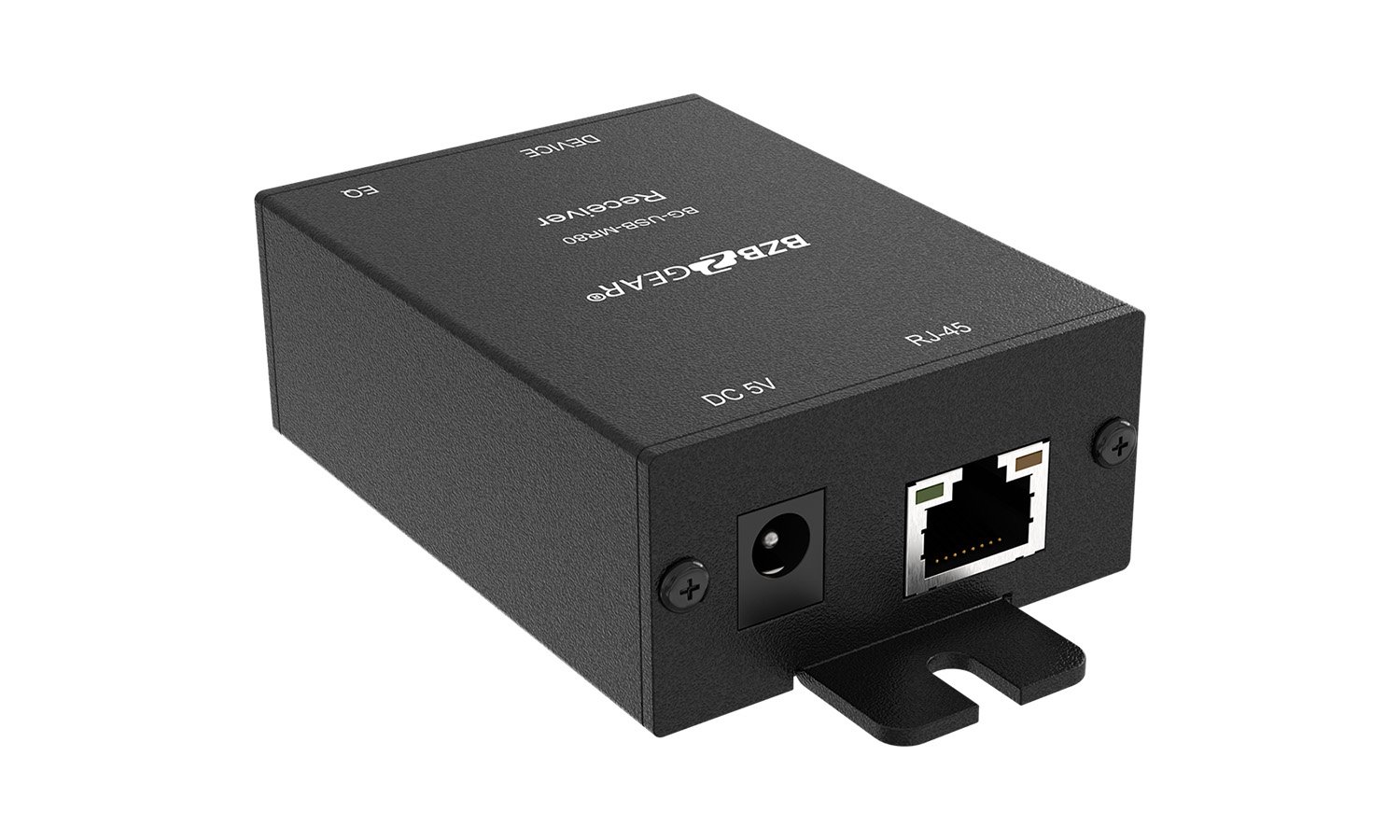

- 5V DC power jack: Connect to the provided power supply.
- RJ-45: Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the transmitter.
- Power indicator: Illuminates green when the device is powered on.
- Signal indicator: Illuminates yellow when data is transmitted between devices.
