USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)

ProGear
NEW
BG-USB3-LR100-4 BG-USB3-LR100-1 BG-USB3-LR100-2 BG-USB3-LR100-3 BG-USB3-LR100-5 BG-USB3-LR100-6 BG-USB3-LR100-7 BG-USB3-LR100-8 BG-USB3-LR100-9 BG-USB3-LR100-10
BG-USB3-LR100-4
BG-USB3-LR100-1
BG-USB3-LR100-2
BG-USB3-LR100-3
BG-USB3-LR100-5
BG-USB3-LR100-6
BG-USB3-LR100-7
BG-USB3-LR100-8
BG-USB3-LR100-9
BG-USB3-LR100-10
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

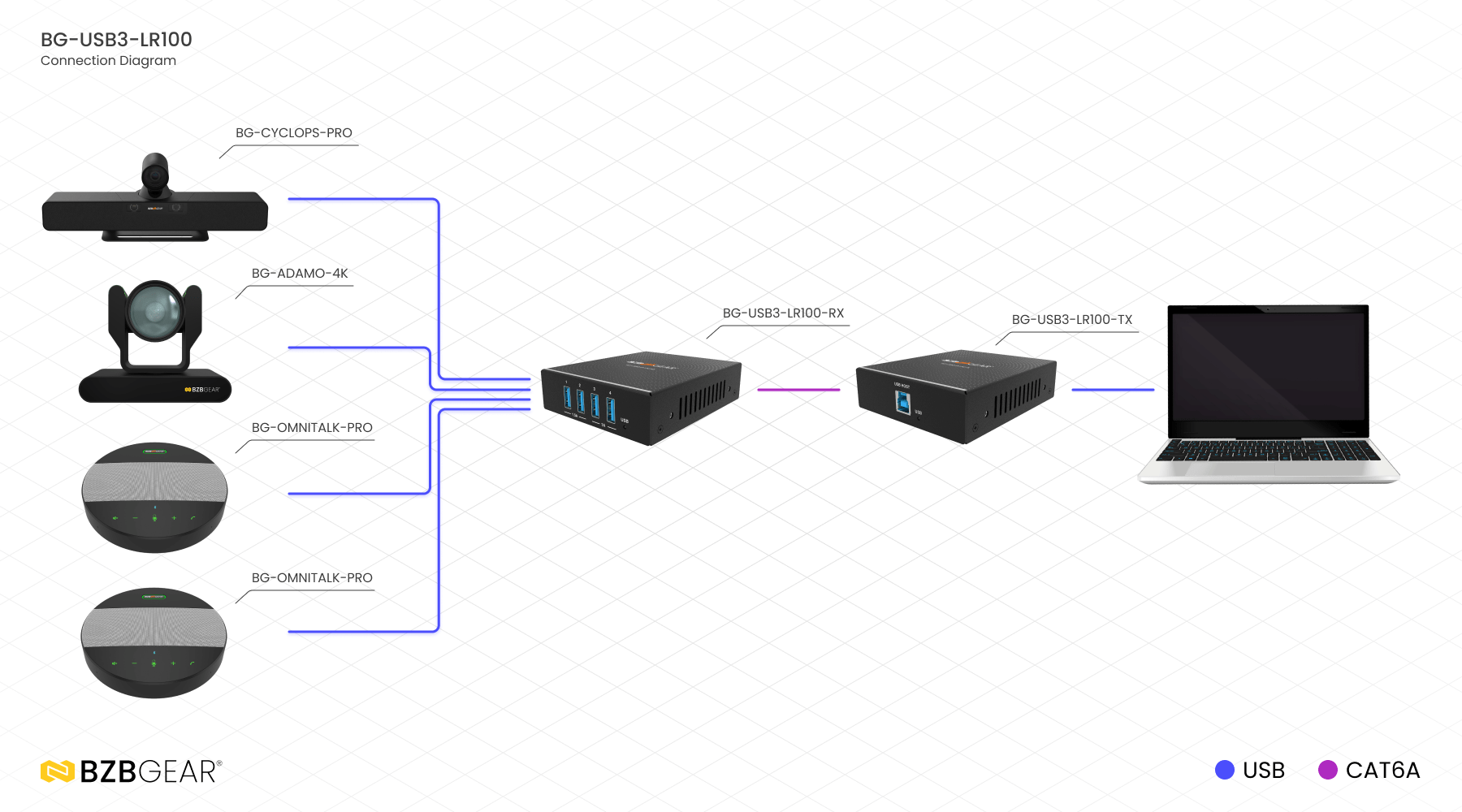

The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.

The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.

Features in Depth

One of the standout features of the BG-USB3-LR100 is its backward compatibility with USB 2.0 and 1.1, ensuring seamless integration with older devices. It also includes hardware acceleration for isochronous and bulk transfers, enhancing performance for demanding applications. The receiver's USB-A ports provide ample power, with ports 1 and 2 delivering 5V/1.5A and ports 3 and 4 offering 5V/1A, catering to a variety of USB device power requirements.

Designed for ease of use, the BG-USB3-LR100 requires no driver installation, offering a true plug-and-play experience. Its robust metal housing and compact dimensions (85mm × 100mm × 25.5mm) make it durable and easy to install in various environments. The device also includes extensive ESD protection and supports RS-232 and FSYNC GPIO pass-through, which is particularly useful for synchronizing industrial cameras and other specialized equipment.

Overall, the BG-USB3-LR100 USB 3.0 Extender is a versatile and powerful solution for extending USB connectivity over long distances, combining high-speed data transfer, broad compatibility, and easy installation to meet the needs of both industrial and commercial applications.



Features

  • Wide-Angle 1
    Long Distance
    Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
  • Bluetooth & USB Type-C Plug n play
    Fast Transfer Rates
    Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
  • bi_usb-symbol
    Backward Compatible
    Compatible with USB 2.0 and USB 1.1 devices
  • Plug-and-Play Setup
    Bi-directional PoC
    Supports bi-directional 24V Power over Cable (PoC)
  • fluent_plug-connected-add-20-regular
    Plug-and-play
    Easy plug-and-play setup with no driver or settings installation required
  • fluent_apps-48-filled
    Camera Applications
    Includes RS-232 and FSYNC GPIO pass-through for camera applications
  • Hardware acceleration for isochronous and bulk transfer
  • USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver

Videos

USB 3.0 Extender - High-Speed, Long-Distance Over 100 Meters
USB 3.0 Extender - High-Speed, Long-Distance Over 100 Meters
100 Meters of USB Power: Unboxing BZBGEAR's BG-USB3-LR100 Extender
100 Meters of USB Power: Unboxing BZBGEAR's BG-USB3-LR100 Extender
USB 2.0 vs USB 3.0 - The Battle Between Speed
USB 2.0 vs USB 3.0 - The Battle Between Speed

Tech Specifications

Technical
USB Protocol USB 3.0
Transmission Rate Up to 5Gbps
Network Bandwidth 10G
Transmission Distance 100m/328ft over CAT6a (F/FTP) cable
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connections
Transmitter Input:
1 × USB HOST [USB-B, 9pin Female]
Output:
1 × HDBT OUT [RJ45, Female]
Control:
1 × RS-232 [3pin-3.5mm Phoenix Connector]
1 × FSYNC [1pin-3.5mm Phoenix Connector]
1 × SERVICE [USB-C, Update Port]
Receiver Input:
1 × HDBT IN [RJ45, Female]
Output:
4 × USB Devices [USB-A, 9pin Female]
Control:
1 × RS-232 [3pin-3.5mm Phoenix Connector]
1 × FSYNC [1pin-3.5mm Phoenix Connector]
1 × SERVICE [USB-C, Update Port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (W x D x H) Transmitter / Receiver: 3.3in x 3.9in x 1in [85mm x 100mm x 25.5mm]
Weight Transmitter: 0.56 lbs [253g], Receiver: 0.57 lbs [260g]
Power Supply Input: AC 100~240V 50/60Hz, Output: DC 24V/2A
Power Consumption PoC Power Supply: 40W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

Resources

Documents
Download Download Manual

PACKAGE CONTENTS

  • 1x USB 3.0 Extender (Transmitter)
  • 1x USB 3.0 Extender (Receiver)
  • 1x 24V/2A Locking Power Supply
  • 2x 4pin-3.5mm Phoenix Connector (Male)
  • 4x Mounting Ear
  • 8x Machine Screw (KM3*4)
  • 1x User Manual

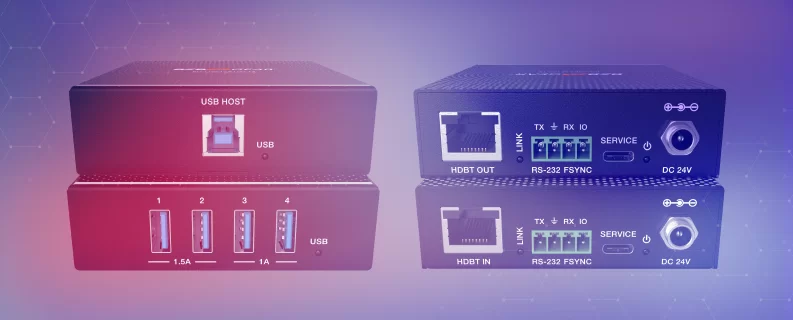

Interfaces

Interfaces image

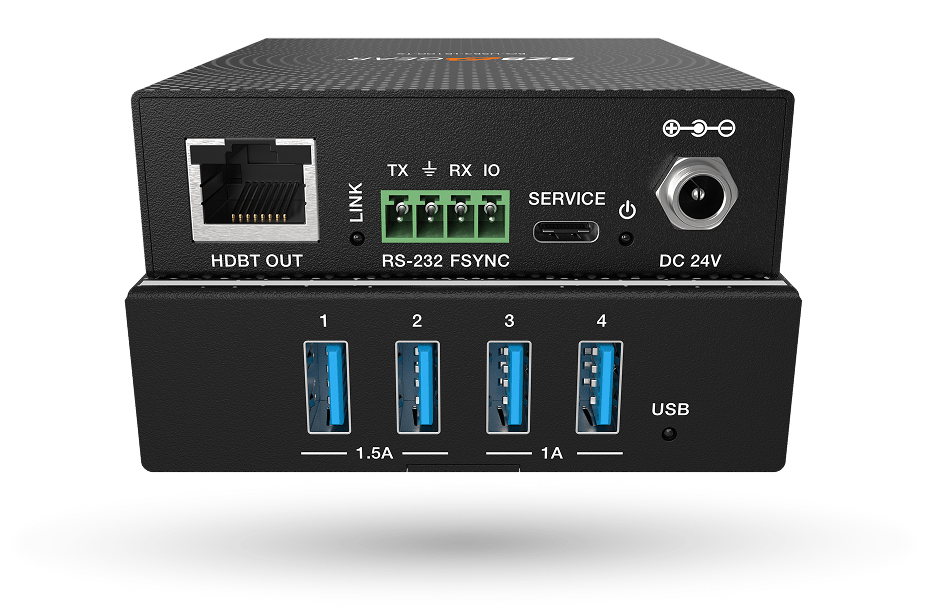

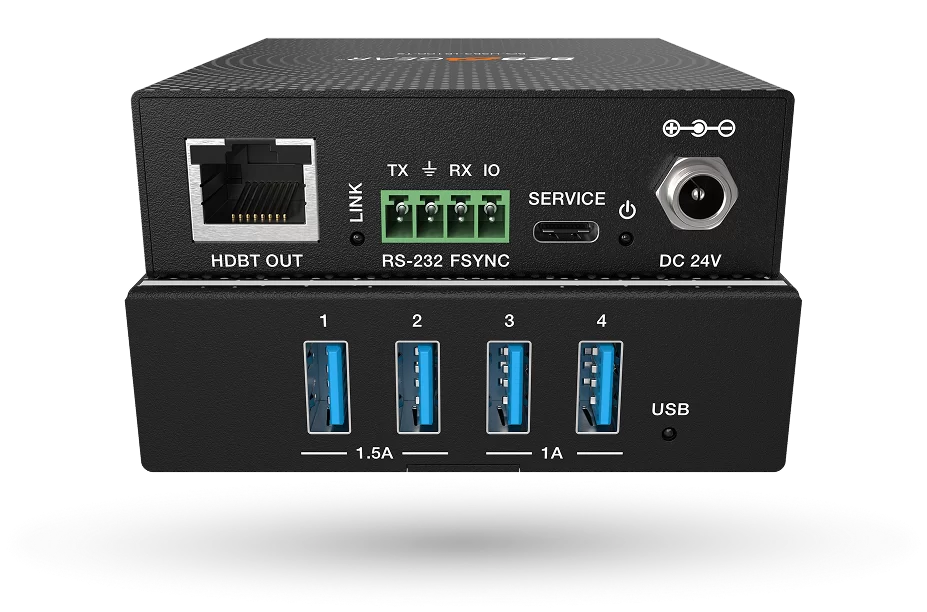

Transmitter

    1. USB HOST: Host port, supporting USB 3.0. Connects to a PC or host.
    2. USB LED: USB signal indicator.
      ● On: USB signal is detected.
      ● Off: USB signal is not detected.
    3. HDBT OUT: Connects to the HDBT IN port on the Receiver with CAT cable.
    4. LINK LED: Connection signal indicator.
      ● On: Transmitter and Receiver are connected and linked.
      ● Flashing: The Transmitter and Receiver link are off due to USB low power mode.
      ● Off: Transmitter and Receiver are not connected.
    5. RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
    6. FSYNC: FSYNC port, used for level pass-through to the Receiver and synchronizing the external devices. The default level is 3.3V.
    7. SERVICE: Firmware update port.
    8. POWER LED: The LED will be on when the Transmitter is powered on.
    9. DC 24V: DC 24V/2A power input port.

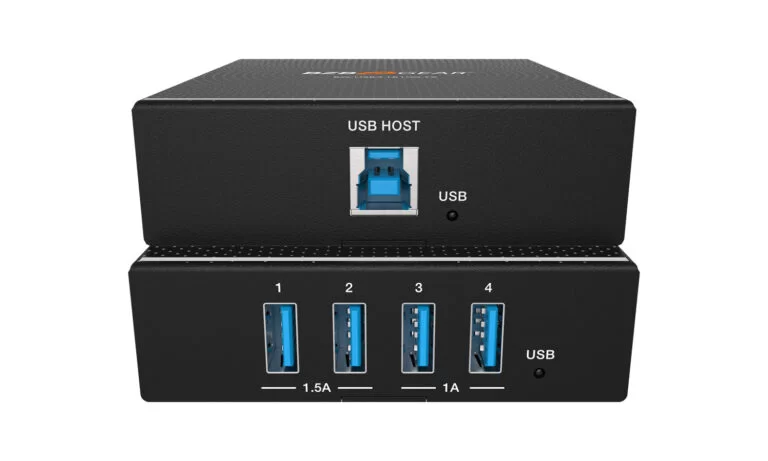

      Receiver

    10. USB 1/2: Connect to USB devices, and max output power is up to 5V/1.5A.
    11. USB 3/4: Connect to USB devices, and max output power is up to 5V/1A.
    12. USB LED: USB signal indicator.
      ● On: USB signal is detected.
      ● Off: USB signal is not detected.
    13. HDBT IN: Connects to the HDBT OUT port on the Transmitter with CAT cable.
    14. LINK LED: Connection signal indicator.
      ● On: Transmitter and Receiver are connected and linked.
      ● Flashing: The Transmitter and Receiver link is off due to USB low power mode.
      ● Off: Transmitter and Receiver are not connected.
    15. RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
    16. FSYNC: FSYNC port, receiving level pass-through from the Transmitter and synchronizing the external devices. The default level is 3.3V.
    17. SERVICE: Firmware update port.
    18. POWER LED: The LED will be on when the Receiver is powered on.
    19. DC 24V: DC 24V/2A power input port.
