Compact PTZ 1080P FHD 10X/20X/30X Camera with HDMI/SDI/USB 3.0/POE

Configure the Perfect Solution
Get Started

Overview

Introducing the BG-VPTZ-HSU3, a versatile COMPACT PTZ 1080P FHD camera with 10X/20X/30X zoom options, multiple output interfaces (HDMI, 3G-SDI, USB 3.0, IP streaming), and a compact design perfect for offices and classrooms. For enhanced audio/video over IP streaming, the BG-VPTZ-HSU3 supports NDI|HX2 with the BG-VPTZN-HSU3 model.

With the ability to capture 1080p@60Hz video, this camera delivers exceptional image quality and supports H.264/H.265 video compression and RTMP(S) for live streaming. Offering flexible control via RS-232, RS-485, LAN, or IR remote, it also boasts 255 preset positions.  Additional features include Power over Ethernet (PoE), audio embedding, and a sturdy all-aluminum chassis, making it a top choice for high-quality video capture and streaming in various settings.

The BG-VPTZ-HSU3 camera finds applications in video conferencing, live streaming, content creation, surveillance, and large venue settings. Its high-resolution imaging, audio integration, and multiple output options enhance professional video conferences and engaging webinars.

Connectivity and Features:

The BG-VPTZ-HSU3 camera boasts impressive capabilities. It can capture images at resolutions of up to 1080p at 60Hz, ensuring that you get high-definition, sharp visuals for your applications. What sets it apart is its versatility in output options, with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This flexibility enables seamless integration into various workflows, making it adaptable for a wide range of settings and purposes.

Additionally, it offers 10X, 20X, or 30X optical zoom lenses, which is invaluable for capturing detailed close-ups, even in large venues. For applications where synchronized audio and video are crucial, the camera features a 3.5mm audio input jack to embed audio directly into the video stream. It supports H.264 and H.265 video compression formats and can broadcast using ONVIF, RTSP, and RTMP IP streaming protocols.

Control Options:

The BG-VPTZ-HSU3 camera provides a wealth of control options to suit your specific needs. It can be controlled using RS-232, RS-485, LAN (local area network), or the included IR remote control. This diverse range of control methods ensures that you can choose the most convenient one for your particular use case. Moreover, the camera supports various control protocols, including IP VISCA, ONVIF, and PELCO-P/D, which simplifies integration into existing setups and control systems. When it comes to configuring and managing camera angles and settings, you have the luxury of storing up to 255 preset positions internally.

Furthermore, nine of these presets are easily accessible via the included IR remote control, streamlining camera operation and enhancing user-friendliness. In conclusion, the BG-VPTZ-HSU3 camera is a versatile and adaptable solution, offering high-resolution imaging, diverse output options, audio integration, and a comprehensive array of control methods and protocols to cater to the unique needs of a wide range of professional applications.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX2?

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a "cleaner" implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI. Learn more about NDI technology

Who Uses NDI Technology

NDI technology finds widespread application across diverse industries, encompassing broadcasting, live events, education, gaming, healthcare, corporate communication, security, entertainment, virtual studios, and government sectors. This versatile technology excels in delivering flawless audio and video transmissions over IP networks, making it indispensable for tasks like live broadcasts, remote learning, esports streaming, medical imaging, and more.

NDI stands as an adaptable platform, boasting easy setup, minimal latency, and top-tier video connectivity, catering to a broad spectrum of use cases. From professional broadcast studios to consumer-grade setups, NDI seamlessly integrates into various devices and workflows. This adaptability makes it an ideal choice for businesses operating in various sectors, including broadcast and professional audiovisual, cloud video management, conferences, education, gaming, and security.

Features

  • badge-Full-hd | 1080P HD
    Broadcast Quality Video
    Fluid motion, clear image, and accurate colors
  • solar_play-stream-bold
    Latest Streaming Tech
    Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook
    live streaming
  • material-symbols_settings-input-component
    Simultaneous Video Outputs
    3G-SDI / HDMI / USB3.0 / IP Streaming
  • Power over Ethernet (PoE)
    Power over Ethernet
    Delivers power directly over an ethernet cable from your PoE enabled network switch
  • fluent_slide-microphone-32-regular
    Audio Embedding
    Connect audio mixer output or powered mic and embed audio into your live stream
  • mounts-icon
    Flexible installation options
    Supports ceiling, wall, tripod, or desk mount installations
  • Multiple control options
  • Smart menu & WebGUI Interface
  • Includes 2D/3D noise reduction functions
  • All-aluminum high-stability chassis
  • Resolutions up to 1080p@60Hz
  • Small form factor for tight installs
  • AAC audio encoding support
  • Main and sub streams available
  • Supports NDI||HX2
Software background image

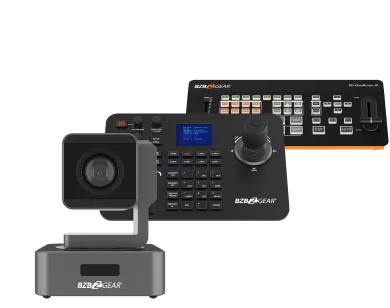

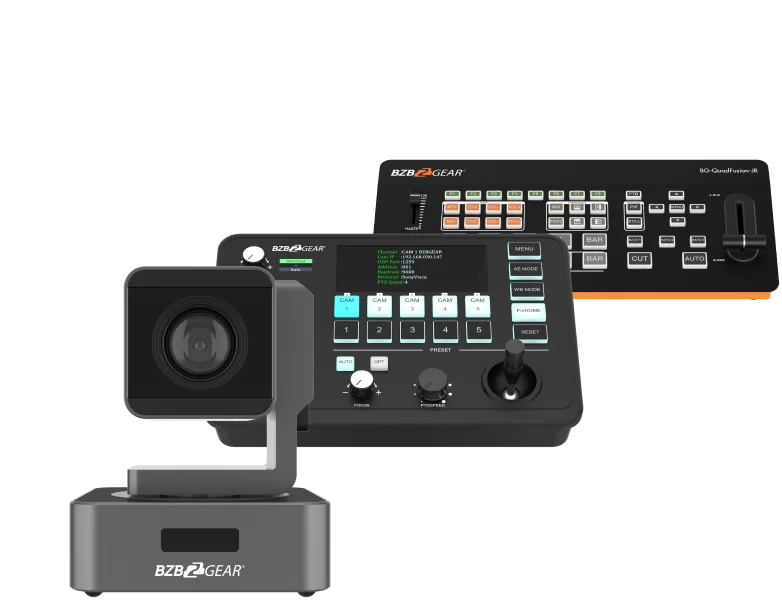

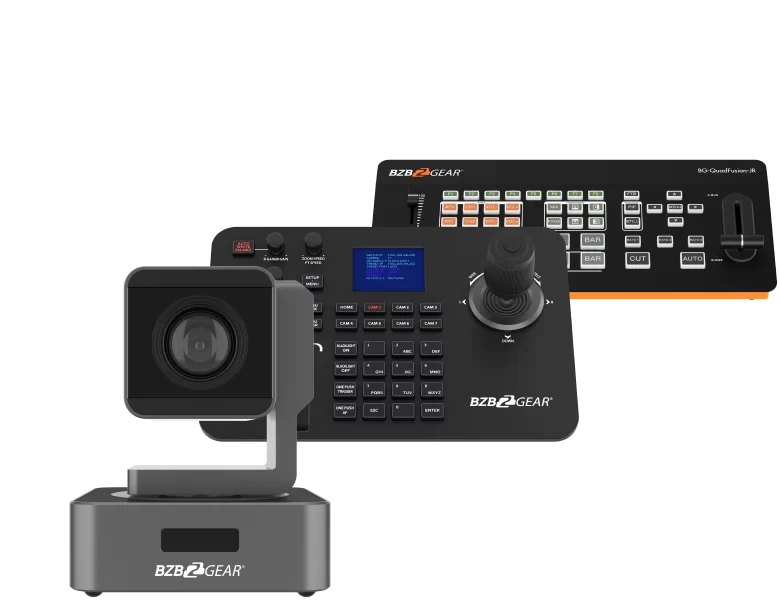

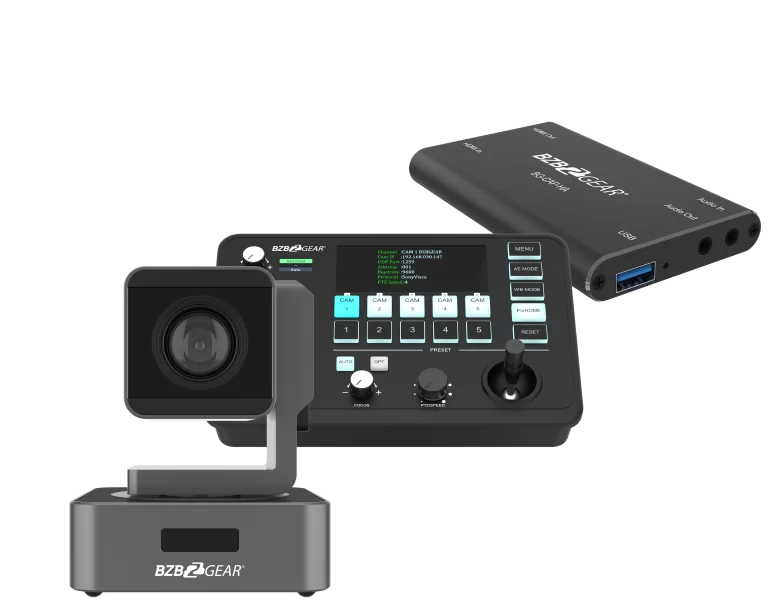

Complete Your Setup With
Our HD PTZ Camera Bundle

Includes professional equipment for mounting,
mixing, PTZ control, and more!
Limited Time Offer!
BG-VPTZ-1-features

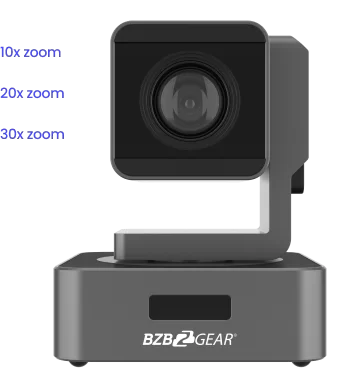

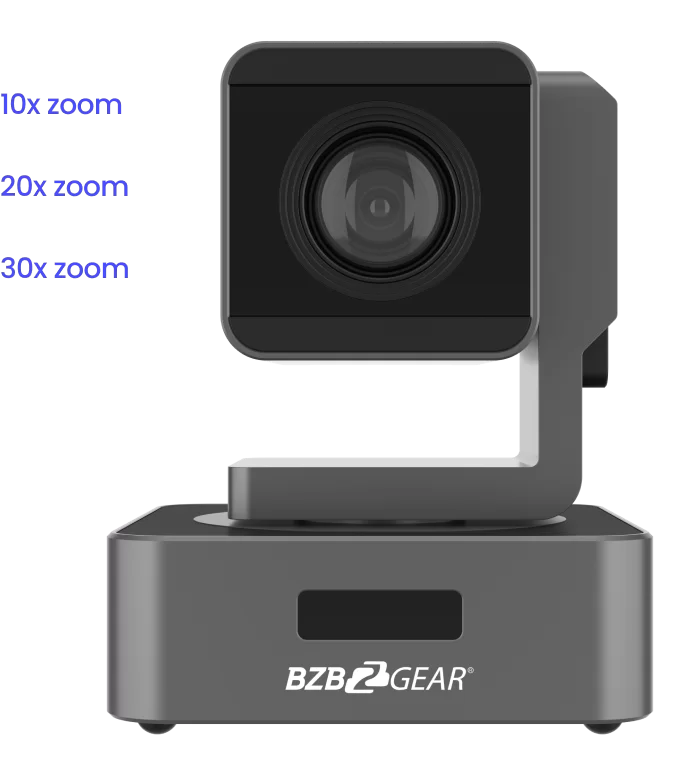

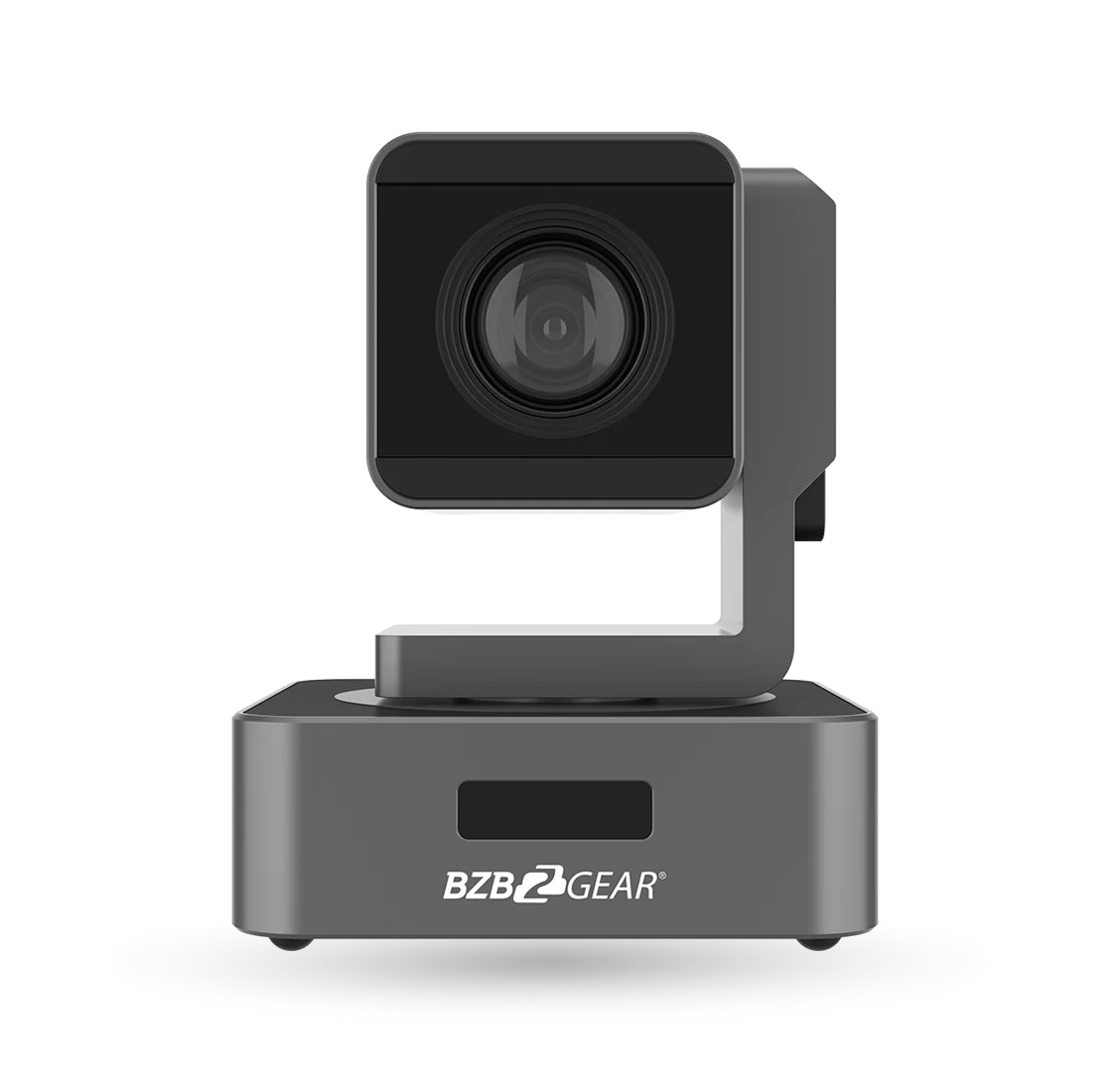

Enhanced Optical Zoom Capability

Experience unparalleled optical zoom capabilities with our 10X/20X/30X zoom lens. Effortlessly zoom in and out while maintaining crystal-clear image quality, even during PTZ operations.

BG-VPTZ-2-features

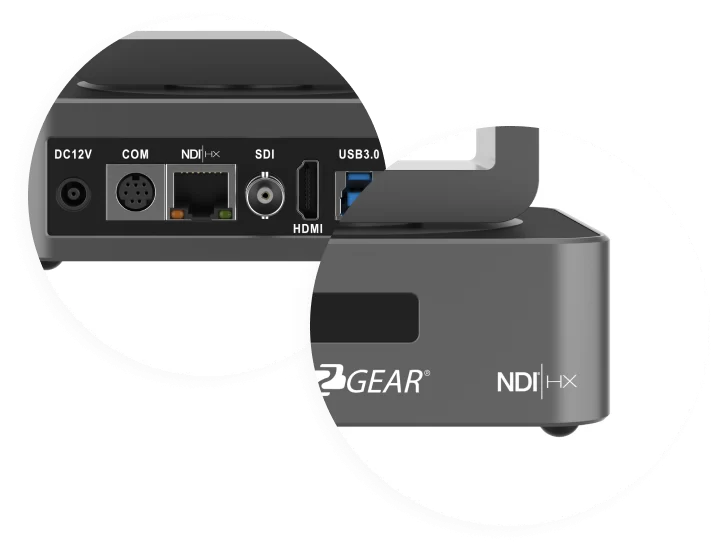

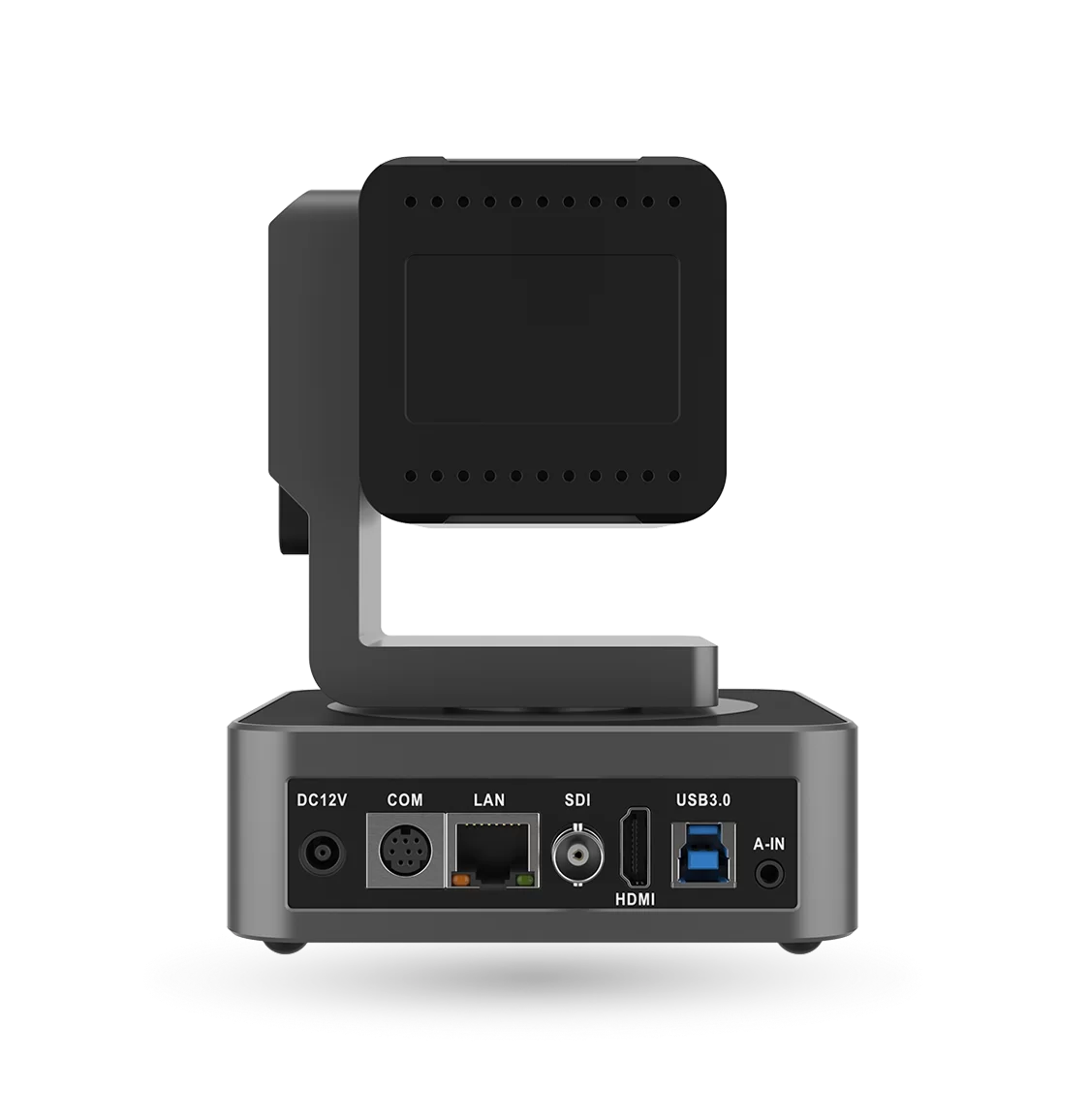

Streamlined Power and Connectivity

With Power Over Ethernet (PoE) functionality, powering your camera and establishing network connectivity is a breeze. Just connect a single Ethernet cable for both power and data, simplifying the setup. Configure the IP address if necessary, and you're good to go!

Versatile and Concurrent Connectivity

The BG-VPTZ offers a multitude of video output options, allowing you to choose between HDMI, 3G-SDI, or USB 3.0 connections. Better yet, enjoy the flexibility of simultaneous output from all three sources, maximizing versatility and convenience.

BG-VPTZ-3-features

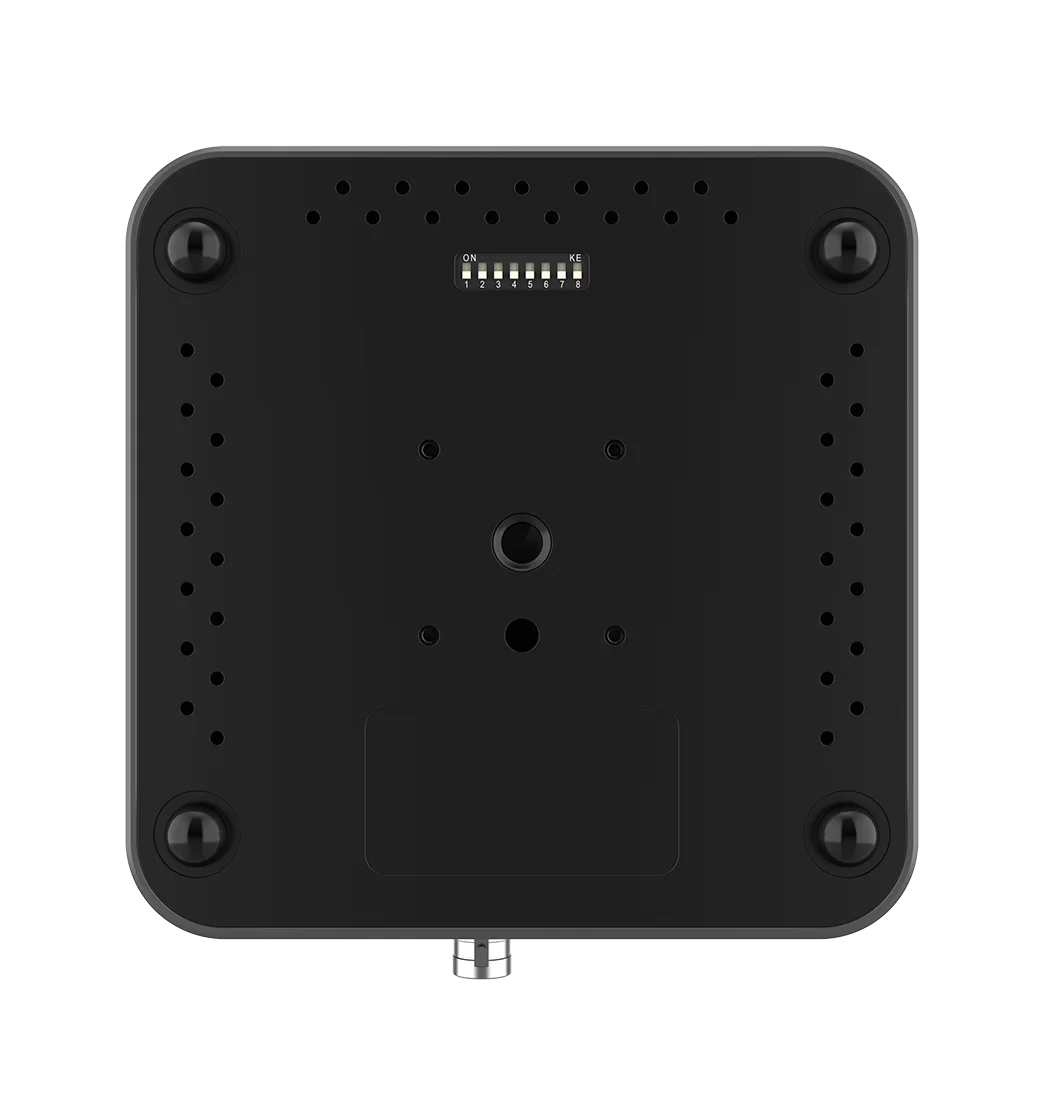

Effortless and Secure Installation

Mounting your camera has never been easier or more secure. The BG-VPTZ features an integrated mounting platform compatible with tripods, walls, and ceilings, ensuring simple and stable installation in any environment.

Software background image

Download our app now and effortlessly manage multiple cameras wirelessly!

Available for Windows, macOS, iOS, and Android

Compatible with:

Videos

Webinar: Discovering BZBGEAR's Wide Range of Broadcast Solutions
Webinar: Discovering BZBGEAR's Wide Range of Broadcast Solutions
GaETC 2022 | Budget Friendly Education Based PTZ the BZBGEAR VPTZ
GaETC 2022 | Budget Friendly Education Based PTZ the BZBGEAR VPTZ
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
How To Network the BG-VPTZ-HSU3 PTZ Camera Using BZBGEAR's Upgraded WebGUI
How To Network the BG-VPTZ-HSU3 PTZ Camera Using BZBGEAR's Upgraded WebGUI
BZBGEAR BG-VPTZ-HSU3 PTZ Camera with USB 3.0, 3G-SDI, HDMI, and IP for Live Streaming
BZBGEAR BG-VPTZ-HSU3 PTZ Camera with USB 3.0, 3G-SDI, HDMI, and IP for Live Streaming
Top 3 BZBGEAR PTZ Cameras Comparison
Top 3 BZBGEAR PTZ Cameras Comparison
Setting Up an IP Address for a PTZ Camera on the LAN Using Mac - BZBGEAR BG-VPTZ-HSU3
Setting Up an IP Address for a PTZ Camera on the LAN Using Mac - BZBGEAR BG-VPTZ-HSU3
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How To Network Your BZBGEAR PTZ Camera - BG-VPTZ-HSU3
How To Network Your BZBGEAR PTZ Camera - BG-VPTZ-HSU3
How BZBGEAR PTZ Camera Picture Quality Stacks Up
How BZBGEAR PTZ Camera Picture Quality Stacks Up
BZBGEAR BG-VPTZ-HSU3 PTZ Camera - USB 3.0, 3G-SDI, HDMI, and IP Live Streaming
BZBGEAR BG-VPTZ-HSU3 PTZ Camera - USB 3.0, 3G-SDI, HDMI, and IP Live Streaming
Firmware Update for BZBGEAR's BG-VPTZ-10HSU3 Series Live Streaming PTZ Cameras
Firmware Update for BZBGEAR's BG-VPTZ-10HSU3 Series Live Streaming PTZ Cameras
How to Network a PTZ Camera | BG-VPTZ-HSU3 IP Setup Live Stream Video over LAN
How to Network a PTZ Camera | BG-VPTZ-HSU3 IP Setup Live Stream Video over LAN
BZBGEAR PTZ Camera for Live Streaming Outputs HDMI, 3G-SDI, USB 3.0, and IP Simultaneously
BZBGEAR PTZ Camera for Live Streaming Outputs HDMI, 3G-SDI, USB 3.0, and IP Simultaneously
How to Mount a PTZ Camera | BZBGEAR BG-VPTZ-HSU Series
How to Mount a PTZ Camera | BZBGEAR BG-VPTZ-HSU Series

Mounting Ideas

Click the image below to watch a video

Tech Specifications

Camera Specs
Image Sensor 1/2.7″ Exmor CMOS (10X), 1/2.8″ Exmor CMOS (20X), 1/2.8″ Exmor CMOS (30X)
Frame Rate 1080p@60/ 59.94 / 50 /30 / 29.97 /25
1080i@60/59.94 / 50 / 30 / 29.97 / 25
720p@60/50/ 30 / 25, 480i@60, 576i@50
Zoom Optical - 10X/20X/30X
F-number 1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
Focus f=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
Effective Pixels 2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
View Angle (H) 72° (10X), 65° (20X), 65.4° (30X)
Min Illumination 0.5lux (F 1.8, AGG ON)
Shutter Speed 1 to 1/10000s
Image Adjustment Vertical Flip & Mirror Supported
Input/Output Interface
Video Output HDMI, 3G-SDI, USB 3.0 (USB 2.0 backwards compatible port only), RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input 3.5mm audio interface, Line In
Communication interface 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power Connection DC IN 12V, Power over Ethernet
Mechanical

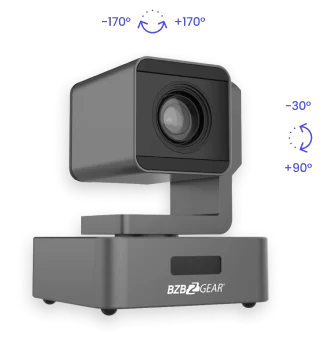

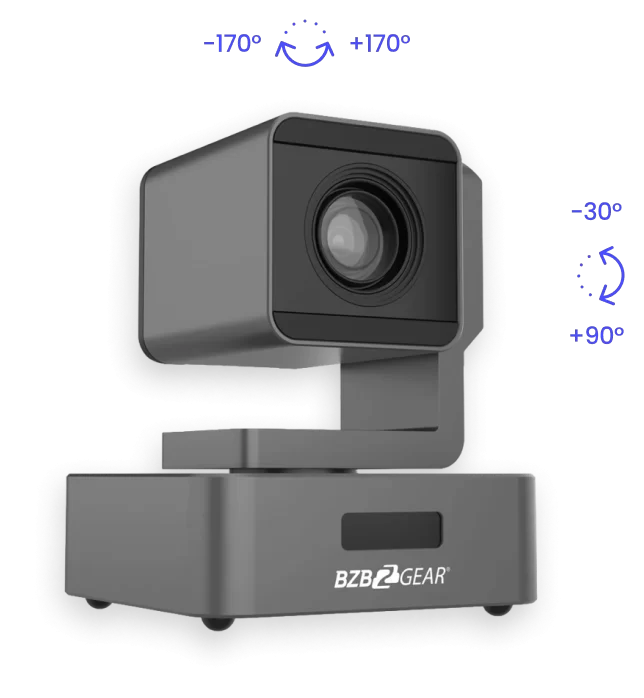

Pan/Tilt Rotation ±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
Presets Max 255 Presets ( Remote 9 Presets)
Network Protocol VISCA, PELCO P/D, ONVIF Protocol, NDI|HX2
IPC Video Features
Video standard H.265/H.264/MJPEG
Video Stream Main stream, Sub stream
Main stream resolution 1920x1080, 1280x720
Sub stream resolution 720x480, 320x240
Bit Rate 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate Type Variable rate, Fixed rate
Maximum Frame 60fps
Audio encode standard G.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate 96K, 128K, 256K
Supported protocols TCP/IP, RTSP, RTMP
Generic
Dimensions (L*W*H) 4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Gross Weight 3.5 lbs [1.6kg]
Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
Max Consumption 12W DC12V@1A
Attention: USB 3.0 connection port on BG-VPTZ-10HSU3 camera is only compatible with USB 3.0 port on either PC or MAC when connected directly and only compatible with up to 10ft USB 3.0 cable due to a limitation in the chipset. This camera will not work with any USB 3.0 peripherals. It doesn't affect BG-VPTZ-20HSU3 or BG-VPTZ-30HSU3 models.
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-VPTZ-HSU3 Camera
  • 1x IR Remote Controller
  • 1x RS-232 to DB 9pin cable
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x User Manual

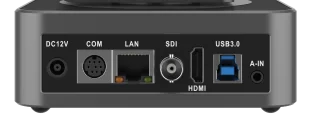

Interfaces

Interfaces image
  1. Power: Connect supplied 12V power adapter.
  2. COM: Connect cascading RS-232 to control the camera(s) with a joystick controller or control software.
  3. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
  4. SDI: Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) up to 330ft away over SDI cabling.
  5. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
  6. USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
  7. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
