4x4 4K UHD HDMI Video Wall Processor & Seamless Matrix Switcher with Scaler, IR and Audio

Configure the Perfect Solution
Get Started

Overview

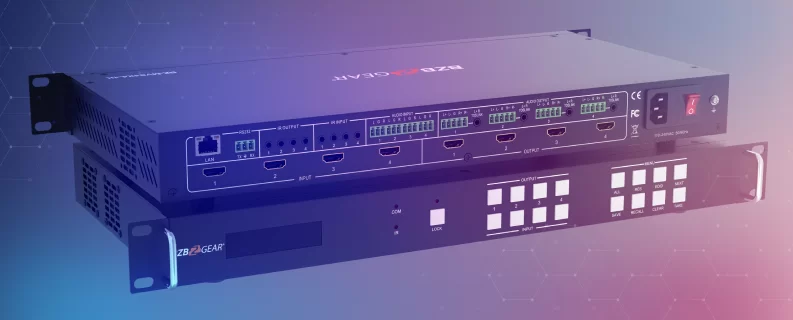

The BZBGEAR BZ-MVS4X4-4K is a matrix video wall controller that seamlessly switches signals from any of the four HDMI sources to any of the four connected HDMI displays. The four outputs can be configured to create a variety of video wall displays such as a 2x2, 1x4, 1x2, 2x1, and 4x1 video wall. Ideal for integrators, professional broadcasters, restaurant owners, and home theater enthusiasts seeking to create high-end video walls, or control multiple video sources and displays with one device.

Connectivity

The four HDMI ports support video bandwidths of 18Gbps and resolutions up to 4K@60Hz (4:4:4). The HDMI ports are HDMI 2.0 and HDCP 2.2 compliant. Each HDMI input features stereo audio embedding via the phoenix connectors on the back panel. The device is equipped with four stereo audio outputs and four TOSLINK S/PDIF ports for analog and digital audio de-embedding.

Control

The BZ-MVS4X4-4K can be configured and controlled using the PC Tool software via the LAN or RS-232 connections. Smart EDID management via the front panel buttons or web interface eliminate HDMI handshake issues for fast and reliable input switching. The HDMI CEC provides power and volume control of compatible monitors. Access basic control of the matrix switcher and network settings with the conveniently built-in WebGUI interface.

Complete with front panel buttons for quick and handy operation, the BZ-MVS4X4-4K’s flexible features make it an exceptional choice for designing outstanding video walls with flexible display control and connectivity.

Features

  • video-wall2-icon
    Video Wall Processor
    Spread a Source Across Multiple Displays
  • Monitor
    Video Matrix
    View Any Source on Any Display
  • bi_badge-4k
    Crystal Clear Images
    Supports resolutions up to 4K@60Hz 4:4:4
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Front Panel, TCP/IP, RS-232, IR remote, PC Software
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    Audio
    Embedding and De-Embedding Supported
  • Seamless matrix switching and video wall processing functions(2x2)
  • Supports audio matrix and IR matrix functions
  • EDID & CEC management
Software background image

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
The Best Video Wall Processors for Any TV 2022
The Best Video Wall Processors for Any TV 2022
This 4K HDMI Matrix Switcher Doubles as a Video Wall Processor! BZ-MVS4X4-4K
This 4K HDMI Matrix Switcher Doubles as a Video Wall Processor! BZ-MVS4X4-4K
INFOCOMM 2022 | BZBGEAR 4K Video Wall Processors & Matrixes
INFOCOMM 2022 | BZBGEAR 4K Video Wall Processors & Matrixes

Tech Specifications

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB, YCbCr 4:4:4/4:2:2
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential Impedance 100±15ohm
ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
RS232/Ethernet Control
Baud rate and Protocol Baud rate: 9600, data bit: 8
Stop bit: 1, no parity checking
Ethernet IE10.0+, HTML5
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 17” (W) x 8.7" (D) x 1.7" (H) [430mm (W) x 220mm (D) x 44mm (H)]
Weight 11 lbs [5kg]
Power Supply AC 110 - 240V
Power Consumption 60W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 158°F / -20°C ~ 70°C
Relative Humidity 10%~50% RH (non-condensing)

PACKAGE CONTENTS

  • 1 x BZ-MVS4X4-4K unit
  • 1 x AC Power Cord
  • 1 x Matrix IR Remote
  • 4 x IR Receiver cable (1.5 meters)
  • 4 x IR Blaster cable (1.5 meters)
  • 1 x 3-pin Phoenix Connector
  • 1 x CAT6 cable
  • 1 x USB to RS232 Cable
  • 1 x User Manual

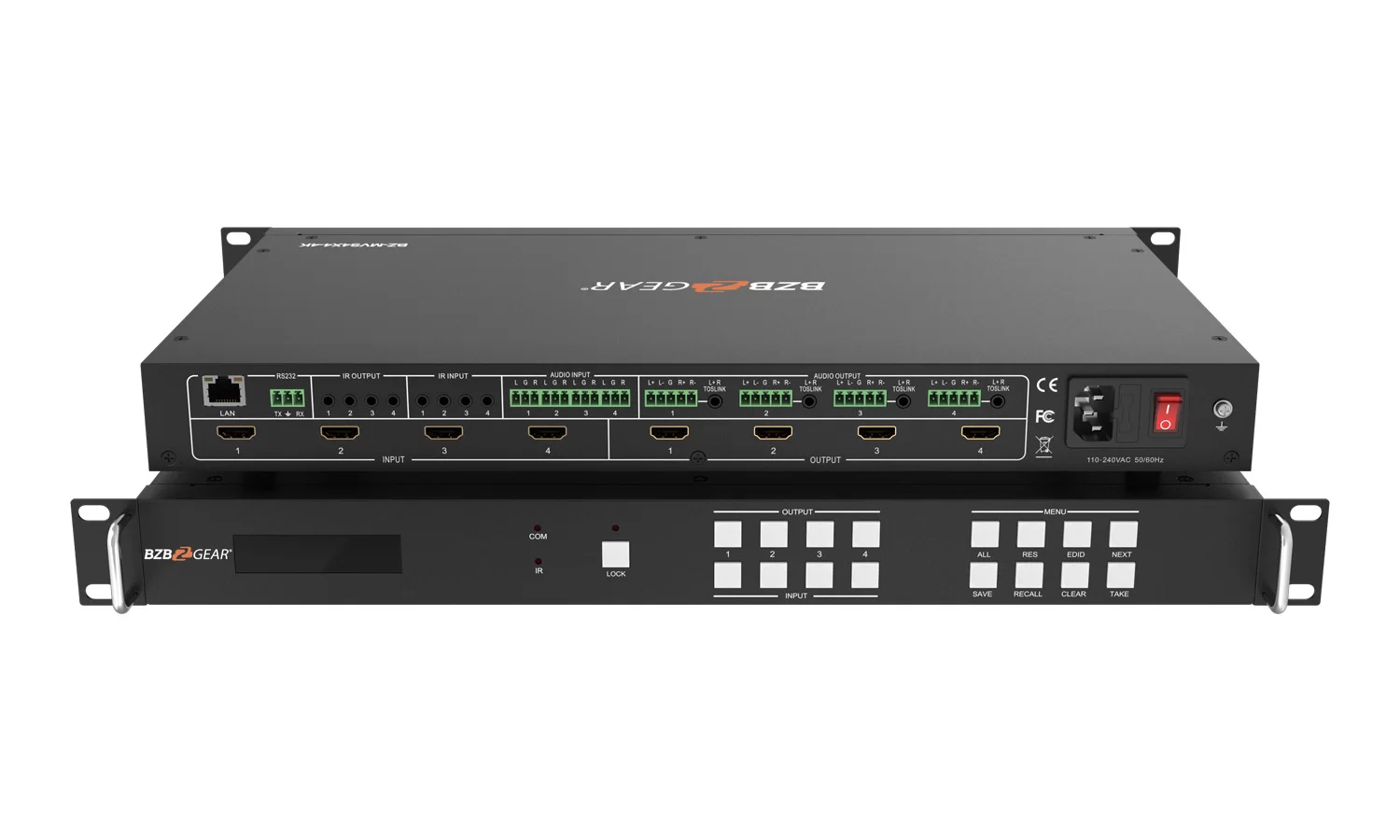

Interfaces

Interfaces image
  1. LAN: LAN (10Mbps/100Mbps).
  2. RS232: Use RS232 for PC control.
  3. IR Output: IR OUT routing follows the video matrix routing, no need to separately control IR matrix.
  4. IR Input: IR IN routing follows the video matrix routing, no need to separately control IR matrix.
  5. Audio Input: 4x 3-pin Phoenix connectors to input external analog LR audio, users can select this audio to replace the corresponding embedded HDMI audio.
  6. Audio Output: 4x 5-pin Phoenix connectors to output balanced LR audio, and 4 mini Toslink jackets to output analog LR audio and digital Spdif audio. The 4 sets of Audio output (LR and Toslink) channels can be independent of video and switched by PC Tool or commands.
  7. 110-240VAC: 110-240V AC power input port.
  8. GND: Ground the product housing.
  9. HDMI Inputs 1-4: HDMI inputs connect HDMI source devices such as a DVD player or gaming console with an HDMI cable.
  10. HDMI Outputs 1-4: Connect to the monitor to display the video of the signal source.
  11. LCD Panel: Displays the current video selections.
  12. COM: Power LED (also indicates control commands).
  13. IR: IR LED.
  14. LOCK: Front panel lock/unlock. Press button LOCK, to lock or unlock front buttons. When locked, the Lock LED will be solid.
  15. INPUT: Input selection buttons 1-4.
  16. OUTPUT: Output selection buttons 1-4.
  17. ALL: Set all outputs to the next input selection.
  18. SAVE: Save the current matrix setting as a preset.
  19. RES: Set the output scaler resolution.
  20. RECALL: Set the matrix setting from a saved preset.
  21. EDID: Set the EDID options for the next input selection.
  22. CLEAR: Cancel the current command function.
  23. NEXT: Select the next available option.
  24. TAKE: Set the displayed option.
