8x8 4K UHD HDMI Video Wall Processor & Seamless Matrix Switcher with Scaler, IR and Audio

Configure the Perfect Solution
Get Started

Overview

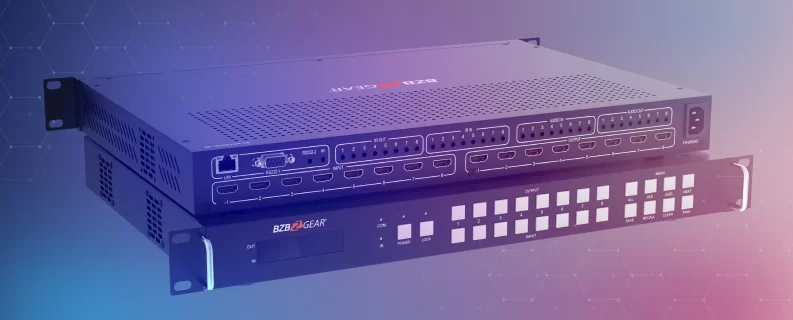

The BZ-MVS8X8-4K video wall processor and matrix switcher is an incredible tool that supports up to eight inputs and eight outputs. The unit can support multiple commercial-grade video walls with 4K HDR quality simultaneously in various configurations such as 1x2, 2x2, or 3x2 up to 8 displays total.

Connectivity

The BZ-MVS8X8-4K is HDMI 2.0 and HDCP 2.2 compliant with bandwidth speeds up to 18Gbps. These features enable this unit to support eight HDMI inputs and outputs with resolutions up to 4K@60Hz. Users can also embed or extract two channel audio onto each HDMI input and output respectively using 3.5mm mini stereo audio cables.

IR matrix routing is available on this unit via the included IR extenders with 8 IR in and 8 IR out connections. The superior connectivity features and image quality of the BZ-MVS8X8-4K make it an incredible choice for those looking to create beautiful video walls or matrix multiple displays for advertising, events, and more.

Control

This matrix switcher offers a variety of control methods including buttons on the front panel, IR remote control, a PC Utility, RS-232, or web interface. To connect to the PC Utility software, operators can use either USB or a direct Ethernet connection. The PC Utility software also offers automatic or manual EDID management. Up to 8 matrix scenes can be saved and recalled for future use making this device flexible for different configurations that your business may need.

Features

  • video-wall2-icon
    Video Wall Processor
    Spread a source across multiple displays
  • Monitor
    Video Matrix
    View any source on any display
  • bi_badge-4k
    Crystal Clear Images
    Supports resolutions up to 4K@60Hz on all inputs and outputs
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Utilize the physical buttons, RS232, Bi-Directional IR, or Web interface to mange your devices and display layouts
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • bi_soundwave
    Audio Embedding and Extraction
    Embed or extract audio on each HDMI input or output
  • Seamless matrix switching
  • Auto/manual EDID management
  • Save & recall videowall/matrix scenes
  • Up to 8 HDMI inputs and 8 HDMI outputs
  • IR matrix routing follows video routing
  • Supports multiple video wall configurations on up to 8 displays (two 2x2, four 1x2, one 2x3, one 2x4, etc)
Software background image

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
The Best Video Wall Processors for Any TV 2022
The Best Video Wall Processors for Any TV 2022
One Unit, Eight 4K Sources, Matrix Switching & Video Wall Processing | BZ-MVS8X8-4K
One Unit, Eight 4K Sources, Matrix Switching & Video Wall Processing | BZ-MVS8X8-4K
INFOCOMM 2022 | BZBGEAR 4K Video Wall Processors & Matrixes
INFOCOMM 2022 | BZBGEAR 4K Video Wall Processors & Matrixes
Multi-display Setup: 4K HDR HDMI Video Wall Matrix Switcher | BZBGEAR BZ-MVS8x8-4K
Multi-display Setup: 4K HDR HDMI Video Wall Matrix Switcher | BZBGEAR BZ-MVS8x8-4K
Seamless 4K HDR HDMI Video Wall Matrix Switcher Astounds | BZBGEAR BZ-MVS8x8-4K
Seamless 4K HDR HDMI Video Wall Matrix Switcher Astounds | BZBGEAR BZ-MVS8x8-4K

Tech Specifications

Electrical parameters
Interface HDMI-A
HDMI /DP /VGA Version HDMI2.0, HDCP2.2
Bandwidth 18Gbps
Video Resolution
Input 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz,
1366x768@60Hz, 1400x1050@60Hz,1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz,
1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p,
3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz
Output 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz,
1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential impedance 100±15ohm
RS232/Ethernet control
Baud rate and protocol Baud rate:9600, data bit:8
stop bit:1, no parity checking
Ethernet IE10.0+, HTML5
Power
Max Consumption 100W, 110-240VAC
Matrix Mechanical dimensions
Size(mm) 17"(L) x 11.8”(W) x 1.7”(H) [430(L) x 300(W) x 44(H) mm]
Weight 11 lbs [5kg]
Other
Operating temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage temperature -4°F ~ 158°F / -20°C ~ 70°C
Permissible humidity 10%-50%

PACKAGE CONTENTS

  • 1x BZ-MVS8X8-4K unit
  • 1x BZ-MVS8X8-4K User Manual
  • 1x AC Power Cord
  • 1x Remote Control
  • 1x RS-232 / USB Cable

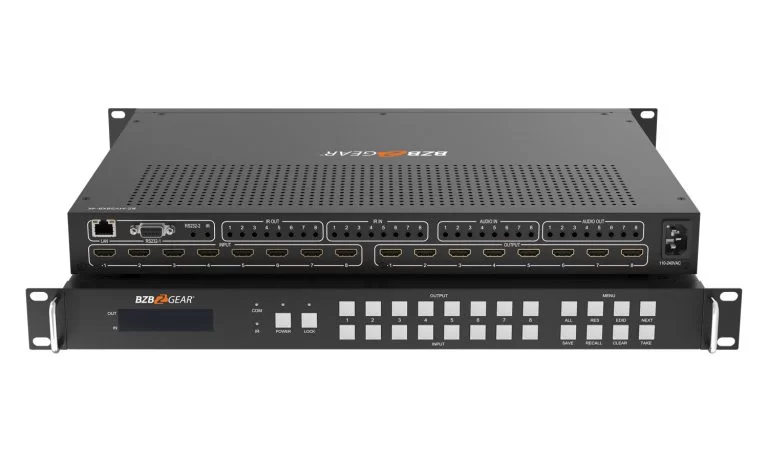

Interfaces

Interfaces image
  1. LAN: LAN (10Mbps/100Mbps).
  2. RS232-1, RS232-2: Use RS232 for PC control.
  3. IR: Connect IR blaster to take any IR signal from any input.
  4. IR OUT: IR OUT routing follows the video matrix routing, no need to separately control IR matrix.
  5. IR IN: IR IN routing follows the video matrix routing, no need to separately control IR matrix.
  6. Analog Audio IN ports: The IN ports bind to corresponding HDMI ports.
  7. Analog Audio OUT ports: The OUT ports bind to corresponding HDMI ports.
  8. 110-240VAC: 110-240V AC power input port.
  9. HDMI Inputs 1-8: HDMI inputs connect HDMI source devices such as a DVD player or gaming console with an HDMI cable.
  10. HDMI Outputs 1-8: Connect to the monitor to display the video of the signal source.
  11. LCD Panel: Displays the current video selections.
  12. COM: Power LED (also indicates control commands).
  13. IR: IR LED.
  14. POWER: Press button POWER, to make the matrix enter or release standby state. When standby, the power LED will be lighted.
  15. LOCK: Front panel lock/unlock. Press button LOCK, to lock or unlock front buttons. When locked, the Lock LED will be solid.
  16. INPUT: Input selection buttons 1-8.
  17. OUTPUT: Output selection buttons 1-8.
  18. ALL: Set all outputs to the next input selection.
  19. SAVE: Save the current matrix setting as a preset.
  20. RES: Set the output scaler resolution.
  21. RECALL: Set the matrix setting from a saved preset.
  22. EDID: Set the EDID options for the next input selection.
  23. CLEAR: Cancel the current command function.
  24. NEXT: Select the next available option.
  25. TAKE: Set the displayed option.
