Overview

The BG-PSC7X2 multi-function presentation switcher provides users with a variety of inputs, allowing numerous devices to be displayed on a single HDMI display. Supporting input signals up to 4K@30Hz, this unit is also equipped with an integrated scaler which allows resolutions as low as 640 x 480 to be scaled up to 1920x1080@60Hz.

The powerful dual-switcher mode allows the BG-PSC7X2 to simultaneously function as a 4x1 4K HDMI switcher and a 7x1 1080P multi-format switcher. Featuring audio embedding, de-embedding, and supporting variety of input connections, this unit is an effective solution for use in auditoriums, classrooms, and conference rooms.

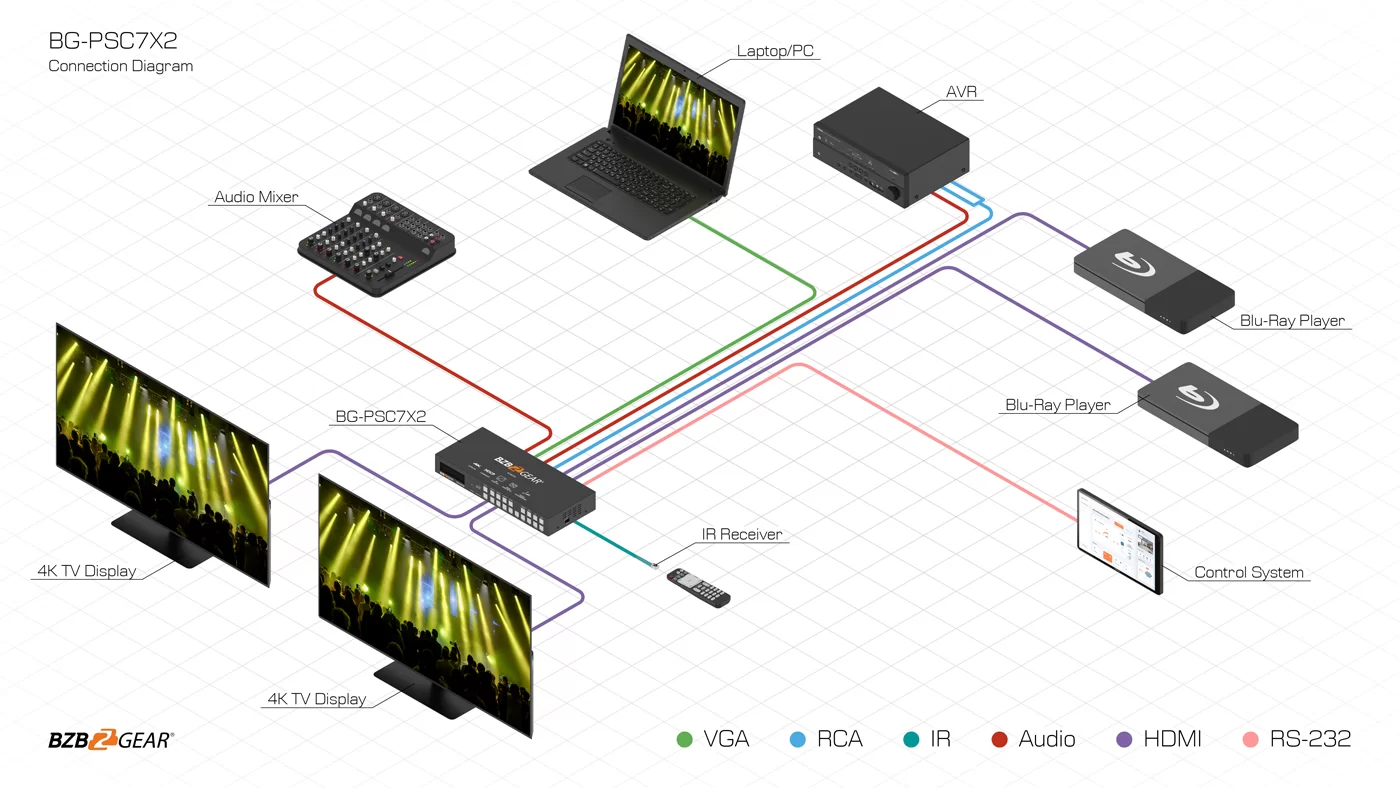

Connectivity

The BG-PSC7X2 is equipped with seven inputs including four HDMI, one VGA, one component (YPbPr), and one composite A/V. The VGA input is paired with a 3.5mm audio input. Two mirrored HDMI outputs provide connections for dual displays. Equipped with one digital coax and one RCA line output, the BG-PSC7X2 provides audio de-embedding for connection to external audio systems. The digital bypass circuit allows 4K@30Hz 4:4:4 sources to be displayed.

Control

The BG-PSC7X2 can be operated via the front panel buttons, included IR remote, or RS-232, commands. The LCD menu display provides access to EDID management settings to ensure stable signals and reliable switching. Scaler settings and audio format settings can also be adjusted, providing a high degree of flexibility for installation. An IR input port allows integration with IR distribution and third-party control systems.

Features

  • material-symbols_settings-input-component
    Legacy Input Device Support
    4x HDMI, 1x VGA with audio, 1xYPbPr (Component) and 1x Composite RCA
  • bi_hdmi
    Multi-Display Support
    2x HDMI mirrored outputs
  • Four Control Modes
    Multiple Control Options
    Front panel, IR, RS-232, TCP/IP
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    Audio Support
    Embed via 3.5mm line in or de-embed audio signals Coaxial S/PDIF or 3.5mm
  • bi_badge-4k
    Crystal Clear Images
    Supports image resolutions up to 4K2K@30Hz 4:4:4
  • LCD Display
    LCD Display
    LCD to easily view system status at a glance
  • Auto-Scaling - Accepts input resolutions up to 4K@30, outputs scale to 1080P
  • Multiple Control Options - Front panel, IR, RS-232, TCP/IP
  • Audio Support - Embed or De-Embed audio signals

Videos

7x2 4K Presentation Switcher and Scaler | BG-PSC7X2
7x2 4K Presentation Switcher and Scaler | BG-PSC7X2
Install & Demo | BZBGEAR BG-PSC6x2-4K & BG-PSC7x2 Presentation Switchers
Install & Demo | BZBGEAR BG-PSC6x2-4K & BG-PSC7x2 Presentation Switchers
Scale Signals for Any AV Space with BZBGEAR Presentation Switchers | BG-PSC6X2-4K & BG-PSC7X2
Scale Signals for Any AV Space with BZBGEAR Presentation Switchers | BG-PSC6X2-4K & BG-PSC7X2

Tech Specifications

Bandwidth: 10.2Gbps
Video Input Connectors: 4x HDMI Type A, 1x VGA, 1xYPbPr, 1x AV
Video Output Connectors: 2x HDMI Type A
Audio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/R)
Audio Output Connectors: 1x 3.5mm stereo jack, 1x RCA (SPDIF)
RS-232 serial port: 1x DB 9 connector
IR Input ports: 1x 3.5mm stereo jack
Dimensions (W x H x D): 12.7" x 5.3" x 1.7" [323mm x 135mm x 44mm]
Shipping Weight: 2.65lbs [1.2Kg]
Operating Temperature: 32°F to 104°F / 0°C to 40°C
Storage Temperature : -4°F to 140°F / -20°C to 60°C
Power Supply: DC 5V/2A

PACKAGE CONTENTS

  • 1x BG-PSC7X2
  • 1x 5V/2A power supply
  • 1x Remote control
  • 1x IR Receiver
  • 1x Mounting kit

Interfaces

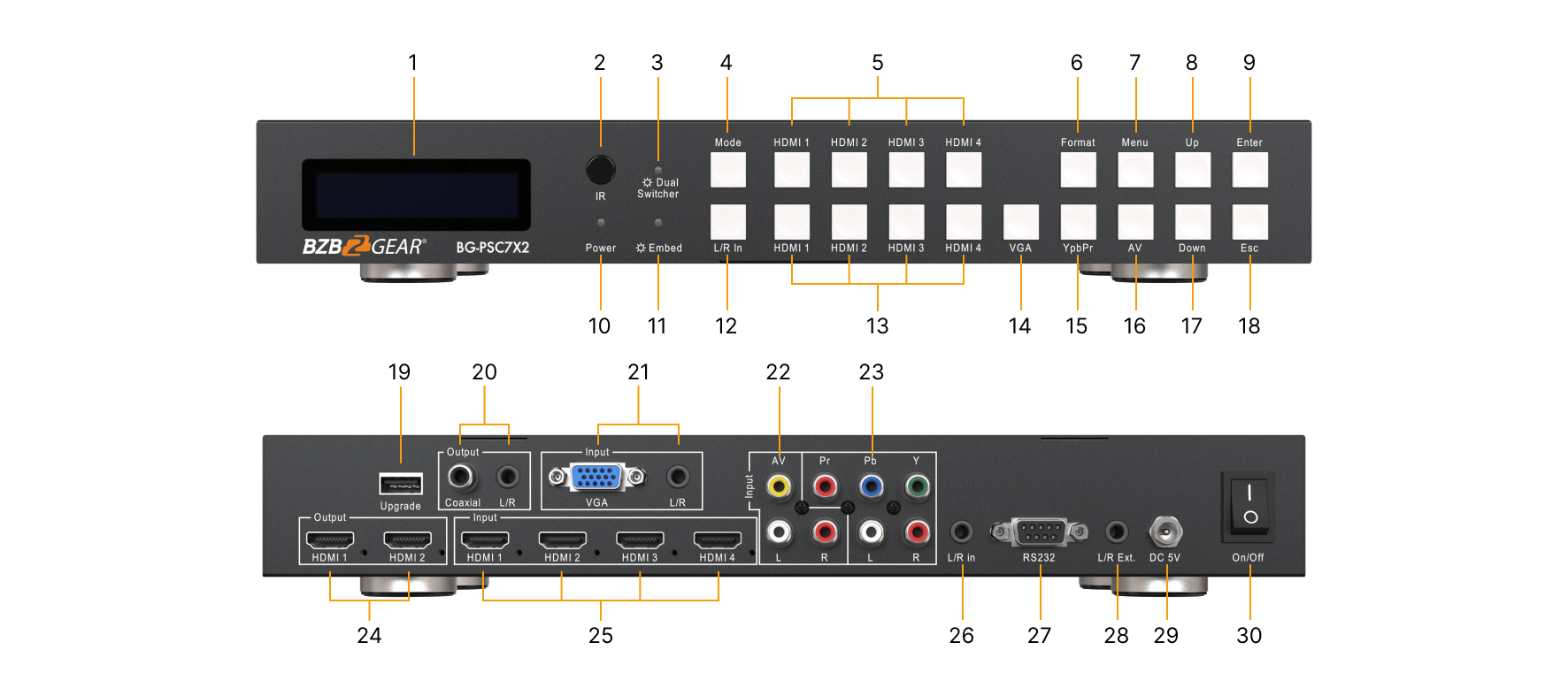

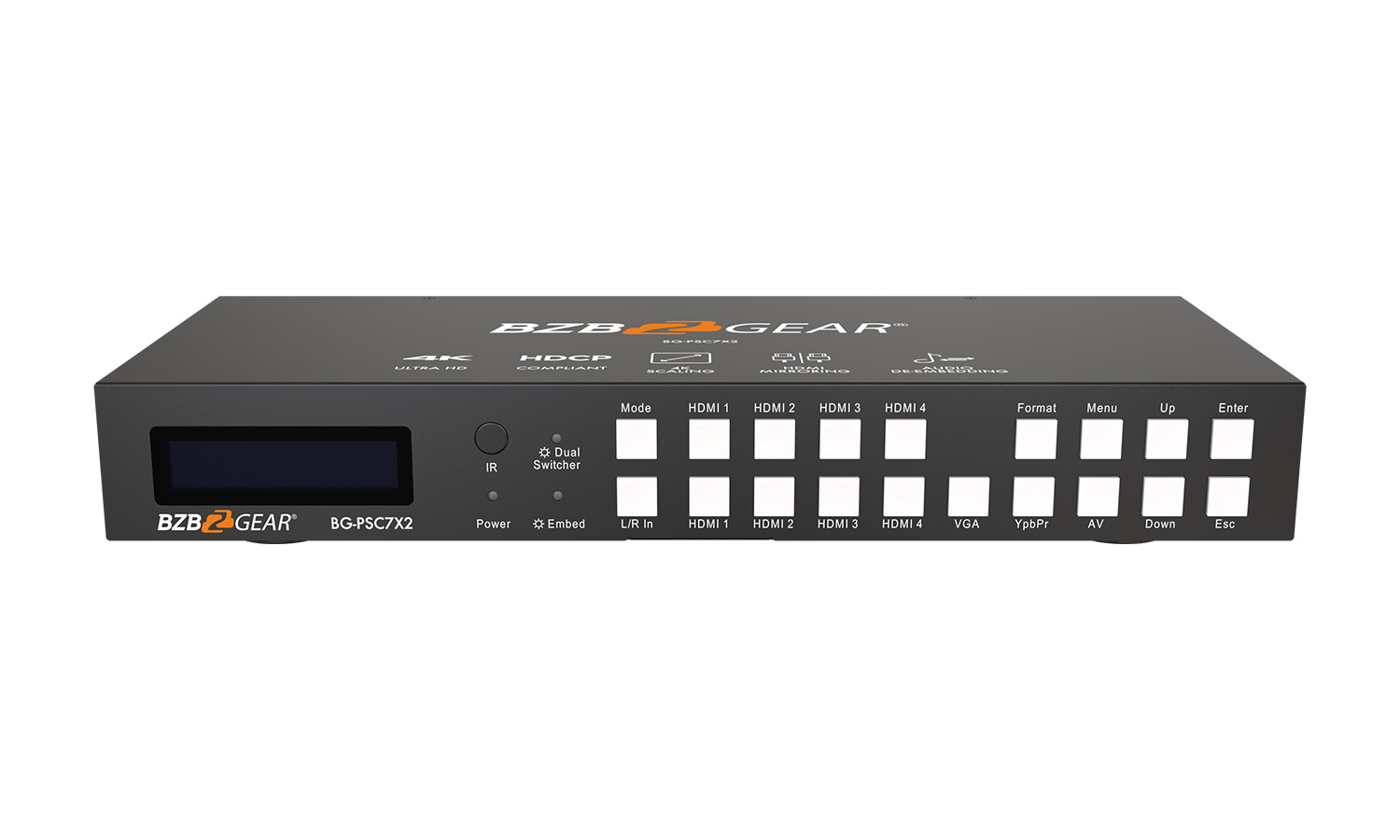

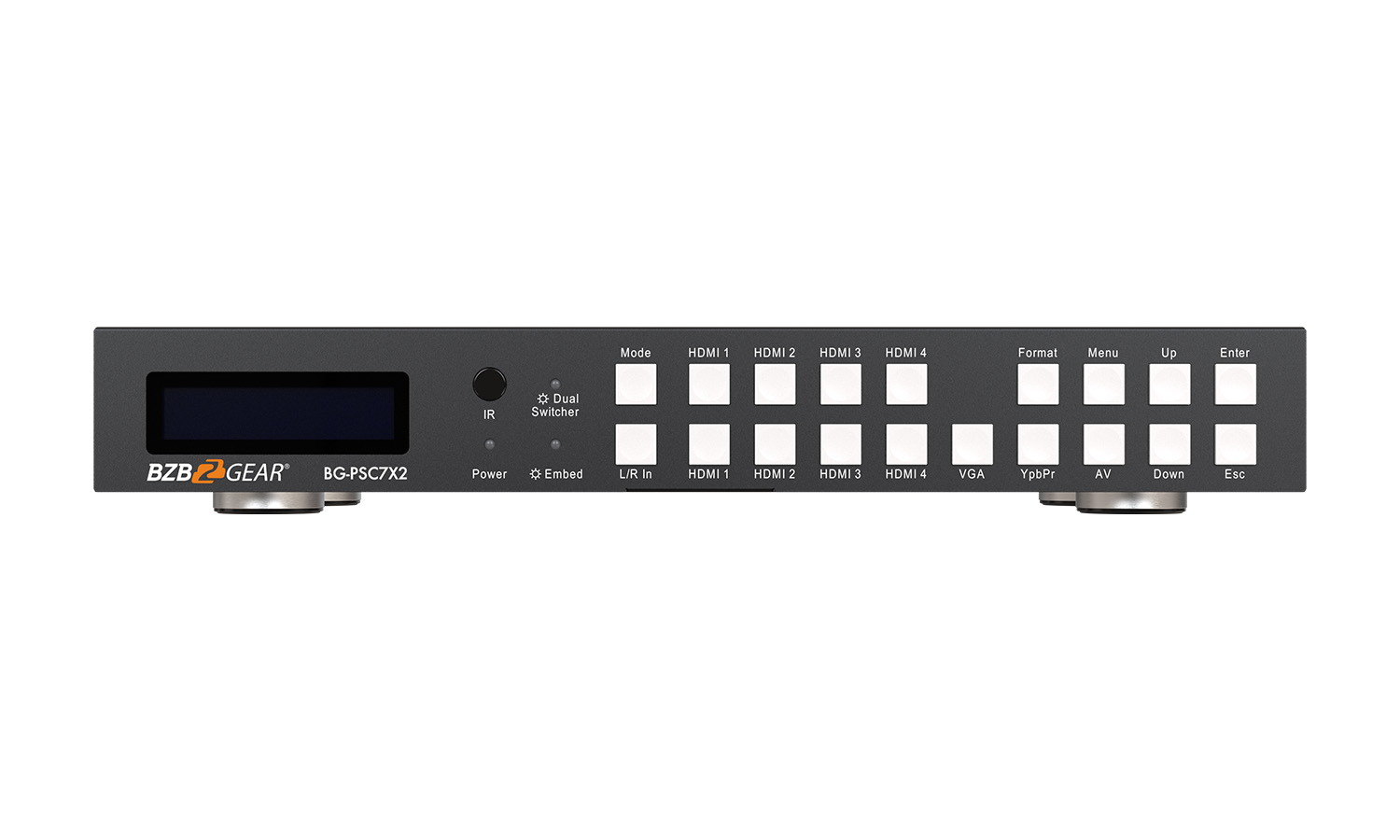

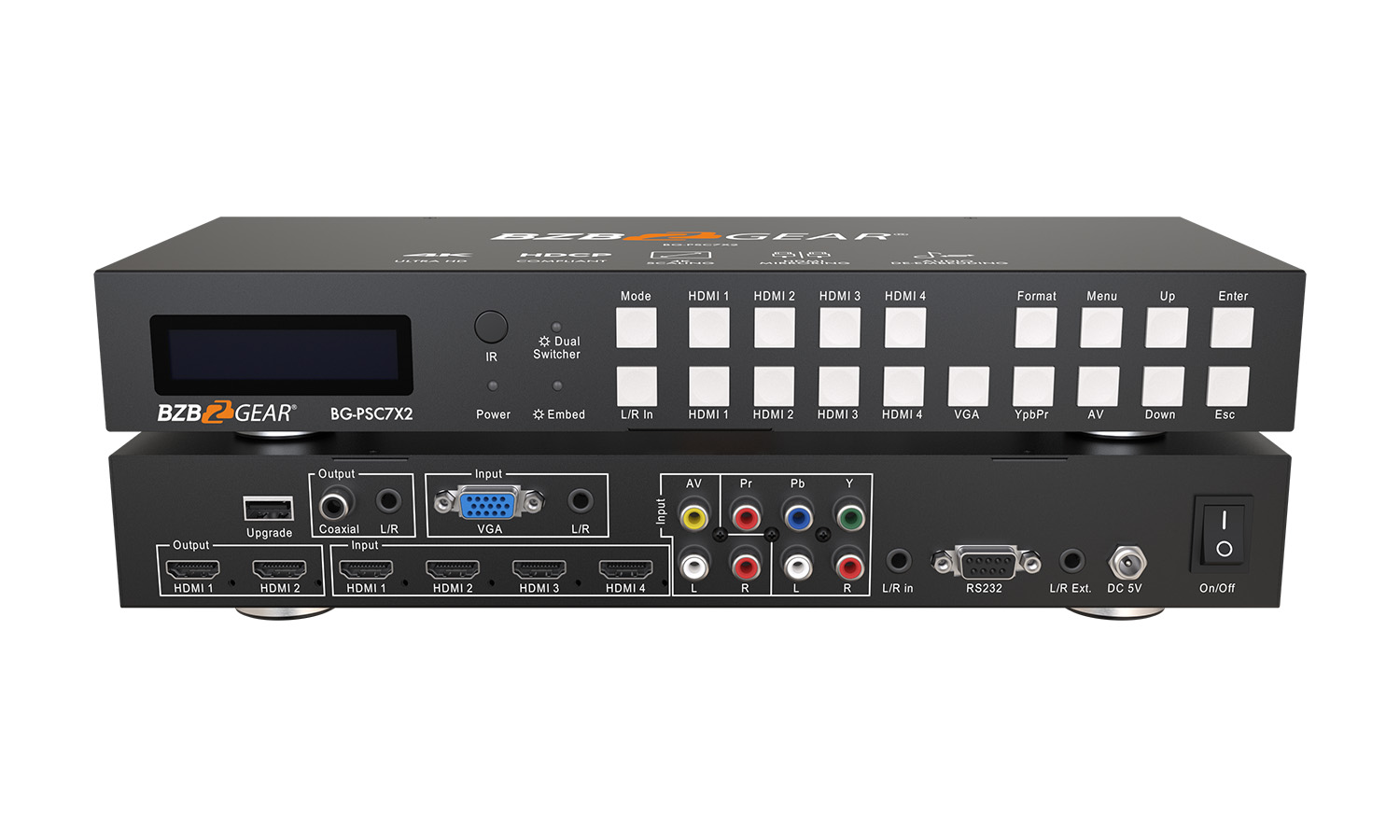

Interfaces image

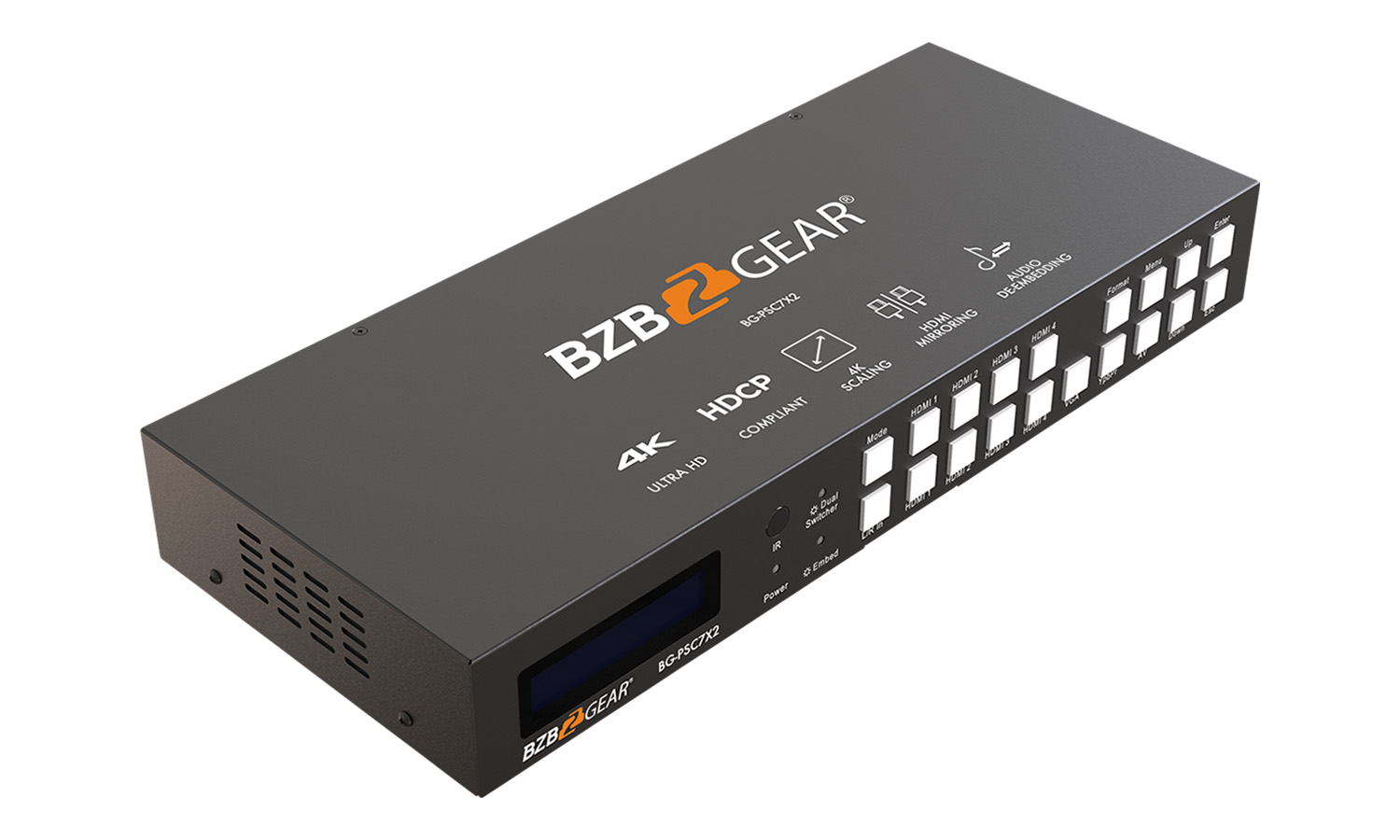

  1. LCD display: It shows the status of input-to-output selection, EDID info, and other information.
  2. IR receiver window: Receive the IR from the remote control.
  3. Dual switcher LED indicator: When the LED is lit, dual switcher mode is on.
  4. Mode button: Press to set Dual Switcher mode ON/OFF.
  5. HDMI input 1-4 selection buttons: Press to select the input 1 to 4 working as a 4K 4x1 switcher.
  6. Format set button: Press to set the resolution for the output.
  7. Menu button: Press to enter EDID set, volume setting or F/W information.
  8. Up selection button: Press to change the segment's value.
  9. Enter button: Press to confirm the settings.
  10. Power LED indicator: Indicate the status of power.
  11. Embed LED indicator: When the LED is lit, embed mode is on. When the embed mode is on, the L/R In will be embedded into the HDMI outputs.
  12. L/R in selection button: Press to embed L/R audio to the HDMI output.
  13. HDMI input selection button 1-4: Press to select the input from 1 to 4.
  14. VGA input selection button: Press to select VGA input.
  15. YPbPr input selection button: Press to select YPbPr input.
  16. AV input selection button: Press to select AV input.
  17. Down selection button: Press to change the segment's value.
  18. ESC: Press to quit EDID set mode.

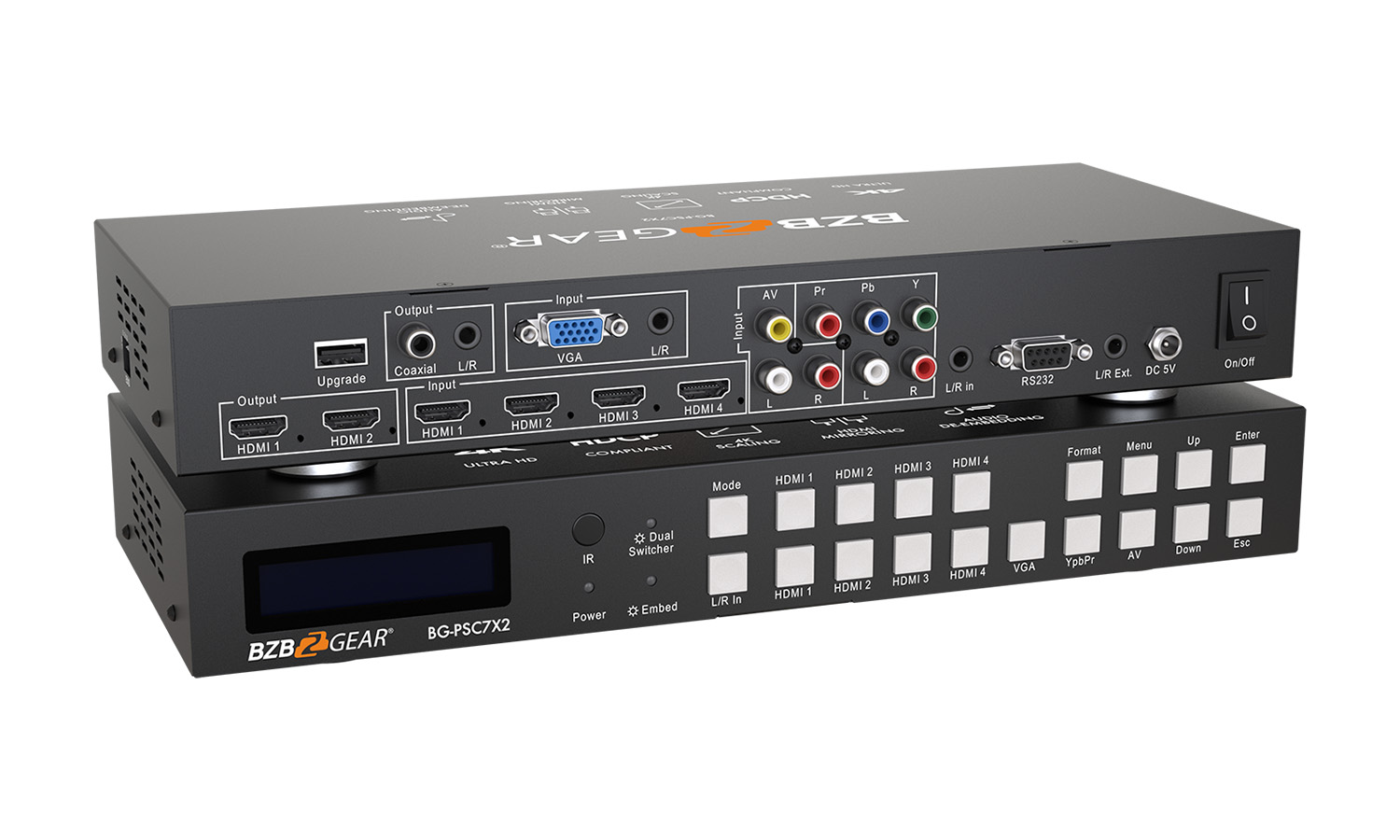

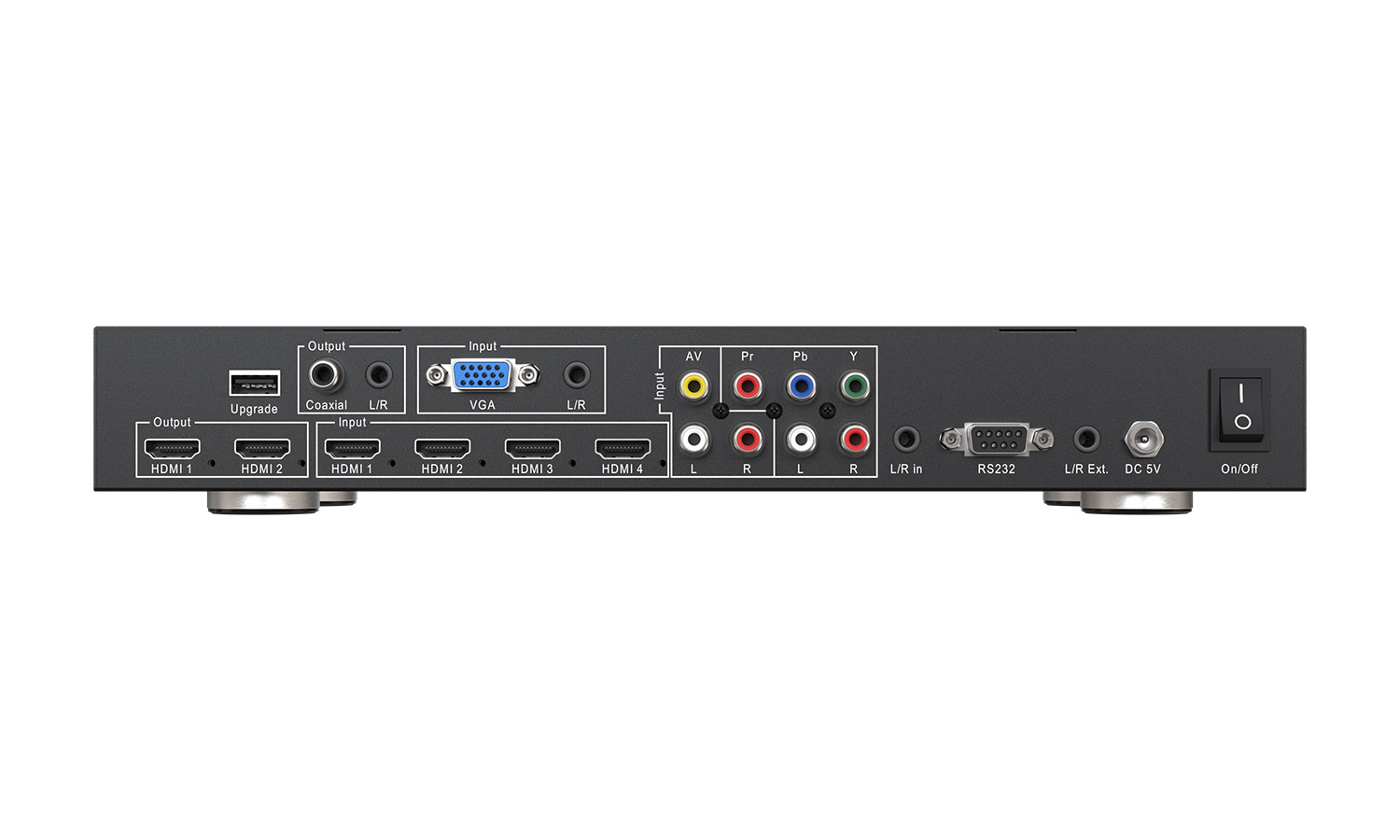

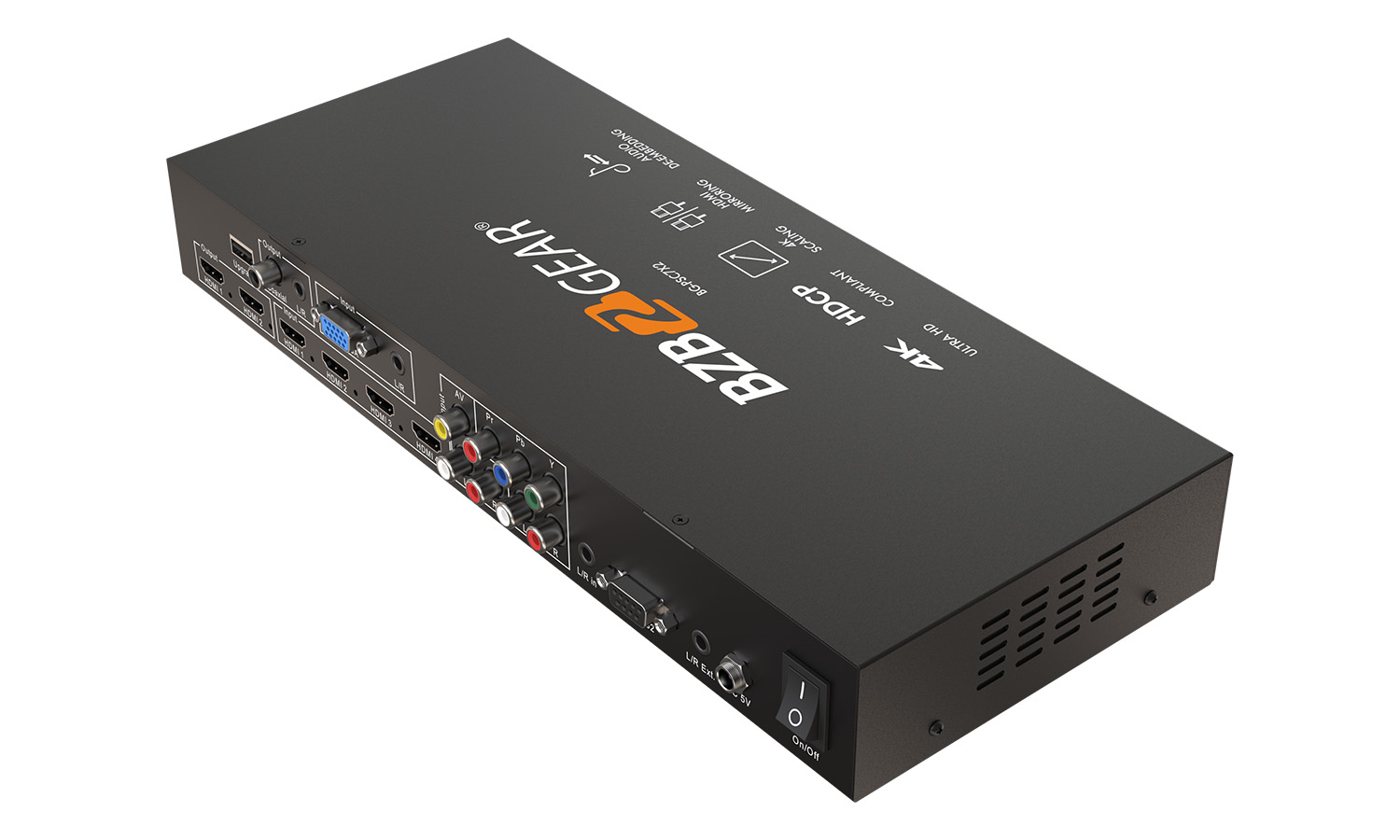

  19. USB Upgrade port: Used to upgrade the Scaler built-in BG-PSC7X2.
  20. Audio output: It has coaxial and L/R outputs, the audio outputs will always follow HDMI output 2.
  21. VGA input: VGA input with L/R audio input.
  22. AV input: AV input with L/R audio input.
  23. YPbPr input: YPbPr input with L/R audio input.
  24. HDMI outputs: 2x HDMI output.
  25. HDMI input 1-4: Connect to HDMI sources.
  26. L/R In: Connect to additional audio input to embed to HDMI output.
  27. RS232 port: DB9 connector.
  28. IR Ext.: Connect to the IR receiver cable.
  29. DC 5V: Connect to 5V/2A power supply.
  30. Power switch: Power on/off the unit.
