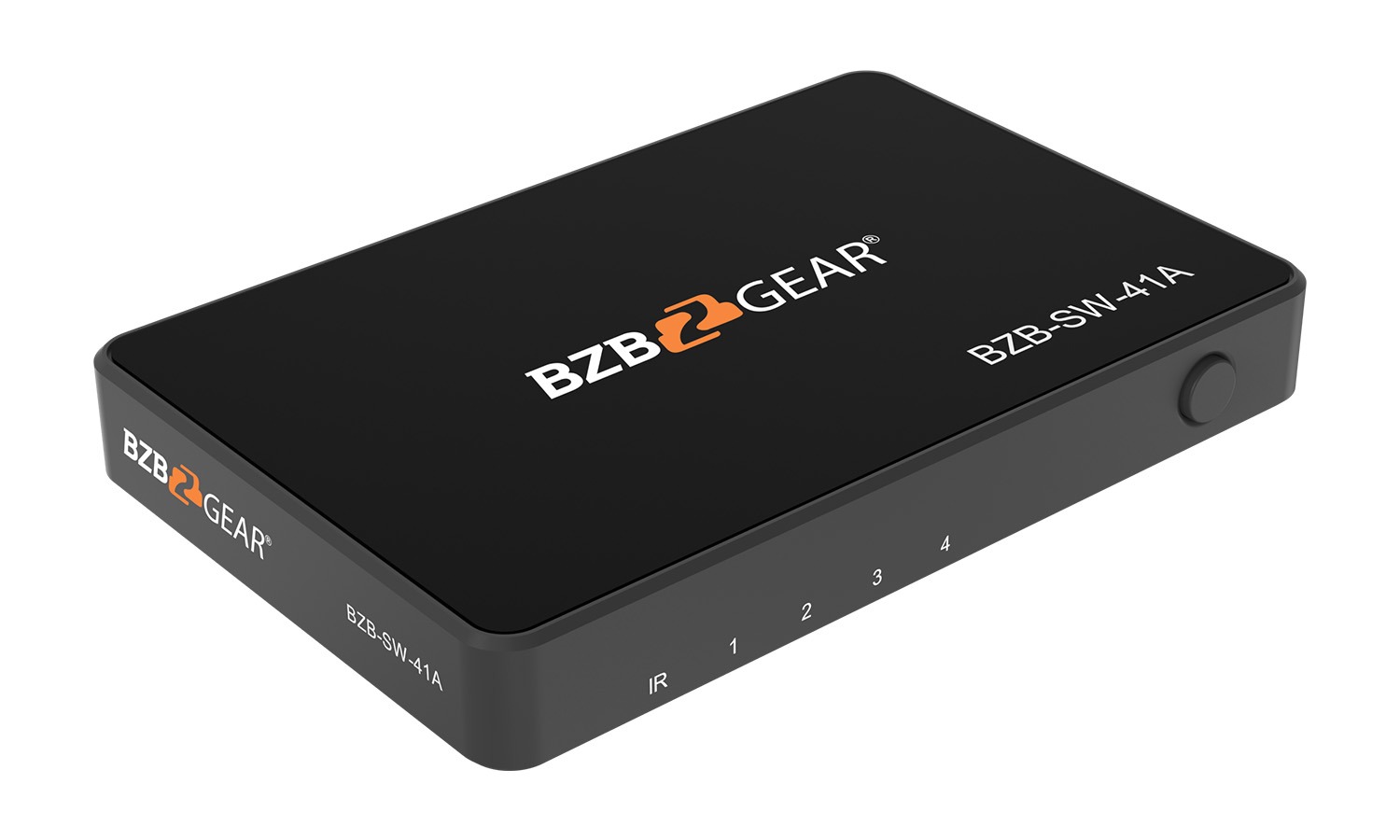

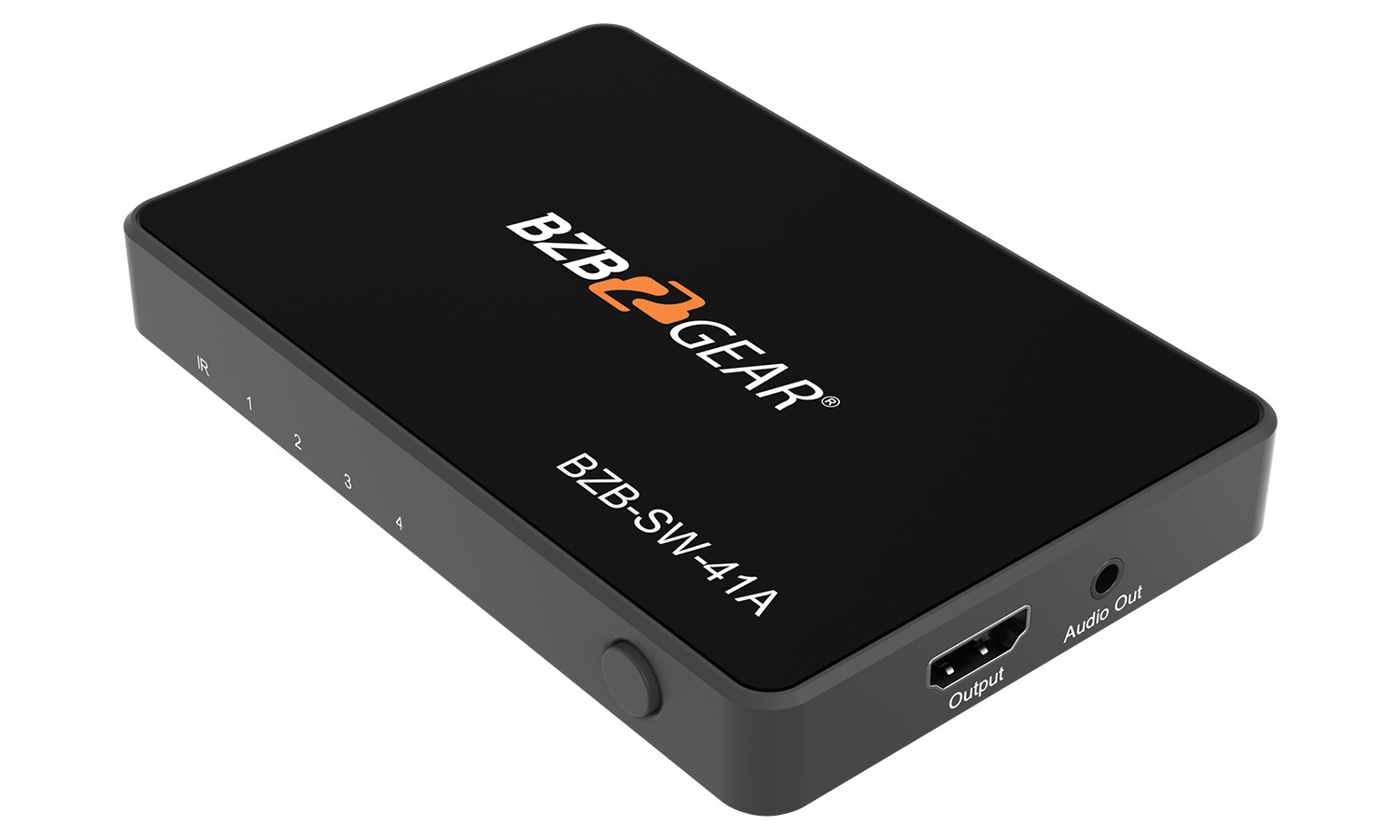

Overview
The BZB-SW-41A is a 4X1 HDMI switcher that allows users to connect up to four HDMI sources to a single HDMI display. This HDMI 2.0 and HDCP 2.2 compliant device supports signals up to 4K@60Hz at 18Gbps.
Extract HDMI audio (LPCM only) via the 3.5mm output without any loss of quality. This unit also supports HDMI High Bit Rate (HBR) audio pass through with audio sample rates up to 192kHz.
Switching between sources is simple when using the front panel push button or the IR remote, and its compact design makes installation easy. The BZB-SW-41A also supports automatic switching when a new source is connected, or to the last connected source when a source is disconnected.
Features
-
![material-symbols_shield-lock-outline]()
HDCP 2.2High-Bandwidth Digital Content Protection Supported -
![bi_badge-4k]()
Crystal Clear ImagesCapable of video resolutions up to 4K2K@50/60Hz (YUV444) -
![mdi_audio-input-stereo-minijack-1 | IR INPUT]()
3.5mm Audio OutExtracts HDMI audio (LPCM only) -
![lights]()
Simple to UseCompact design is easy to install and use -
![HDR]()
HDR10 bit HDR (High Dynamic Range) pass through -
![material-symbols_safety-check]()
ReliableBuilt to last
- Supports 4 HDMI inputs and 1 HDMI output
- Built-in retiming and cable driver
- Supports HDCP, 3D and CEC bypass
Videos
HDMI Switcher vs HDMI Splitter - Which One Should I Use?
HDMI Switcher vs HDMI Matrix - What is the difference?
BZBGEAR 1x4 Splitter & 4x1 Switcher for HDMI up to 4K2K 18Gbps & HDCP 2.2 Support
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Inputs | 4x HDMI Type A [19-pin female] |
| Outputs | 1x HDMI Type A [19-pin female] 1x L/R Audio Out [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Gray |
| Dimensions | 4.76" (W) x 3.12" (D) x 0.63" (H) [120.97mm (W) x 79.17mm (D) x 16mm (H)] |
| Weight | 0.43 lbs [195g] |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
Documents
PACKAGE CONTENTS
- 1x HDMI 4X1 Switcher unit
- 1x 5V/1A Power Adaptor
- 1x Remote Control unit
- 1x User Manual

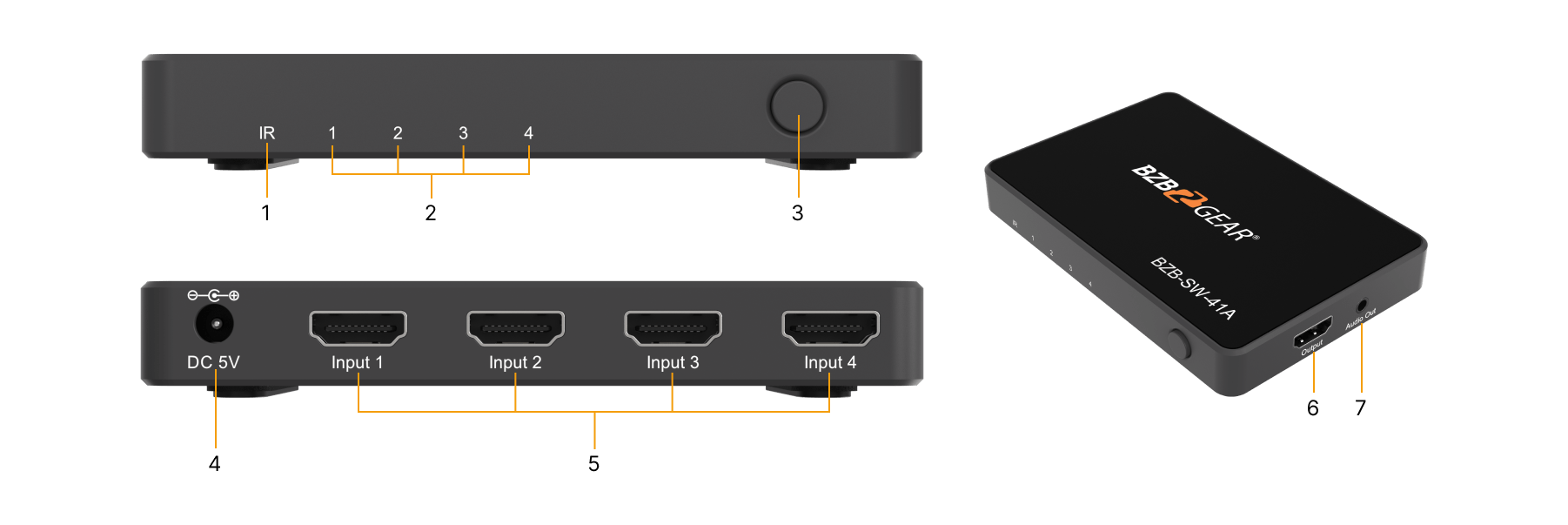

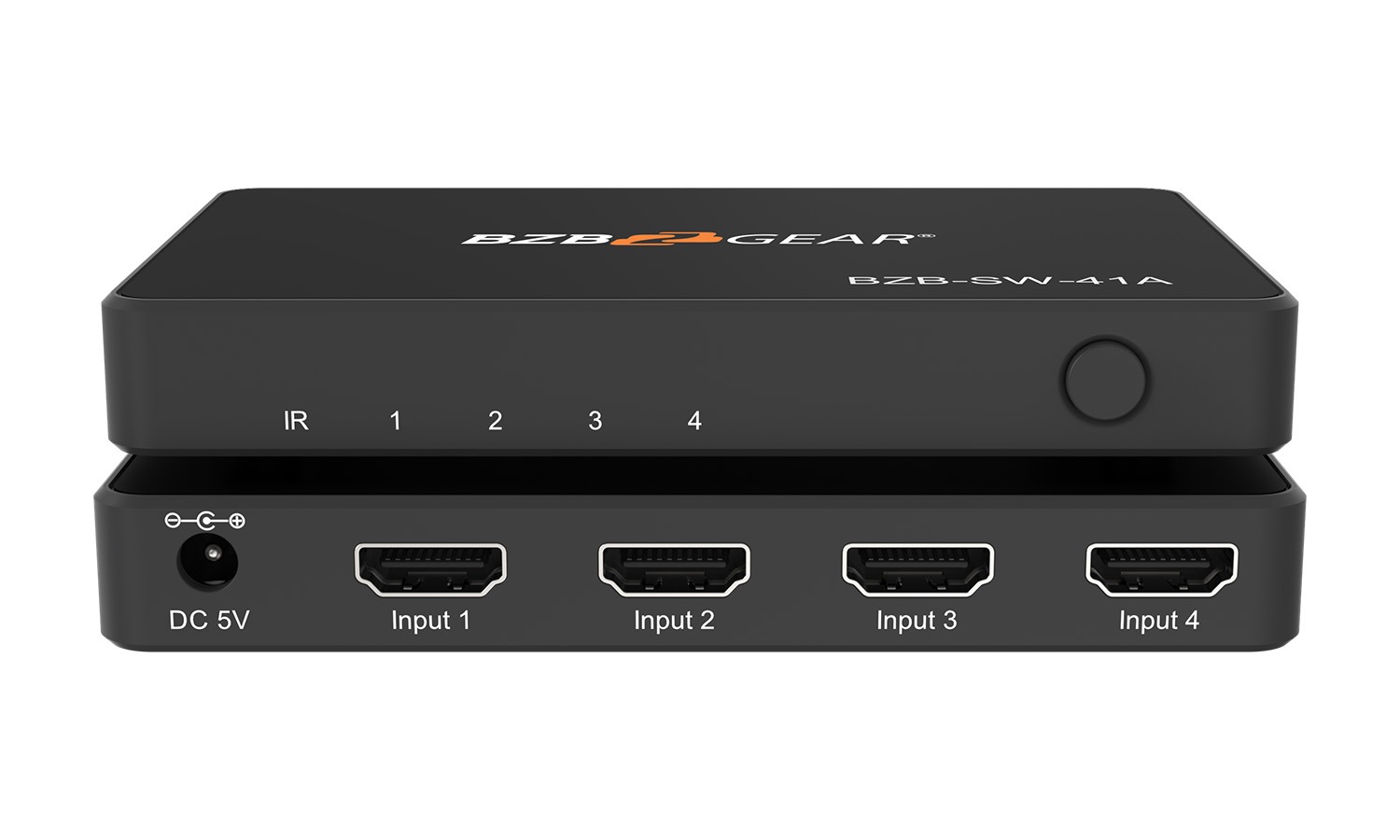

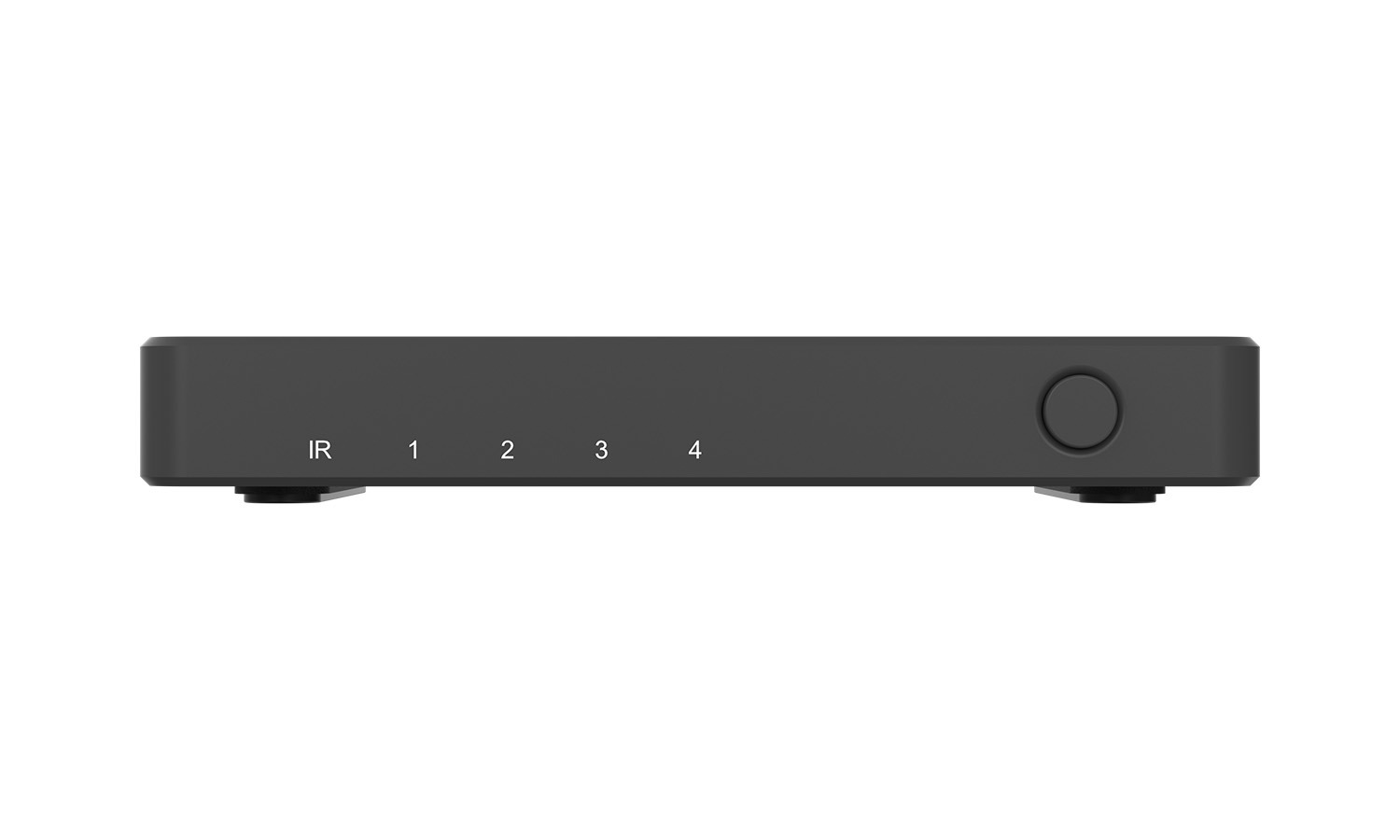

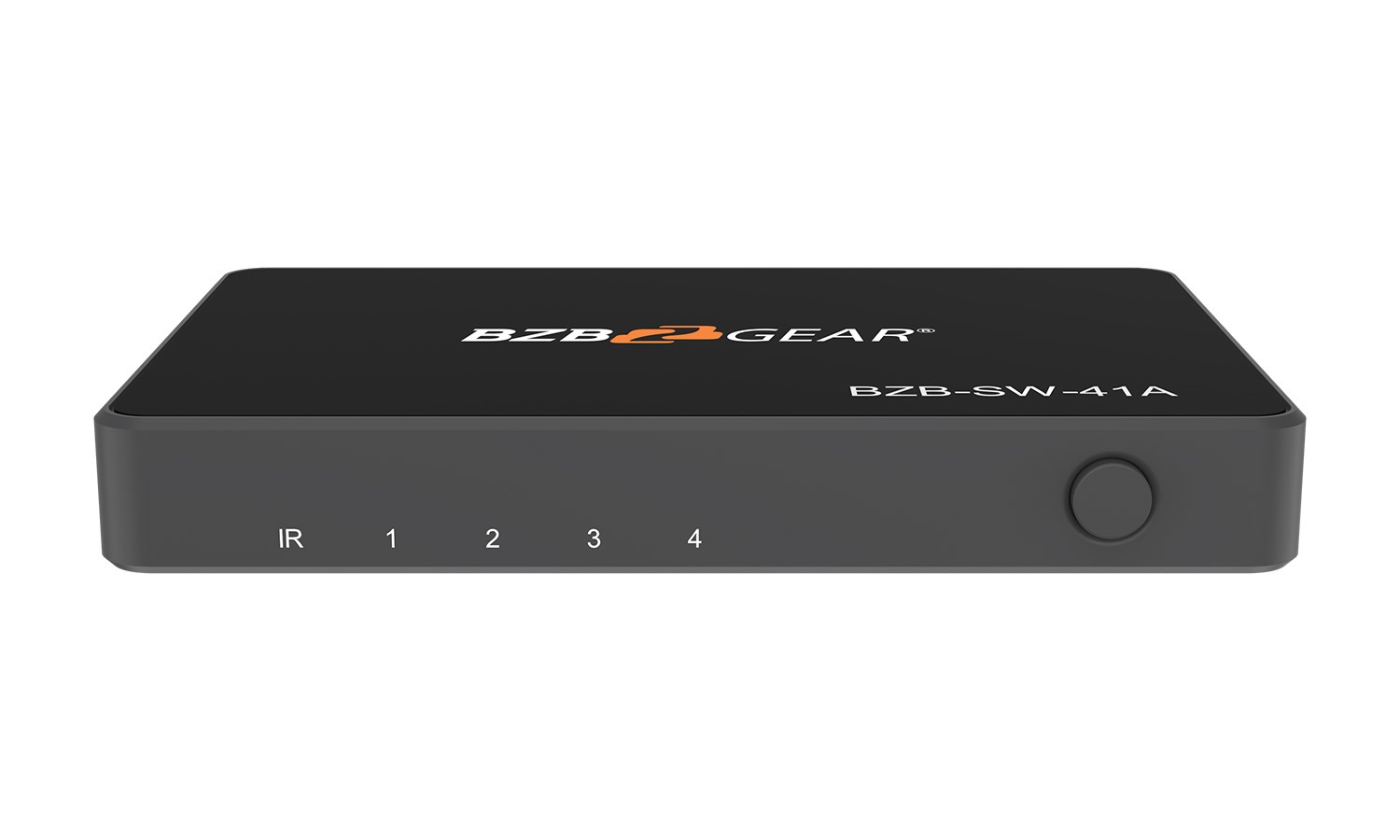

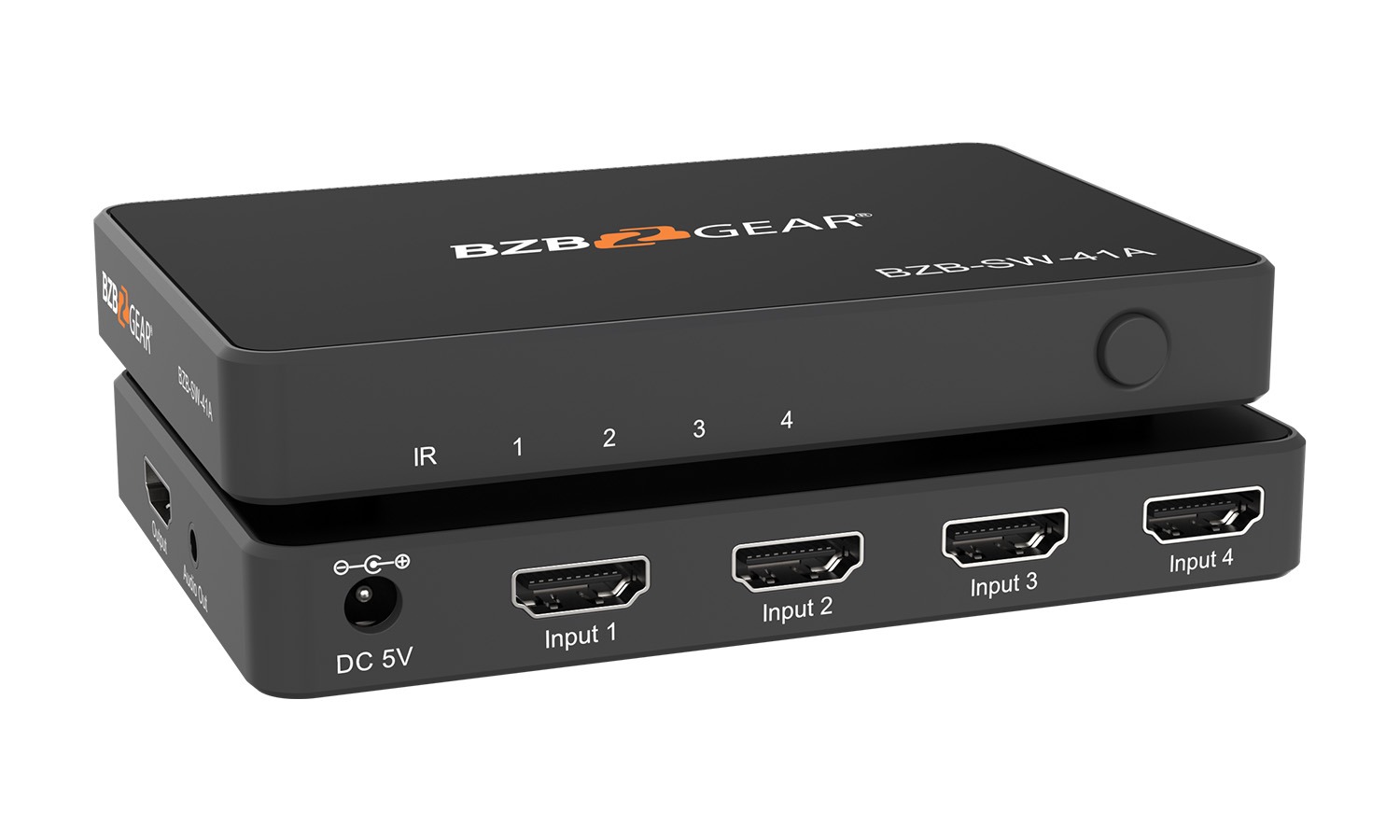

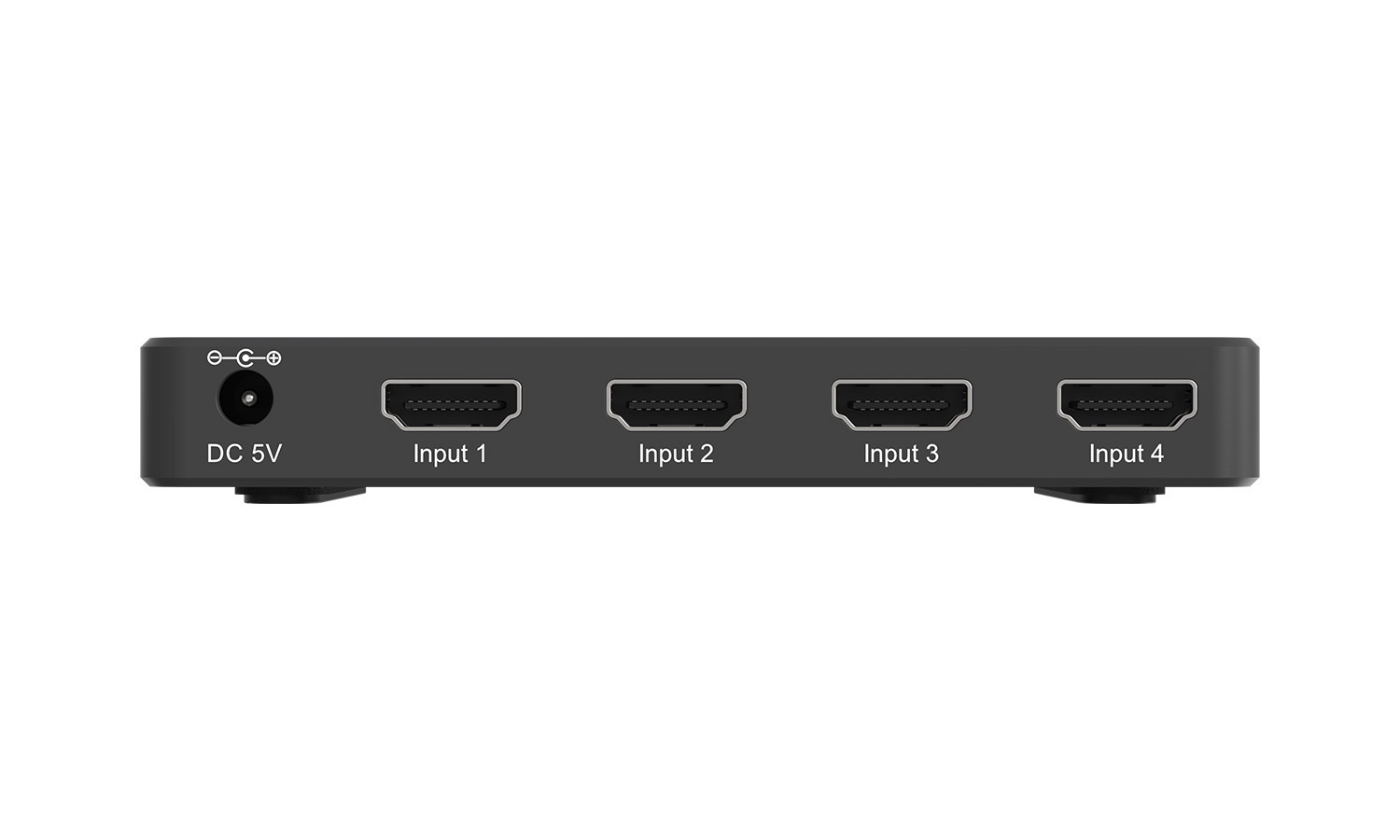

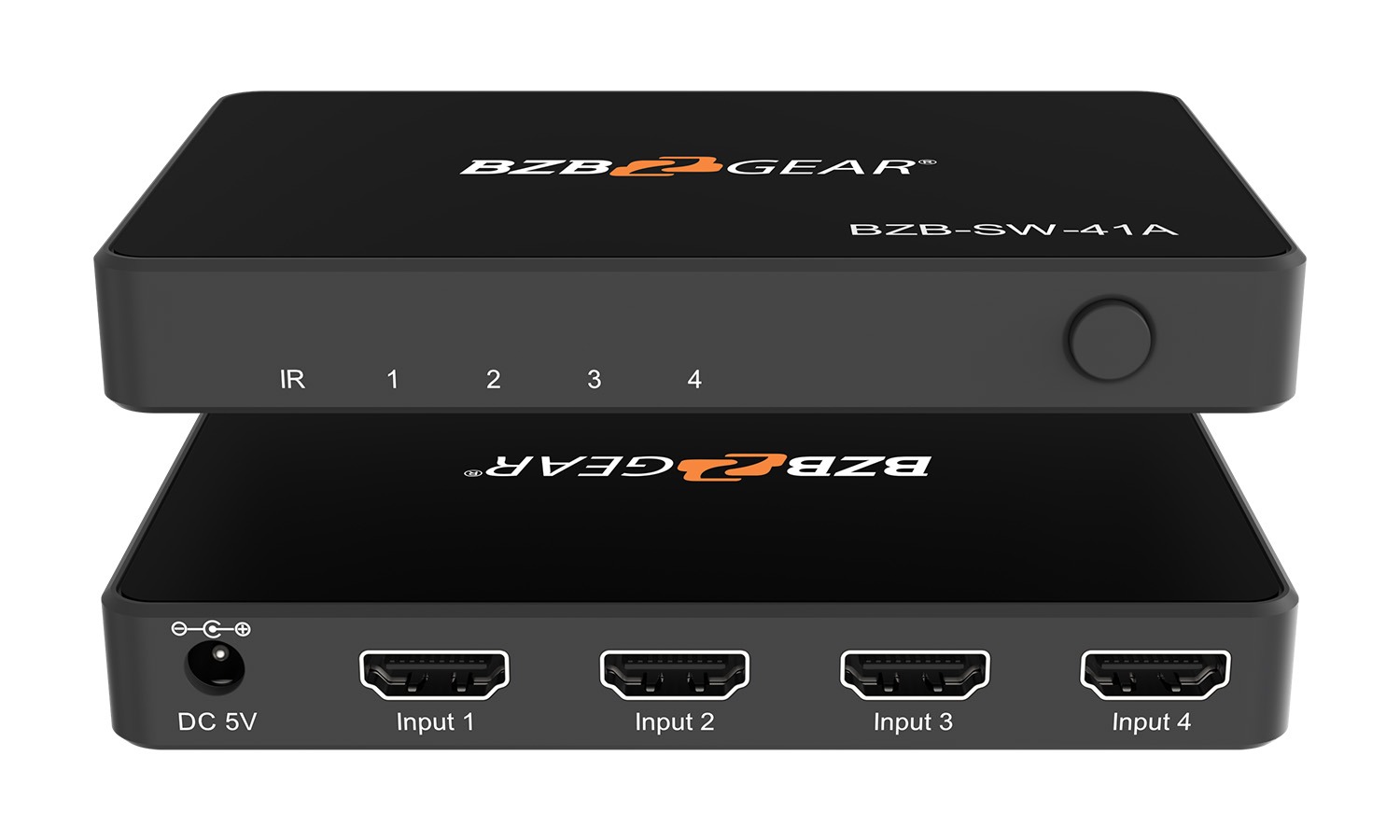

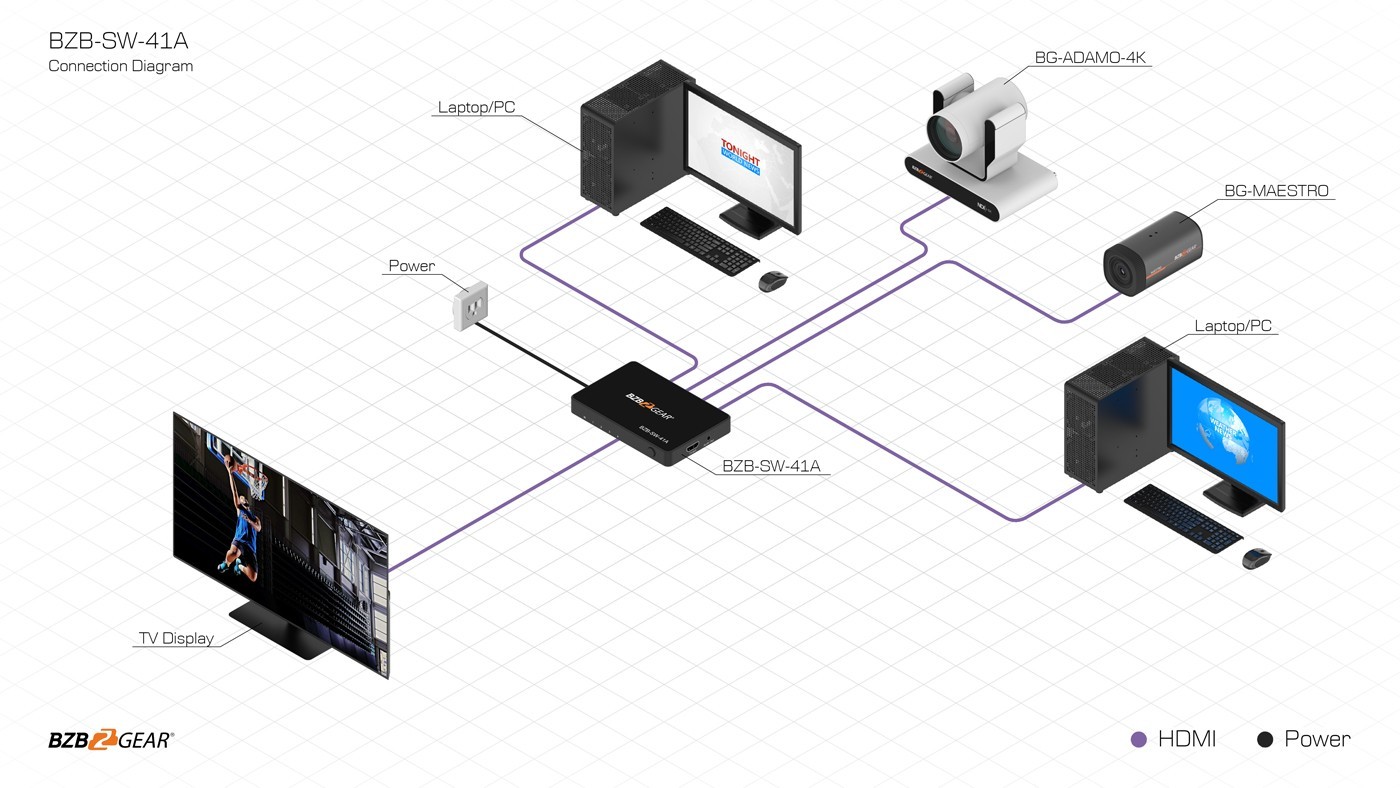

Interfaces
- IR: Remote control receiver window.
- HDMI Input LEDs 1-4: The LED will illuminate when the corresponding HDMI input is selected.
- Select Button: Press this to switch between HDMI input sources.
- DC 5V: Connect 5V/1A adapter to AC wall outlet for power supply.
- HDMI Inputs 1-4: Connect to HDMI source devices.
- HDMI Output: Connect to an HDMI display to view the input signal sources.
- Audio Out: Connect to an external audio amplifier or TV L/R audio input port.
