Overview

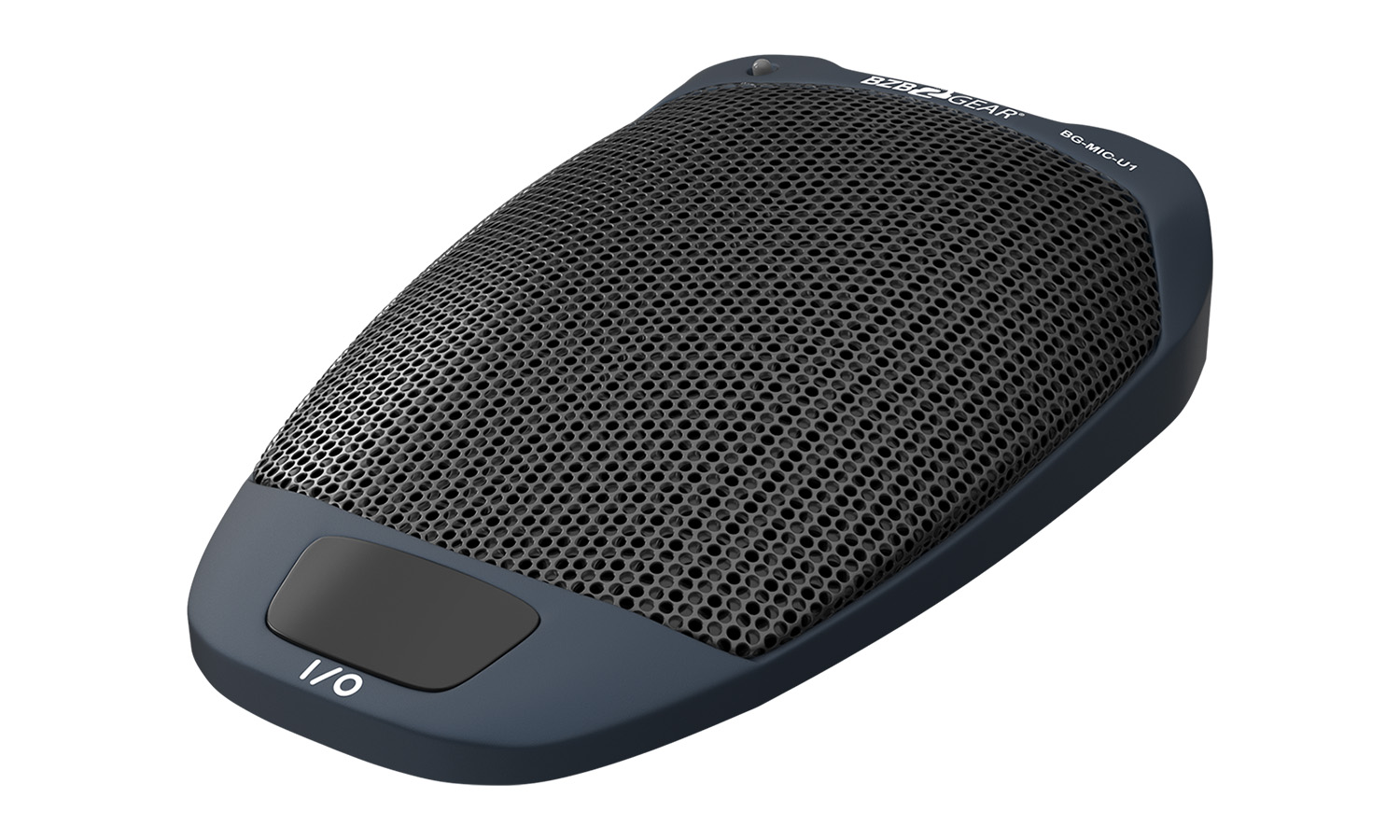

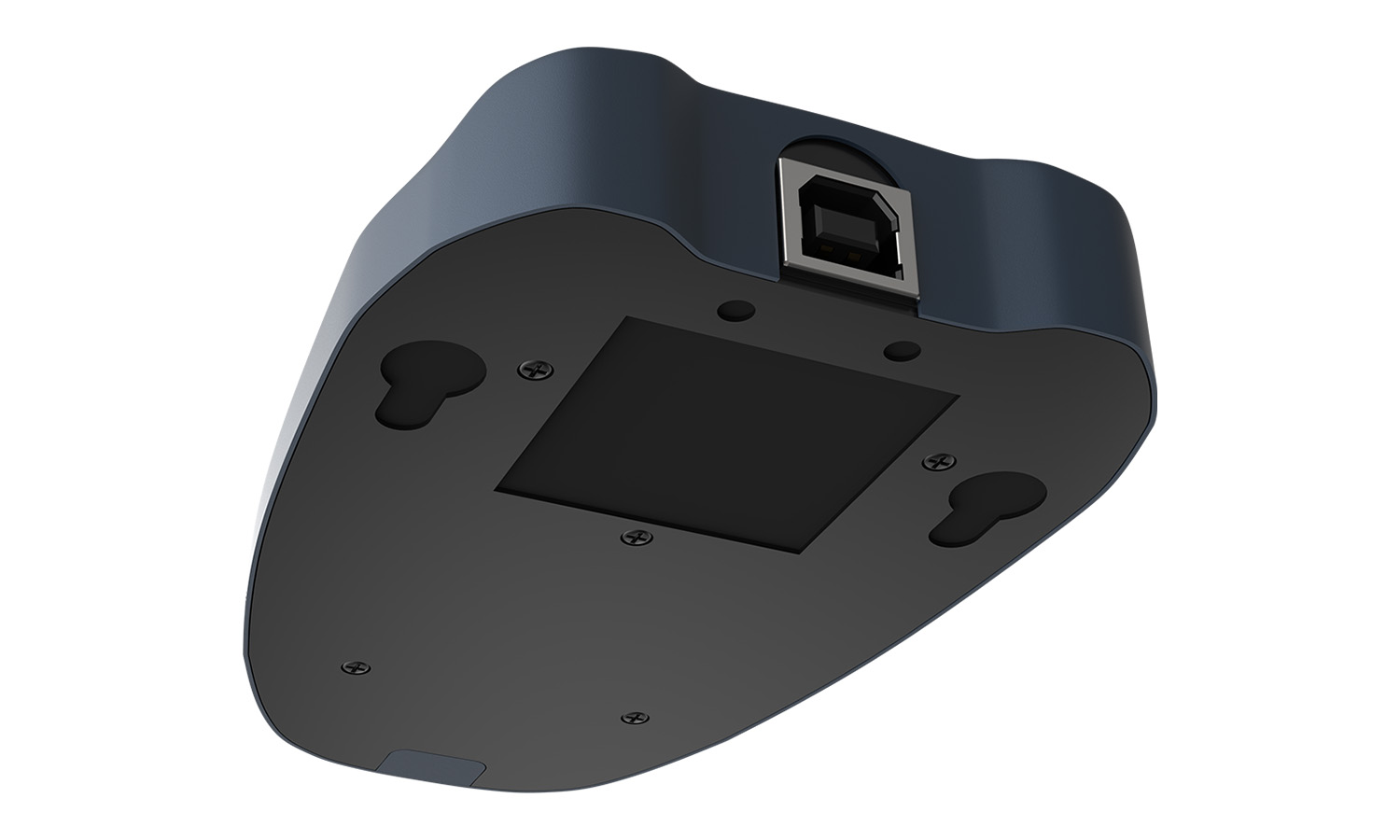

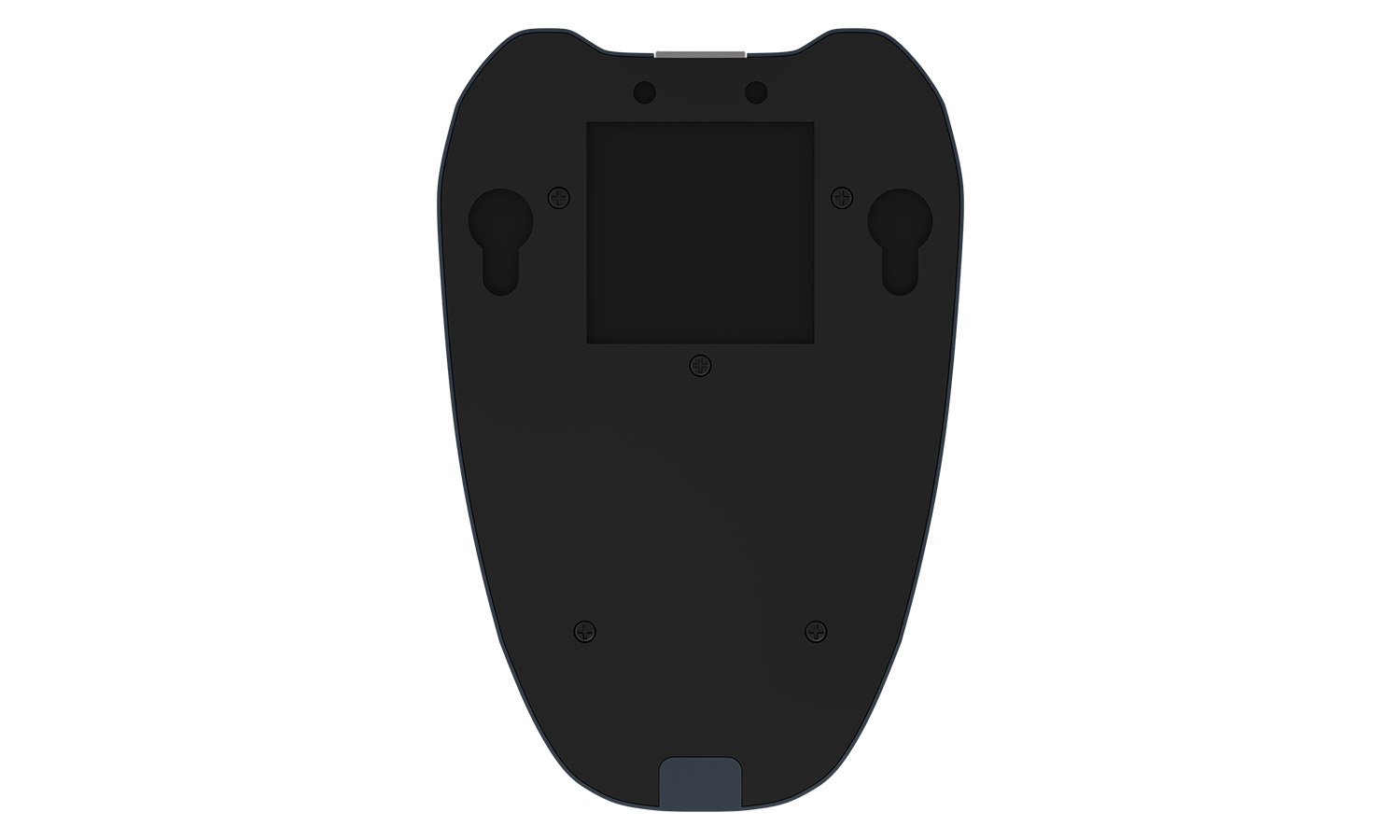

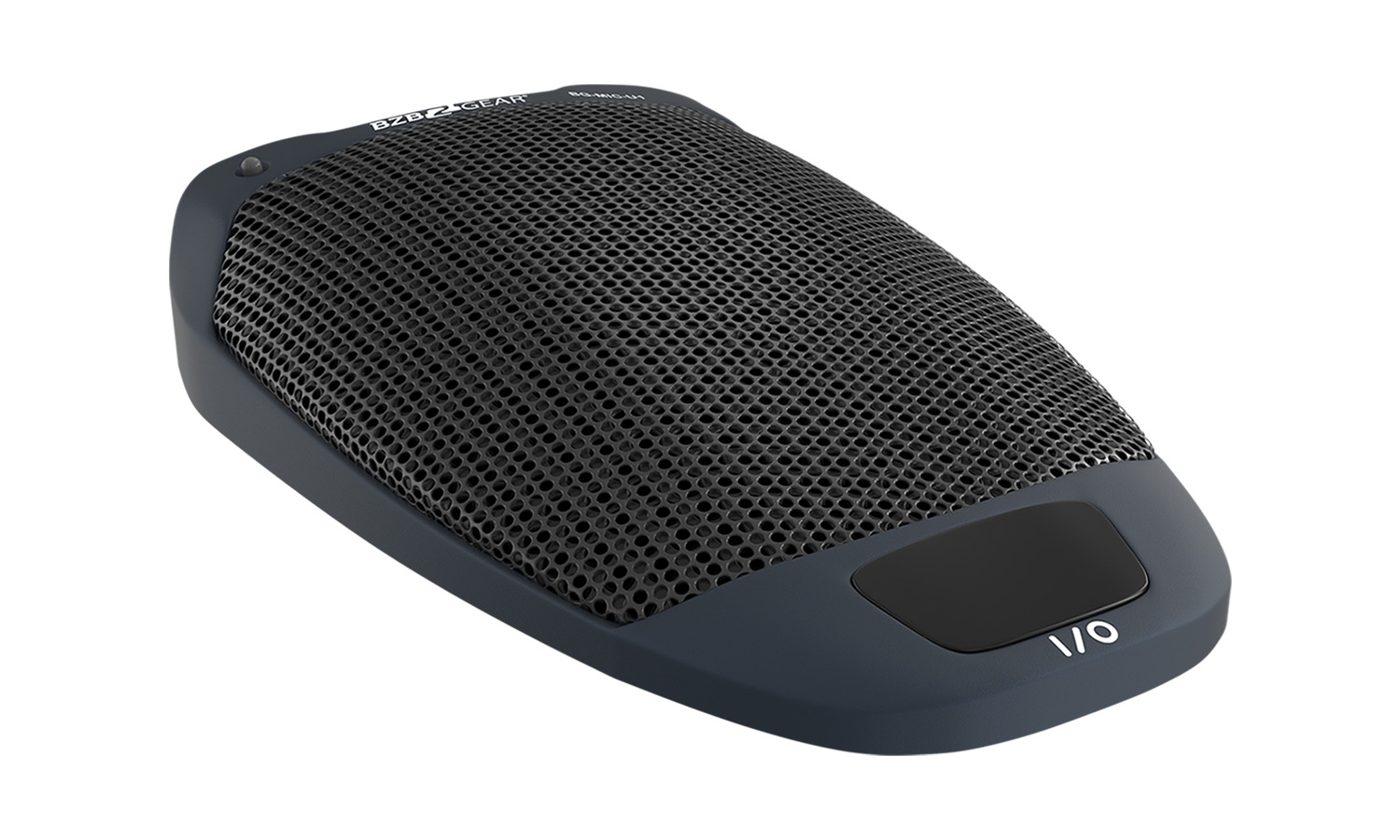

The BG-MIC-U1 is a USB conferencing microphone. It features a dual color LED indicator, a push ON/OFF switch and an electret cardioid condenser capsule. The internal shock mount minimizes mechanical noise for crystal-clear sound reproduction. Integrated mounting holes allow for wall or ceiling placement for a clean installation. Simply connect with a USB type B to USB type A cable for plug and play operation.
Features
- The boundary microphone is designed for conference, house of worship, and theater applications
- Internal shock mount minimizes mechanical noise
- The BG-MIC-U1 features dual color LED indicator, membrane ON / OFF switch and back electric cardioid condenser capsule
Videos
Expand Your Conferencing Solution With the BG-MIC-U1, a Premiere USB Conferencing Microphone
BZBGEAR Bluetooth and USB Speakerphones for Any Business Conference
Tech Specifications
| Capsule Type | Electret Condenser |
| USB Connector | B type, Digital audio interface Indicator |
| Indicator | USB (Mic OFF) - Green Mic ON - Red |
| Switch | Push control: ON/OFF |
| Sensitivity (at 1000Hz) | -53 ± 3 dB * (2.23mV) 0dB = 1V / μbar |
| Max. SPL For 1% T.H.D. | 125dB |
| Frequency Response | 30~12,000 Hz |
| Directional Pattern | Half-Cardioid |
| Power consumption | 0.4W |
| Dimension | 2.9"(W) x 0.94"(H) x 4.3"(L) [73mm(W) x 24mm(H) x 110mm(L)] |
| Weight | 0.17 lbs [75g] |
| DAC | 32, 44.1, 48KHz |
| ADC | 8, 11.025, 16, 22.05, 32, 44.1, 48KHz |
| Bit Depth | 16-Bit |
| USB Type | USB 1.1 / USB 2.0 / USB 3.0 |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-MIC-U1 Microphone
- 1x USB Type B Cable (host to device)
- 1x User Manual
- 1х Quick Start Guide

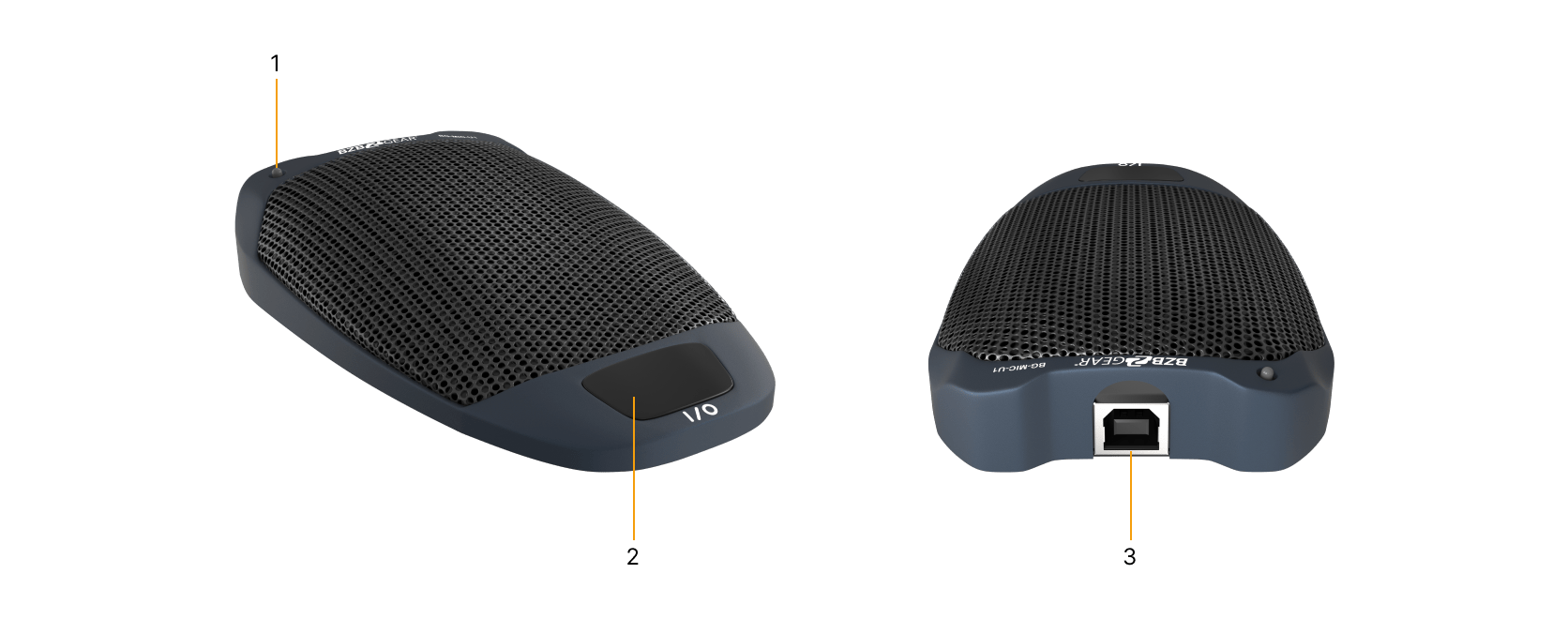

Interfaces
- Power On/Off LED Indicator - Illuminates when mic is powered on.
- On/Off Switch.

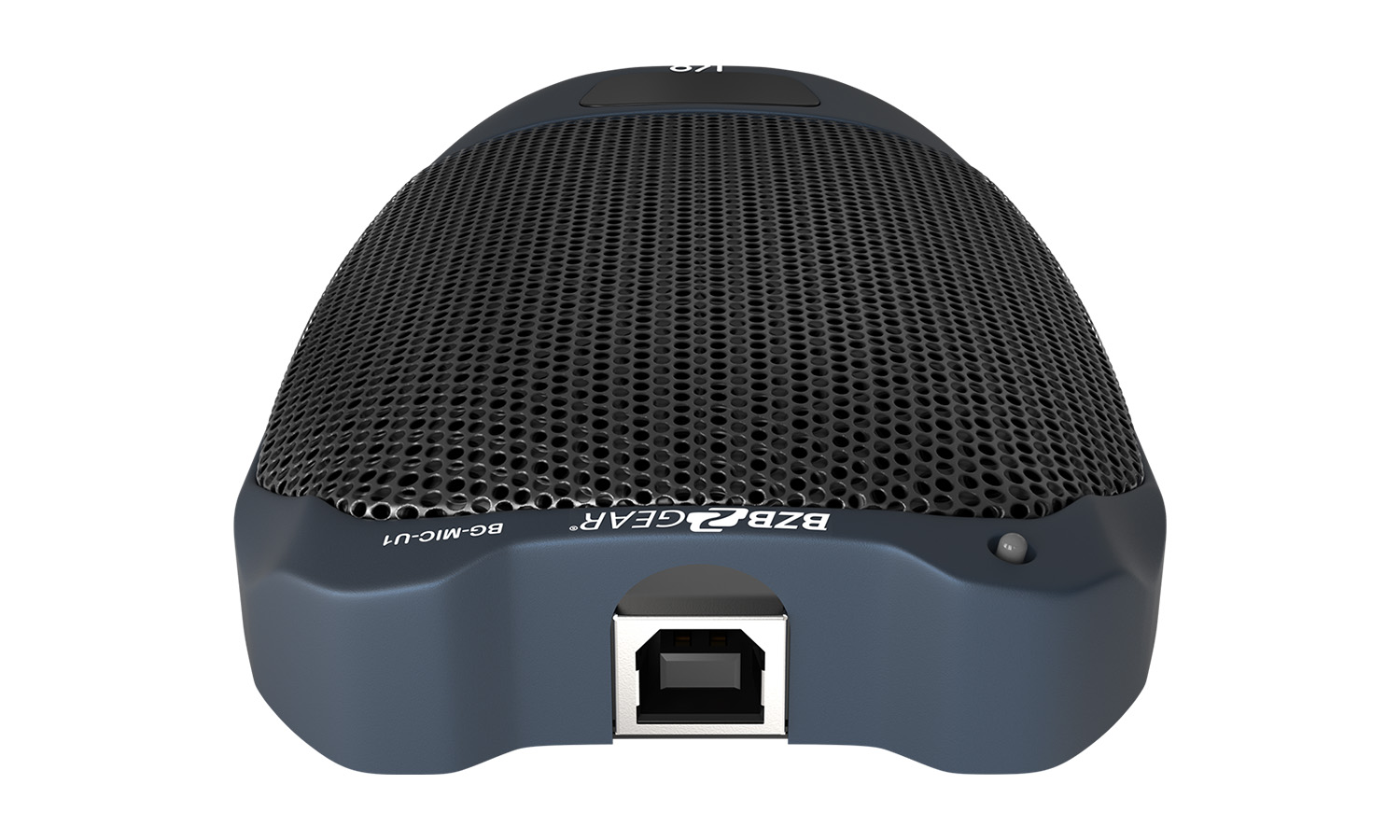

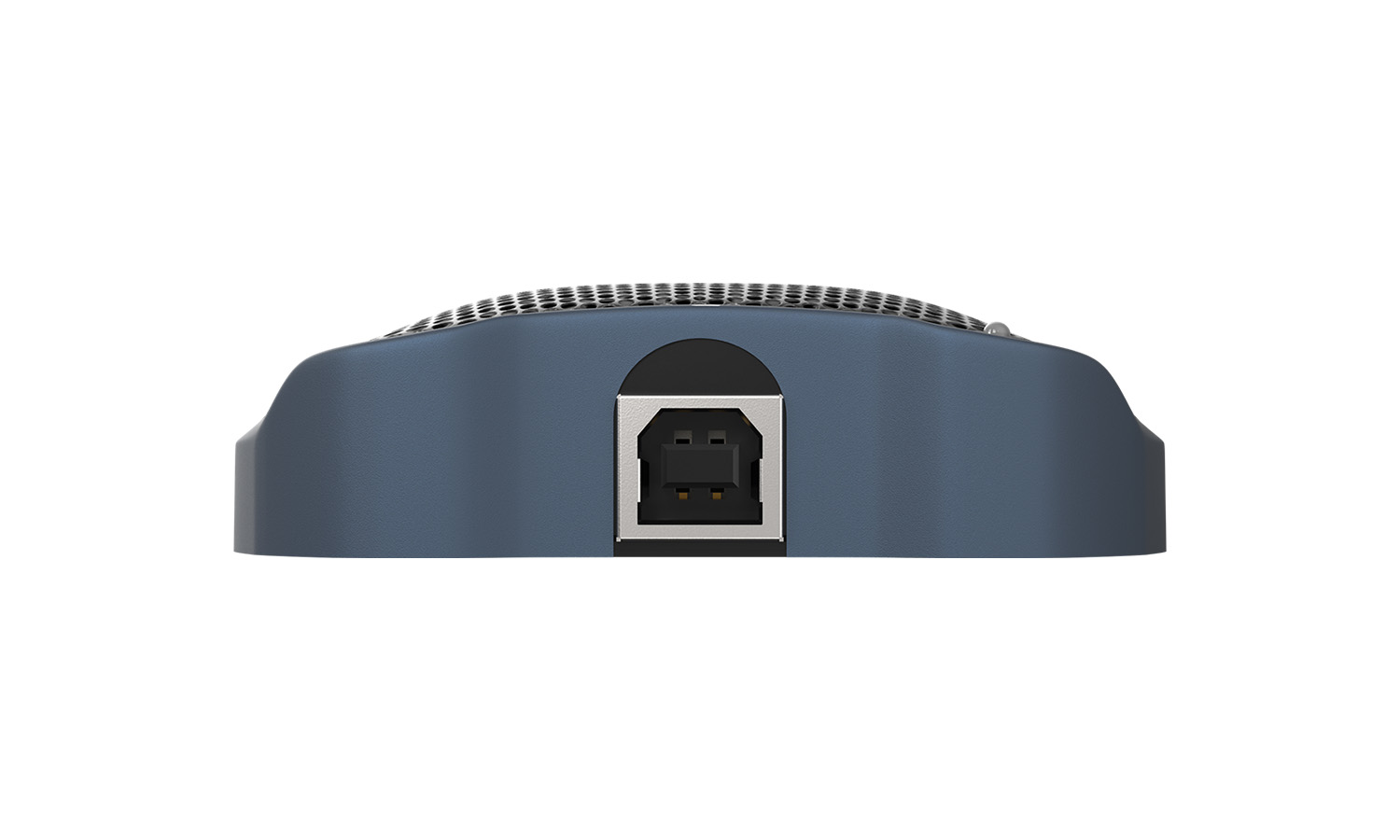

- USB Type-B Connector (audio and power).
