LUXUL AV-Series 26-Port Gigabit L2/L3 Managed Switch
Discontinued
Configure the Perfect Solution
Get Started
Overview

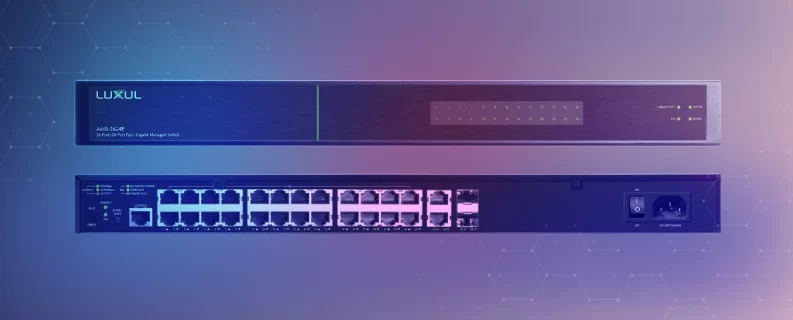

The Luxul AV-Series 26-port/24 PoE+ Gigabit Managed Switch features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems.
It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The 26-port Gigabit switch includes 24 PoE+ ports, allowing you to use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices. It also features advanced management, and VLAN and security capabilities to provide benefit to your home or office network
Features
- PoE Self-Healing with auto-recovery and power scheduling
- 24 Gigabit RJ45 Ports
- 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports)
- 24 Ports Support 802.3af/at PoE+ with 250 Watt Power Budget
- 52Gbps Switching Capacity (Non-Blocking and Full-Duplex)
- 802.1Q VLAN (with Trunking) and QoS Support
- Port Based Authentication
- Intuitive Management
- User Selectable Green or Blue Front facing LEDs
- Variable Speed Fans for Quiet Operation
- Standard 19” Rack-Mount
- The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
Tech Specifications
| Dimensions & Measurements | |
| Height | 1.75 in (4.44 cm) |
| Length | 17.3 in (43.94 cm) |
| Max Power Consumption | 337W |
| PoE Power Budget | 250W |
| Product Weight | 9 lbs (4.08 kg) |
| Switching Capacity | 52 GBPS |
| Width | 8.25 in (20.96 cm) |
| Characteristics & Features | |
| Ethernet Port Type |
|
| Jumbo Frame Support | 10056 |
| Layer Support |
|
| Multicast |
|
| Number of Fiber SFP Ports | 2 |
| Number of Ports | 24 |
| PoE Self Healing | Per Port Basis |
| Port Location | Rear |
| Power Cord | US Cord |
| ProWatch Type | ProWatch Integrated |
| Spanning Tree |
|
| SPF Port Type | 2 x 1 Gigabit |
| Switch Type |
|
| VLAN Compliance | 802.1Q |
| VLAN ID | 4094 |
| Certifications & Warranties | |
| Certifications |
|
