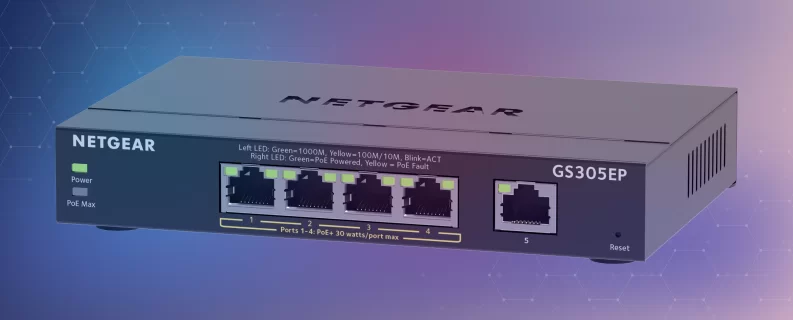

Netgear 5-Port Gigabit Ethernet POE+ Smart Plus Managed Switch 63 W PoE Budget
Overview
Easy to manage, fundamental network features at an affordable cost for SMBs. NET-8LU027 offers 63W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.
NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.
Features
- Enable network configuration and management at the price point of unmanaged switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention1, loop detection2, and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot
- 802.3at standard offering 30W/port
- Fanless and versatile mounting option (desktop and wall-mountable)
Tech Specifications
| Speed | Gigabit |
| Total PoE+ Ports | 4 |
| Total PoE+ Budget | 63W |
| Uninterrupted PoE | Yes |
| Bandwidth | 10Gbps |
| Max Mac Entries | 4K |
| Buffer Size | 192KB |
| Energy Efficient Ethernet (IEEE 802.3az) | Yes |
| Priority Queuing | WRR |
| Jumbo Frame Support | 9,216 bytes |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.1 in (158 x 101 x 27 mm) |
| Weight | 0.86 lb (0.39 kg) |
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
PACKAGE CONTENTS
- NETGEAR Smart Managed Plus Switch
- Power adapter
- Detachable power cable (varies by region)
- Wall installation kit
- Rubber feet
- Installation guide
