NETGEAR AV LINE 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch (Preconfigured GSM4212P-100NAS)

Configure the Perfect Solution
Get Started

Overview

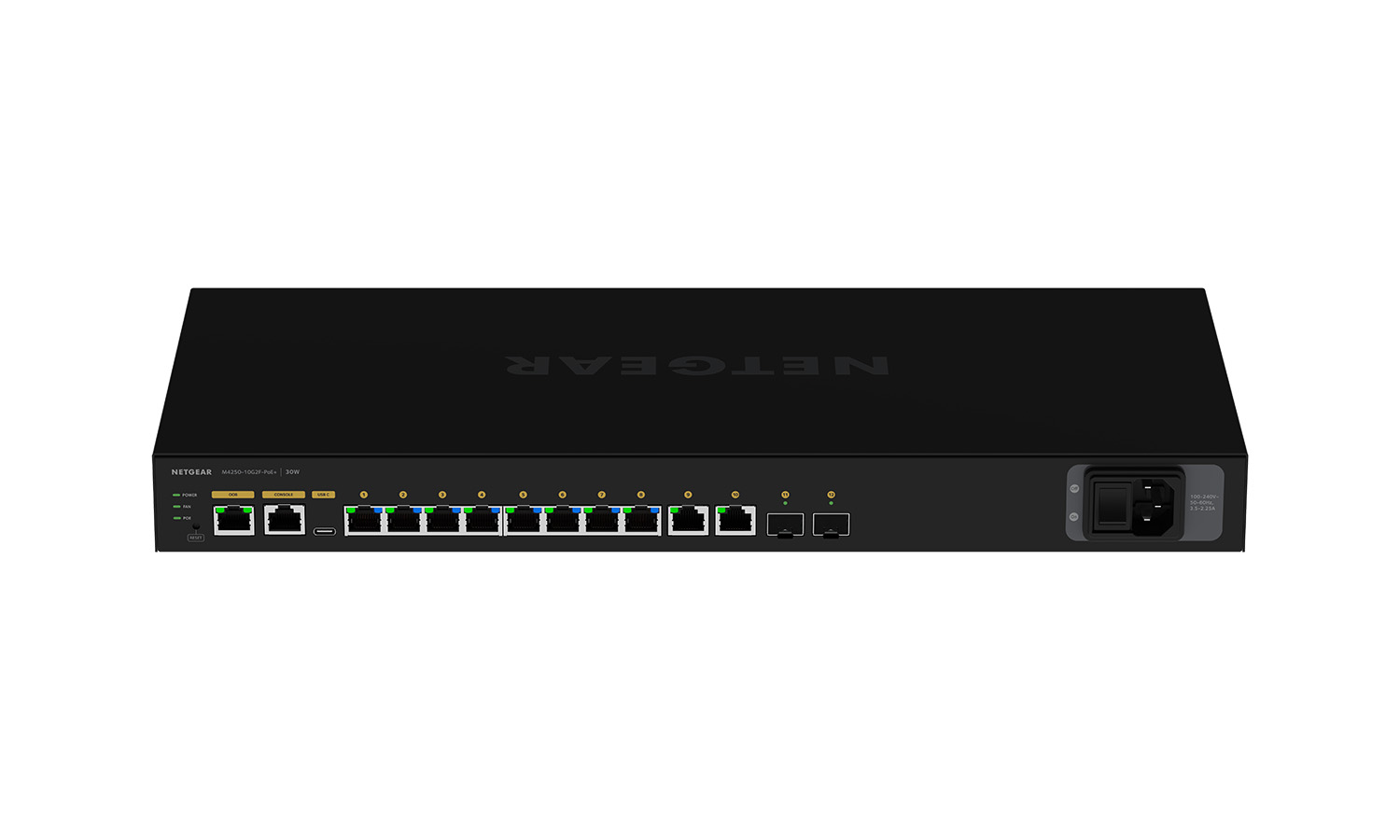

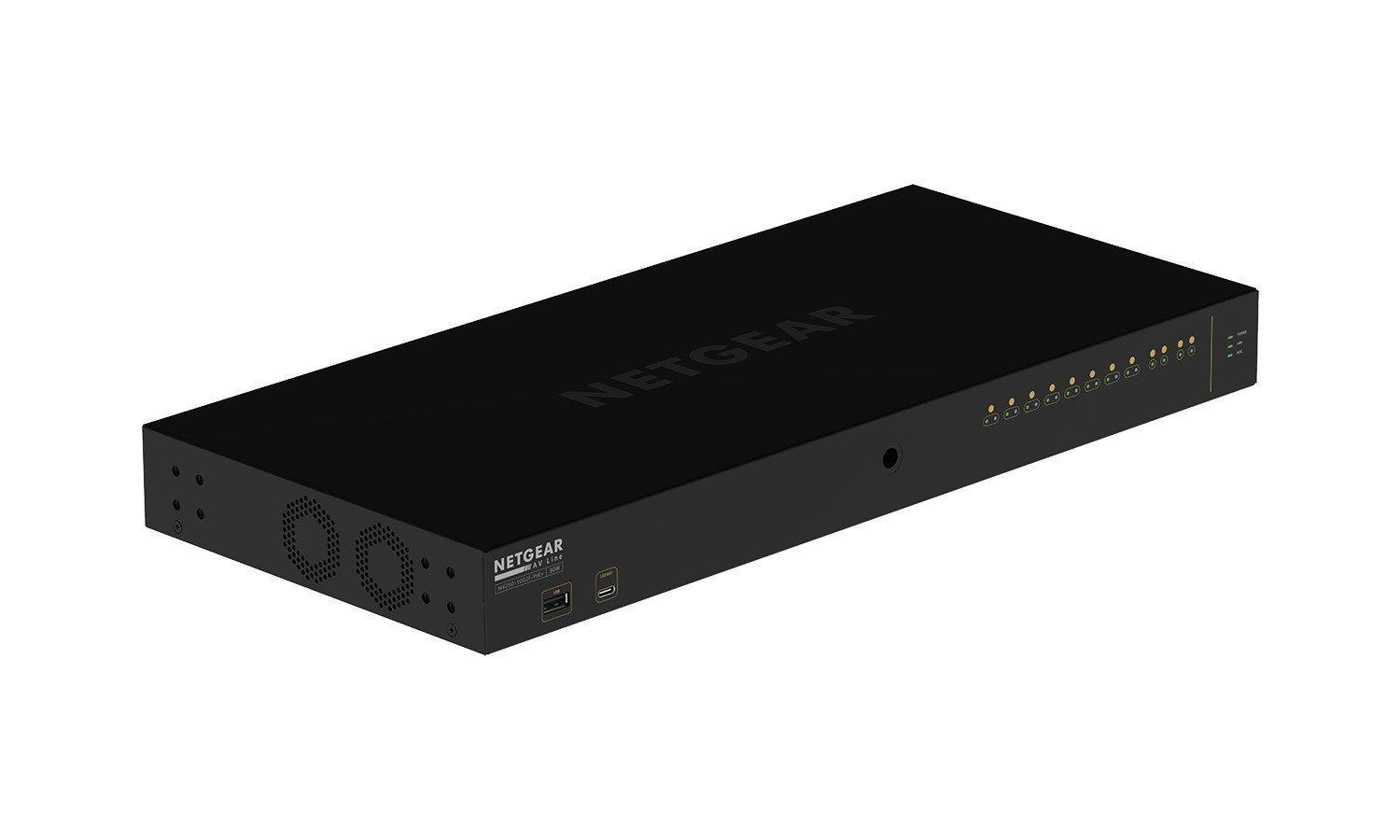

The NET-M4250-10G2F-PoE+PC is a 10-port AV line 8x1G PoE+ 125W 2x1G managed network switch. This rack mountable network switch also features 2 SFP ports and a total power budget of 125W.

Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs.

PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Features

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 125W PoE budget
  • 24 Gbps non-blocking fabric across 12 ports

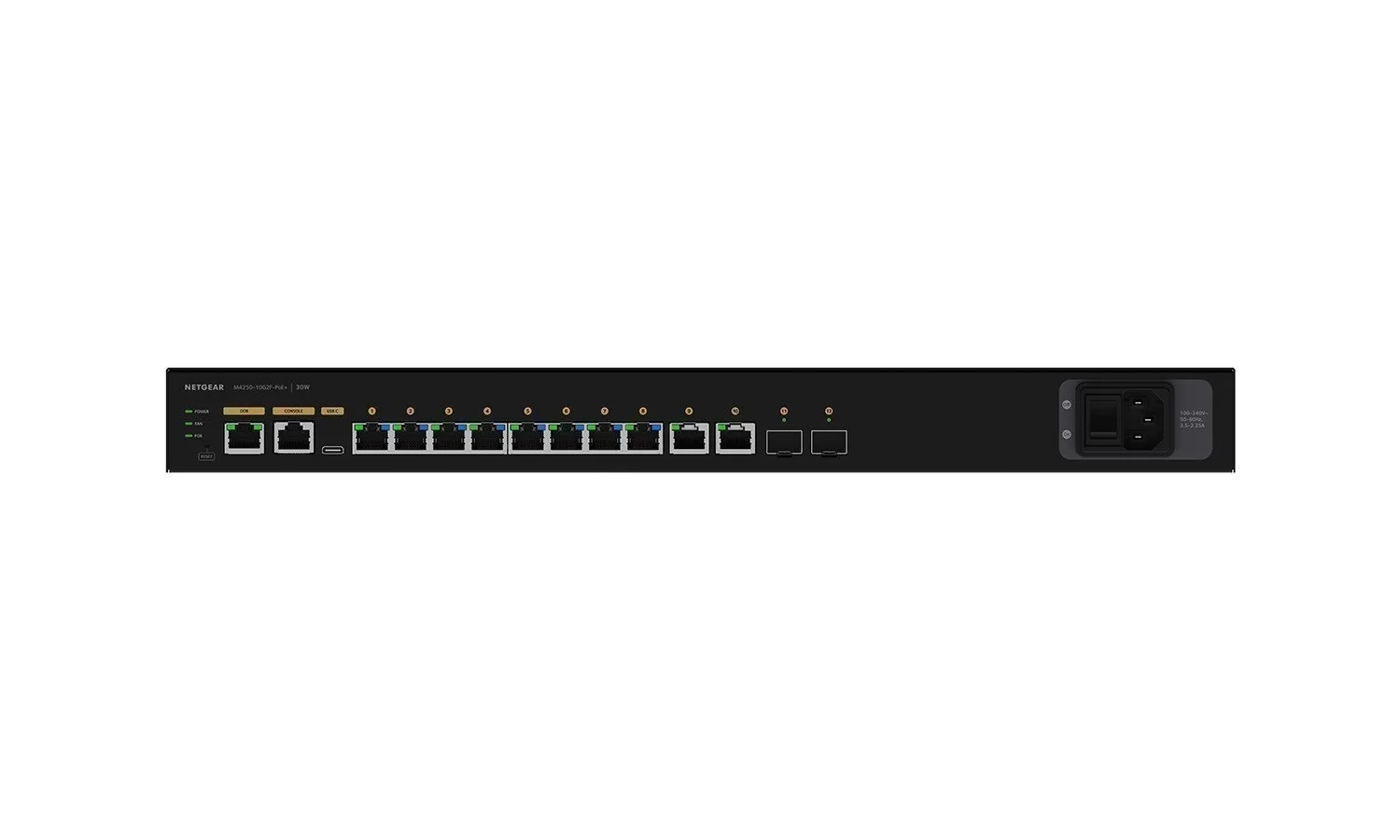

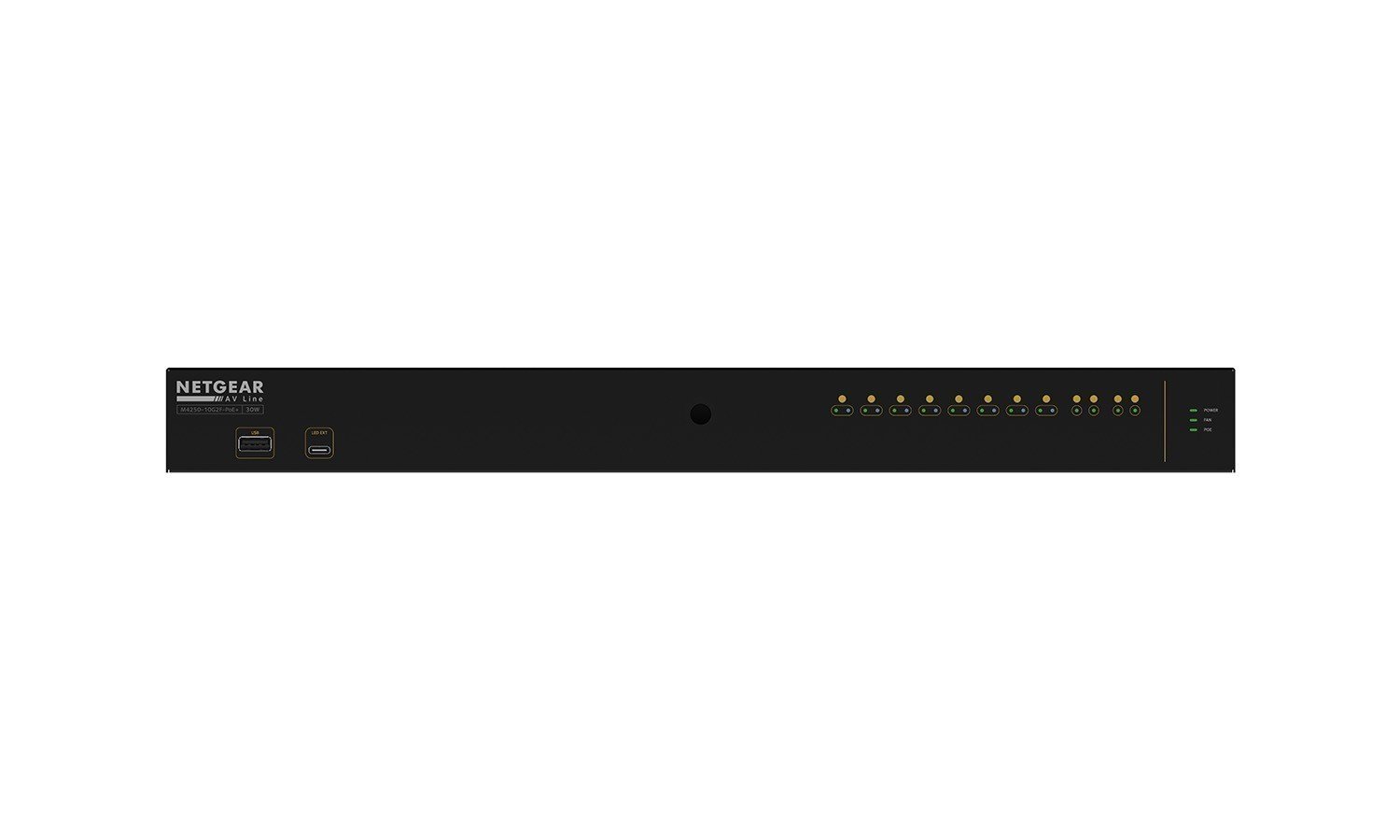

  • Front black display panel and all ports in the back
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Selectable fan modes for fanless, quiet, or cool operation
  • 2-port 10/100/1000BASE-T (RJ45)
  • Out-of-band 1G Ethernet management port
  • Possible reversed mounting with ports in the front
  • Threaded hole in front (1xM10) for clamps
  • 2-port 1000BASE-X (SFP)
  • USB-C and RJ45 RS232 console ports and USB-A storage port
  • Rack-mounting standard brackets
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates

Tech Specifications

Technical
Primary Port Speed 1 Gigabit
Number of Ports 12 (10x 1G, 2x SFP)
PoE Ports / Budget 8 PoE+ (30W/port), 125W Budget
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
Acoustics Fanless or 30dB@@25°C
Power Consumption With PoE: 163.9W/559.555Btu/hr
Without PoE: 17.32W/59.13Btu/hr
Standby without any port connection: 8.53W/29.121Btu/hr
Third party support Domotz
Physical
Dimensions (WxDxH) 440 x 200 x 43.2mm
Weight 2.85Kg (6.28lb)

Resources

DOCUMENTS

PACKAGE CONTENTS

  • NET-M4250-10G2F-PoE+PC
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
