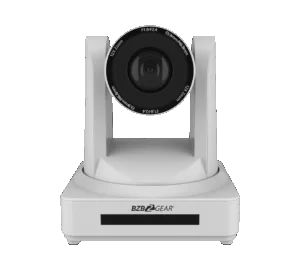

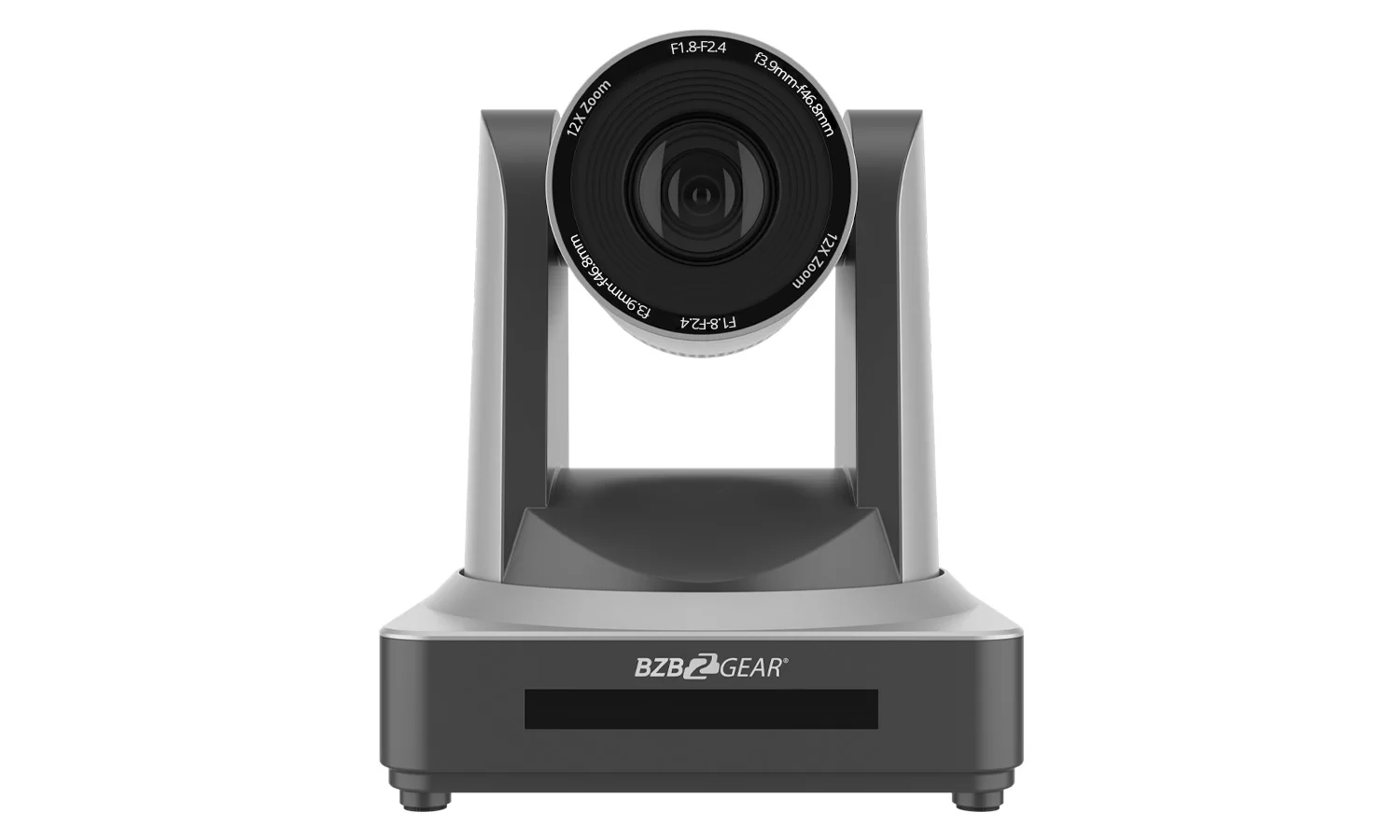

12X/20X/30X PTZ Zoom Full HD HDMI/SDI Live Streaming Camera with POE

Discontinued
Configure the Perfect Solution
Get Started

BG-LVPTZ

Designed for flexibility, reliability, and performance, BZBGEAR’s LVPTZ series cameras feature powerful lenses in 12X, 20X or 30X optical zoom. A robust selection of connections ensures compatibility with a wide range of equipment. Video with maximum resolution of 1080p60Hz is available simultaneously on HDMI, 3G-SDI and IP Streaming over LAN connection. Variable control options include RS232, RS485, IP, IR and WebGUI. Audio Embedding is available through the 3.5mm audio input jack directly to the IP streams.

Support of H.264/H.265 compression codecs and RTMP(S) streaming protocol makes it easy to record or live stream to popular social media platforms like YouTube and Facebook.

Utilizing advanced ISP processing algorithms this camera delivers fast, accurate, and stable auto-focusing. By eliminating the need for a power supply, installation and placement have been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

These outstanding features make this camera the best overall choice for environments as diverse as Houses of Worship, Schools, Studios, Event Facilities, and Presentation rooms.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

Features

  • zoomfeatures
    Zoom
    Available with 12x/20x/30x optical zoom lens
  • fluent_zoom-fit-24-filled
    Control Options
    IP (VISCA), IR remote, and cascadable RS232/485 (VISCA/PELCO-P/D)
  • material-symbols_settings-input-component
    Multiple Output Options
    Simultaneous HDMI, 3G-SDI, and IP connections
  • solar_play-stream-bold
    Latest Streaming Tech
    Supports H.264/265 video compression and RTMP(S) network protocol for Youtube/Facebook streaming
  • ph_cube-focus-fill
    Superb Auto Focus
    Latest autofocusing algorithms result in quick, accurate, and stable focus
  • Power over Ethernet (PoE)
    Power over Ethernet
    Delivers power directly over an ethernet cable from your PoE enabled network switch
  • Low noise 1/2.8" CMOS sensor
  • Sensor ensures high SNR
  • Up to 255 camera presets
  • Field of views from 54.7° to 72.5°
  • Quiet and smooth operation
  • Ceiling, wall, or tripod mounting options
  • PoE LAN port allows for single cable installations
  • 3G-SDI transmissions up to 100m
  • Available in grey or white

Compatible with:

Videos

Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
How To Update Your BZBGEAR PTZ Camera Firmware to HTML5
How To Update Your BZBGEAR PTZ Camera Firmware to HTML5
BZBGEAR Heads Chris & Steve Talk Tech - Ep. 1 IP PTZ cameras, Live Streaming & Accessories
BZBGEAR Heads Chris & Steve Talk Tech - Ep. 1 IP PTZ cameras, Live Streaming & Accessories
How to Connect an IP Camera to your Network
How to Connect an IP Camera to your Network
How to Live Stream on YouTube with an IP PTZ Camera
How to Live Stream on YouTube with an IP PTZ Camera
Superb BZBGEAR PTZ Cameras Up to 30x Zoom for Live Streaming over IP, HDMI, or SDI with PoE
Superb BZBGEAR PTZ Cameras Up to 30x Zoom for Live Streaming over IP, HDMI, or SDI with PoE
How to Choose the Ideal IP PTZ Camera System for Any Live Event
How to Choose the Ideal IP PTZ Camera System for Any Live Event
Latest IP PTZ 10x, 20x, 30x POE Cameras for Live Stream and Recording from BZBGEAR
Latest IP PTZ 10x, 20x, 30x POE Cameras for Live Stream and Recording from BZBGEAR

Mounting Ideas

Click the image below to watch a video

Tech Specifications

SKU BG-LVPTZ-12XHSP BG-LVPTZ-20XHSP BG-LVPTZ-30XHSP
Optical Zoom 12X f=3.9~46.8mm 20X f=5.5~110mm 30X f=4,3~129mm
View Angle 6.3° (tele)
72.5° (wide)
3.3° (tele)
54.7° (wide)
2.34° (tele)
65.1° (wide)
AV F1.8 – F2.4 F1.6 – F3.5 F1.6 – F4.7
Camera Parameters
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16:9, 2.07 Megapixel
Video Format HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces HDMI, 3G-SDI, IP Streaming (LAN)
Image code stream Double streams outputs simultaneously
Video Compression format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output, RS-485
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio input Interface Double track 3.5mm linear input
Audio Compression Format AAC/MP3/PMC Audio compression
HD IP Interface 100Mb IP port (100BASE-TX); supports VISCA IP control protocol
Network Protocol RTSP/RTMP, ONVIF
Power Interface HEC3800 outlet (DC12V), PoE
PTZ Parameters
Pan Rotation ±170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1-180°/sec
Tilt Control Speed 0.1-80°/sec
Preset Speed Pan: 60°/sec, Tilt: 30°/sec
Preset Number 255 presets (10 presets by IR remote control)
Other Parameters
Power Supply Adapter AC110V-AC220V to DC12V/2A
Input Voltage DC12V±10%
Input Current 1A (Max)
Consumption 12W (Max)
Store Temperature 14°F to 140°F / -10°C to +60°C
Store Humidity 20% - 95%
Working Temperature 14°F to 122°F / -10°C to +50°C
Working Humidity 20% - 80%
Dimension 5.9in x 5.9in x 6.6in [150mm x 150mm x 167.5mm]
Weight 3.1 lbs [1.4KG]
Working Environment Indoor Only
Remote Operation (IP) WebGUI, Remote Upgrade, Reboot and Reset


PACKAGE CONTENTS

  • 1x Camera
  • 1x Power supply
  • 1x RS232 control cable
  • 1x IR Remote Control
  • 1x User Manual

Interfaces

Interfaces image
  1. RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
  2. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
  3. 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
  4. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
  5. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
  6. Power: Connect supplied 12V power adapter.
