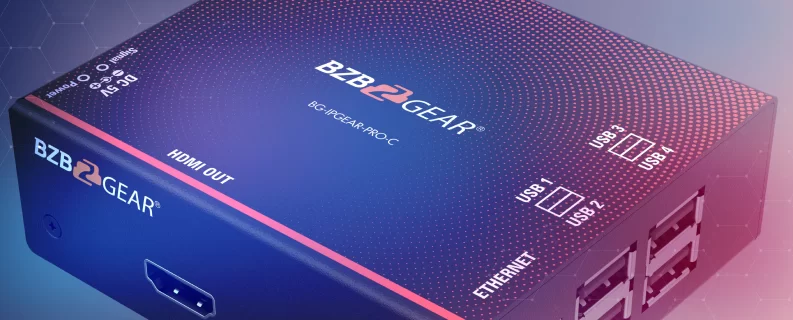

Overview
The BG-IPGEAR-PRO-C Smart Controller provides system management for BZBGEAR’s IPGEAR-PRO transmitters and receivers. In addition to managing devices and serving as the gateway for the web interface, this TAA-Compliant unit allows users to monitor the IP-based BG-IPGEAR-PRO-T transmitters in real time. This device allows the system to be highly expandable and can manage up to 1024 devices at the same time.
With a web-based GUI users can drag and drop any source to any connected display, build video walls, and create custom on-screen displays (OSD).
Connectivity
The BG-IPGEAR-PRO-C is capable of continuous system monitoring and self-recovery. This includes real-time event notifications and alerts. A free iOS app is available for mobile control as well. With a simple and easy to use interface, this app allows easy control of basic system functions such as mapping and preset recall.
This unit uses a 5V DC power adapter, an HDMI connector, and an Ethernet port for system connectivity. The simple connections allow stress-free installation and servicing.
Features
-
![mdi_check-network-outline]()
Auto-detectionEasily find transceiver units on the network -
![fluent_zoom-fit-24-filled]()
Control OptionIncludes web interface and Mobile App support -
![fluent_task-list-square-settings-20-regular]()
Advanced SettingsSchedule time for audio/video mapping, cycle play, and mute/resume -
![bi_toggle2-off]()
Simple SwitchingDrag and drop matrix switching -
![video-wall2-icon]()
Video WallsCreate multiple video walls with ease -
![fluent-mdl2_customize-toolbar]()
Customizable GraphicsCustom graphic and text overlays
- Cost-effective solution for IoT
- Smart control of up to 1024 transceivers
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Model Name | BG-IPGEAR-PRO-C |
| Technical | |
| Role of usage | Smart Controller |
| Input | 1x RJ-45 |
| Output | 1x HDMI |
| HDMI connector | Type A [19-pin female] |
| RJ-45 connector | WE/SS 8P8C |
| Mechanical | |
| Housing | Metal enclosure |
| Dimensions Model [L x W x H] |
3.5" x 3" x 1.1" [90 x 78 x 29mm] |
| Dimensions Package [L x W x H] |
7.8" x 5.4" x 2.9" [198 x 137 x 74mm] |
| Weight Model | 0.4 lbs [222g] |
| Weight Package | 1 lbs [493g] |
| Fixedness | Rack-mount with ears |
| Power supply | 5V DC |
| Power consumption | 3.5 Watts [max] |
| Operation temperature | 32~104°F / 0~40°C |
| Storage temperature | -4~140°F / -20~60°C |
| Relative humidity | 20~90% RH [no condensation] |
Resources
PACKAGE CONTENTS
- 1x BG-IPGEAR-PRO-C
- 1x Rack-mounting ear set
- 1x DC 5V power supply
- 1x User Manual

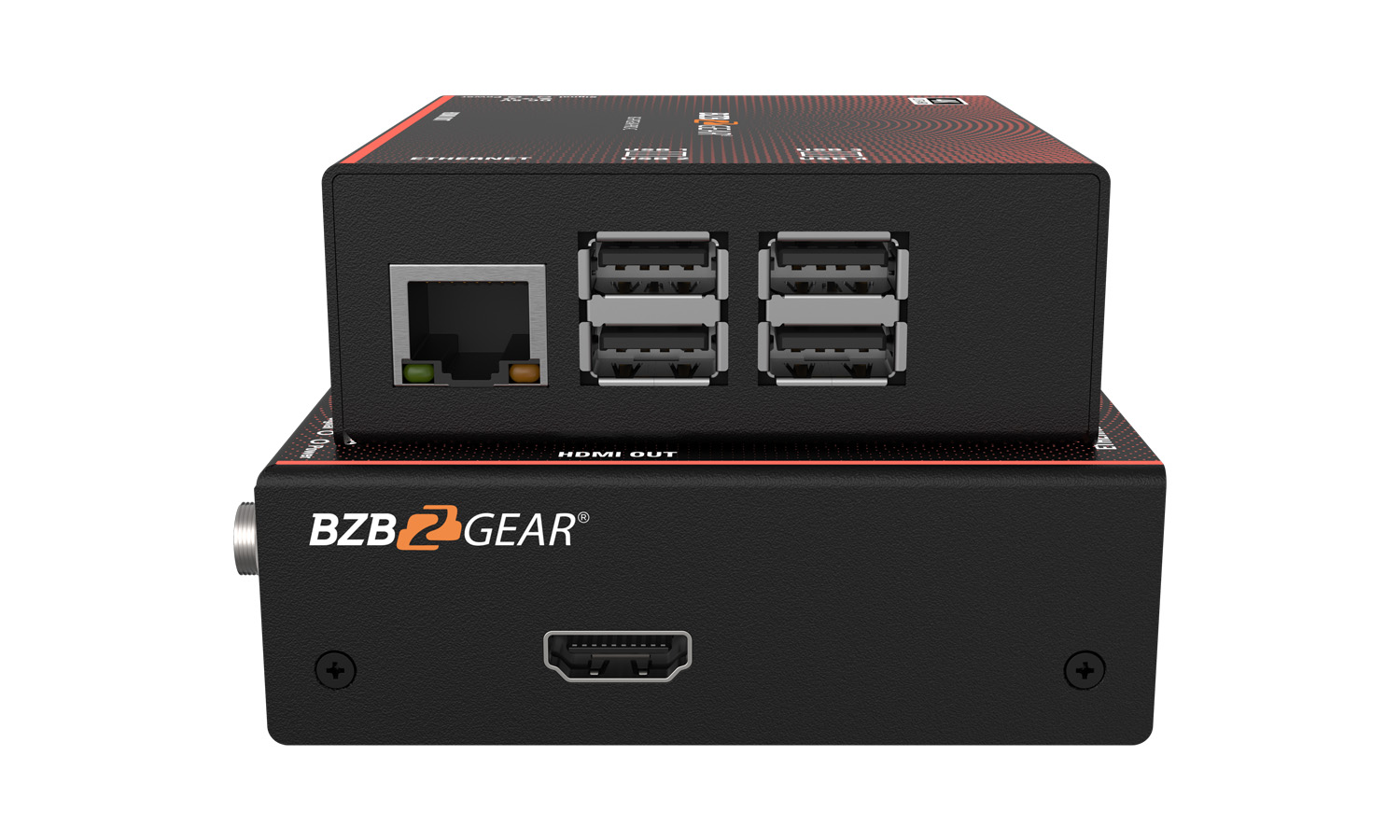

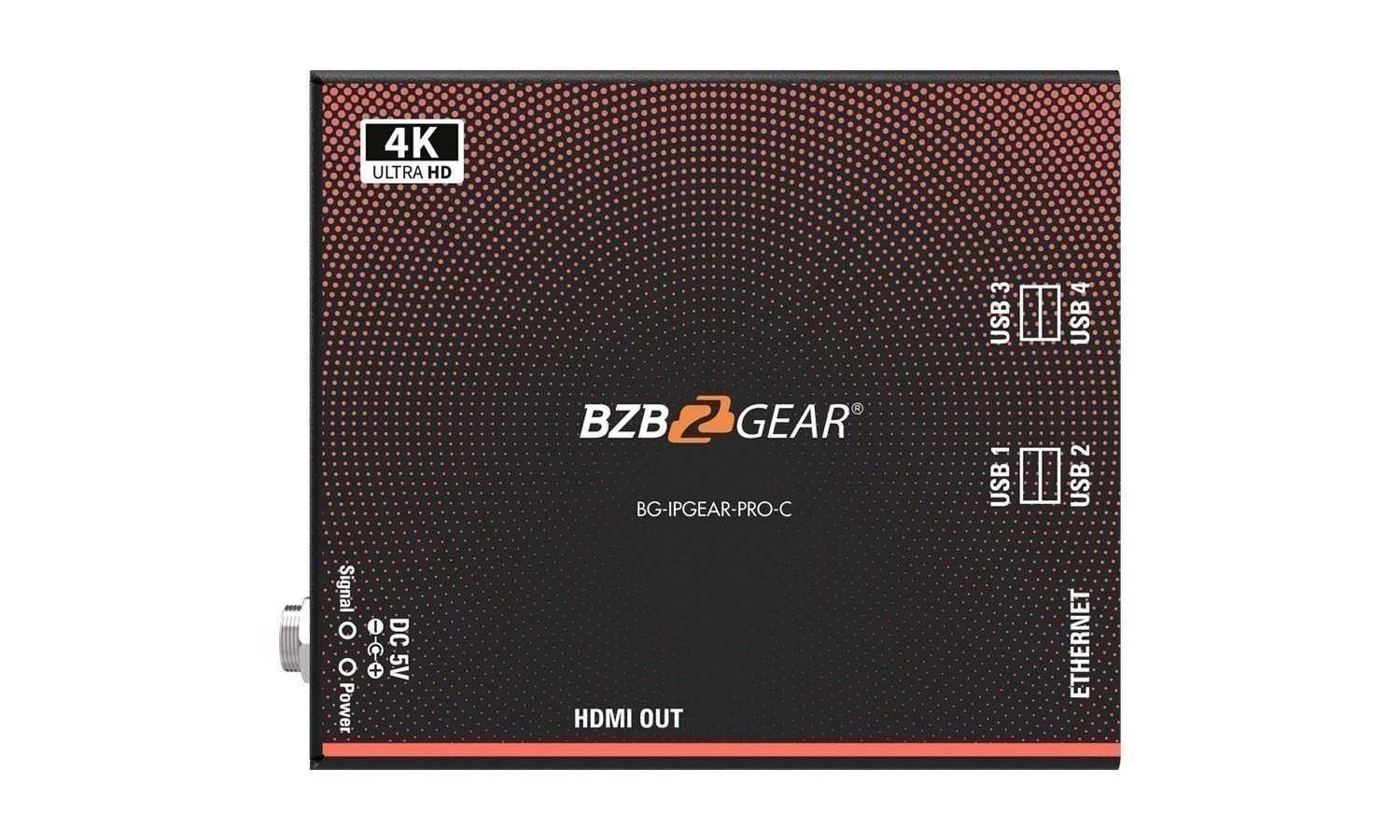

Interfaces
- Power: Connect to 5V DC power supply.

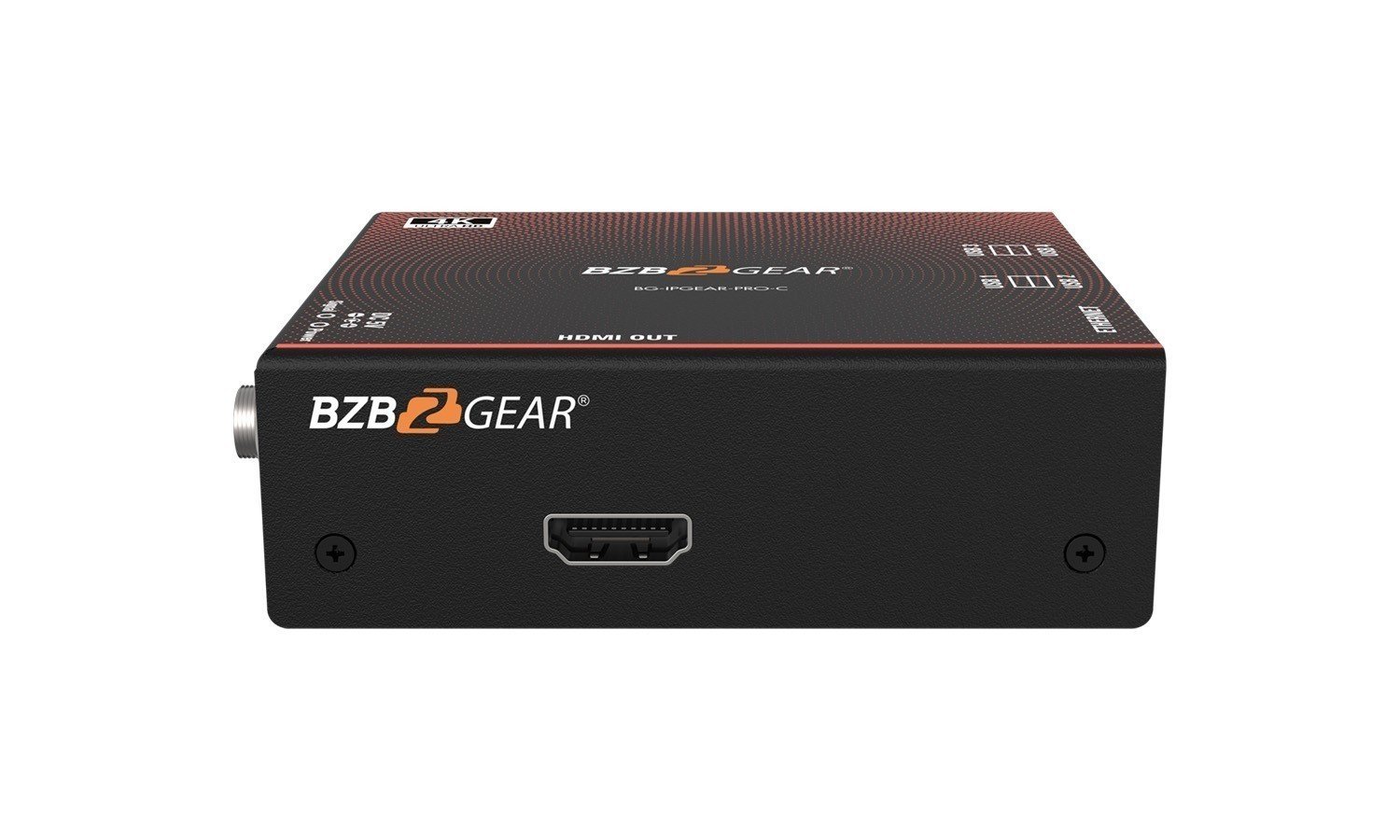

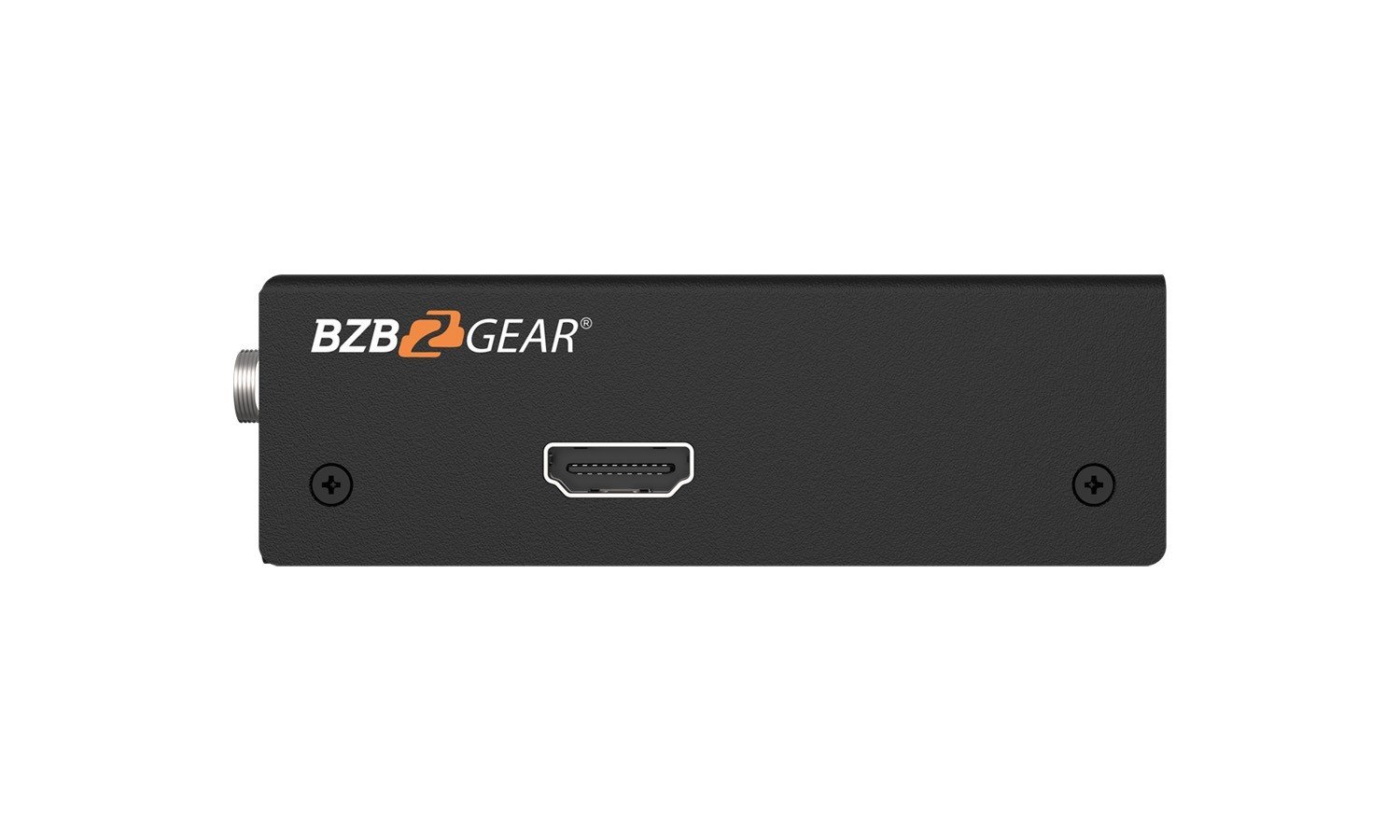

- HDMI Out: Connects to an HDMI display with a HDMI cable.

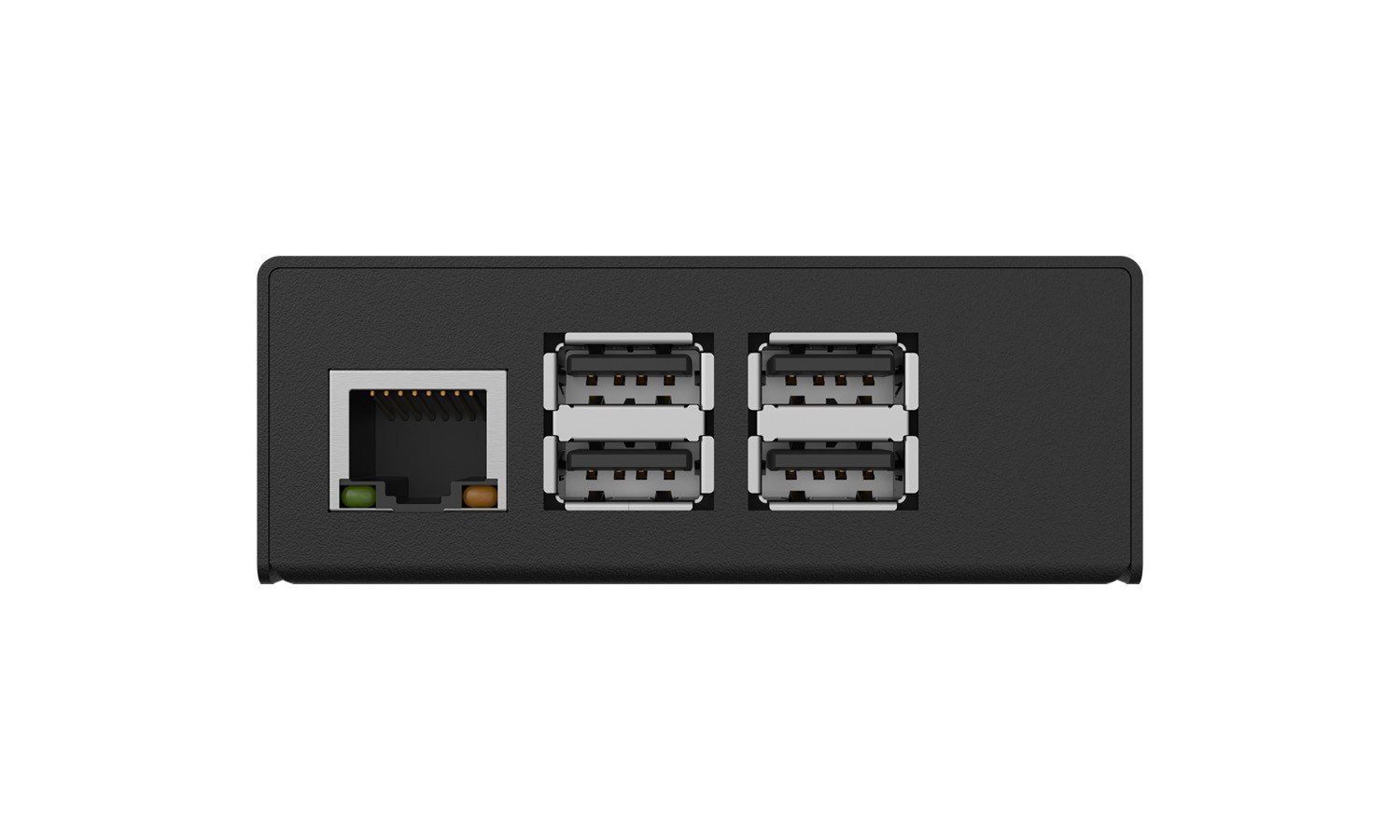

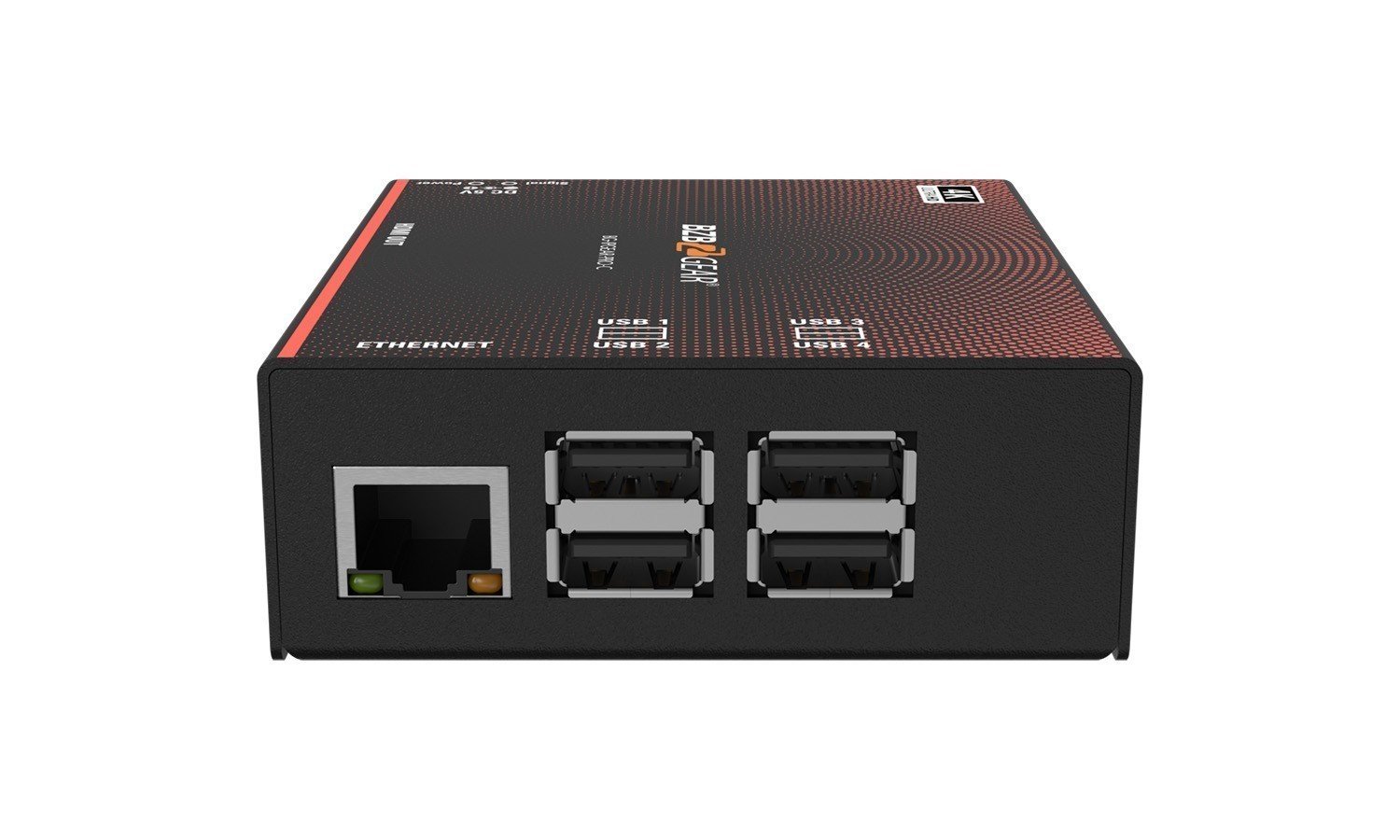

- Ethernet: RJ-45: Gigabit Ethernet port.
- USB 1 / USB 2: Reserved.
- USB 3 / USB 4: Reserved.
