4K UHD 18Gbps HDMI/USB-C Wall Plate Transmitter & Receiver Kit up to 164ft

Configure the Perfect Solution
Get Started

Overview

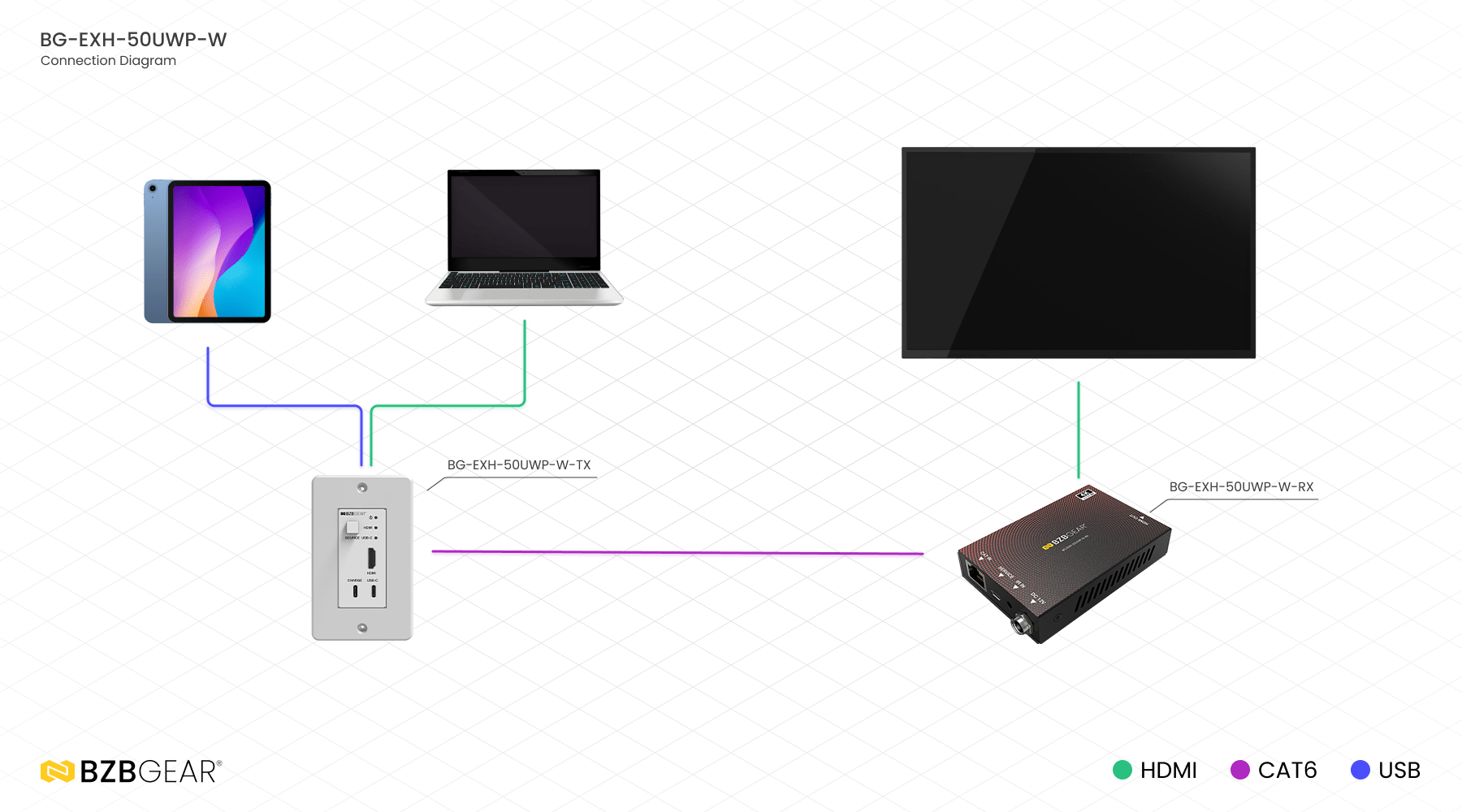

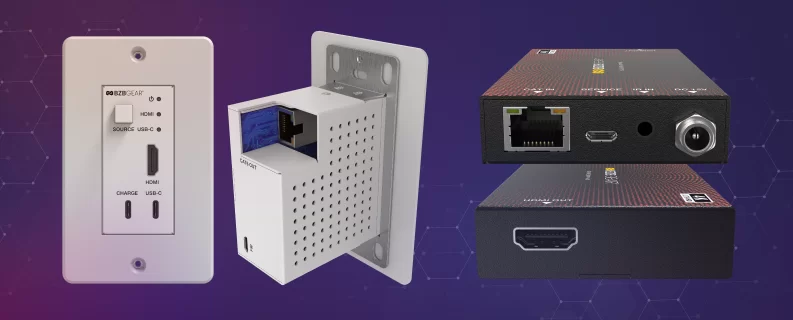

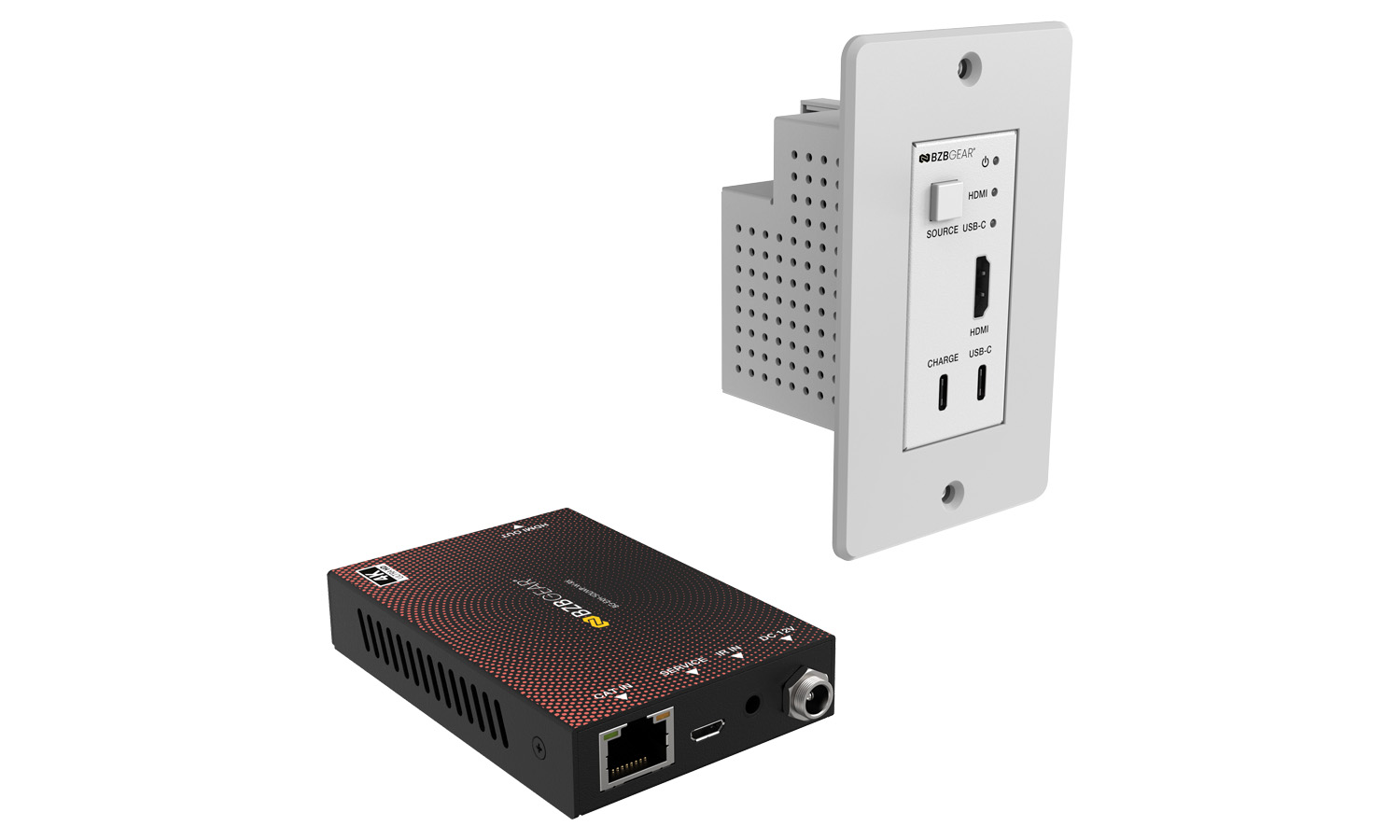

Introducing the BG-EXH-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a comprehensive solution for seamless signal transmission and distribution. This kit comprises a USB-C/HDMI Transmitter and a CAT6 to HDMI Receiver, designed to meet the demands of modern AV installations. Enclosed within a sleek one-gang Decora-style enclosure, the wall plate transmitter serves as a versatile 2x1 switcher and CAT transmitter, accommodating HDMI and USB-C inputs.

With support for resolutions up to 4K2K@50/60Hz 4:4:4 and a transmission distance of up to 164ft / 50m via CAT6 output, this kit ensures exceptional visual fidelity and flexibility. Additionally, the BG-EXH-50UWP-W kit supports various HDMI audio formats, HDR, and features a user-friendly interface with automatic/manual input signal selection. Its compatibility with Power Over Cable (POC) further enhances convenience, allowing remote powering from the receiver or other CAT-equipped devices.

Transmitter Overview

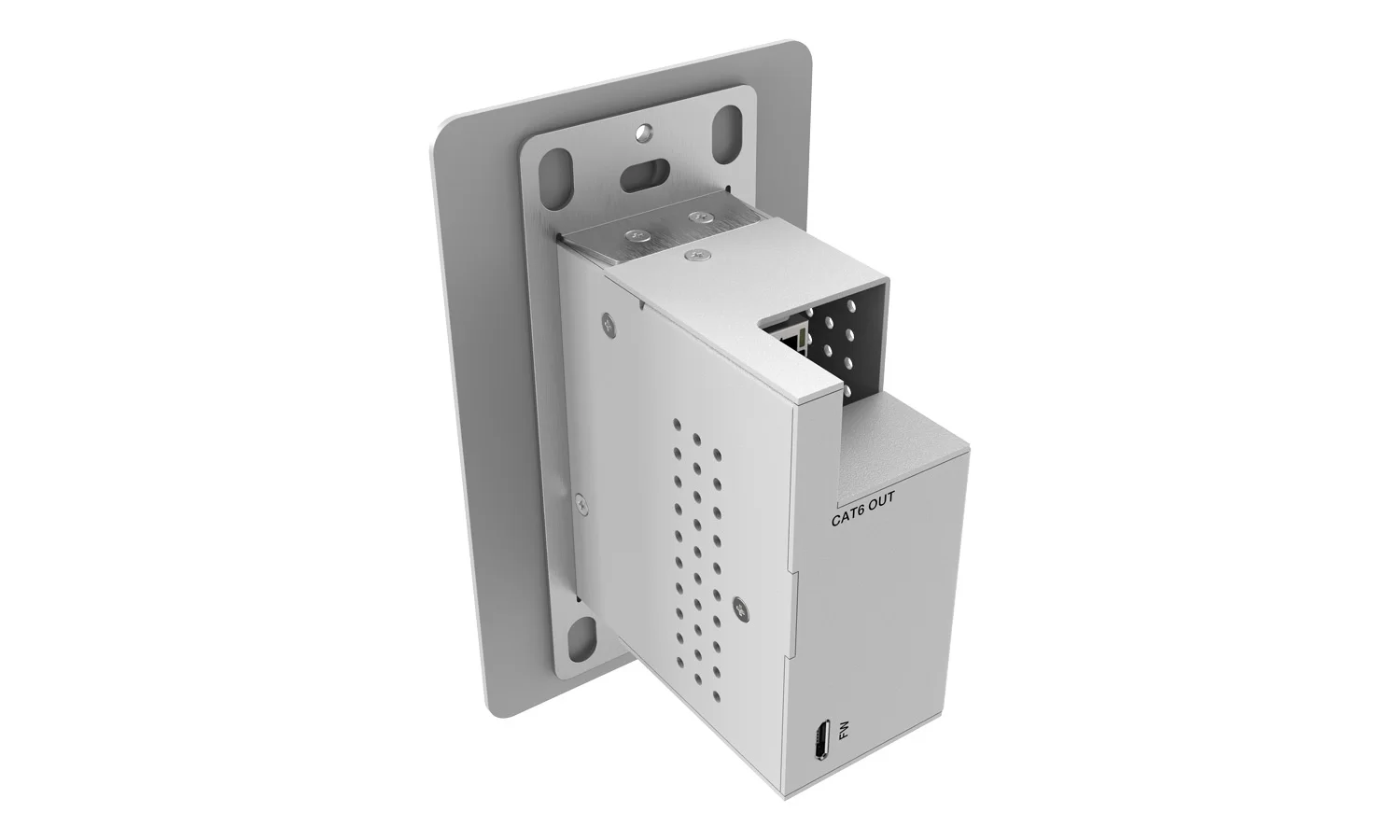

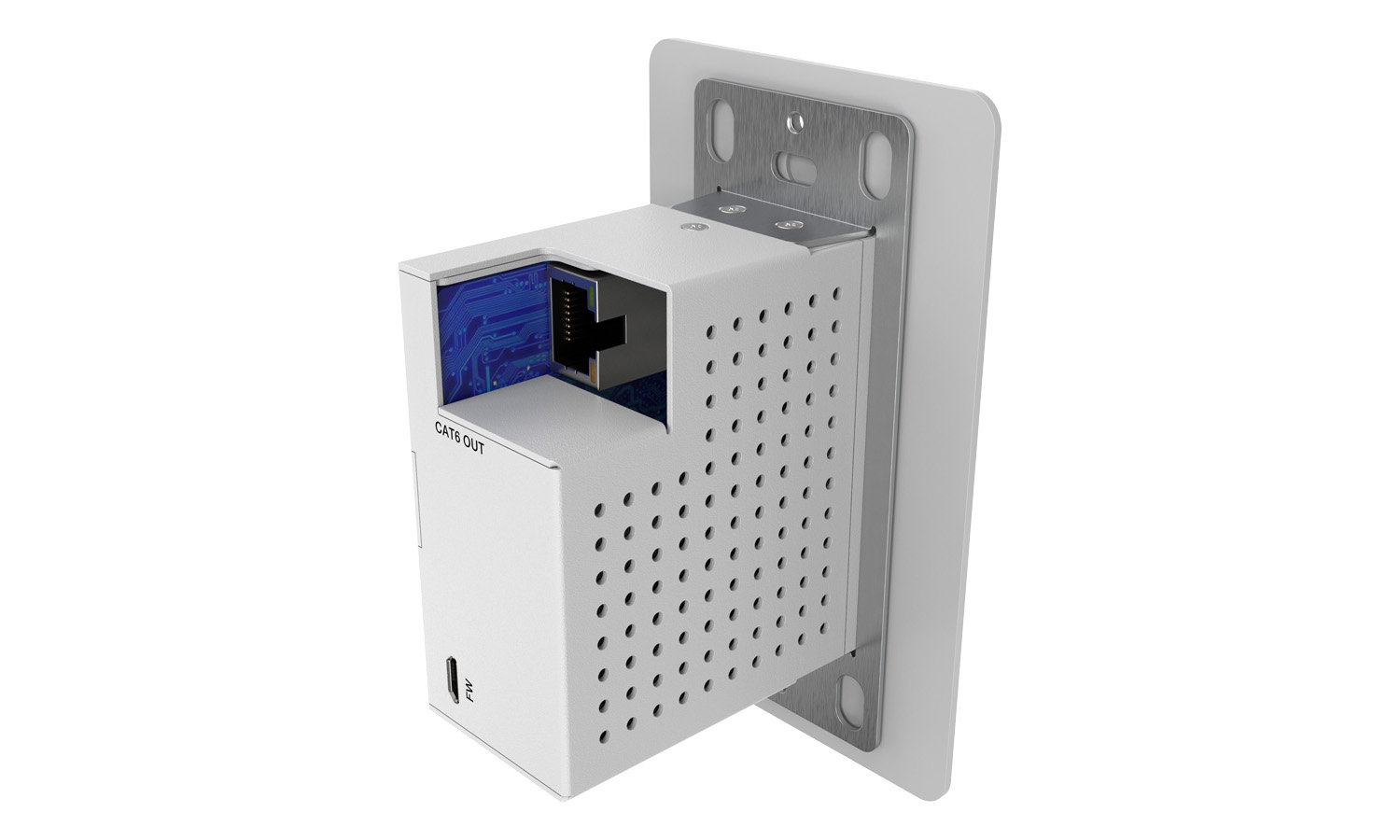

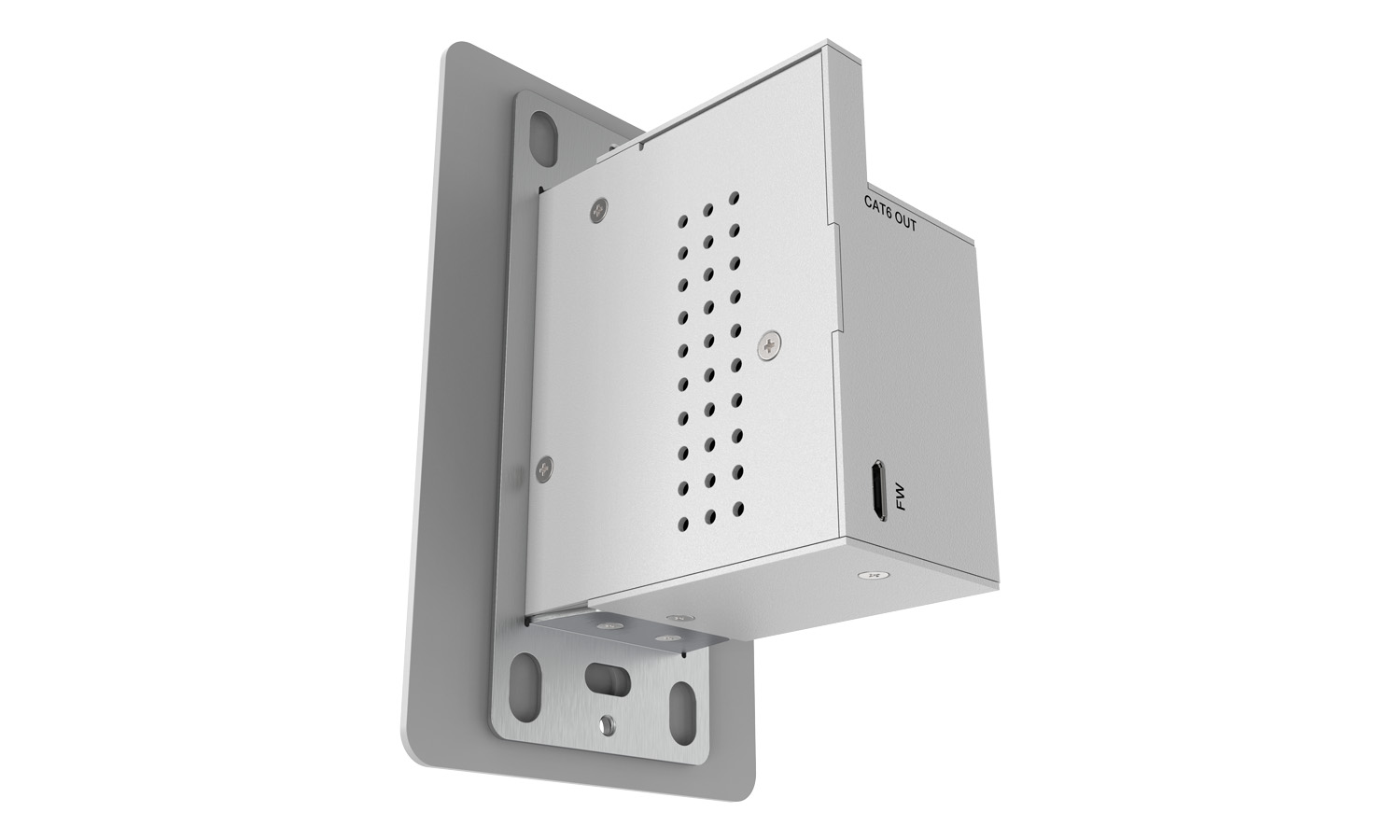

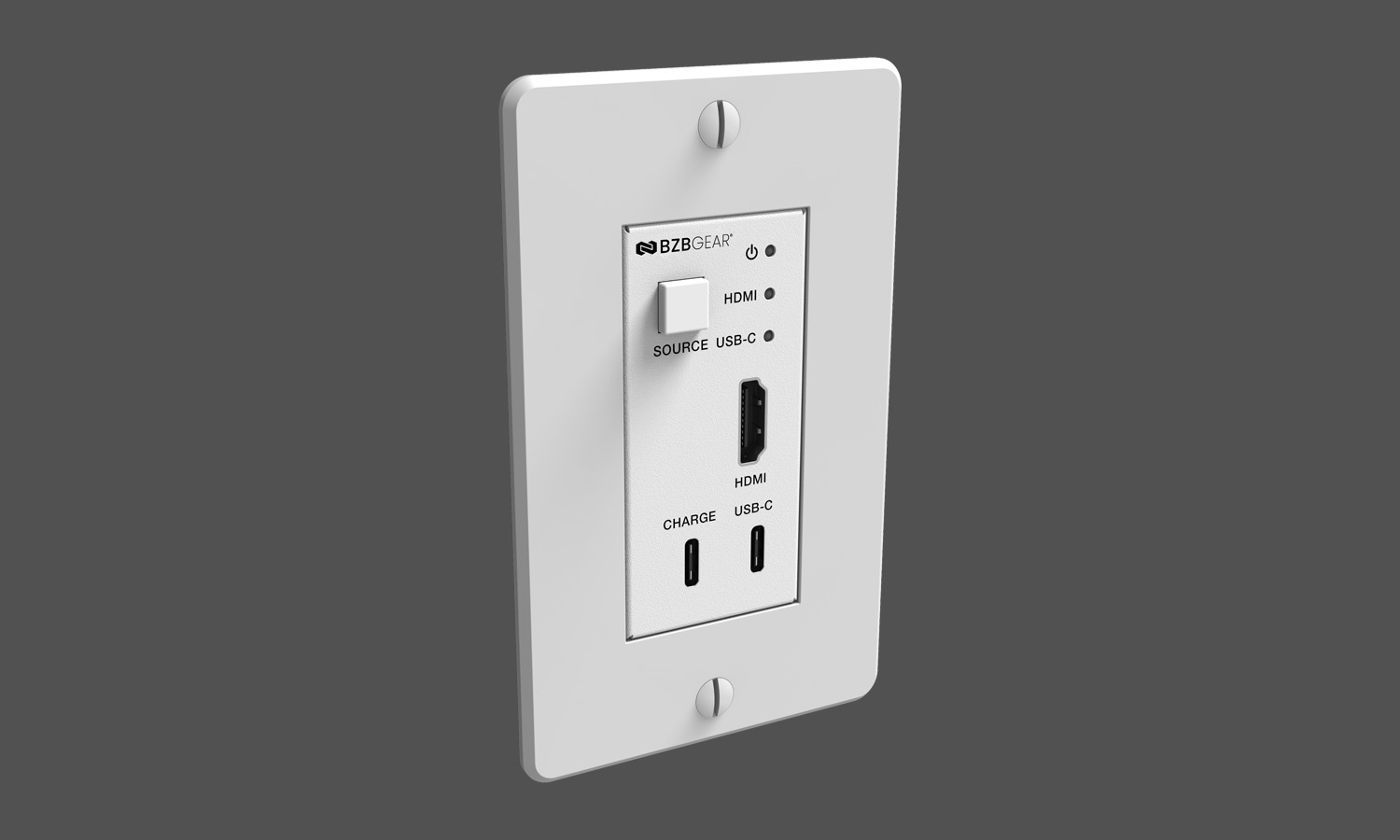

The USB-C/HDMI Wall Plate Transmitter in the BG-EXH-50UWP-W kit embodies versatility and innovation in signal transmission. Equipped with HDMI and USB-C inputs, it caters to diverse multimedia platforms, ensuring compatibility across a wide range of source devices. Featuring a discreet one-gang enclosure tailored for Decora-style wall plate openings, the transmitter seamlessly integrates into any environment while offering convenient access to input ports.

Supporting resolutions up to 4K2K@50/60Hz 4:4:4 and featuring a CAT6 output extending transmission distances up to 164ft / 50m, it guarantees exceptional visual fidelity and flexibility in signal distribution. With Power Over Cable (POC) support, the transmitter can be conveniently powered by the receiver or other CAT-equipped devices, streamlining installation and operation. The intuitive interface, along with automatic/manual input signal selection modes, ensures ease of use and adaptability to various AV setups, making the USB-C/HDMI Wall Plate Transmitter an indispensable component of professional multimedia installations.

Receiver Overview

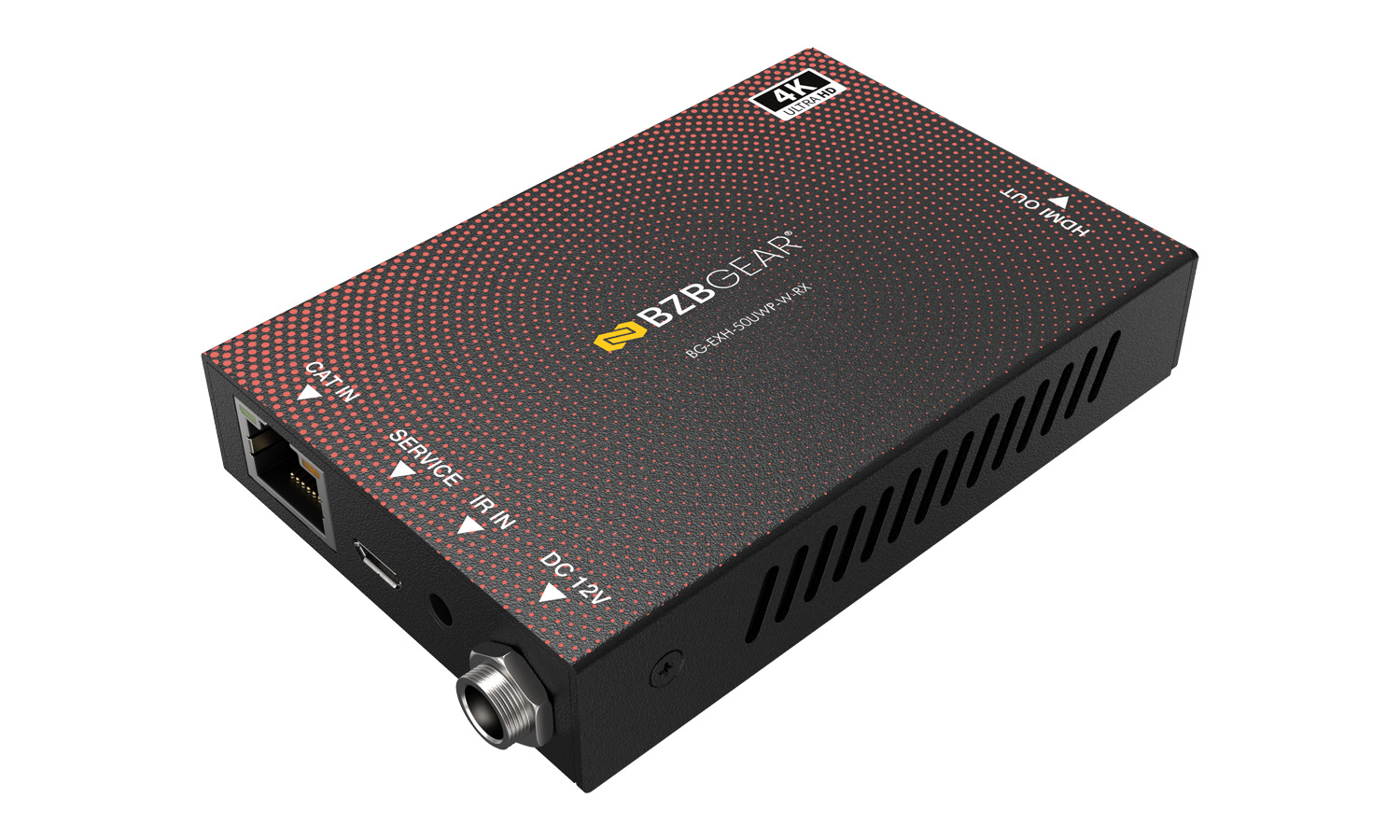

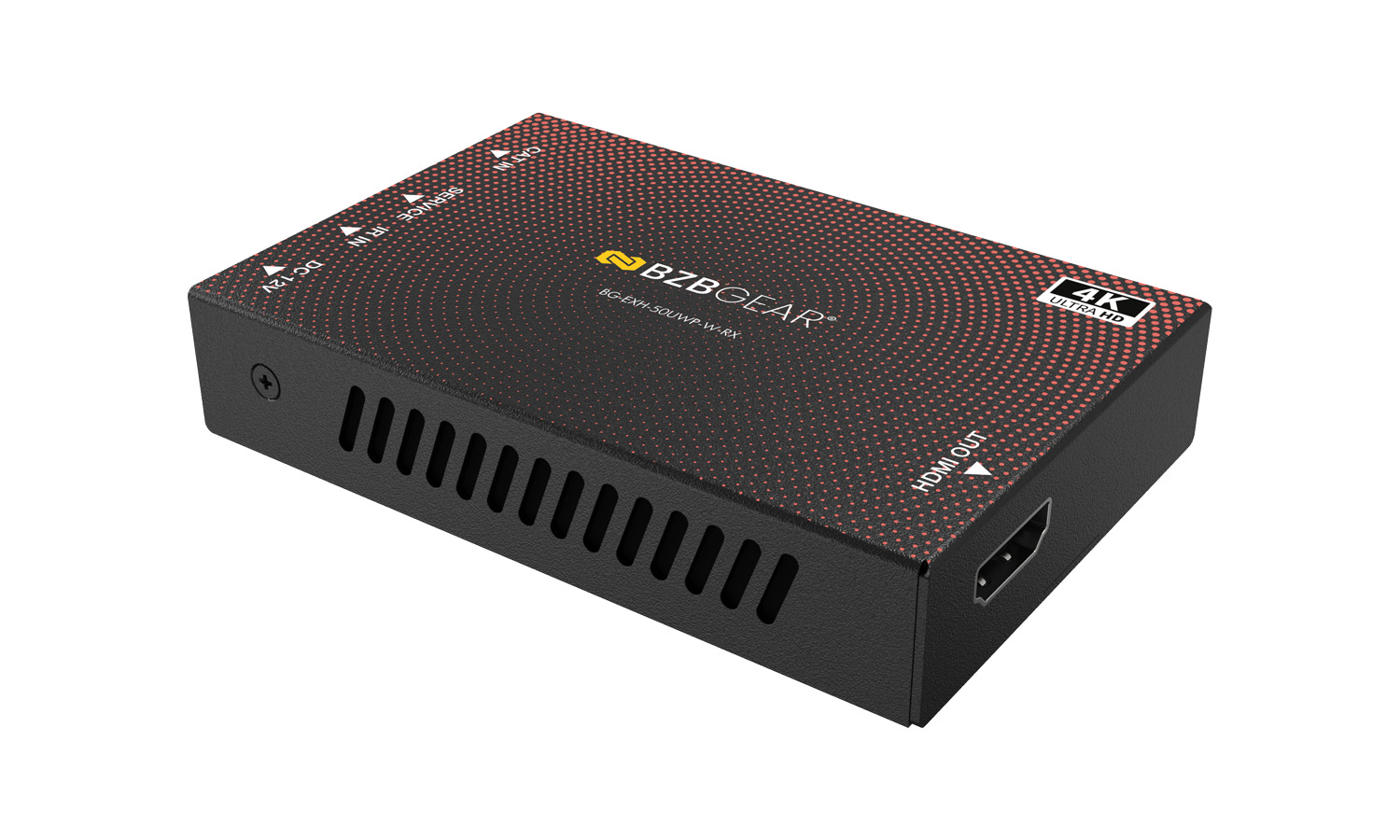

The CAT6 to HDMI Receiver in the BG-EXH-50UWP-W kit stands as a testament to reliability and efficiency in signal reception and distribution. Designed to seamlessly integrate into AV setups, it efficiently receives signals from the transmitter over extended distances using standard CAT6 cables. Supporting resolutions up to 4K2K@50/60Hz 4:4:4, the receiver ensures crisp and vibrant visuals, enriching the viewing experience.

Its compact form factor and robust construction make it adaptable to various installation scenarios, while the firmware update port ensures future compatibility and functionality enhancements. With HDMI output and Power Over Cable (POC) functionality, the receiver offers versatile connectivity options and streamlined operation, making it an indispensable component of professional AV installations requiring high-definition signal distribution and seamless integration.



Features

  • Compliant
    Standards Compliance
    Compliant with industry standards including HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a (Adapter required for Display Port)
  • Efficient Cable Management
    Video Bandwidth
    HDMI input supports high-speed 18Gbps video bandwidth, while USB-C input supports 5.4Gbps video bandwidth
  • 3
    Extended Transmission
    CAT6 output extends video transmission distance significantly; up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444, using a single CAT5e/6 cable
  • iconoir_pc-check
    Compatibility
    Compatible with various advanced video technologies including 3D, HDR10, and Dolby Vision
  • bi_soundwave
    Audio Support
    Supports a wide range of HDMI audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
  • Plug-and-Play Setup
    Power Over Cable (POC)
    Features Power Over Cable functionality, allowing power transmission from Receiver to Transmitter, simplifying setup and reducing cable clutter

Videos

Breaking Down Walls In Presentation With the BG-EXH-50UWP-W Wall Plate Transmitter and Receiver Kit
Breaking Down Walls In Presentation With the BG-EXH-50UWP-W Wall Plate Transmitter and Receiver Kit

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
DP Compliance Display Port 1.2a (Adapter required for Display Port)
Video Bandwidth USB-C: 5.4 Gbps
HDMI: 18 Gbps
Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth 8/10/12-bit (1080P@60Hz)
8-bit (4K@60Hz)
HDR Support
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance Max distance (4K@24) : 164ft / 50m over CAT5e/6
Max distance (4K@60) : 115ft / 35m over CAT5e/6
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:
1x HDMI Type A [19-pin female]
1x USB-C
Outputs:
1x HDBaseT Out [RJ45, 8-pin female]
1x USB-C (only for charging)
Control:
1x FW [Micro USB, Update port]
Receiver Input:
1x HDBaseT IN [RJ45, 8-pin female]
Output:
1x HDMI OUT [Type A, 19-pin female]
Controls:
1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color White
Dimensions (W x D x H) Wall plate:
1.31in x 2.6in x 2.7in [33.3mm  x 65.7mm  x 68.7mm]

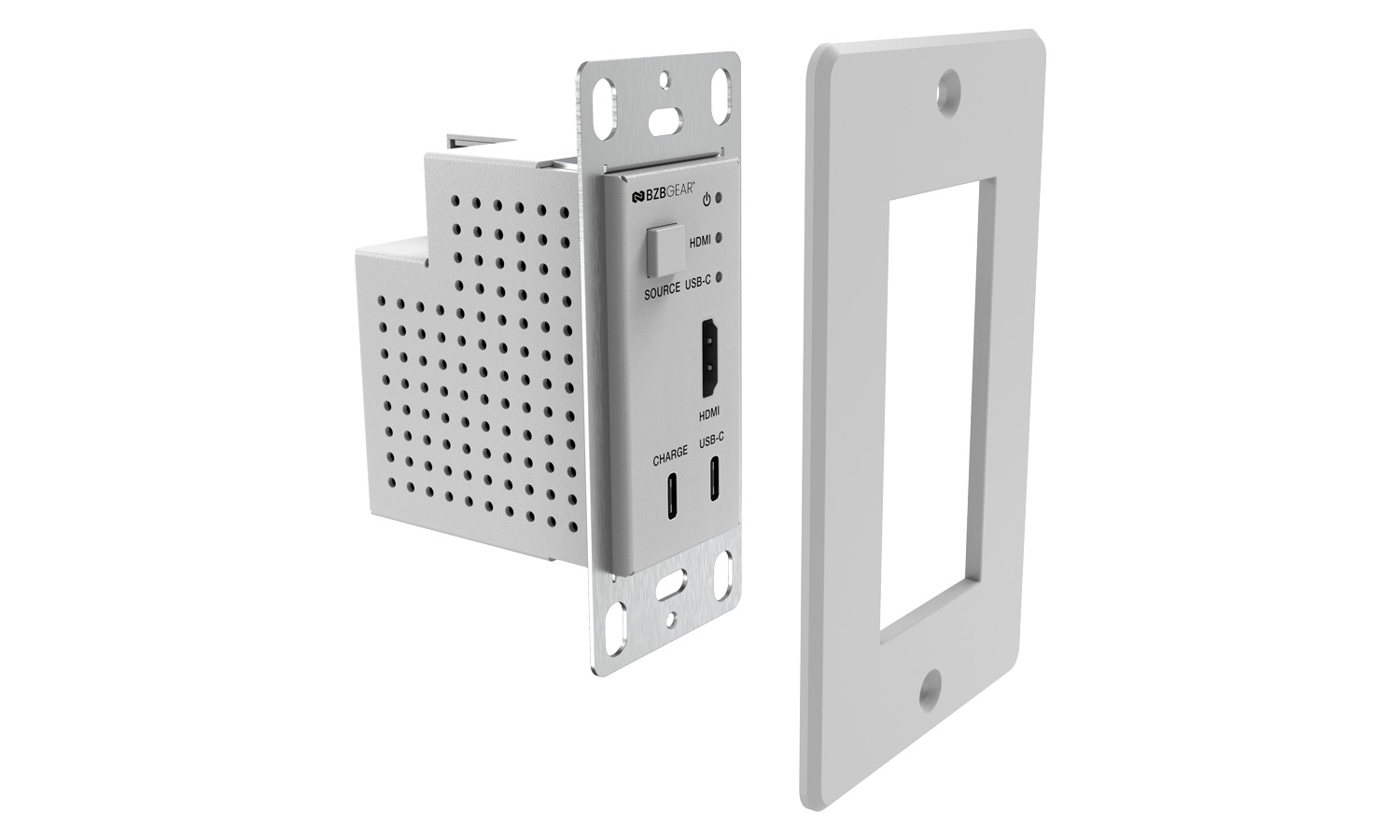

Faceplate:
2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]
Receiver:
3.5in x 2.4in x 0.71in [88mm x 61mm  x 18mm]
Weight Wall plate: 0.43 lbs [195g], Receiver: 0.34 lbs [155g]
Power Supply POE (only from Receiver to Transmitter)
Power Consumption Wall plate: 3W (Max), Receiver: 3.72W (Max)
OperatingTemperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)


Resources

Documents

PACKAGE CONTENTS

  • 1x 18Gbps CAT 50M with USB-C/HDMI Wall Plate Transmitter
  • 1x CAT6 to HDMI receiver
  • 1x User Manual

Interfaces

Interfaces image

    Transmitter

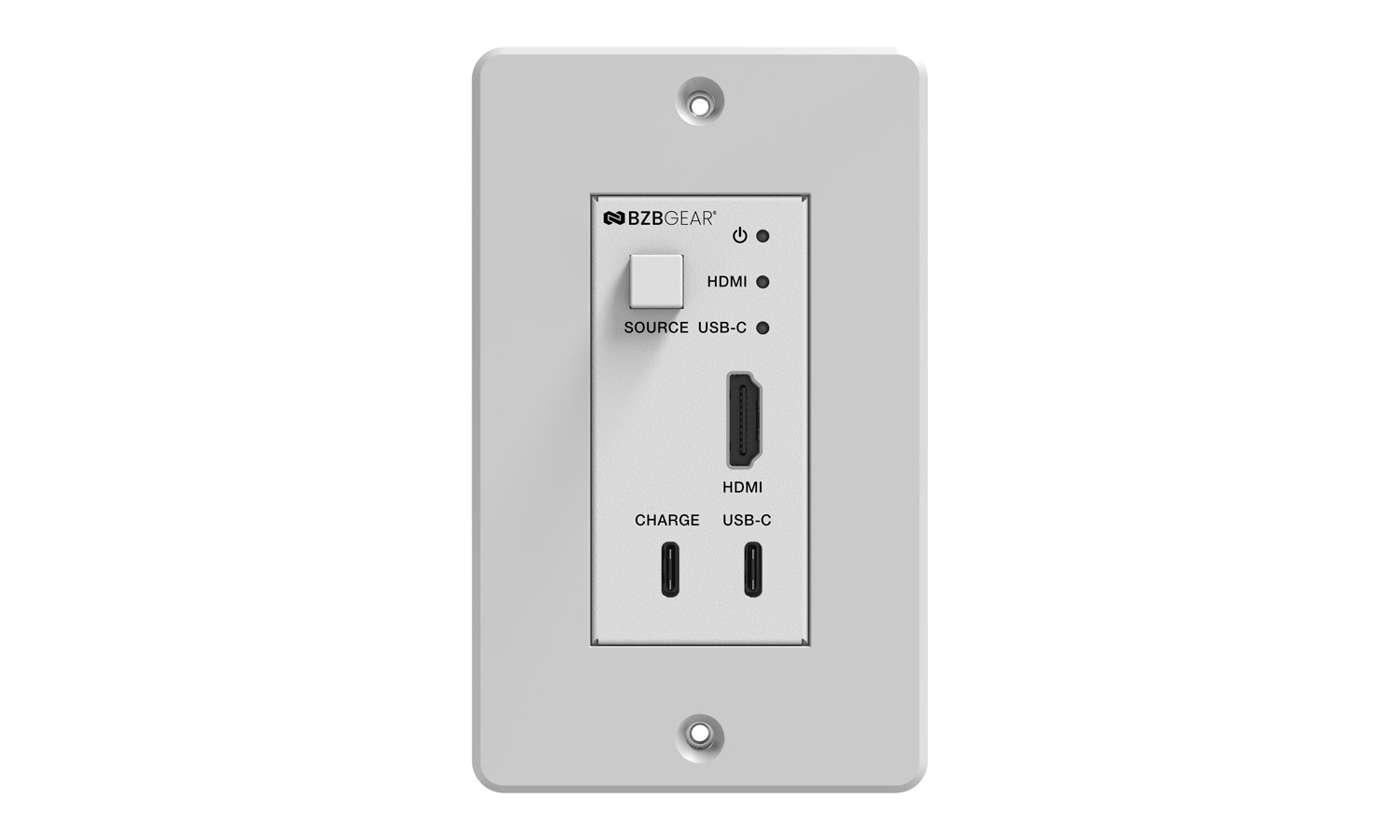

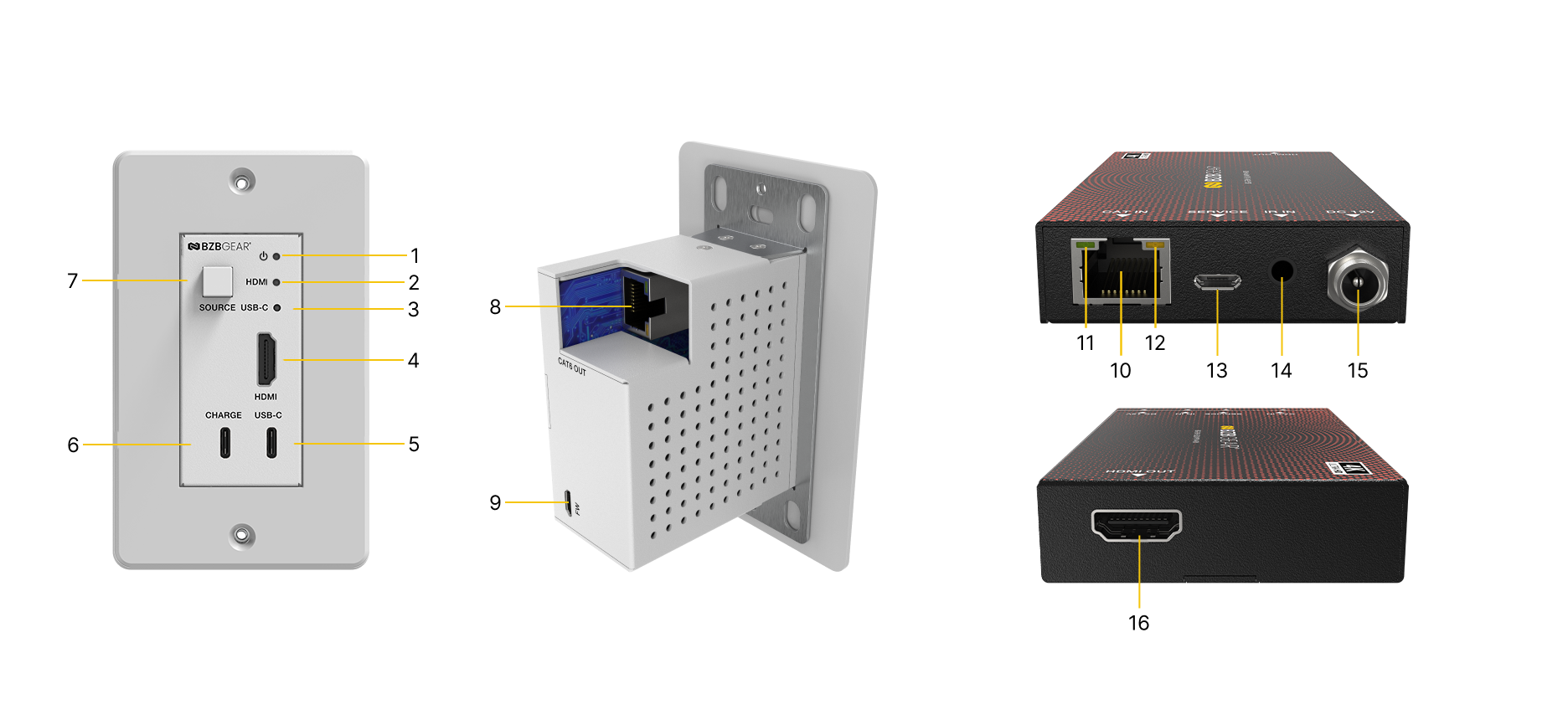

  1. Power LED: The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby.
  2. HDMI LED: When the HDMI input port is active and the HDMI signal is detected, the green LED will be on.
  3. USB-C LED: When the USB-C input port is active and USB-C signal is detected, the green LED will be on.
  4. HDMI port: HDMI input port, connect to HDMI source device.
  5. USB-C port: USB-C signal input port.
    Charging port for devices with USB-C port.
  6. CHARGE port: Connect this port to power supply, then the USB-C port will power the connected device.
  7. SOURCE button: Used to switch HDMI / USB-C input signal.
  8. CAT6 OUT: Connect to the CAT IN port of Receiver with a CAT5e/6 cable.
  9. Service Port: Used for firmware updates.

    Receiver

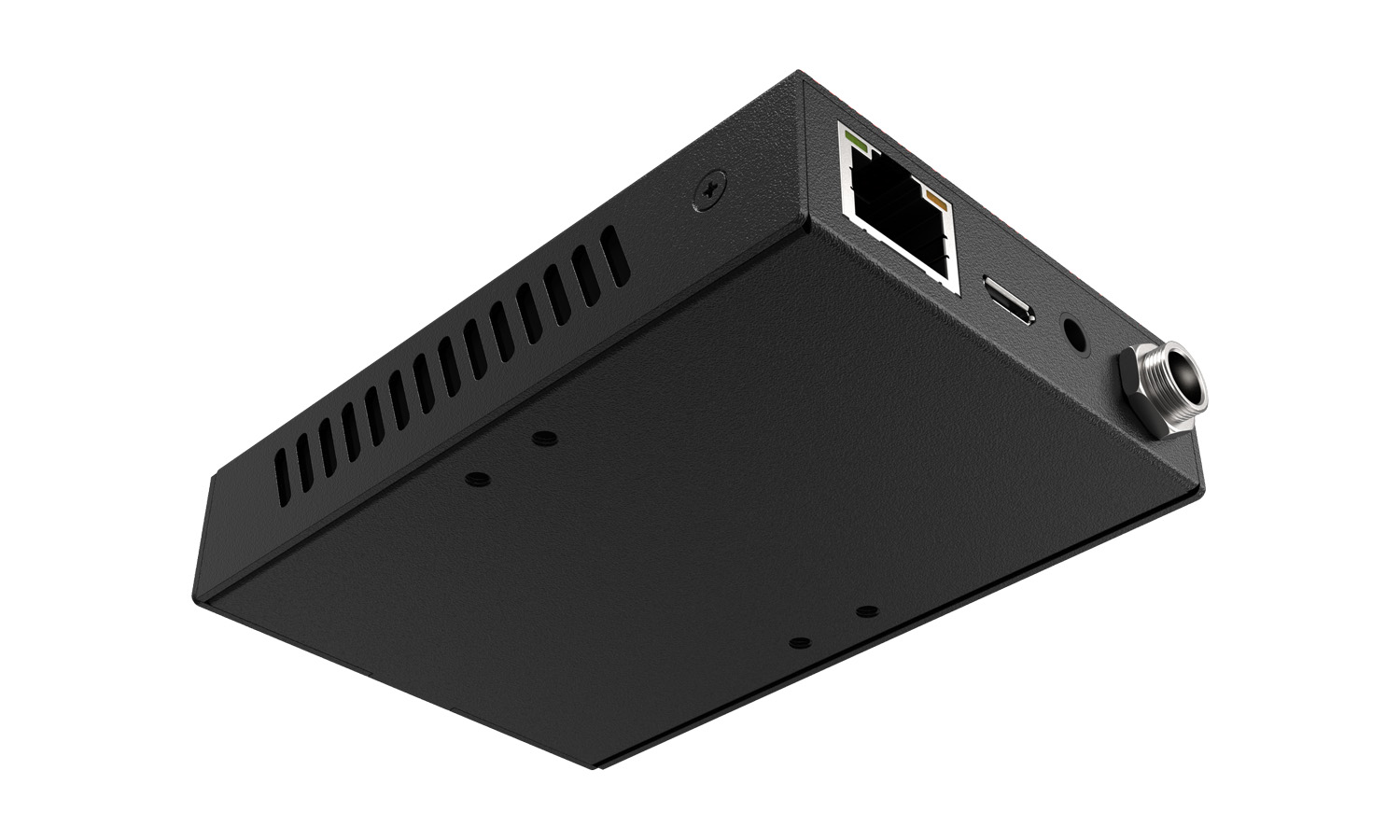

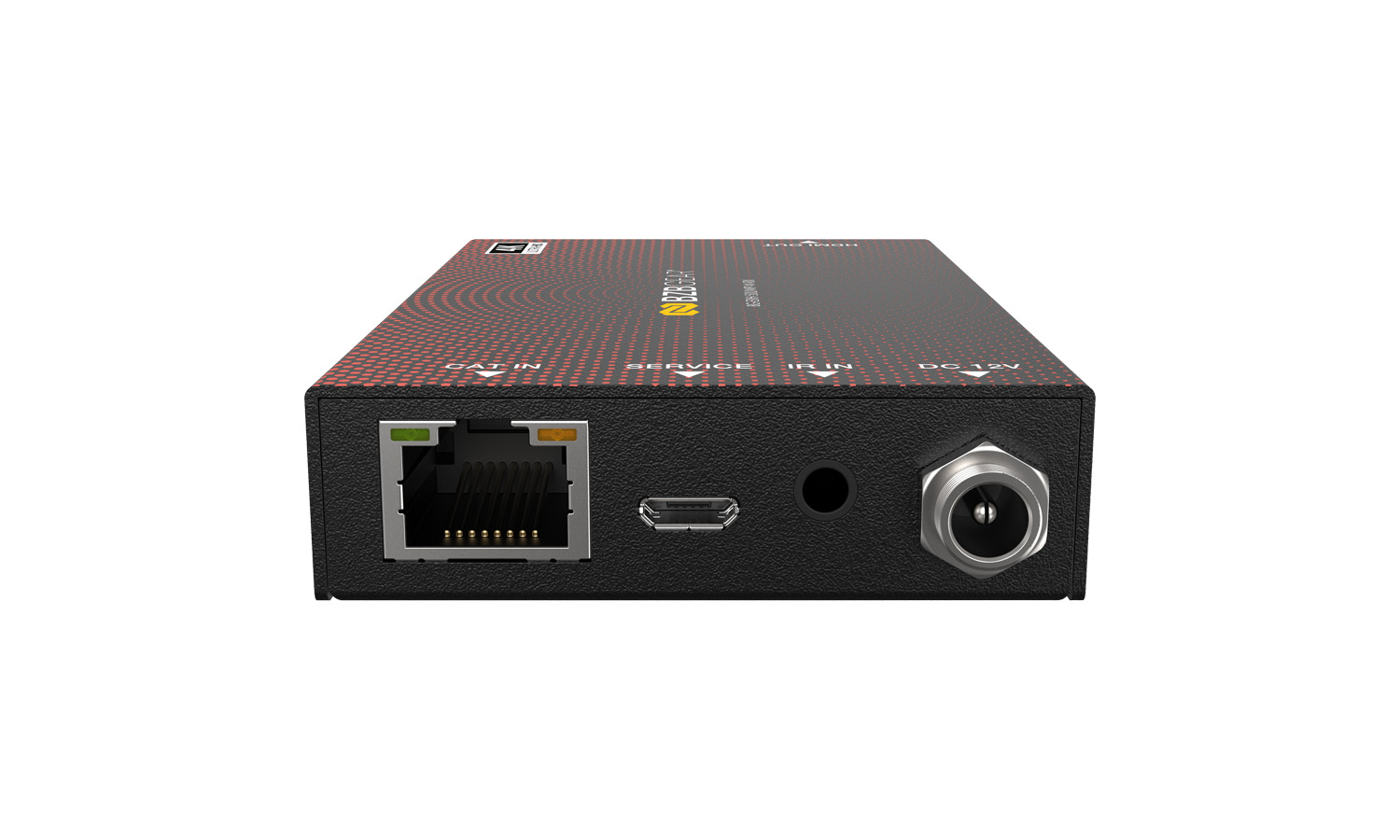

  10. CAT IN: Connect to the CAT6 OUT port on the transmitter with a CAT cable.
  11. Power Indicator Lamp (Green): When the receiver is powered on, the power indicator lamp will be on.
  12. Data signal Indicator Lamp (Orange): When there is signal transmission between the transmitter and the receiver, the lamp will be on.
  13. SERVICE port: Used for firmware update.
  14. IR IN: IR signal input port. Connect to the IR Receiver cable.
  15. DC 12V: Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
    (Note: The CAT receiver provides power for the transmitter via a CAT cable.)

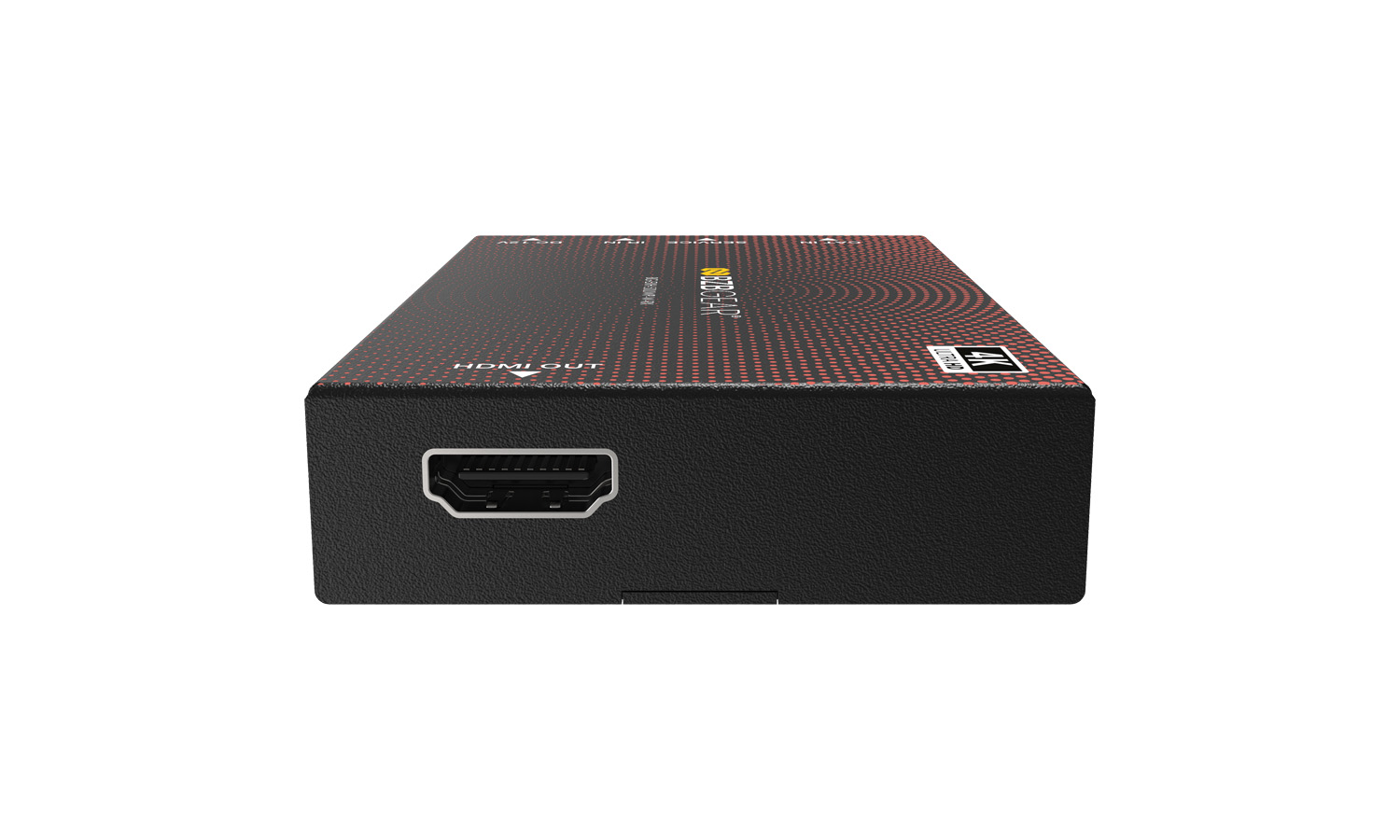

  16. HDMI OUT: HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.
