Overview

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.

Features

  • grommet-icons_volume-control
    Volume control
    Use the volume control knobs to adjust the MIC/Headphone volume
  • Plug-and-Play Setup
    Plug and Play
    Auto-detection of video format
  • fluent_apps-48-filled
    Software Compatibility
    Compatible with most 3rd party software such as OBS Studio and AMCap
  • fluent_slide-microphone-32-regular
    Mic-in-mix
    Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
  • fluent_top-speed-24-filled
    Low Latency
    3~4ms at 1080P
  • material-symbols_settings-input-component
    Auto-Detection
    Auto 12G/6G/3G/HD-SDI detection
  • SDI video and audio streams over USB 3.1 Type-C Gen 1
  • UVC1.0/1.1/1.5
  • Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
  • HDMI up to 4K2K@60
  • SDI input & loopout resolutions: 720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60,[email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected], 1080p@60, [email protected], 4K2K@24, 4K2K@25, [email protected], 4K2K@30, 4K2K@50, [email protected], 4K2K@60
  • Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
  • Deinterlacer & scaler (upscale to 1080p@120Hz)
  • SDI audio extraction
  • Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
  • USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
  • USB-C reversible
BG-12GCSA-1-features

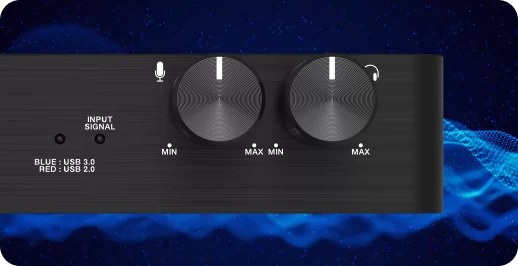

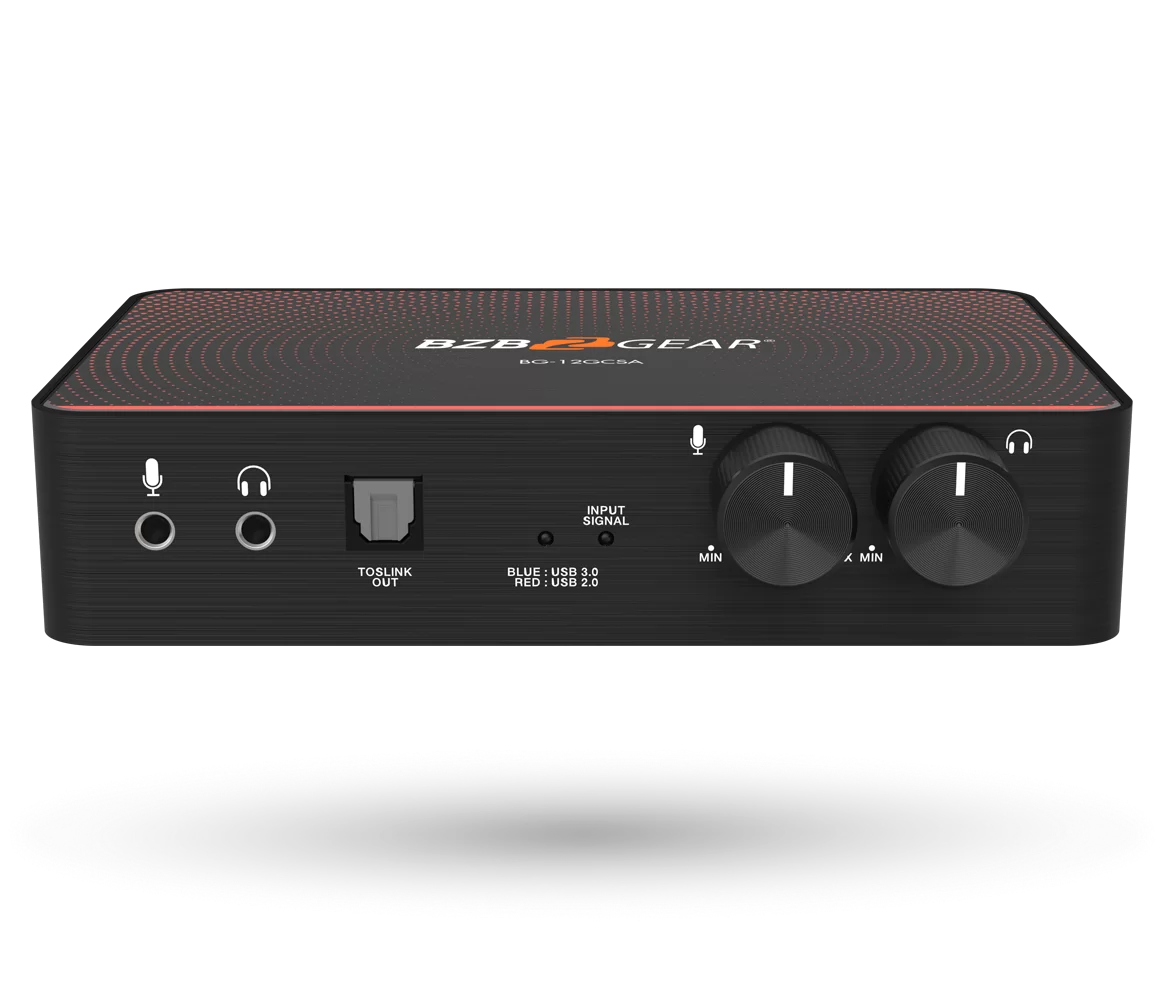

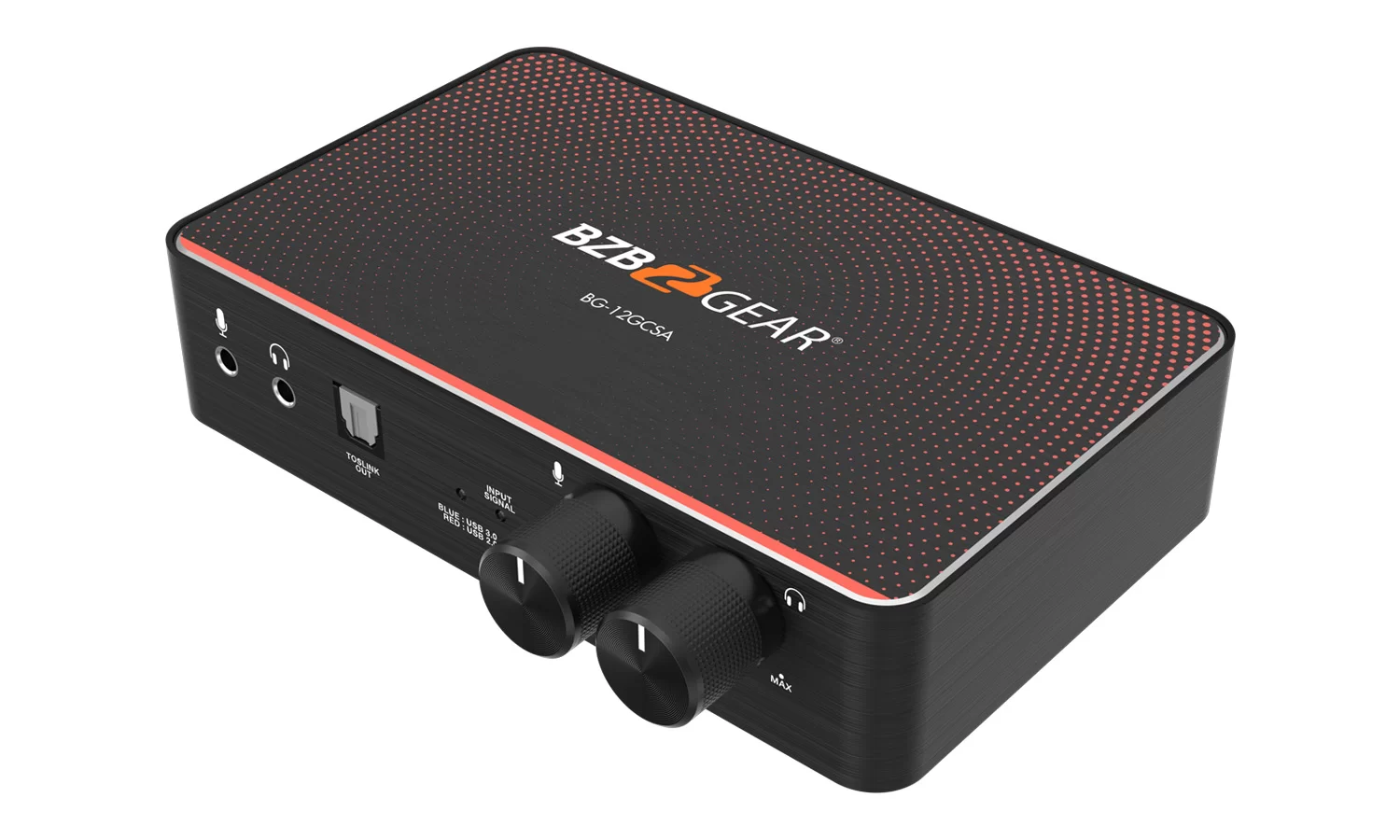

Stereo Audio Input Volume Control

Fine-tune the volume of your stereo audio input, ensuring precise capture of every moment with the desired sound level.

Stereo Audio Output Volume Control

Adjust the stereo audio output volume to perfect your sound, ensuring every detail is captured just how you want it.


BG-12GCSA-2-features

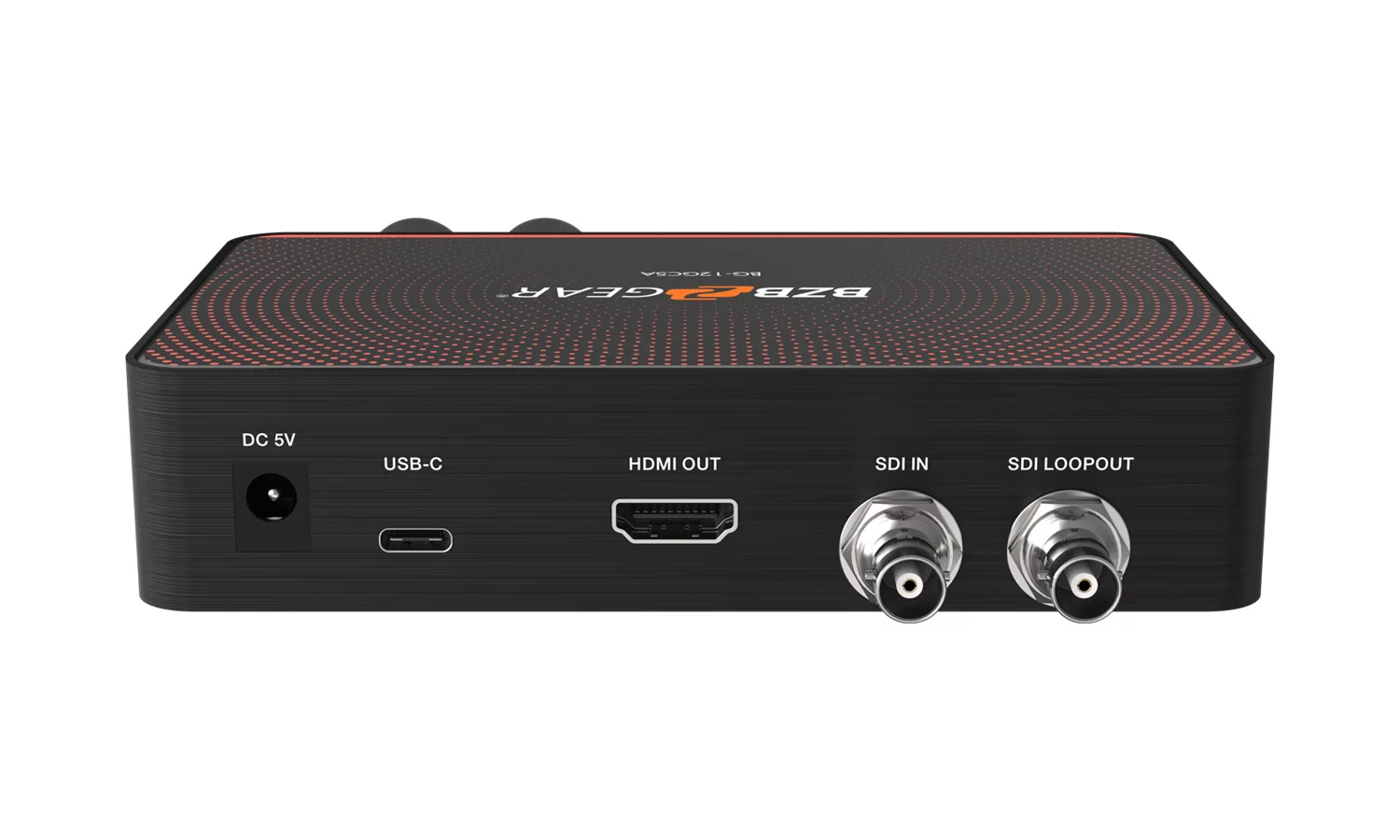

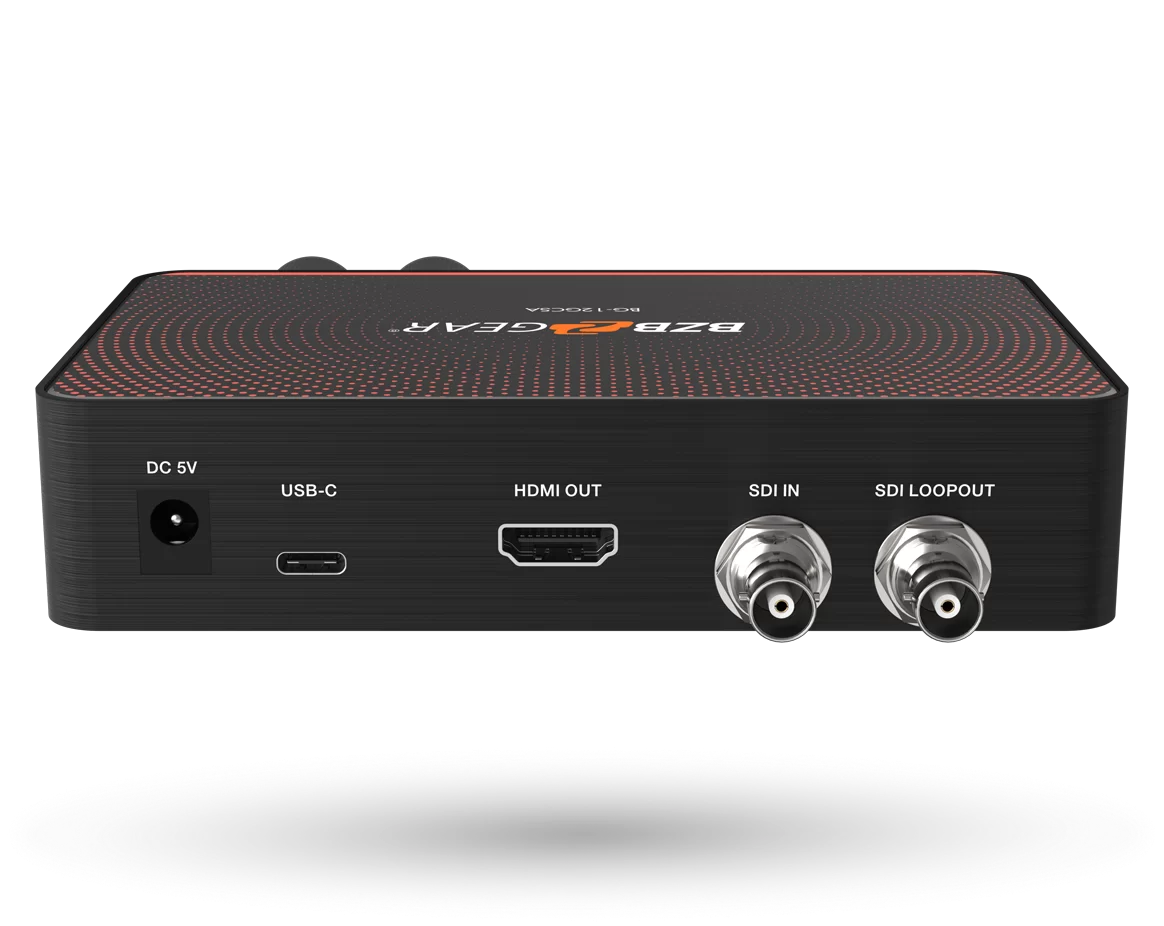

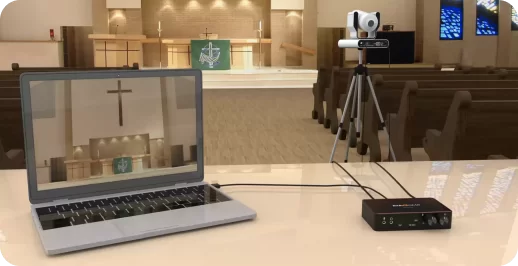

Utilize HDMI Output

Connect to a separate monitor for real-time monitoring or displaying your content via the HDMI output port.

Utilize SDI Loop-Out Port

Seamlessly integrate with external SDI systems or monitors by utilizing the SDI loop-out port to transmit SDI image sources for monitoring purposes.

Videos

Insane 4K Capture Cards for Video Games from BZBGEAR | InfoComm 2024
Insane 4K Capture Cards for Video Games from BZBGEAR | InfoComm 2024
SO EASY! Record Gameplay to Capture Card in OBS - BG-4K120CHA
SO EASY! Record Gameplay to Capture Card in OBS - BG-4K120CHA
High End 4k Capture Cards and Devices from BZBGEAR | ISE 2024
High End 4k Capture Cards and Devices from BZBGEAR | ISE 2024
Elevate Your Video Capture Card with USB-C and 12G-SDI: Introducing BG-12GCSA
Elevate Your Video Capture Card with USB-C and 12G-SDI: Introducing BG-12GCSA
Captivating Clarity: Introducing BG-12GCSA USB-C 12G-SDI Video Capture
Captivating Clarity: Introducing BG-12GCSA USB-C 12G-SDI Video Capture

Tech Specifications

Model Name BG-12GCSA
Technical
Role of usage Video Capture Device
Input/loopout Video bandwidth [SDI] 11.88 Gbps, 11.88/1.001 Gbps
Output bandwidth Up to 5 Gbps (USB-C)
Video support (USB-C) Up to 4K2K@30/1080P@120
Video support (Loopout) Up to 4K2K@60
Input Video Support [12G-SDI] 4K2K @50/59.94/60Hz
[6G-SDI] 4K2K @23.98/24, 25, 29.97, 30Hz
[3G-SDI] 1080p50/59.94/60Hz
[HD-SDI] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz
Audio Input SDI Embedded Audio & Stereo audio Input
Audio Support HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch, Stereo audio up to 2ch
Recording Video Format RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0)
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Cable equalization [12G-SDI] Input up to 30m; Loopout up to 70m
[6G-SDI] Input up to 70m; Loopout up to 120m
[3G-SDI] Input up to 200m; Loopout up to 200m
Firmware update USB-C Port
Input 1x BNC(SDI) + 1x 3.5mm
Output 1x USB-C + 1x HDMI + 1x BNC(SDI) + 1x 3.5mm + 1x Toslink
HDMI connector Type A [19-pin female]
USB connector USB 3.1 Type C (SuperSpeed USB)
Software compatibility
(not a complete list)
OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support Windows 7 /8.1 /10/11, Mac and Linux OS
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 5.4" x 3.2" x 1.2" [137 x 81 x 30mm]
Package 7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
Weight Model 7.3 oz [207g]
Package 1 lbs [492g]
Power supply 5V DC
Power consumption 8 Watts [max]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]

PACKAGE CONTENTS

  • 1x BG-12GCSA
  • 1x USB 3.0 A to C Cable (host to device)
  • 1x User Manual

Interfaces

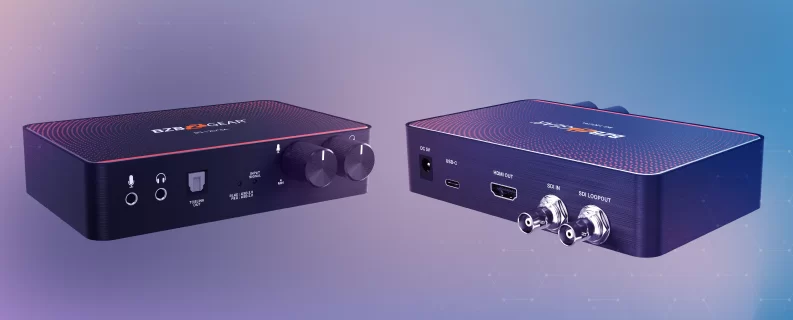

Interfaces image

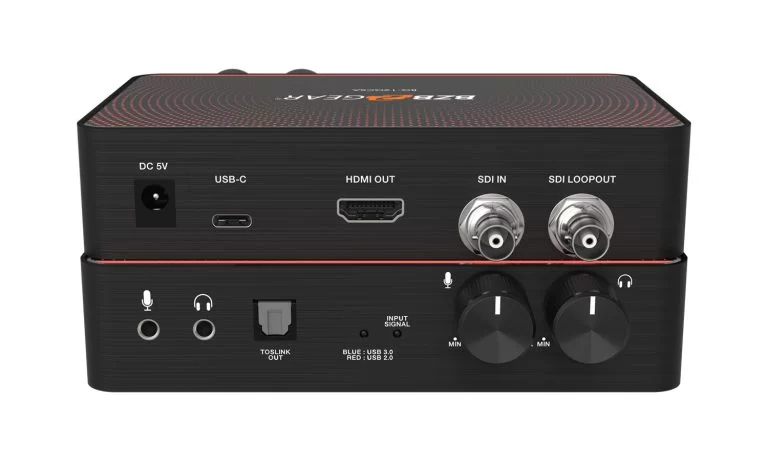

  1. STEREO AUDIO IN: Connect to an analog stereo audio source.
  2. STEREO AUDIO OUT: Extract audio from SDI input.
  3. TOSLINK OUT: Extract audio from SDI input.
  4. LED INDICATOR: USB-C LED signal indicator
    [Red] The device is connected to the USB 2.0 port on the host
    [Blue] The device is connected to the USB 3.0 port on the host.
  5. LED INDICATOR: SDI input signal indicator LED.
  6. STEREO AUDIO IN VOLUME KNOB: Adjust the stereo audio in sound level.
  7. STEREO AUDIO OUT VOLUME KNOB: Adjust the stereo audio out sound level.
  8. +5V DC: 5V DC power jack.
  9. USB-C OUT: Connect to a USB host.
  10. HDMI OUT: Connect to a HDMI display.
  11. SDI IN: 12G/6G/3G/HD-SDI Input.
  12. SDI LOOPOUT: 12G/6G/3G/HD-SDI loopout.
