Overview

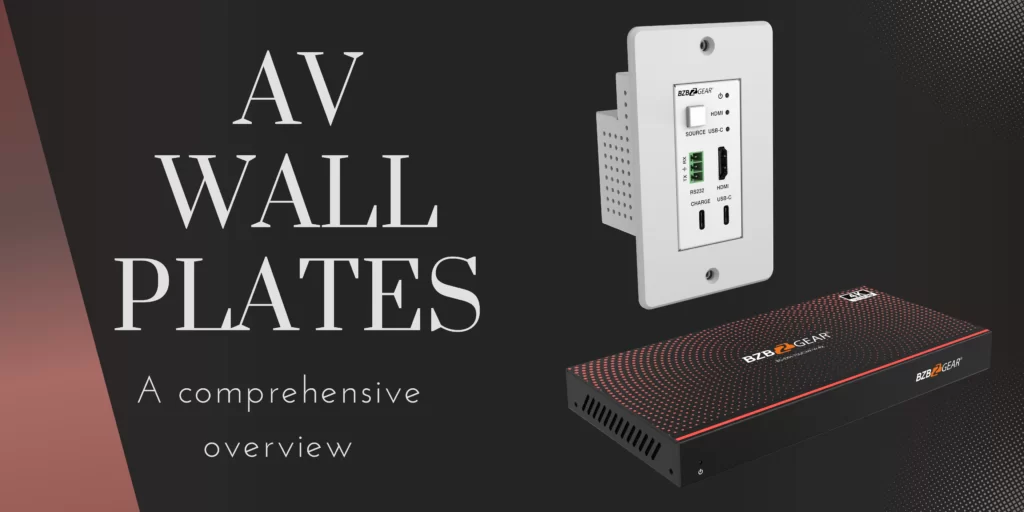

An audio-visual (AV) wall plate extender kit functions as both an HDMI/DP extender over CAT and a wall plate for cleaner integration. This kit includes a transmitter and a receiver. The wall plate component acts as the transmitter, connecting with source devices such as HDMI or DP/USB-C inputs.

The receiver, typically linked to the display via HDMI, receives the signal. The HDMI/DP signal entering the transmitter is converted into an Ethernet signal and then extended to the receiver. At the receiver end, the signal is transmitted to a display. The signal can be switched using front panel buttons and IR.

How It Works

How AV Wall Plates are Used

Our AV wall plates are popular for various applications, including HDMI wall plate solutions for home entertainment, HDMI and DP wall plates for professional AV installations, and USB wall plates for conference rooms. Here are some popular AV wall plate use cases:

AV wall plates for home theater

BZBGEAR AV wall plates allow users to set up and route video signals easily in home theaters or simple home entertainment systems. The stylish one-gang Decora-style enclosure offers a clean and professional-looking installation for the transmitter. At the same time, the compact receiver is designed to be discreetly mounted, such as behind the display.

AV wall plates for professional video distribution

BZBGEAR's AV wall plates provide high-quality HDMI/DP signal extensions for professional AV installations of all sizes, including commercial AV, residential AV, and retail, ensuring professional results.

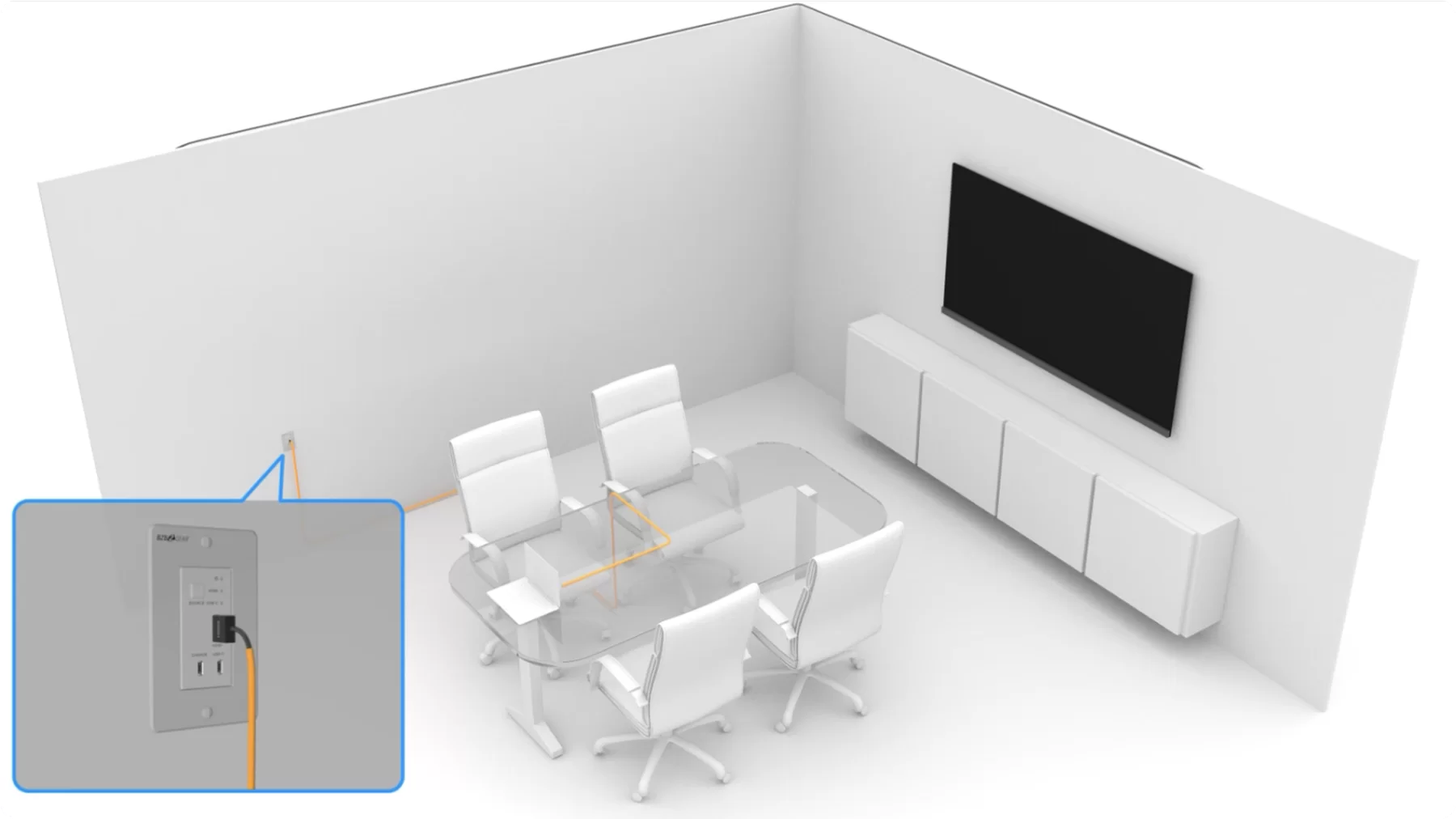

AV wall plates for conference rooms

BZBGEAR AV wall plates provide quality HDMI and USB-C support, making them ideal for conference room AV setups. Additionally, the wall plate enclosure can be integrated into a conference room table for easy access.

Contact a BZBGEAR representative to learn more about how an AV wall plate extender kit can benefit your environment.

How AV Wall Plates are Used

Features

Sleek and Discreet

The transmitter is housed in a sleek one-gang Decora-style enclosure, while the receiver is compact and easy to mount
Extended Transmission

CAT6 output extends video transmission distance significantly, up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 4:4:4, using a single CAT5e/6 cable
High-Speed Video

The HDMI input supports a high-speed 18Gbps video bandwidth, while the USB-C input supports a 5.4Gbps video bandwidth
Audio Support

Supports a wide range of HDMI audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
Power Over Cable (POC)

Features Power Over Cable functionality, enabling power transmission from Receiver to Transmitter, simplifying setup, and reducing cable clutter
Standards Compliance

Compliant with industry standards, including HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a. (An adapter may be required for DisplayPort with certain models).
