Split your HDMI signal to view on multiple displays

Configure the Perfect Solution

Get Started

Comparison Table

SKU	Supported Configuration	Max Resolution	Audio Formats	Control Options	HDMI Compliance	HDCP Compliance	Video Bandwidth
BG-8K-DA14A	1X4	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA12A	1X2	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-DA-18G2	1X8	4K@60Hz 4:4:4	All known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-18	1X8	4K@60Hz 4:4:4	All known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-1X2AS	1X2	4K@60Hz 4:4:4	HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. L/R Audio Format: PCM 2.0	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA2X8	2X8	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, and DTS-HD® Master Audio pass-through	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA1X24	1X24	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA1X16	1X16	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-1X4AS	1X4	4K@60Hz 4:4:4	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, PCM 2.0	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-SC1X2	1X2	4K@60Hz 4:4:4	Embed audio using 3.5mm stereo or de-embed using 3.5mm stereo or S/PDIF digital Coaxial	EDID Dip Switch	HDMI 2.0 & Below	HDCP 2.2	18Gbps
BG-DA-14	1X4	4K@60Hz 4:4:4	LPCM 7.1CH, Dolby TrueHD, DTS-HD	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps

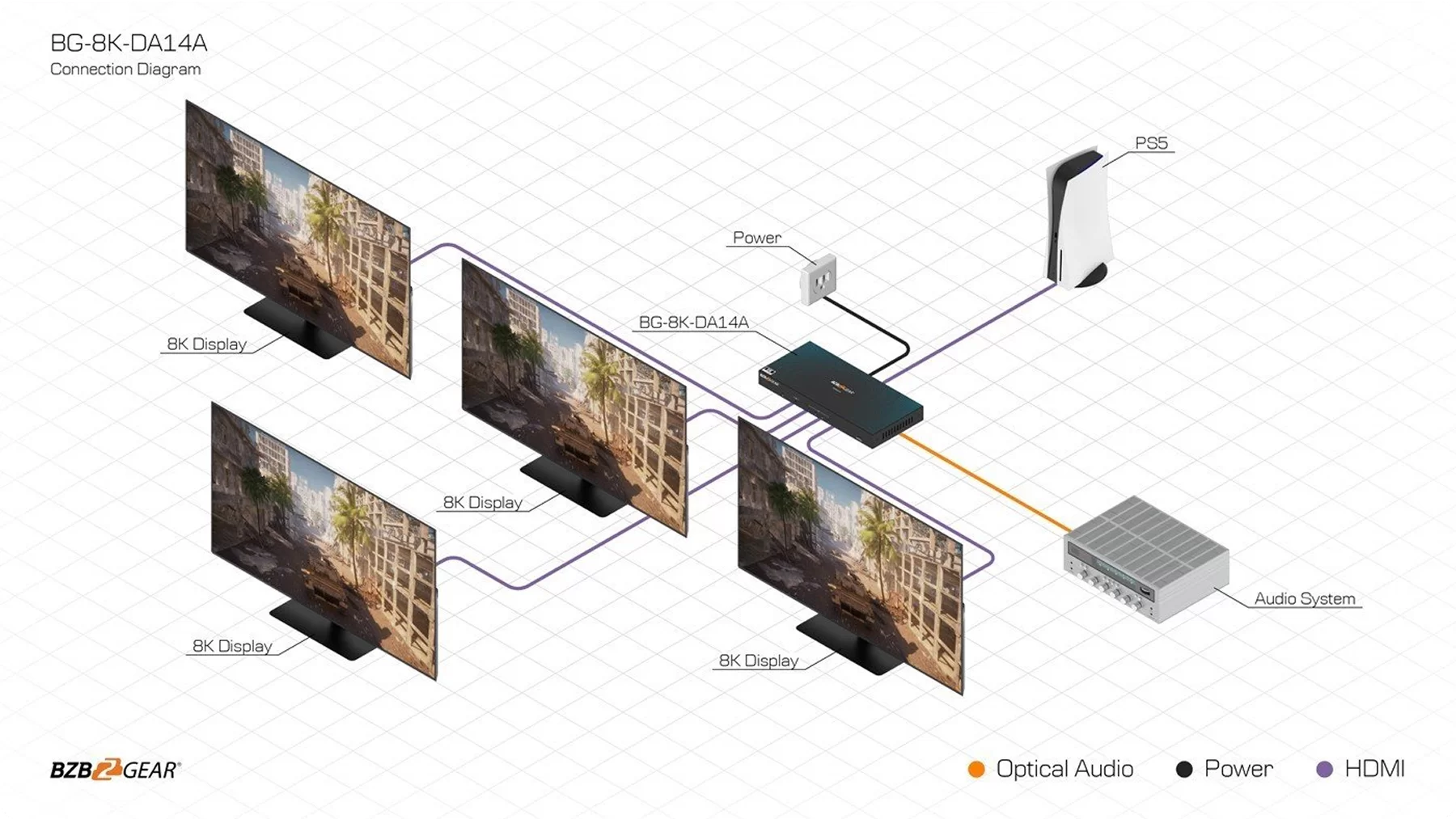

From One to Many

BZBGEAR HDMI signal splitters are designed to share a single HDMI source to multiple displays. They are perfectly suited for applications like sports bars or auditoriums, removing the need for multiple source devices, simplifying installation and adding reliability to a system.

Centralize Your Wiring

The inclusion of an HDMI splitter in your system design creates a single point of connection for all of your displays, easing troubleshooting and eliminating the messy wiring and clutter that multiple source devices can create.

How do HDMI Splitters Work?

HDMI splitters split an HDMI source into multiple HDMI outputs. Plug your desired HDMI input into your HDMI splitter then connect your other HDMI cables to the HDMI splitter to use as outputs for your desired HDMI input source.

Do HDMI Splitters Reduce Quality?

No, HDMI splitters just copy the digital signal so the quality should not get reduced automatically. If you are using lower quality hardware to split your signal, you can experience a low quality. You may also experience a lower quality if you are using a non-powered HDMI splitter or extending your HDMI signal over a very long cable. HDMI cables tend to have signal interruptions when extended over 50ft. Other than those exceptions, you should not experience reduced quality when using a high quality HDMI splitter.

Features

LARGE SCALE SPLITTERS

Share an HDMI source with up to 24 displays
4K UHD

Resolutions up to 4K@60Hz HDR supported
HDMI

HDMI 2.0a compliant, HDCP 2.2 compliant
HDMI+CEC

The BG-UHD-DA2X8 features on/off controls for connected displays
ADVANCED EDID MANAGEMENT

Compatible models offer EDID management for increased reliability
ANALOG AUDIO EXTRACTION

Compatible models feature analog audio outputs
Digital Audio Extraction

Compatible models feature TOSLINK outputs
3 YEAR WARRANTY

Parts & Labor covered for 3 years.
