Video Wall Processors
Comparison Table
| SKU | CONFIGURATION | MAX RESOLUTION | CONTROL | SUPPORTED CONNECTIONS | AUDIO SUPPORT | SCALER | MATRIXING | HDCP COMPLIANCE |
|---|---|---|---|---|---|---|---|---|
| BG-UHD-VWP-1X4 | 1X3/1X4/2X2/ 4X1/ETC | 4K@60Hz 4:4:4 | IR REMOTE CONTROL/ETHERNET /USB (VIRTUAL)/FRONT PANEL BUTTONS/CLOUD CONTROL | HDMI 2.0A | YES | YES | × | 2.2 |
| BG-UHD-VW2X2 | 1X1/2X2/1X2/ 1X3/1X4/2X1/ 3X1/4X1/ETC | 4K@60Hz 4:4:4 | IR REMOTE CONTROL/FRONT PANEL BUTTONS/RS-232 | HDMI 2.0 | YES | × | × | 2.2 |
| BG-UHD-VW24 | 2X2/2X1/ETC | 4K@60Hz 4:4:4 | IP/RS232/TCP/IP/ RS-232/HDMI CEC/PC SOFTWARE | HDMI 2.0 | YES | × | × | 2.2 |
| BG-UHD-VW29 | 3X3/2X2/1X3/ 3X1/ETC | 4K@60Hz 4:4:4 | IP/RS232/TCP/IP /RS-232/HDMI CEC/PC SOFTWARE | HDMI 2.0 | YES | × | × | 2.2 |
| BG-MVS4X4-4KL | 4X4/2X2/1X4/ 1X2/2X1/ 4X1/ETC | 4K@60Hz 4:4:4 | IP/RS232/TCP/IP /RS-232/HDMI CEC/PC SOFTWARE | HDMI 2.0B | YES | YES | YES | 1.4, 2.2 |
| BG-4K-VP44 | 1X4/2X2/ETC | 4K@60Hz 4:4:4 | IR REMOTE/RS-232/WEB GUI/FRONT PANEL BUTTONS/TCP/IP/BG-SWITCH-CONTROL | HDMI 2.0B | YES | YES | YES | 1.4, 2.2 |
| BZ-MVS8X8-4K | 8X8/1X2/2X2/ 3X2/ETC | 4K@60Hz 4:4:4 | FRONT PANEL BUTTONS/RS232/BI-DIRECTIONAL IR/WEB INTERFACE | HDMI 2.0 | YES | YES | YES | 2.2 |
| BG-4K-VP88 | 2X2/2X4/ETC | 4K@60Hz 4:4:4 | IR REMOTE/RS-232/WEB GUI/FRONT PANEL BUTTONS/TCP/IP/BG-SWITCH-CONTROL | HDMI 2.0B | YES | YES | YES | 1.4, 2.2 |
| BG-4K-VP44PRO | 1X4/2X2/ETC | 4K@60Hz 4:4:4 | IR REMOTE/RS-232/WEB GUI/FRONT PANEL BUTTONS/TCP/IP/BG-SWITCH-CONTROL | HDMI 2.0B, CAT 5e/6/7 | YES | YES | YES | 1.4, 2.2 |
| BG-4K-VP99PRO | 2X3/3X3/ETC | 4K@60Hz 4:4:4 | IR REMOTE/RS-232/WEB GUI/FRONT PANEL BUTTONS/TCP/IP/BG-SWITCH-CONTROL | HDMI 2.0B, CAT 5e/6/7 | YES | YES | YES | 1.4, 2.2 |

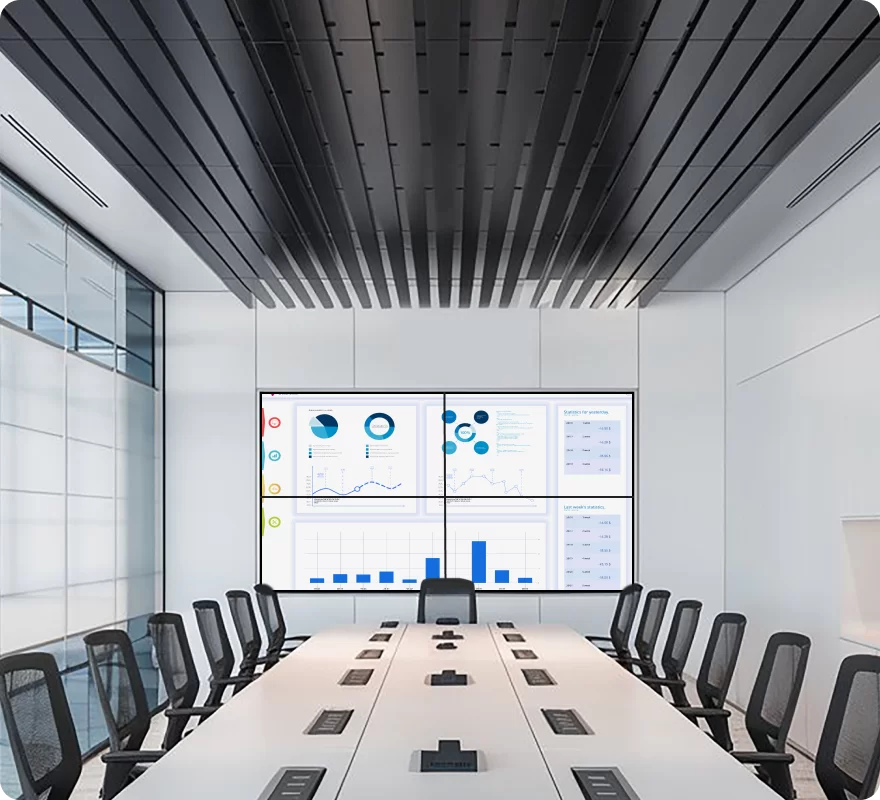

What is a Video Wall?
A video wall is a display made up of multiple screens that are positioned to appear as one large screen. Video walls can be configured to display different images on each individual screen or the individual screens can all be used to display a single image. Video walls also provide a greater screen area per unit cost and provide a greater pixel density per unit cost. This is due to the economics of manufacturing single screens which are unusual in size, shape and resolution.
From Big Screen to Bigger Screen
BZBGEAR’s Video wall processors let you create large-scale video wall arrangements. Large format displays can be expensive. Combining several smaller displays with a video wall processor can create an even larger display for less! Our video wall processor will also provide a greater pixel density per unit cost. That way, you can also get a higher quality image than you would with a large format display.
Video Wall Solutions

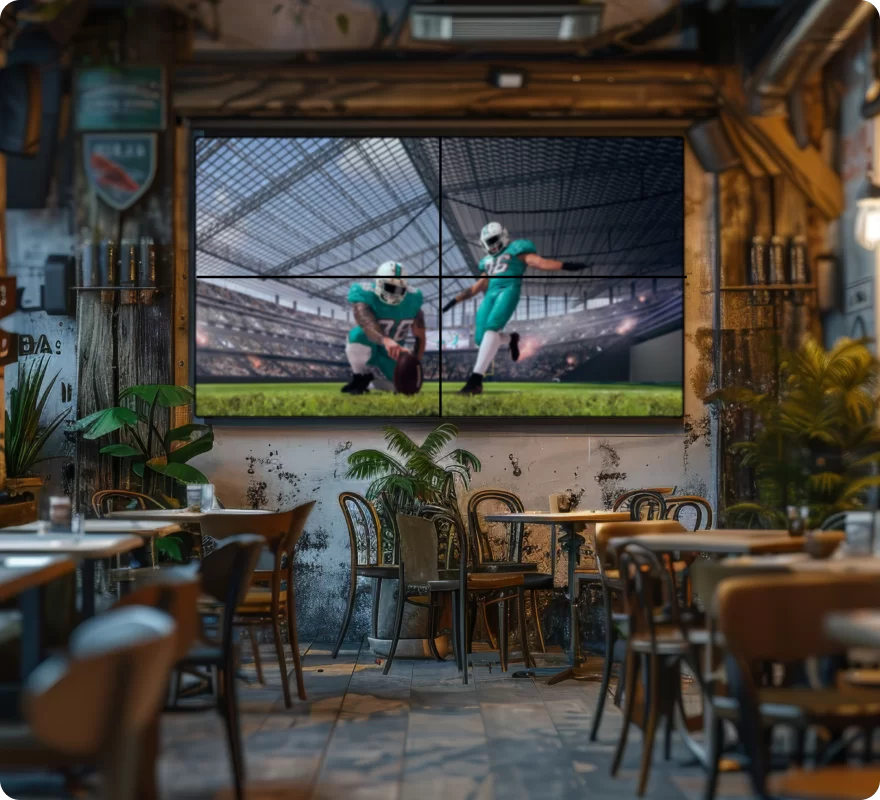

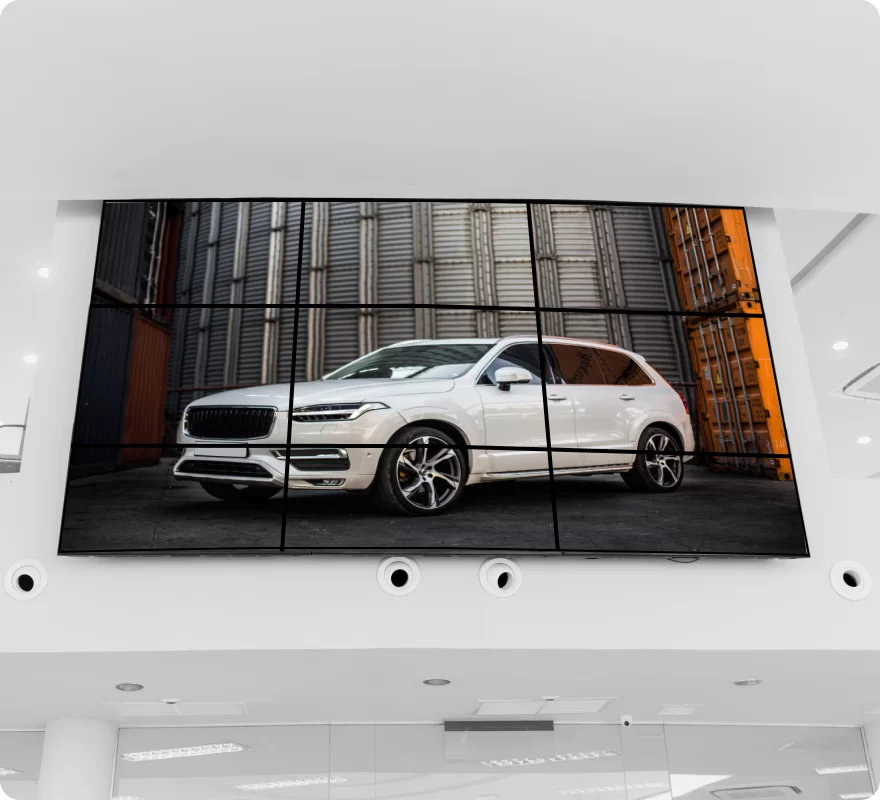

Create attention-grabbing displays with a video wall processor. With a video wall processor you can create captivating displays for venues such as live events, restaurants and sports bars. For those who work in the houses of worship industry, video wall processors are more than capable of creating video walls for churches. Video wall processors are also perfect for advertising products and services in retail spaces, or creating impressive demonstrations at trade shows. Overall, video walls will help set you apart from the competition!
Ultra HD for Less
BZBGEAR video wall processors can output resolutions up to 4K@60Hz, allowing you to produce sharp images with realistic details on a large-scale display. Did you know that combining four 1080P displays in a 2x2 configuration creates a 4K UHD video wall?
COMPREHENSIVE CONTROL
Our dedicated software will give you access to important settings like display grouping, layouts, and bezel correction. RS-232 control allows third-party systems to easily control settings such as power and source selection. Additionally, audio de-embedding options give users the ability to connect external audio systems.
Features
-
SOFTWARE CONTROLLABLECertain models include a PC utility for configuration and control -
UITRA-HDResolutions up to 4K@60Hz HDR supported -
HDMIHDMI 2.0a compliant, HDCP 2.2 compliant -
SCALABLEVideo wall sizes up to 3x3 are supported with certain models -
AUDIO DE-EMBEDDINGAudio signals can be extracted from an HDMI source to connect external audio systems -
PLUG AND PLAYThe BG-UHD-VW2X2 requires zero setup! -
IMAGE ROTATIONCertain models support image rotation for enhanced display compatibility -
3 YEAR WARRANTYParts & Labor covered for 3 years.
The BZBGEAR Difference
BZBGEAR offers the industry’s best warranty for all products, ensuring unparalleled protection for our clients. Beyond the initial sale, our commitment to service and support extends far into the future. With BZBGEAR, clients can confidently specify, purchase, and install, knowing they have unmatched coverage even in the rare event it’s needed.
